Plan 780004KYD

4-Bed New American House Plan with Workshop - 2220 Sq Ft

Heated S.F.

2,220

Beds

4

Baths

3

Stories

2

Cars

2

Floor Plan

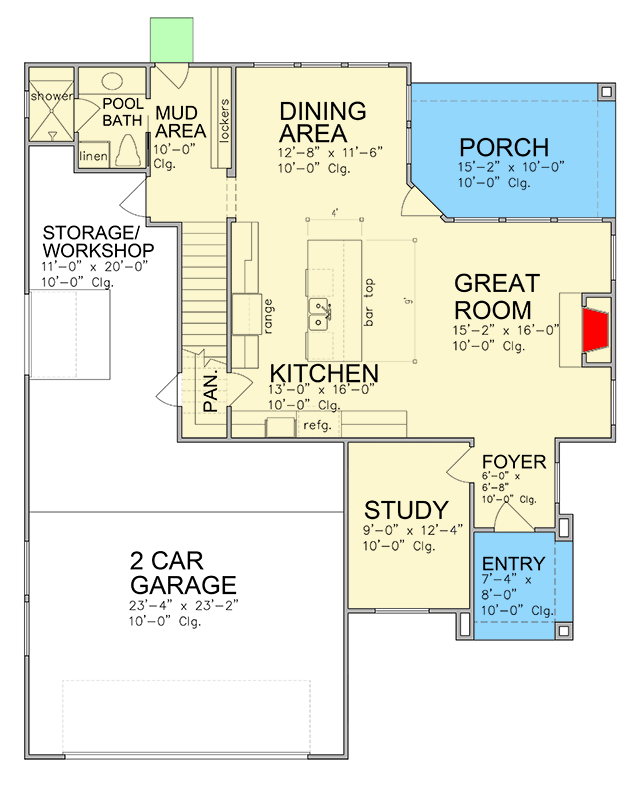

Main Level

floor plan image Main Level

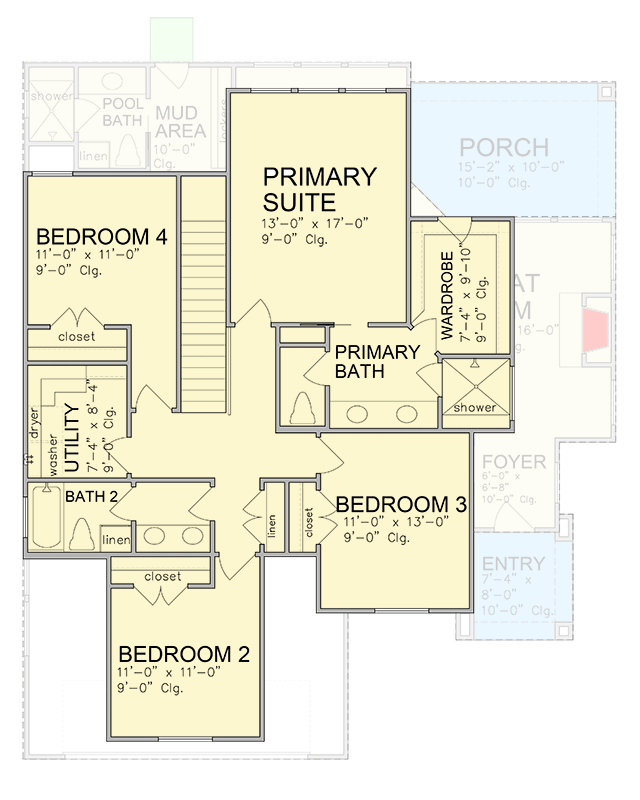

2nd Floor

floor plan image 2nd Floor

Plan Details

This two-story home is thoughtfully designed with all the bedrooms, including the primary suite, located upstairs for privacy and convenience.
The main level is an open and inviting space, featuring a seamless flow between the kitchen, great room, and dining area. The kitchen is spacious, offering plenty of counter space and modern amenities, perfect for both everyday living and entertaining.
Adjacent to the foyer, a study provides a quiet place. At the rear of the house, you'll find a mudroom, which includes a convenient pool bath, and a door that leads directly outside—ideal for keeping the house tidy after a swim or outdoor activities.
The upstairs also features three additional bedrooms, perfect for kids or guests, and a shared bathroom equipped with double sinks to accommodate multiple users.
The home also includes a 2-car garage with a substantial storage area or workshop, offering ample space for hobbies, tools, or additional storage needs.

What's Included

Cover Sheet
Floor Plan (s)
Exterior Elevations
Electrical Plan and Interior Elevations
Cross Section and Ceiling Framing Plan
Roof Plan and Foundation plan
Detail

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,220 sq. ft.

1st Floor

1,004 sq. ft.

2nd Floor

1,216 sq. ft.

Porch, Front

63 sq. ft.

Porch, Rear

148 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

43' 10"

Depth

51' 8"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

784 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

2,220 sq. ft.

1st Floor

1,004 sq. ft.

2nd Floor

1,216 sq. ft.

Porch, Front

63 sq. ft.

Porch, Rear

148 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

43' 10"

Depth

51' 8"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

784 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor
