Plan 680402VR
4-Bed New American Plan with Loft and Outdoor Kitchen - 5339 Sq Ft
Heated S.F.
5,339
Beds
4
Baths
5.5
Stories
2
Cars
3
Floor Plan

Plan 680402VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680402VR

1-800-854-7852

1-262-521-4596

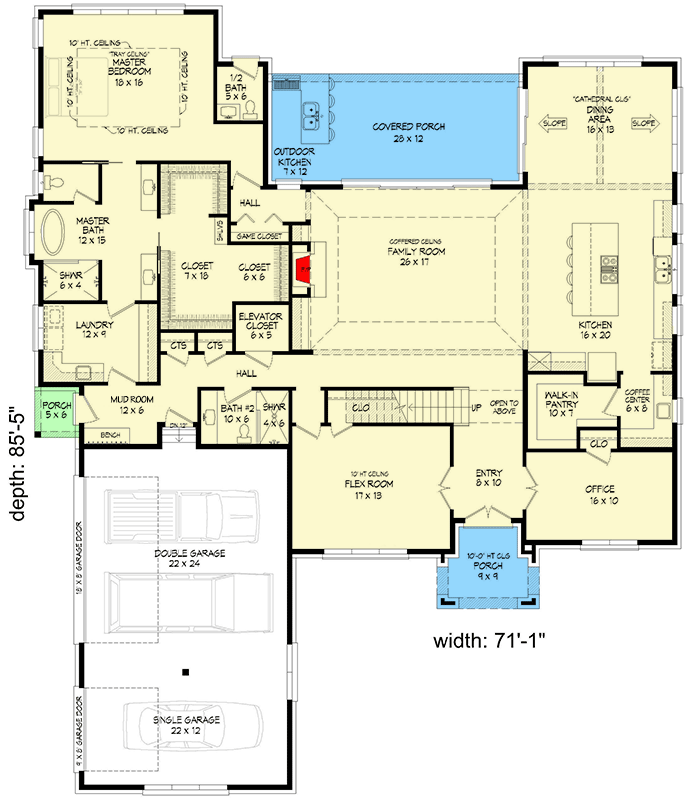

Main Level
floor plan image Main Level

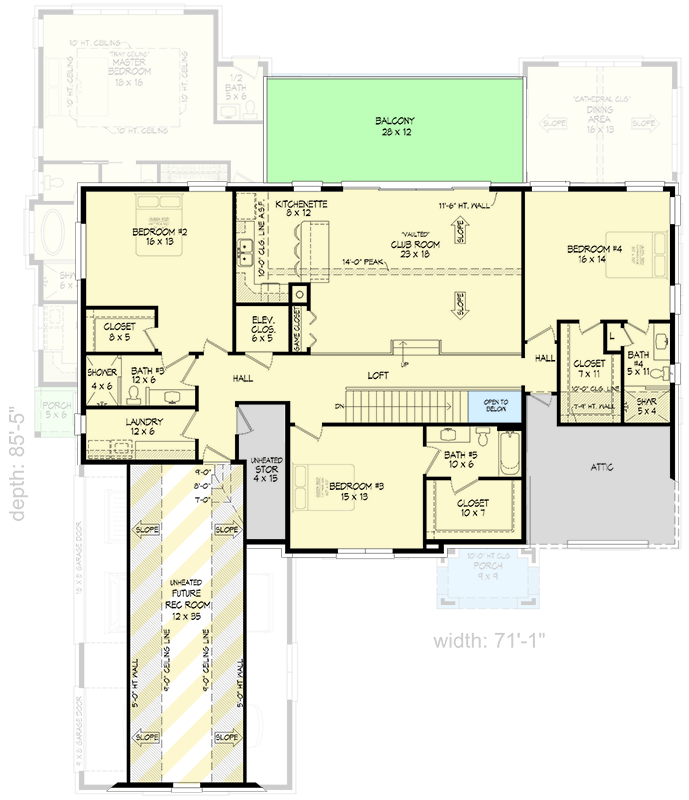

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This New American House Plan gives you 5,339 square feet of heated living space, 4 bedrooms 5.5 baths space and a side-entry 3-car garage. Upstairs an optionally finished bonus room offers 467 square feet of additional space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate exterior with house plan 680225VR (5,622 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

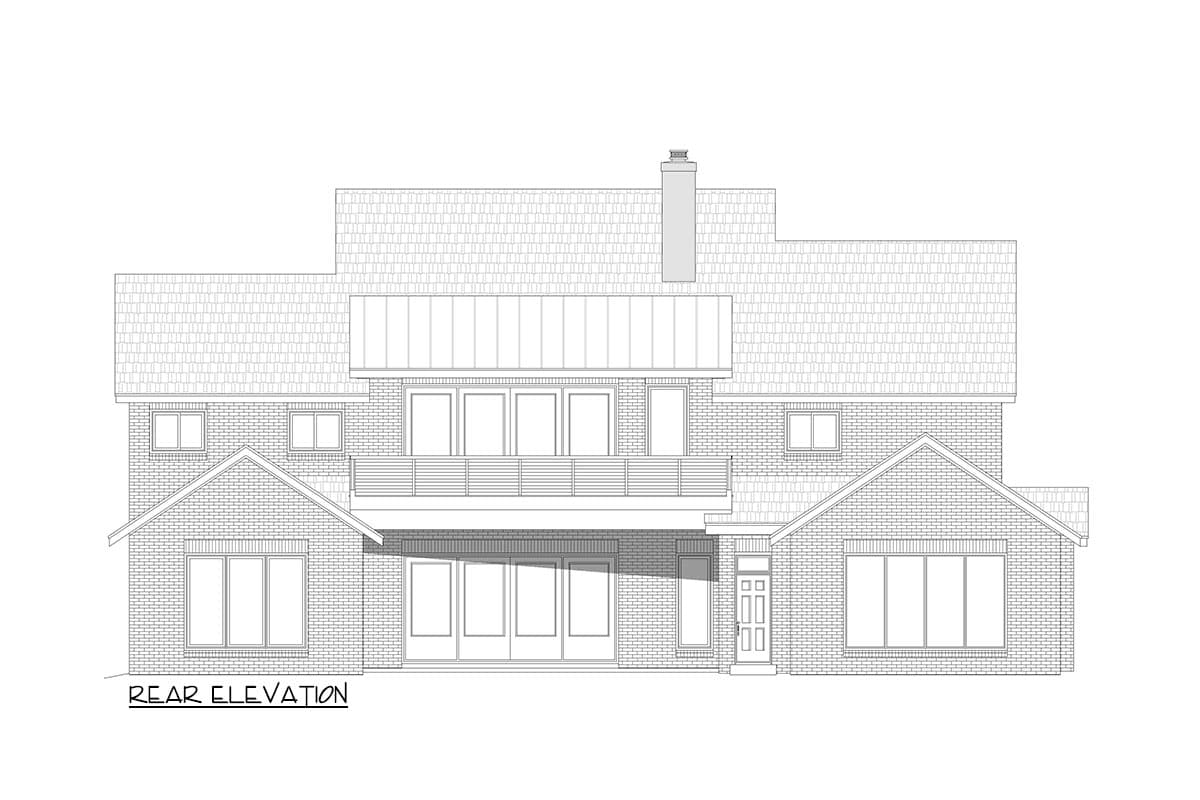

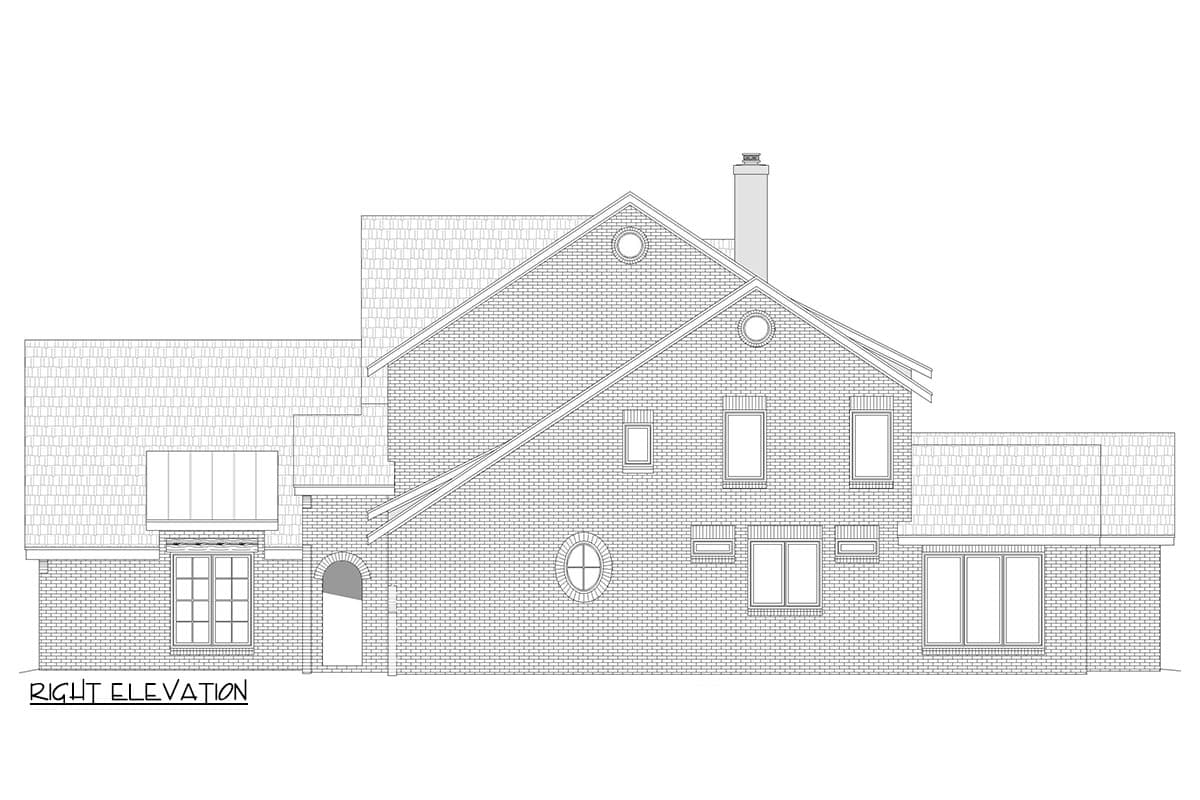

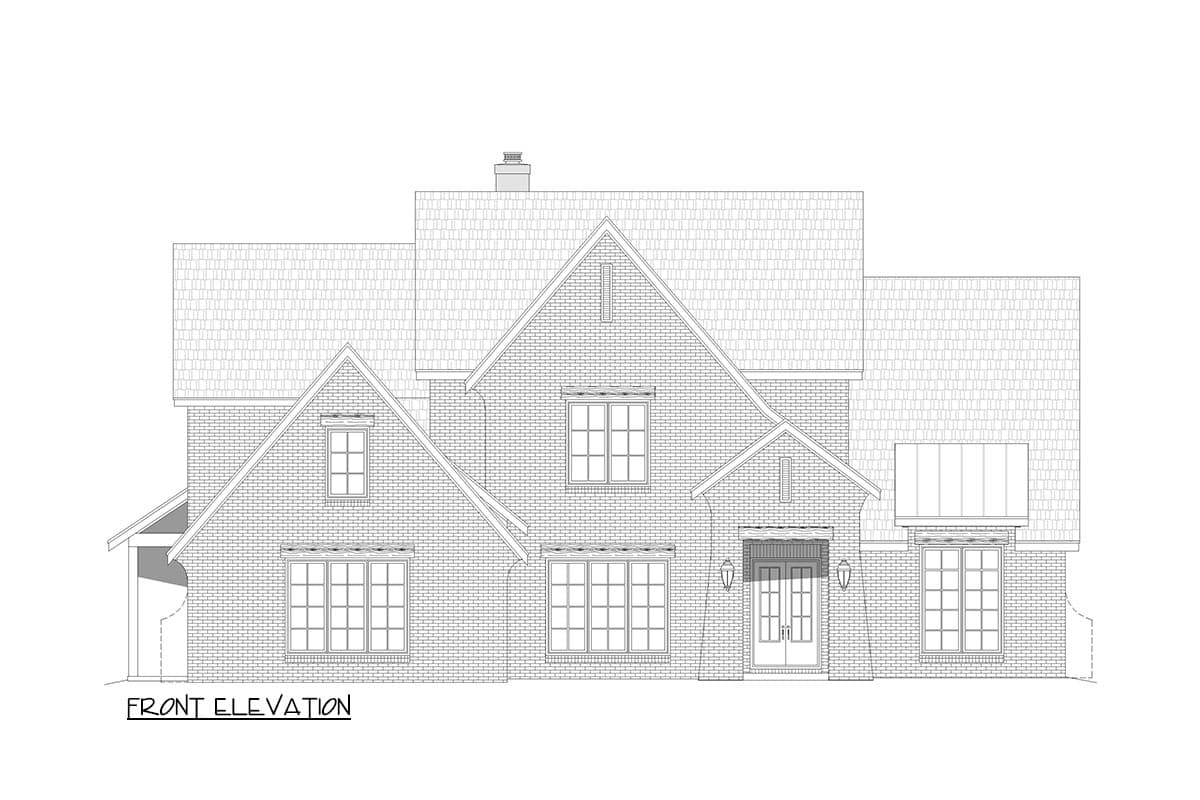

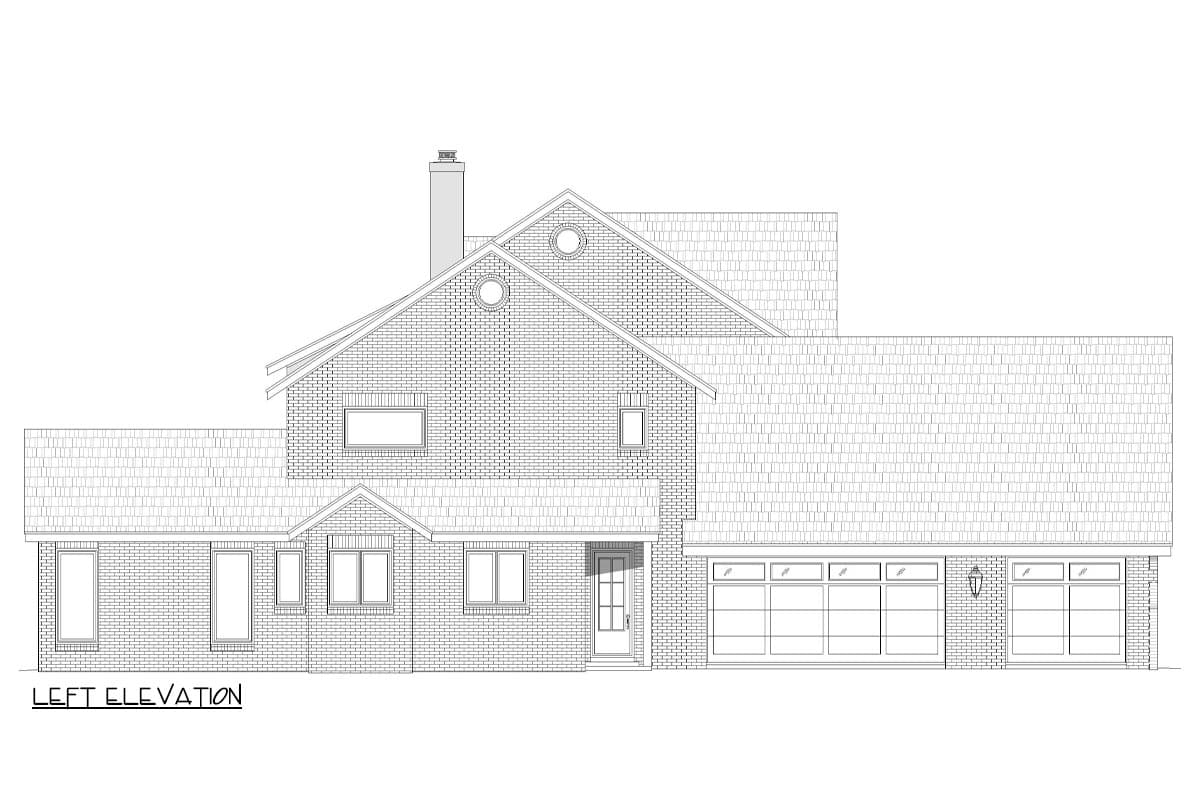

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,339 sq. ft.

1st Floor

3,166 sq. ft.

2nd Floor

2,173 sq. ft.

Bonus

467 sq. ft.

Porch, Rear

417 sq. ft.

Balcony / Veranda

333 sq. ft.

Storage

69 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 1"

Depth

85' 5"

Max Ridge Height

35' 8"

Garage

Type

Attached

Area

890 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Colonial

Modern Farmhouse

New American

Transitional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Stacked Porches

Square Footage Breakdown

Total Heated Area

5,339 sq. ft.

1st Floor

3,166 sq. ft.

2nd Floor

2,173 sq. ft.

Bonus

467 sq. ft.

Porch, Rear

417 sq. ft.

Balcony / Veranda

333 sq. ft.

Storage

69 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 1"

Depth

85' 5"

Max Ridge Height

35' 8"

Garage

Type

Attached

Area

890 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Colonial

Modern Farmhouse

New American

Transitional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Stacked Porches
