Plan 28115J
4-Bed Northwest Bungalow House Plan with Open Main Level - 2245 Sq Ft
Heated S.F.
2,245
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 28115J

Main Level
slide image 0
2nd Floor
slide image 1

Plan 28115J

1-800-854-7852

1-262-521-4596

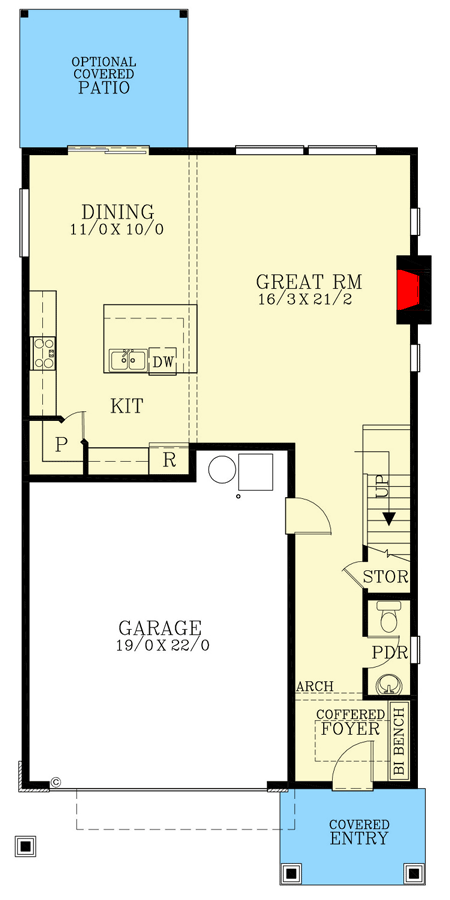

Main Level
floor plan image Main Level

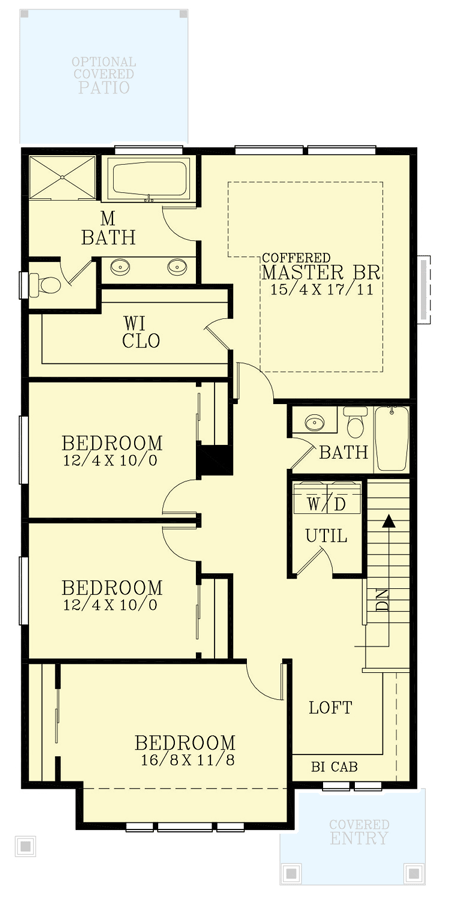

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Tapered columns add character to this 4-bedroom Northwest Bungalow house plan, which totals 2,245 square feet of heated living space.
  • From the foyer, a built-in bench serves as a drop zone and a powder bath is conveniently located nearby.

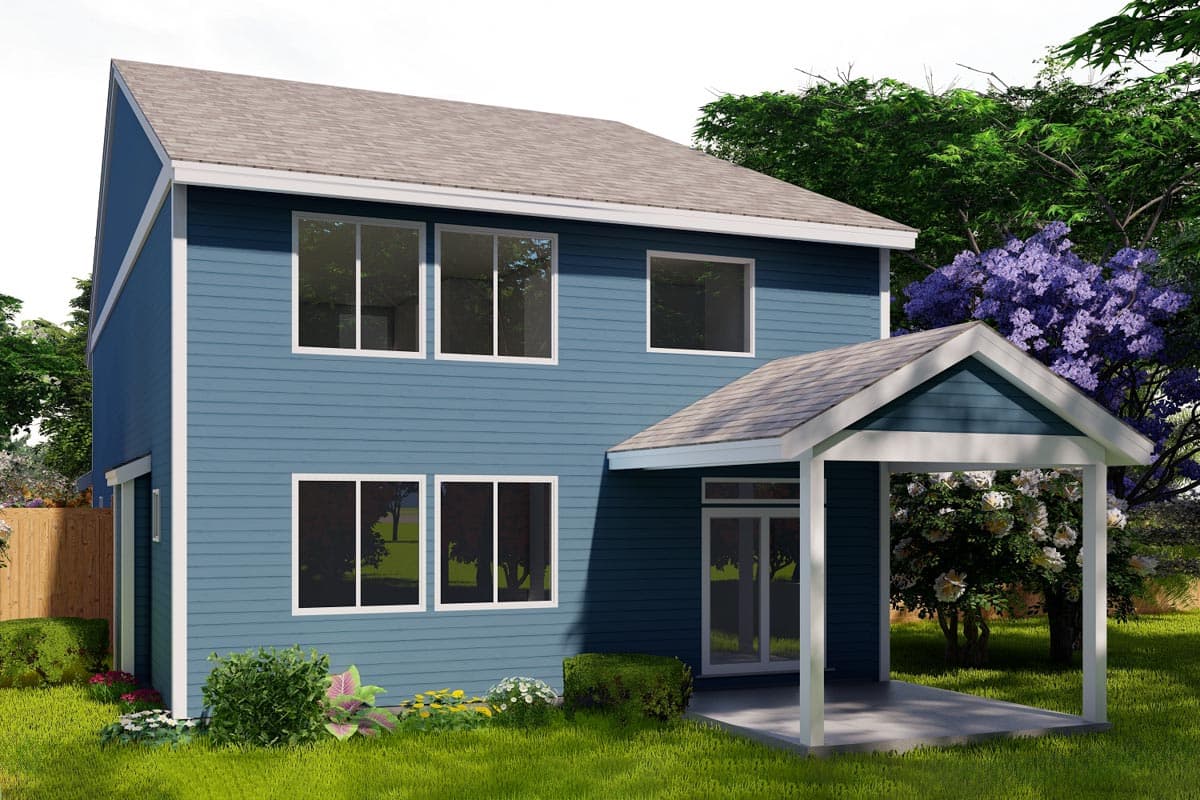

  • The open great room, kitchen, and dining area enjoys rearward views, a fireplace, and a rear patio that is perfect for grilling. The island kitchen offers a wraparound eating bar and a corner pantry.
  • The bedrooms and laundry room are located on the second level, and built-in cabinetry in the loft creates an ideal office, school room, or space for electronics.
  • The largest bedroom is given to the homeowner, complete with a tray ceiling, 5-fixture bathroom, and walk-in closet.
  • Architectural Designs curates and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify this house plan (and any you see on our site). Learn more about modifications.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,245 sq. ft.

1st Floor

885 sq. ft.

2nd Floor

1,360 sq. ft.

Porch, Front

60 sq. ft.

Porch, Rear

120 sq. ft.

Covered Patio

120 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

29' 0"

Depth

50' 0"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

470 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Coffered

8' 0''

Roof Details

Primary Pitch

12 on 6

Secondary Pitch

12 on 8

Framing Type

Truss

Architectural Style

Bungalow

Country

Craftsman

Northwest

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Breakfast Nook

Laundry - Upstairs

Loft

Master Suite - 2nd Floor
