Plan 506016BRY
4-Bed Ranch House Plan with Home Office - 2724 Sq Ft
Heated S.F.
2,724
Beds
4
Baths
3.5
Stories
1
Cars
2
Floor Plan

Plan 506016BRY

Main Level
slide image 0

Plan 506016BRY

1-800-854-7852

1-262-521-4596

Main Level

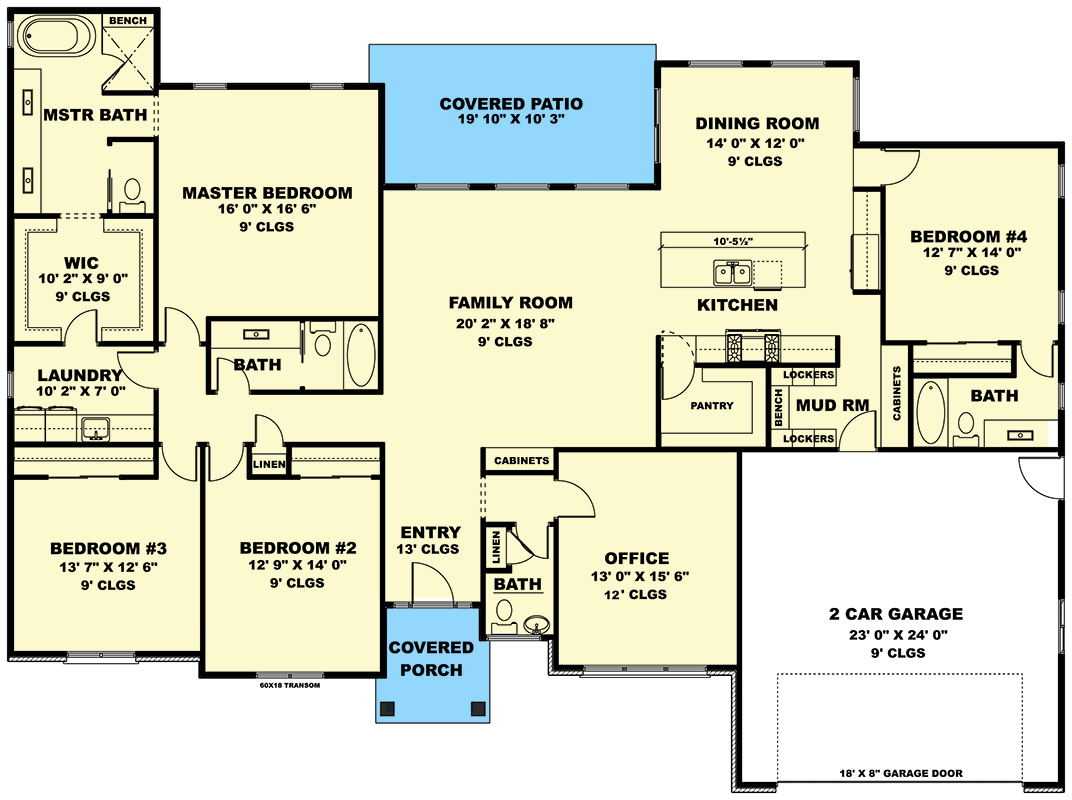

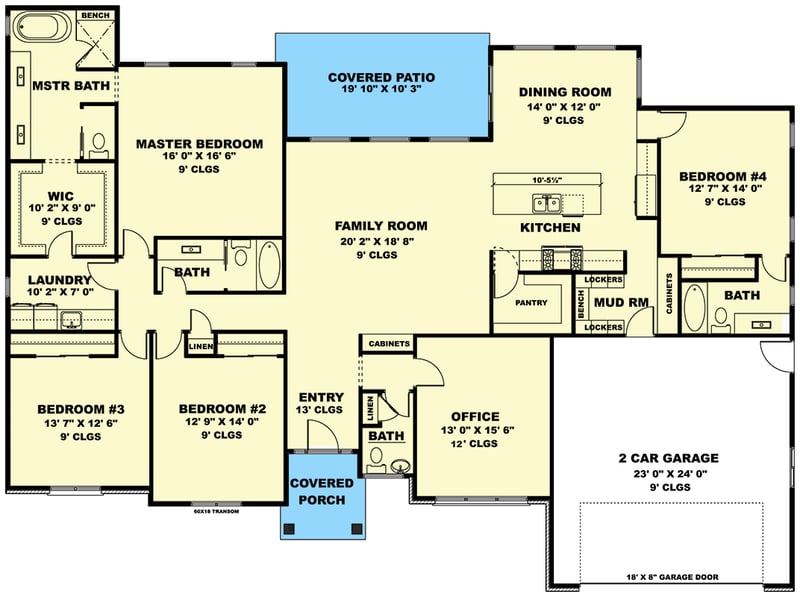

floor plan image Main Level
Plan Details
  • This ranch house plan offers you 2,724 square feet of heated living space with 4 beds, 3.5 baths and a 595 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Index Page
  • Notes
  • Foundation Plan
  • Main Floor Plan
  • Front and Rear Elevations
  • Left and Right Elevations
  • Bird’s Eye Roof Plan
  • Floor Joist Layout
  • Main Floor Electrical Plan
  • Basement Electrical Plan (if applicable)
  • Cross Sections
  • Details Page
View Sample Plan
What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,724 sq. ft.

1st Floor

2,724 sq. ft.

Porch, Front

63 sq. ft.

Covered Patio

214 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 5"

Depth

56' 5"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

595 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Ranch

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,724 sq. ft.

1st Floor

2,724 sq. ft.

Porch, Front

63 sq. ft.

Covered Patio

214 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 5"

Depth

56' 5"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

595 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Ranch

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
