Plan 48622FM

Exclusive

4-Bed Southern Home Plan with Split Beds and Study - 2397 Sq Ft

Heated S.F.

2,397

Beds

4

Baths

3

Stories

1

Cars

3

Floor Plan

Main Level

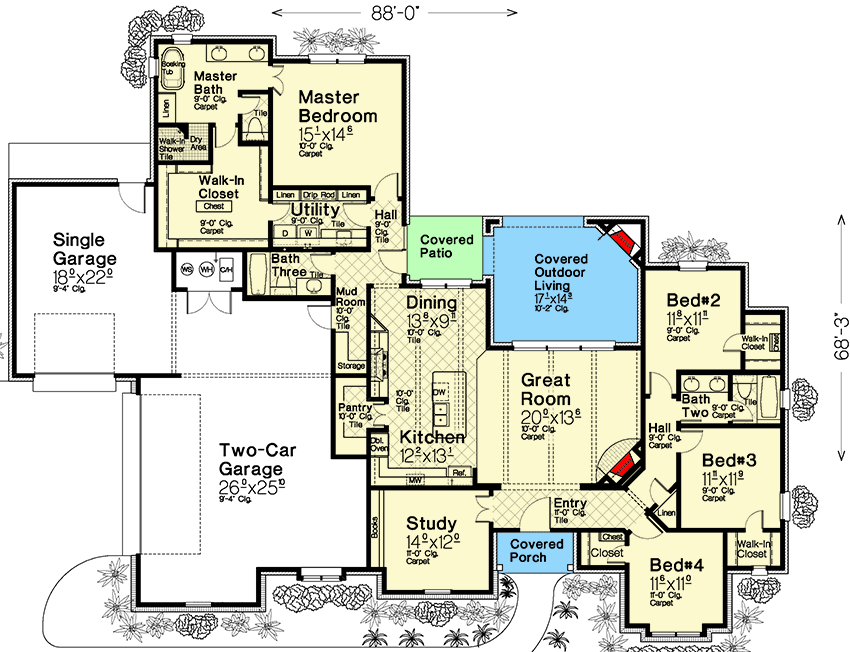

floor plan image Main Level

Plan Details

This 4 bed, 3 bath southern-style house plan gives you 2,397 square feet of heated living and 3 car front and side load garage (1169 sq. ft.).
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,397 sq. ft.

1st Floor

2,397 sq. ft.

Porch, Front

66 sq. ft.

Porch, Rear

249 sq. ft.

Deck

40 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 0"

Depth

68' 3"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

1169 sq. ft.

Count

3 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Plan Collections
