Plan 46517LA

4 Bed Southern-Style Home Plan with Vaulted Owners Suite - 3351 Sq Ft

Heated S.F.

3,351

Beds

4

Baths

4.5

Stories

1

Cars

3

Floor Plan

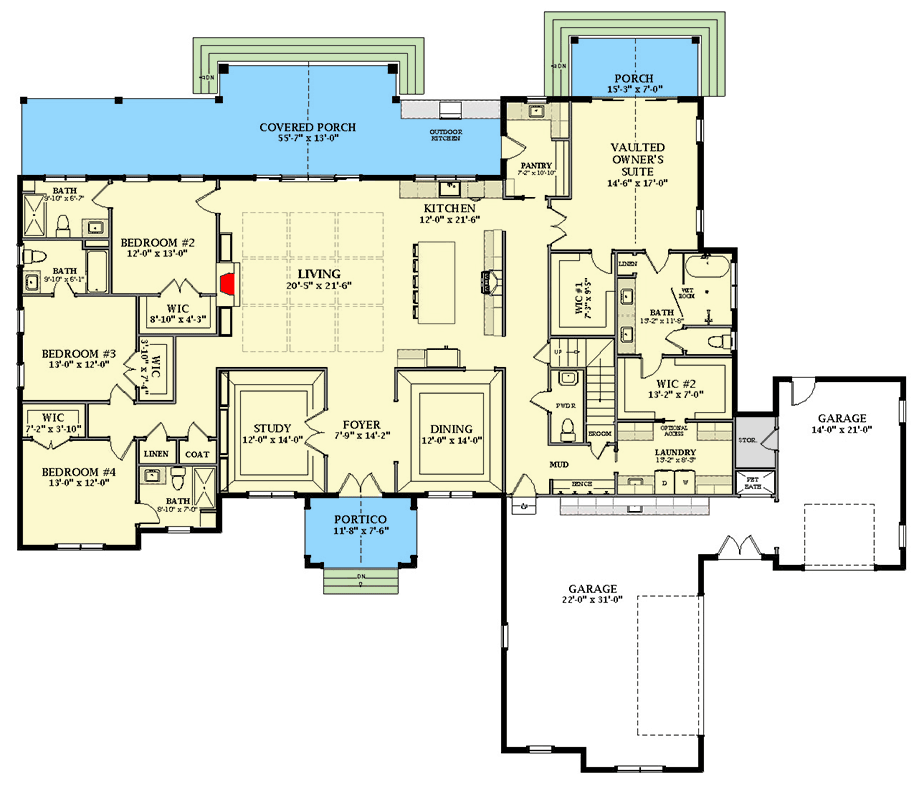

Main Level

floor plan image Main Level

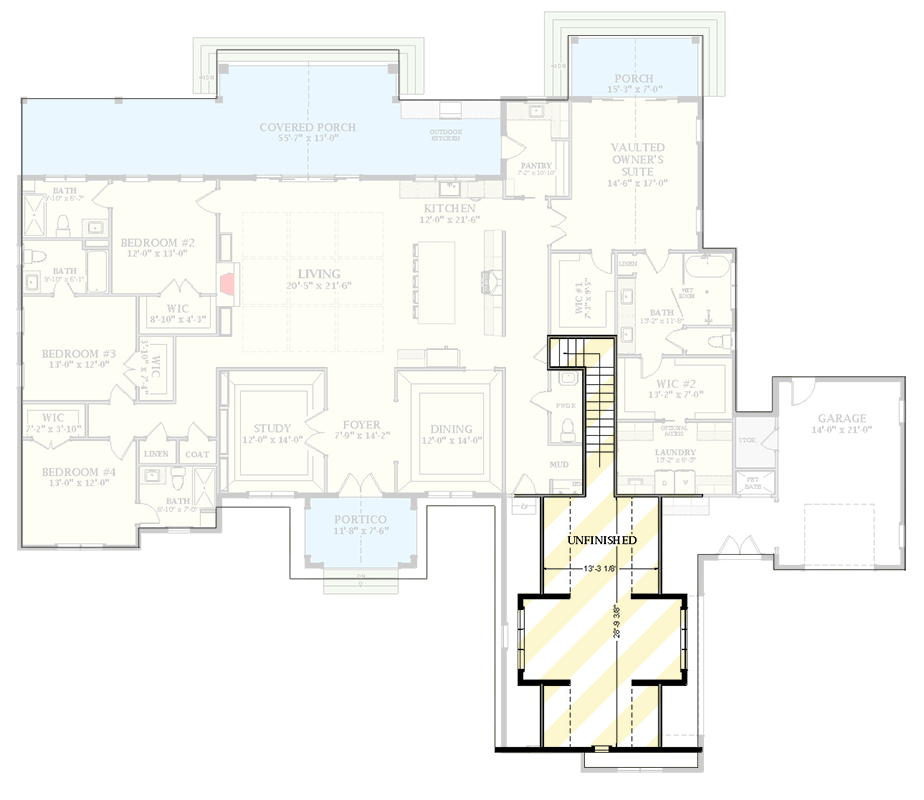

Bonus Level

floor plan image Bonus Level

Plan Details

This southern style home plan gives you 4 beds, 4.5 baths and 3,351 square feet of heated living area. A 3-car front and side load garage has 1,097 square feet of parking.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.
DELIVERY DELAY: Please allow 20 to 25 business days for delivery.

What's Included

Floor plans with window and door schedules
Roof plan
Elevations
Front and rear perspectives on some (but not all) plans
Building section, eave detail and typical stair detail
Interior perspectives and elevations
Electrical plans
Foundation plan
Floor framing plans
Ceiling framing plans
Roof framing plan

What's Not Included

DELIVERY DELAY: Please allow 20 to 25 business days for delivery.

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,351 sq. ft.

1st Floor

3,351 sq. ft.

Bonus

464 sq. ft.

Porch, Front

97 sq. ft.

Porch, Rear

700 sq. ft.

Storage

32 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

102' 0"

Depth

84' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

1097 sq. ft.

Count

3 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Kitchen
