4 Bed Southern Traditional House Plan with Angled Garage - 4978 Sq Ft
Heated S.F.
4,978
Beds
4
Baths
3.5
Stories
1
Cars
3
Floor Plan

Plan 510248WDY

Main Level
slide image 0

Plan 510248WDY

1-800-854-7852

1-262-521-4596

Main Level

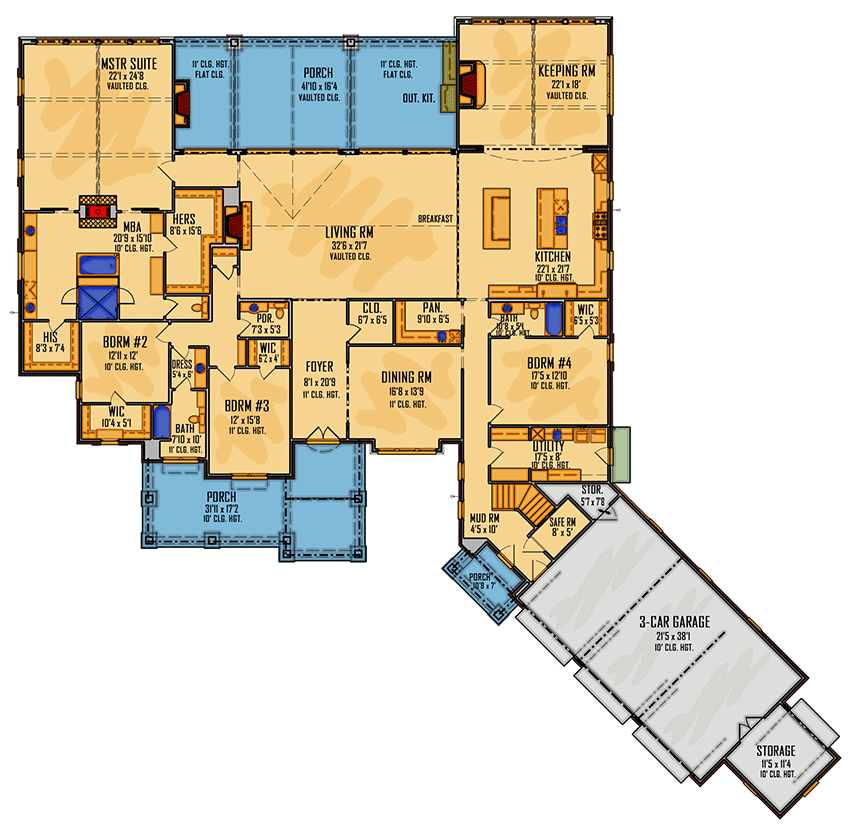

floor plan image Main Level
Plan Details
  • This one-story 4978 square foot southern traditional house plan gives you 4 beds, 3.5 baths and a 3-car 1090 square foot angled garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,978 sq. ft.

1st Floor

4,850 sq. ft.

Porch, Combined

1,171 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

121' 8"

Depth

118' 8"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

1090 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

Southern

Southern Traditional

Traditional

Special Features

Angled Garage

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Safe Room

Two Kitchen Islands

Wet Bar

Square Footage Breakdown

Total Heated Area

4,978 sq. ft.

1st Floor

4,850 sq. ft.

Porch, Combined

1,171 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

121' 8"

Depth

118' 8"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

1090 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

Southern

Southern Traditional

Traditional

Special Features

Angled Garage

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Safe Room

Two Kitchen Islands

Wet Bar
