Plan 185009PHD: 4-Bed Traditional Southern-Style House Plan under 2500 Square Feet

Plan 185009PHD

Exclusive

4-Bed Traditional Southern-Style House Plan under 2500 Square Feet

Heated S.F.

2,487

Beds

Baths

2.5

Stories

Cars

Floor Plan

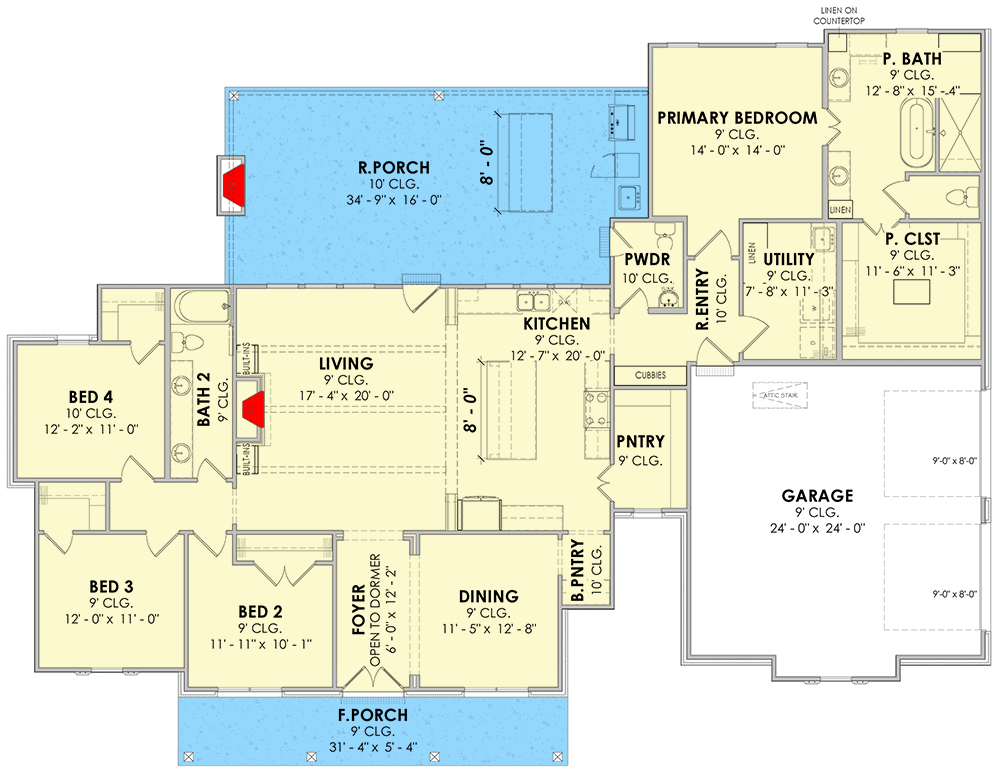

Main Level

Plan Details

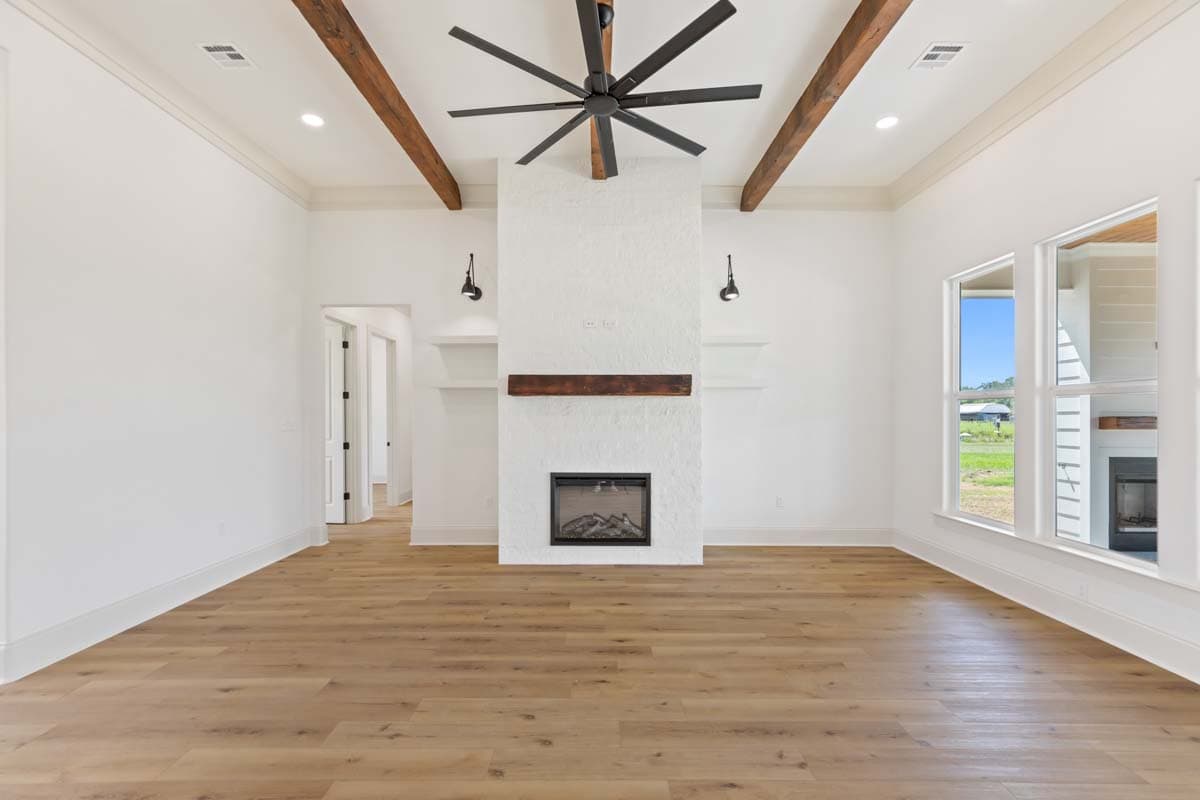

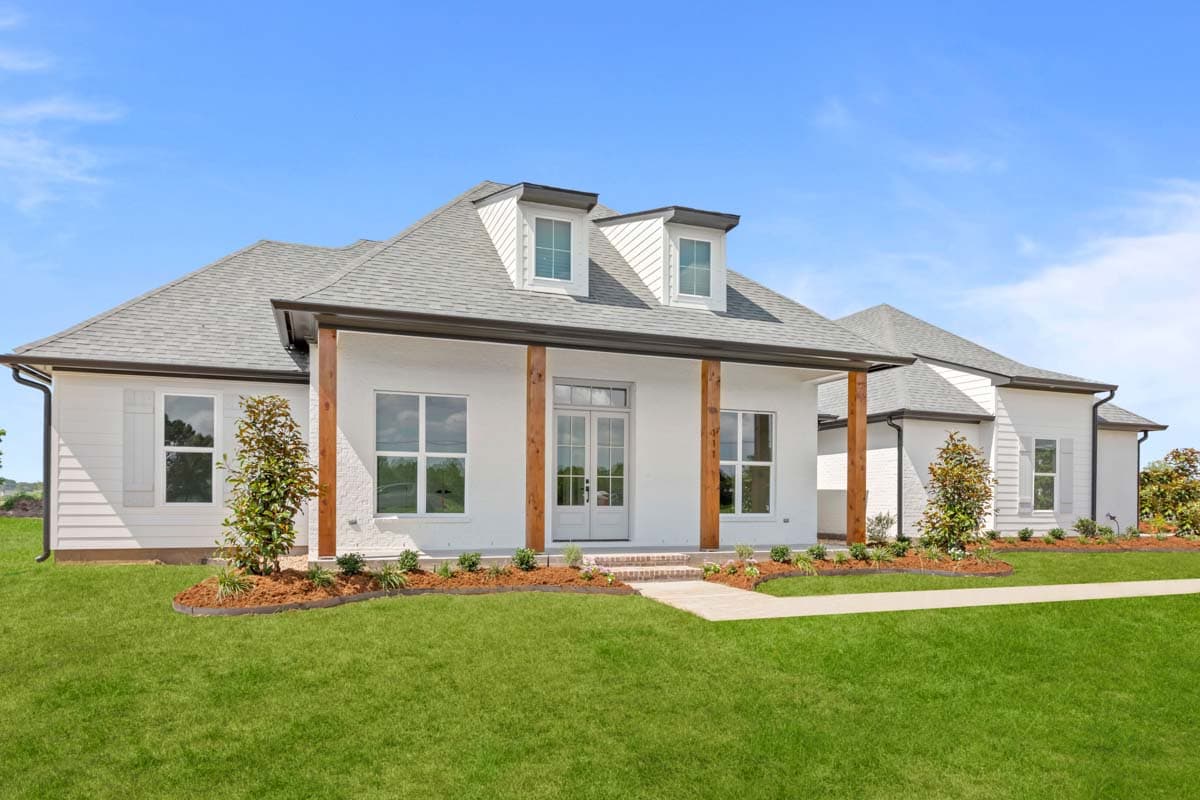

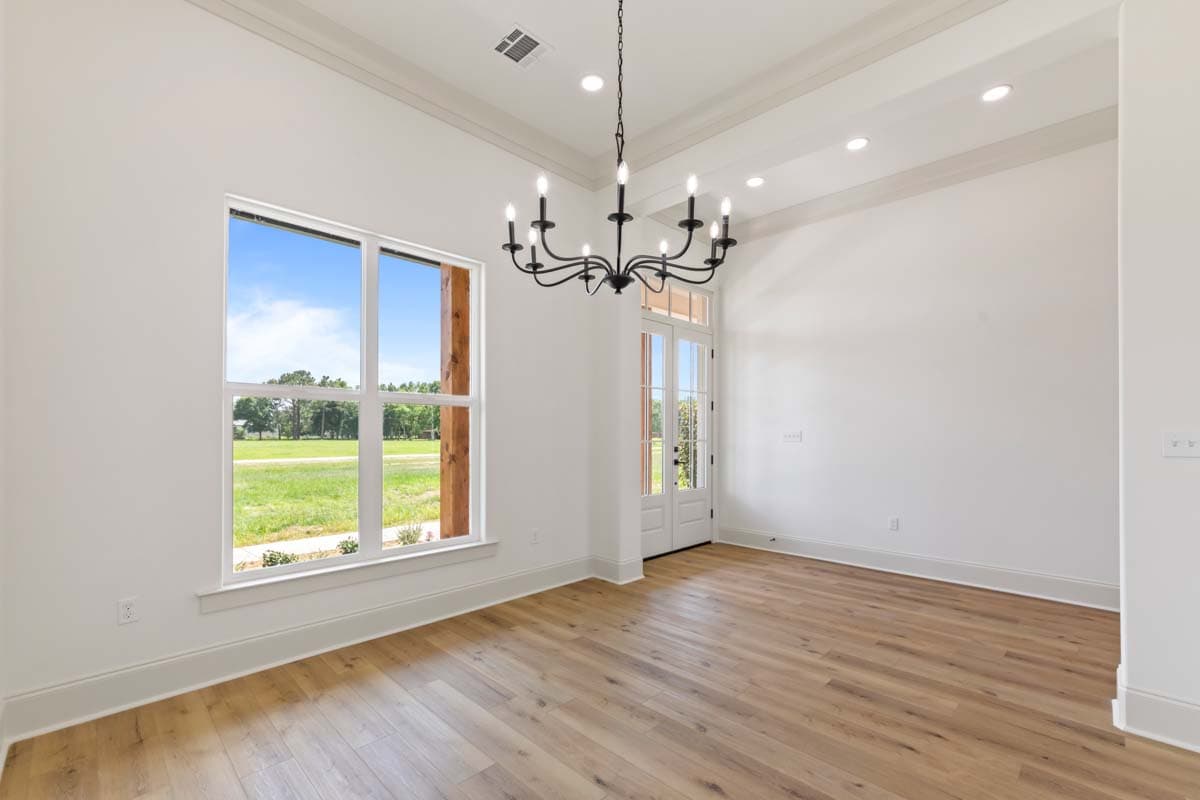

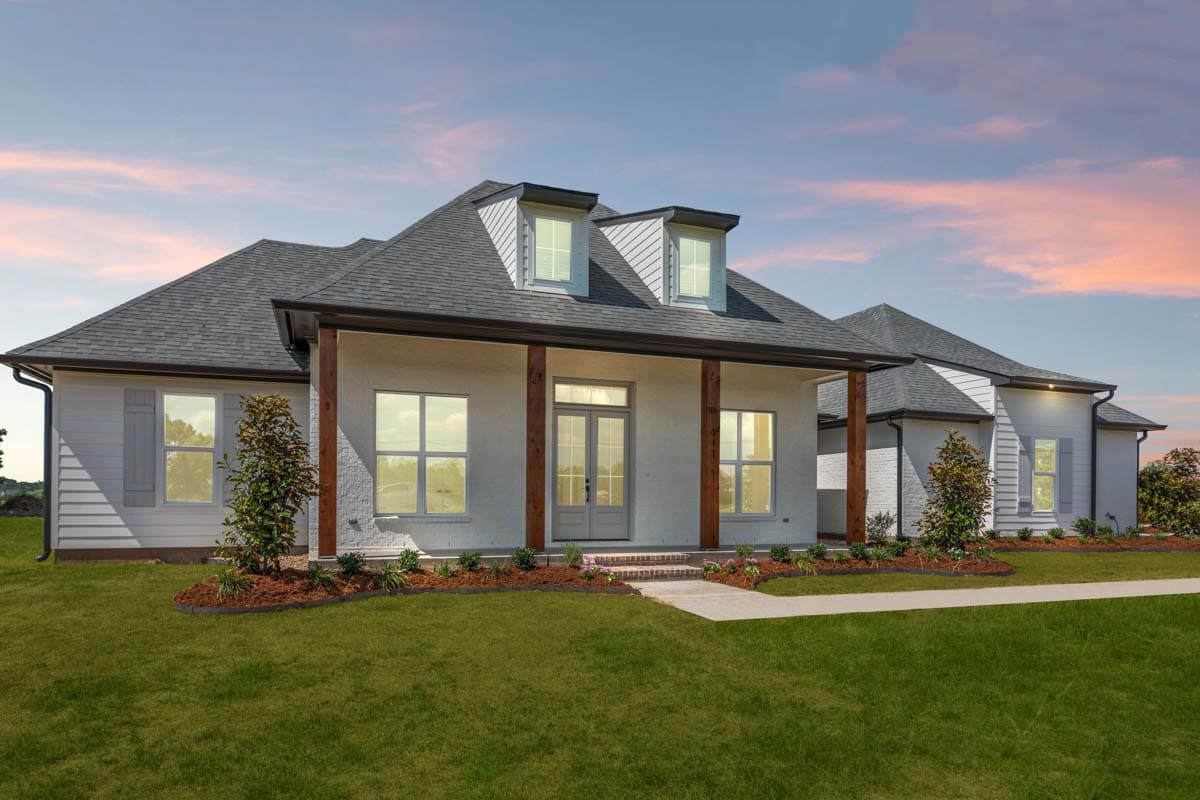

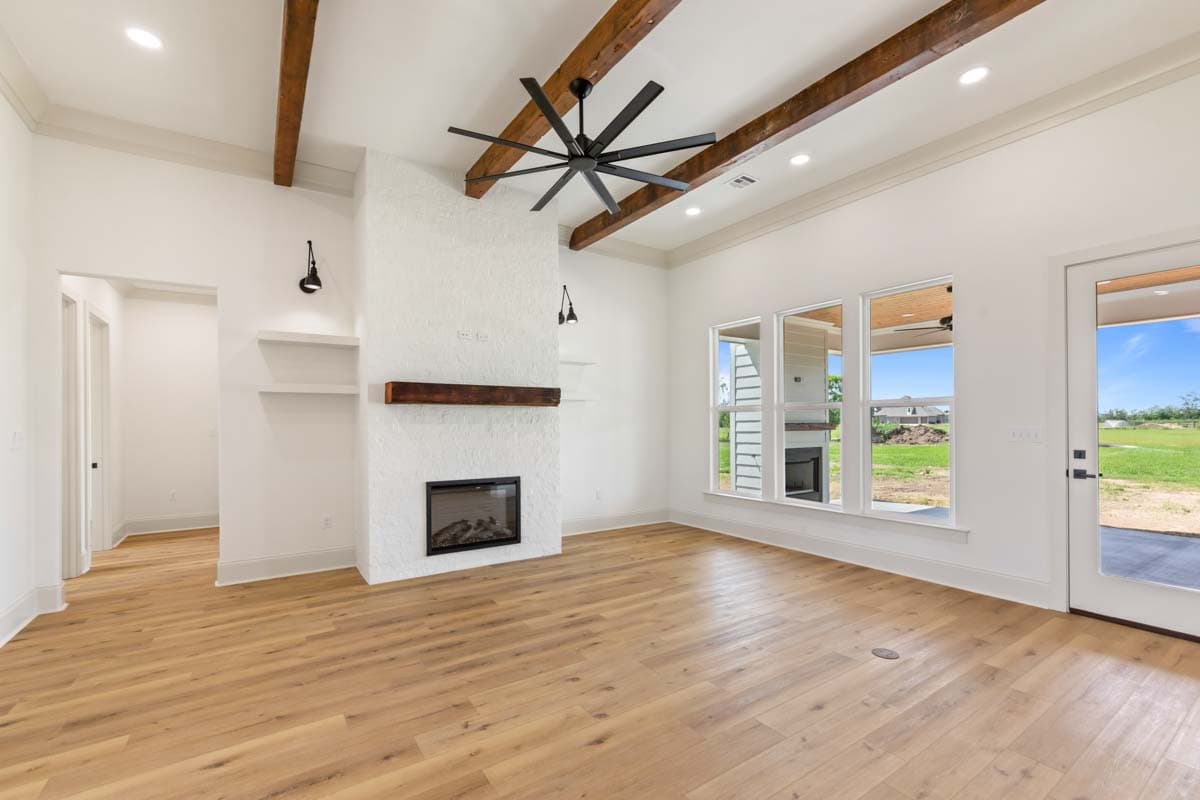

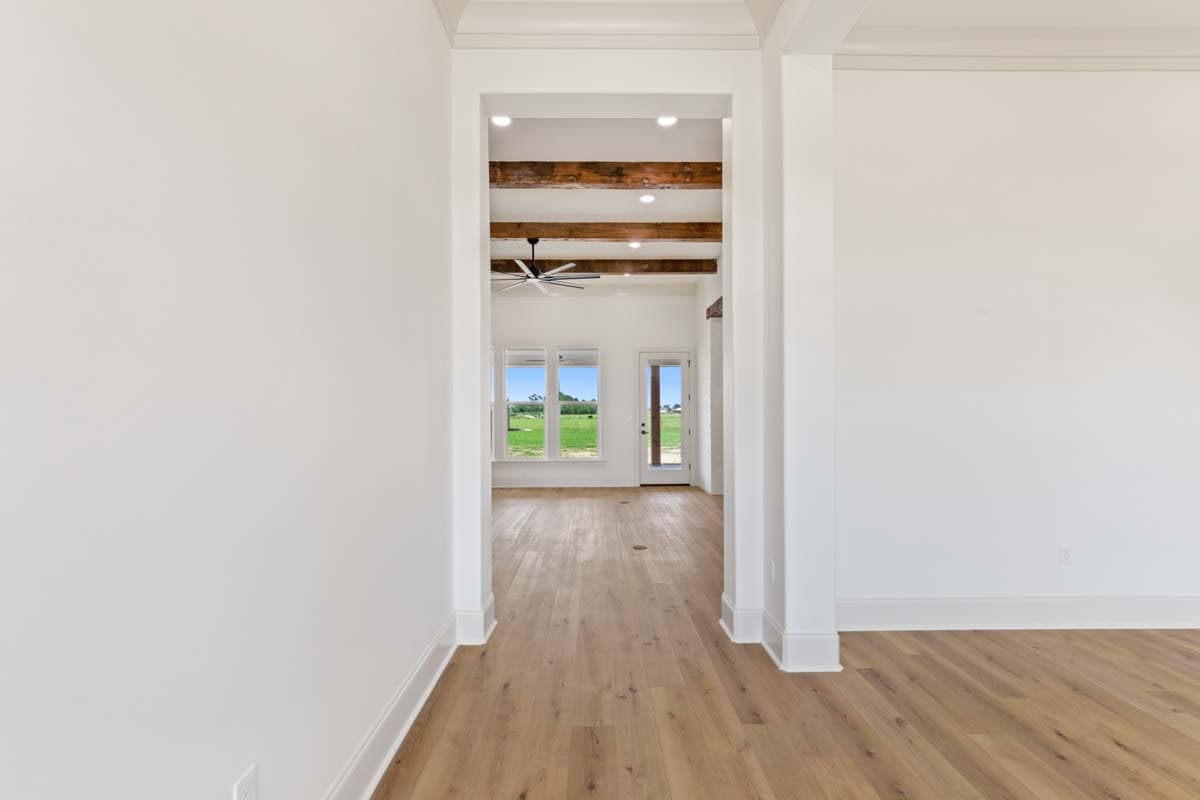

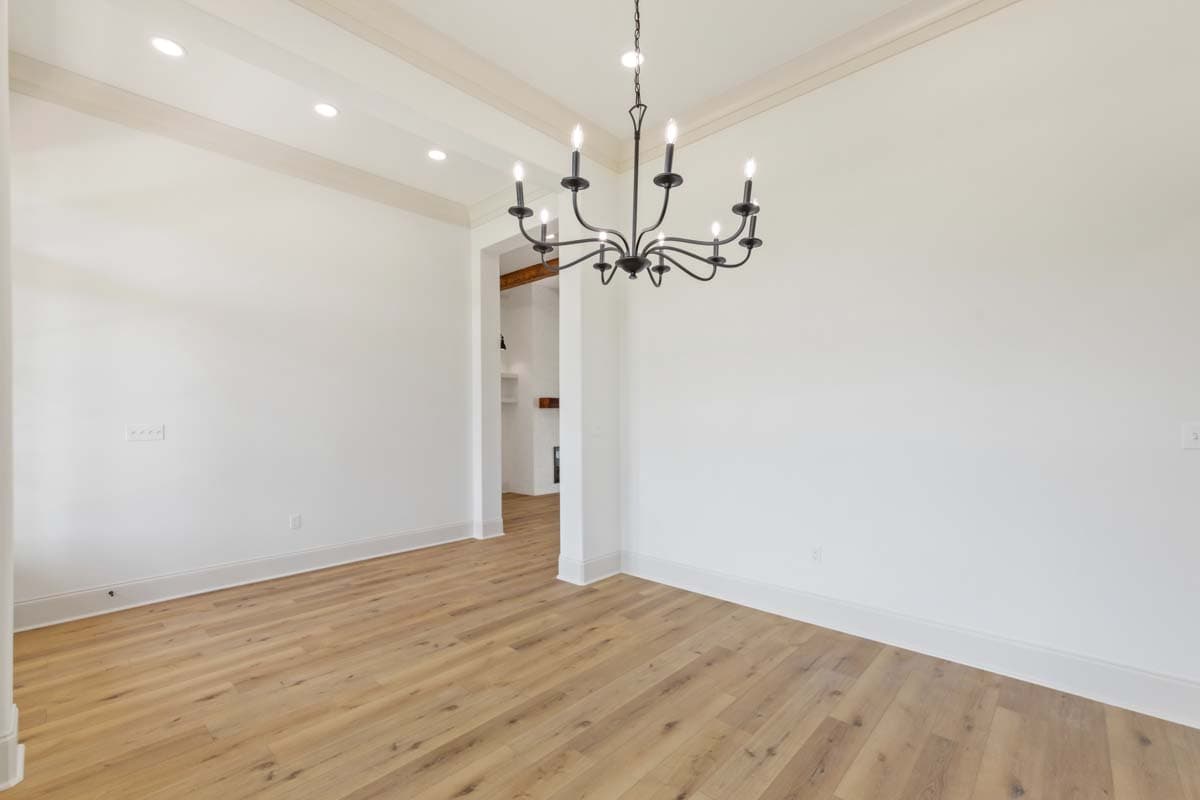

This southern traditional house plan gives you 4 beds, 2.5 baths and 2487 square feet of heated living space. Centered on the 5'4" deep front porch you'll find a pair of French doors that open to the foyer with the dining room to your right and the living room with beamed ceiling and fireplace ahead.

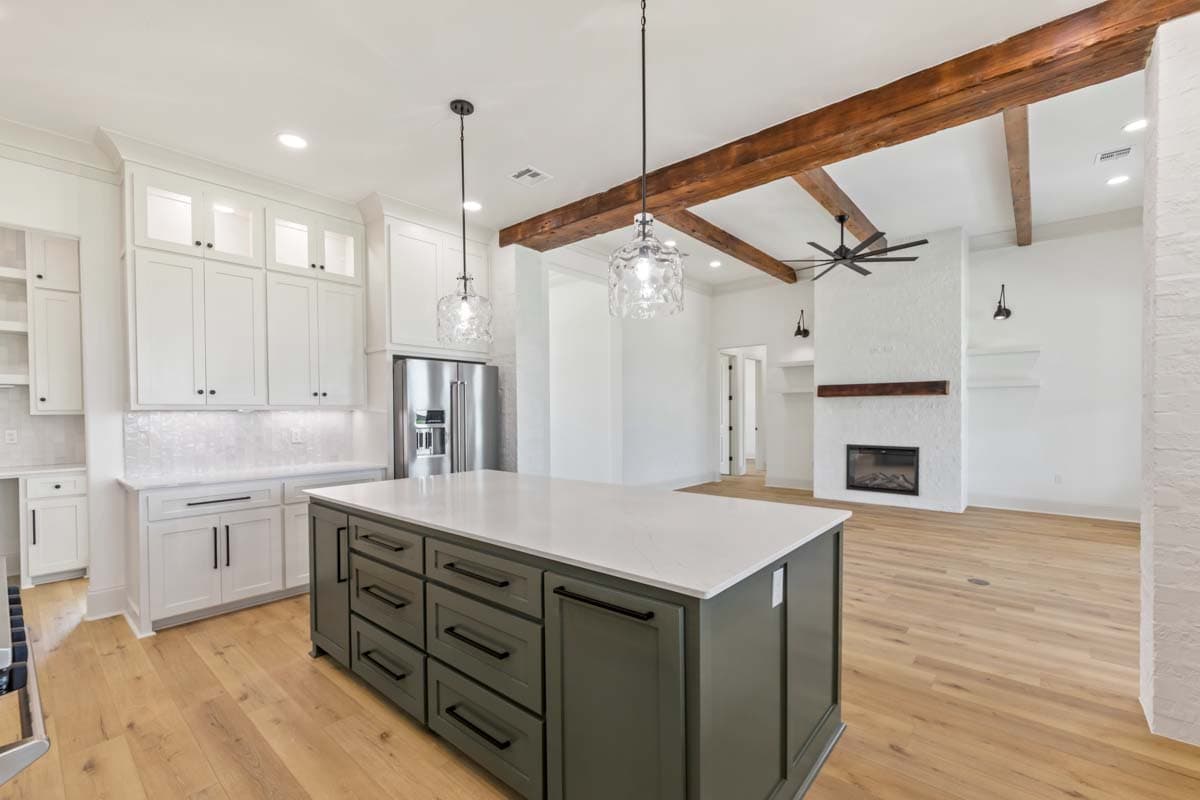

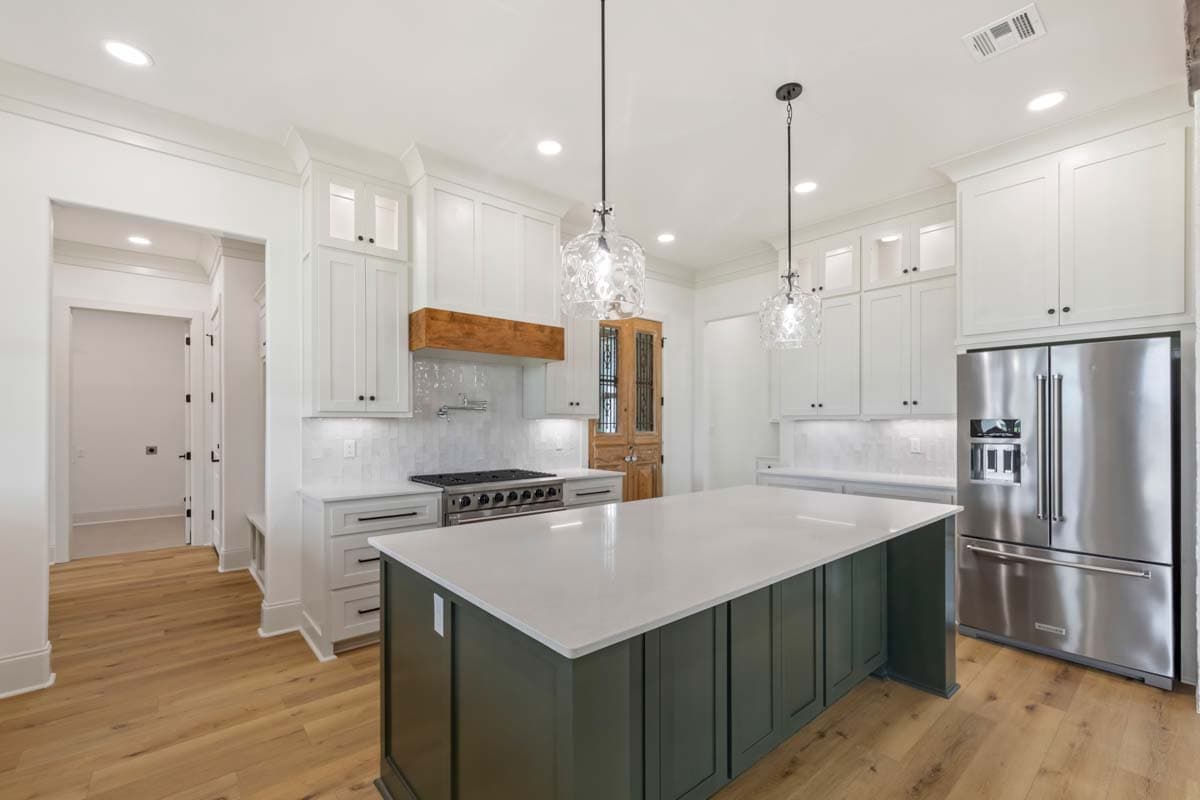

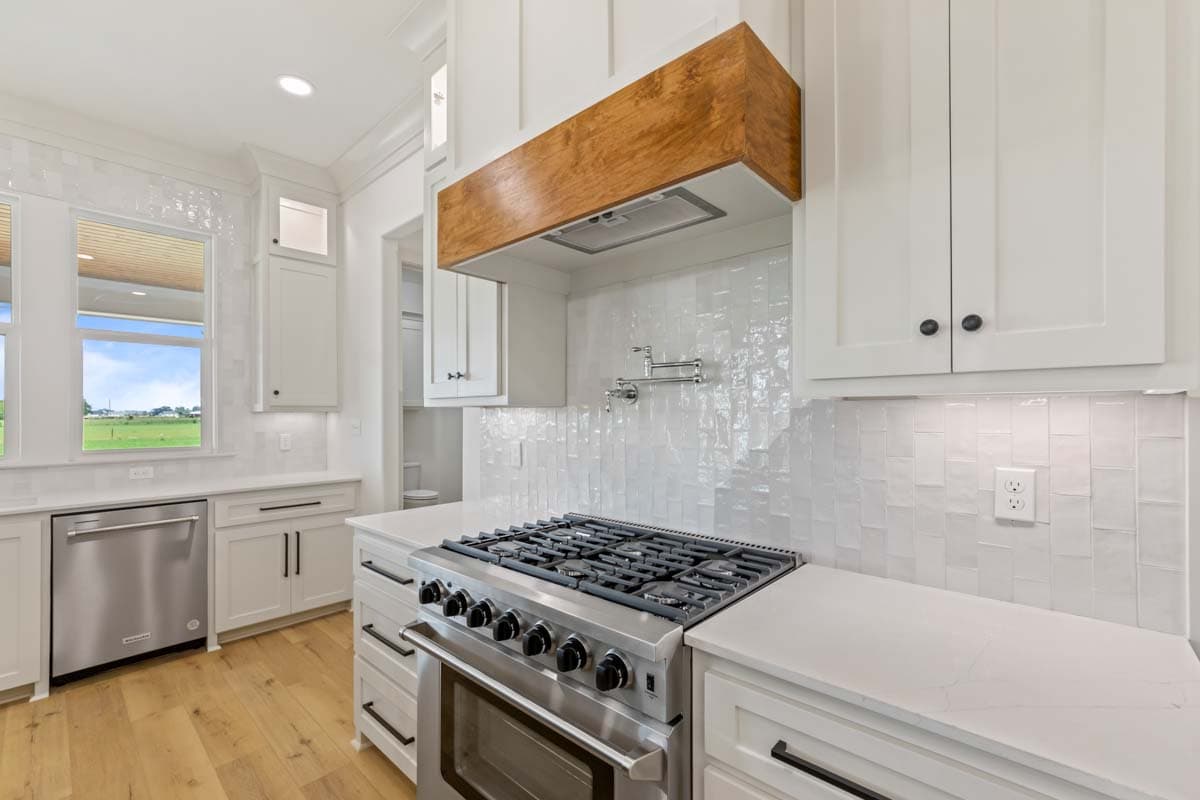

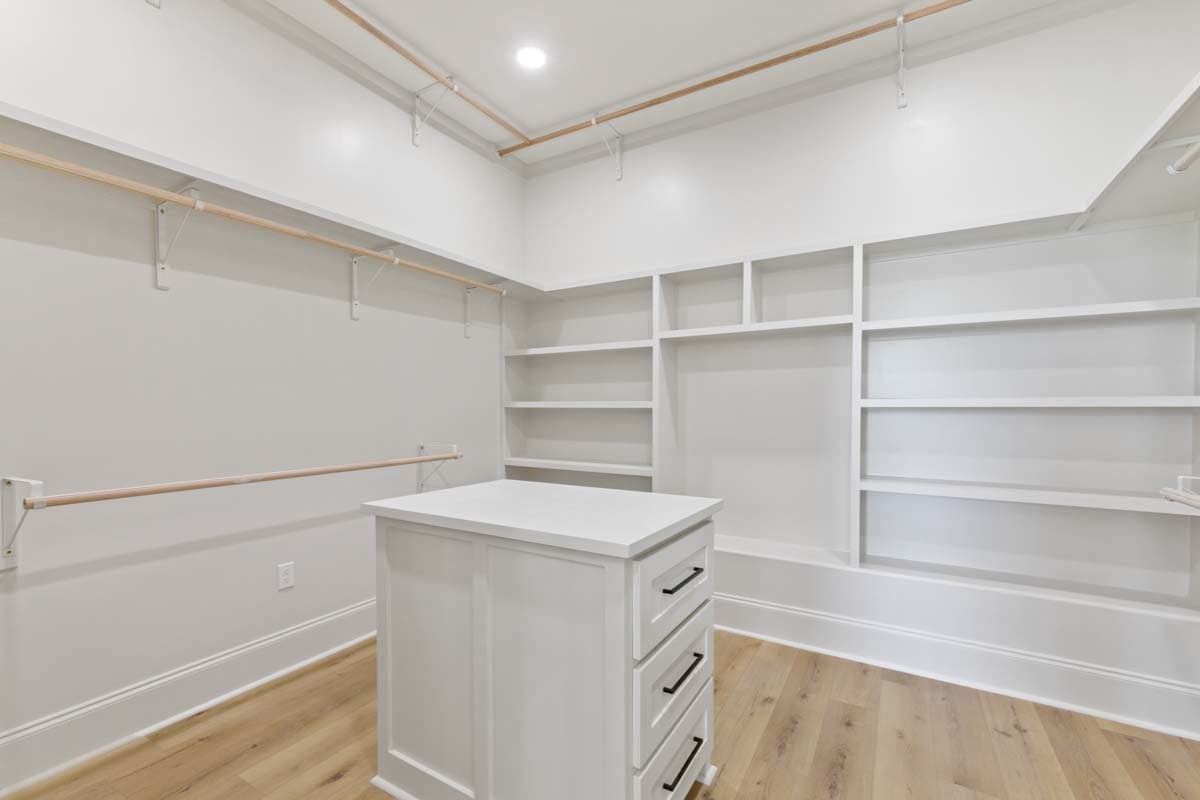

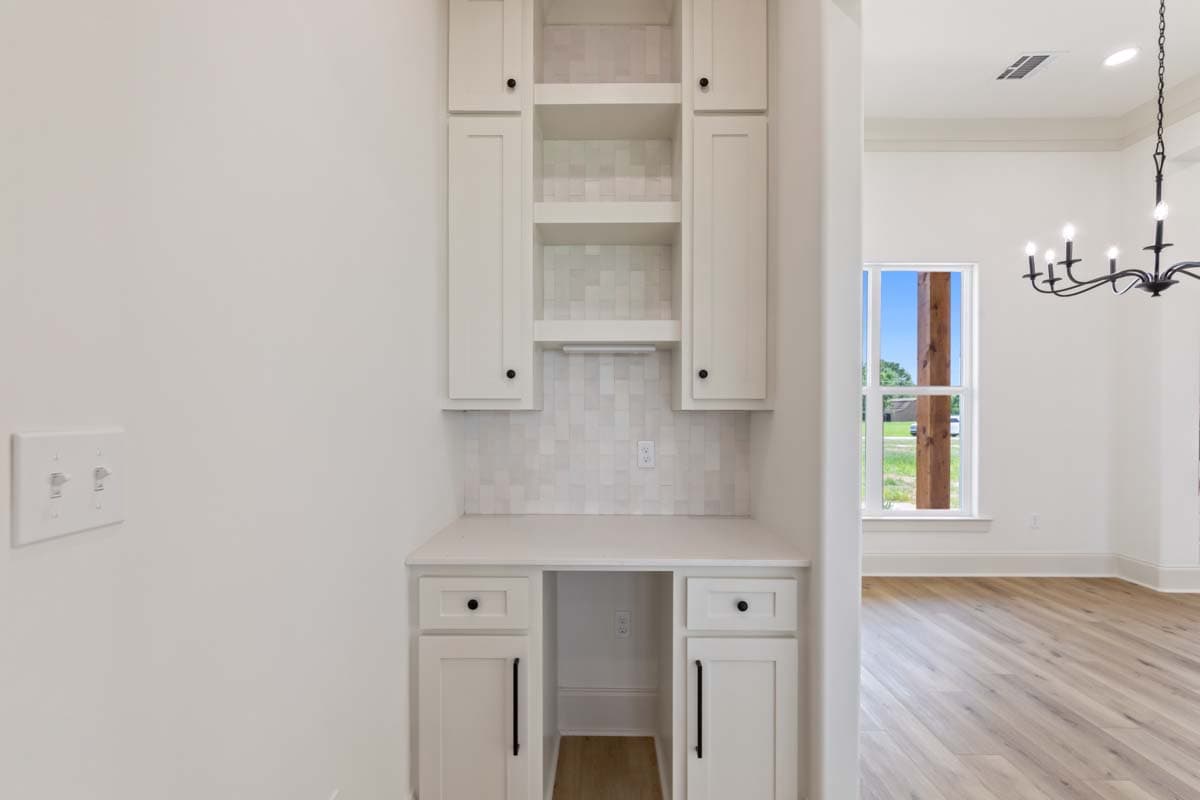

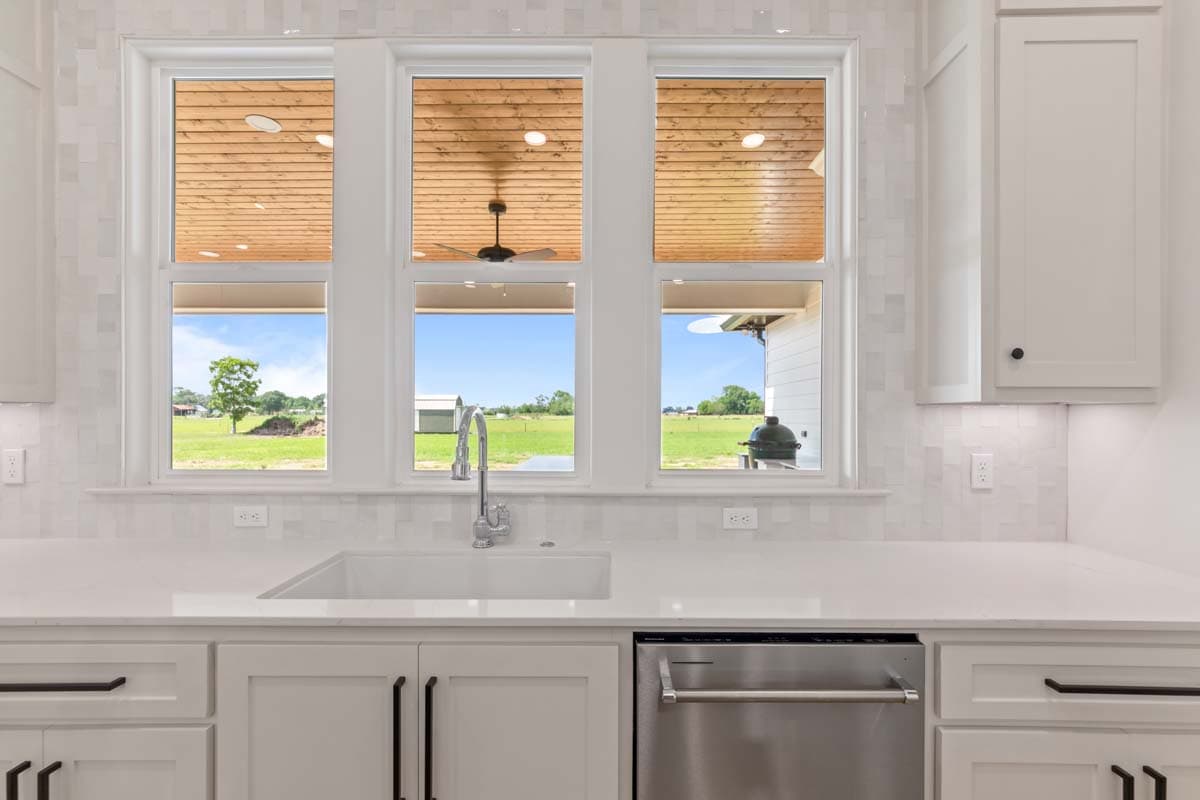

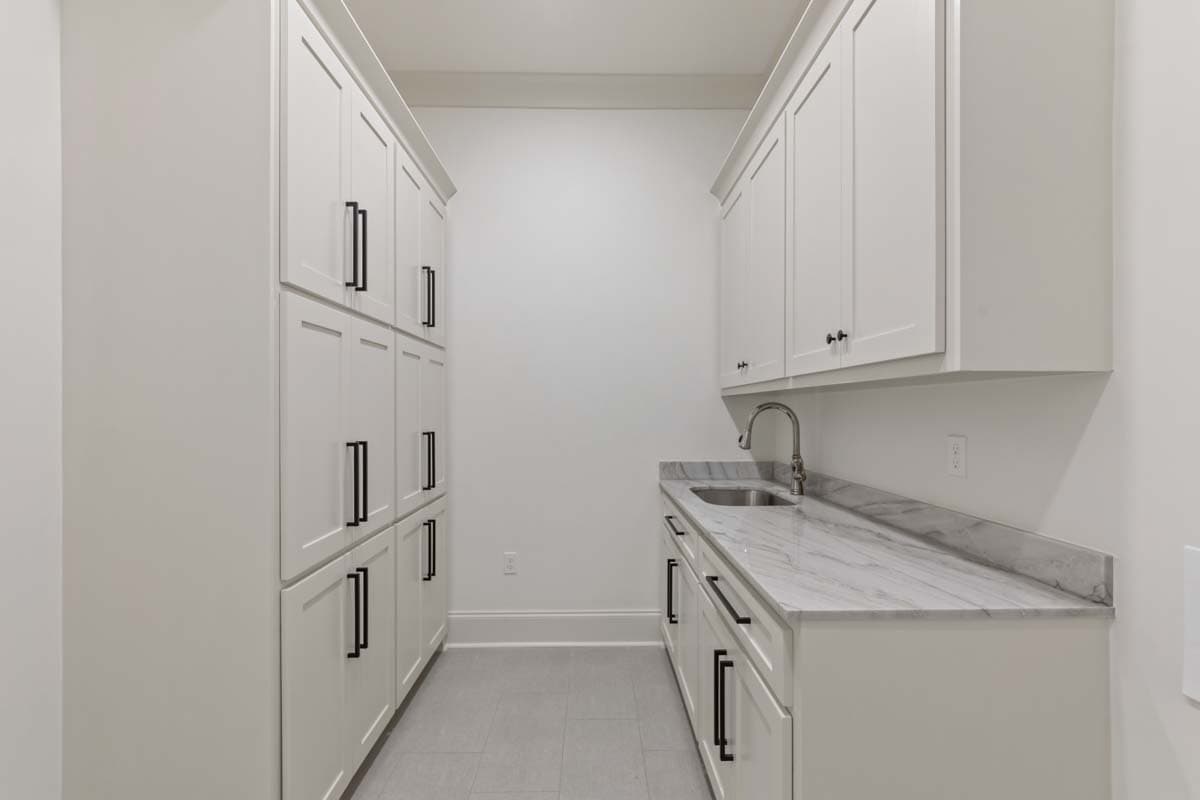

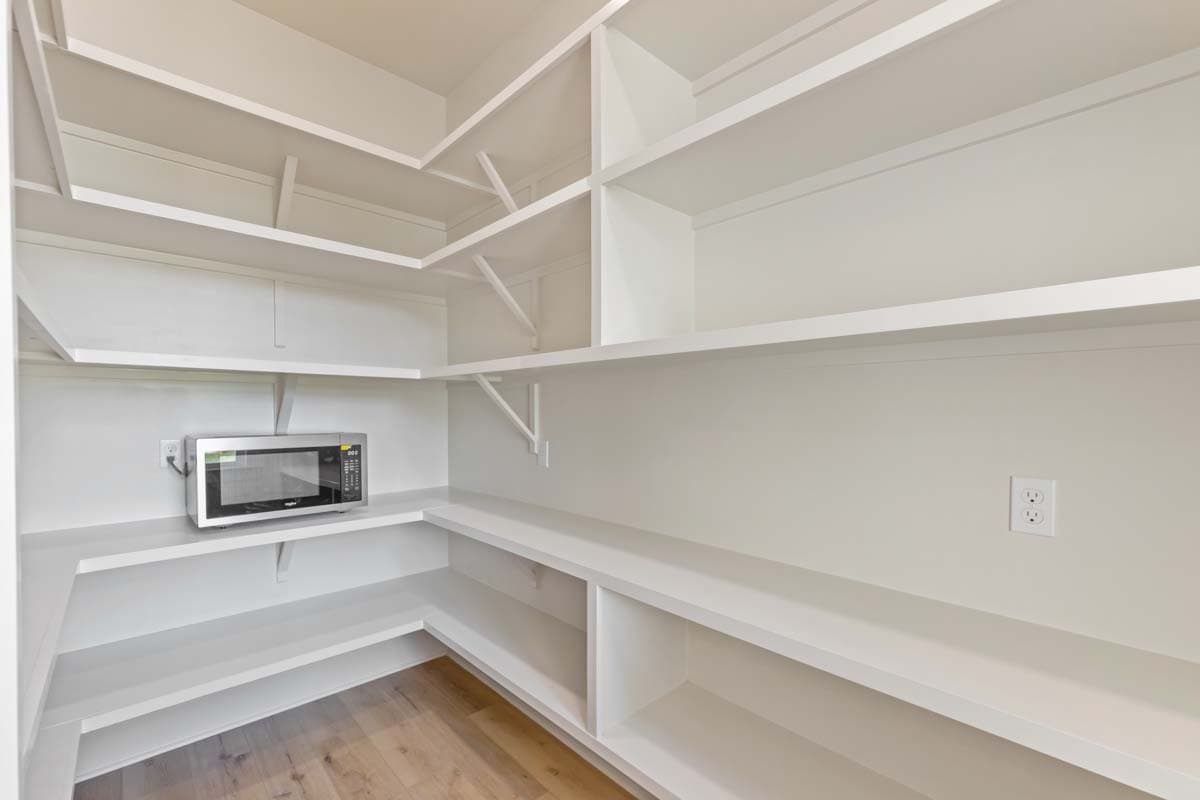

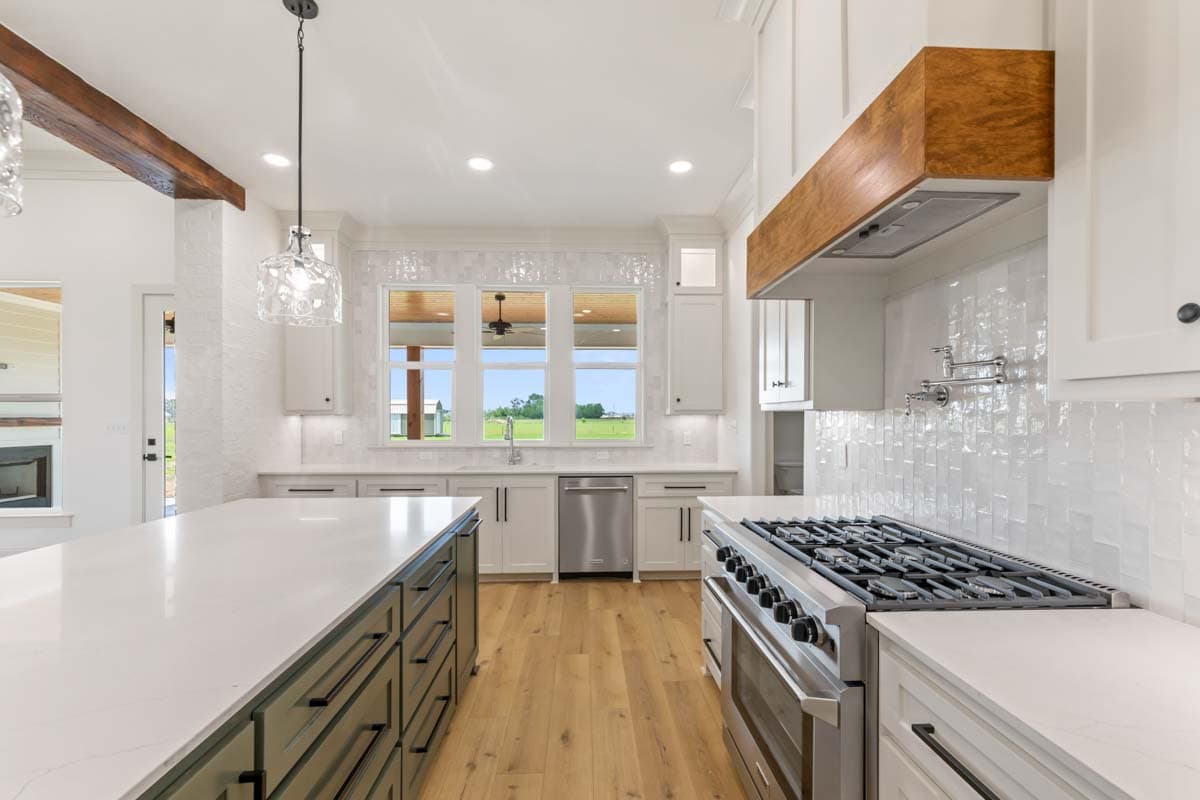

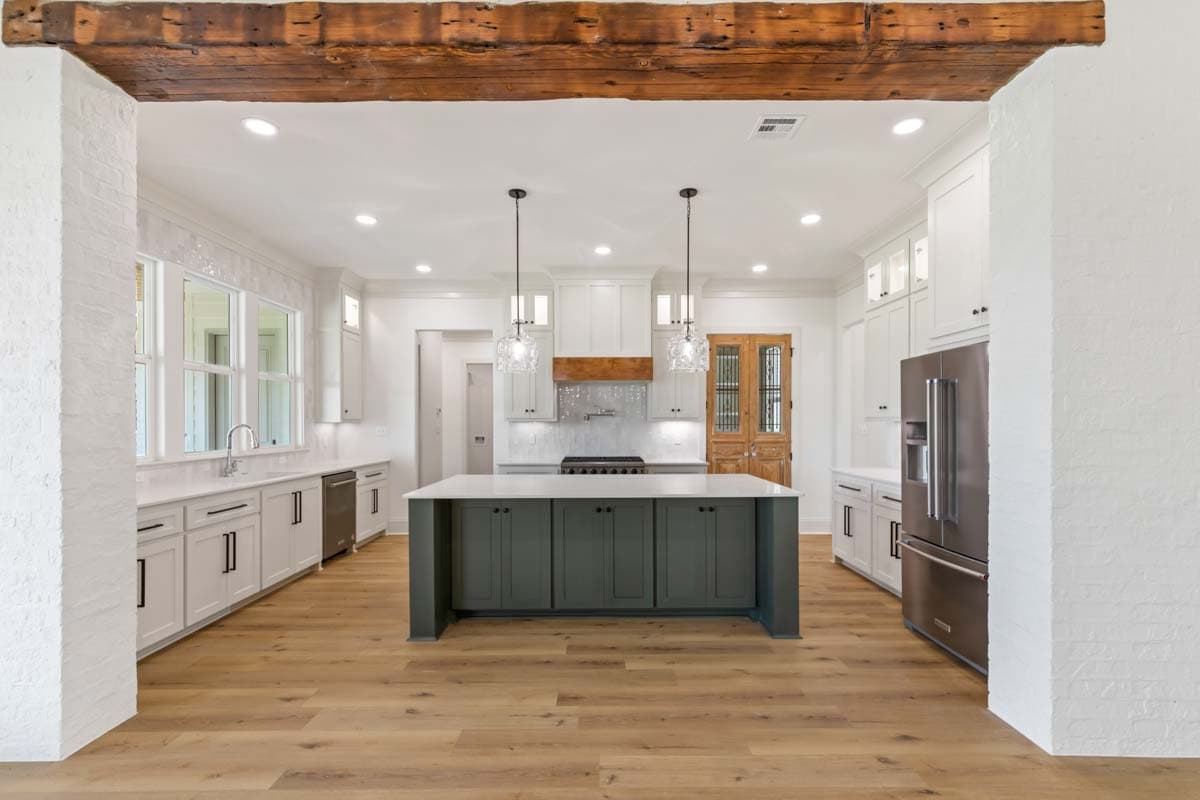

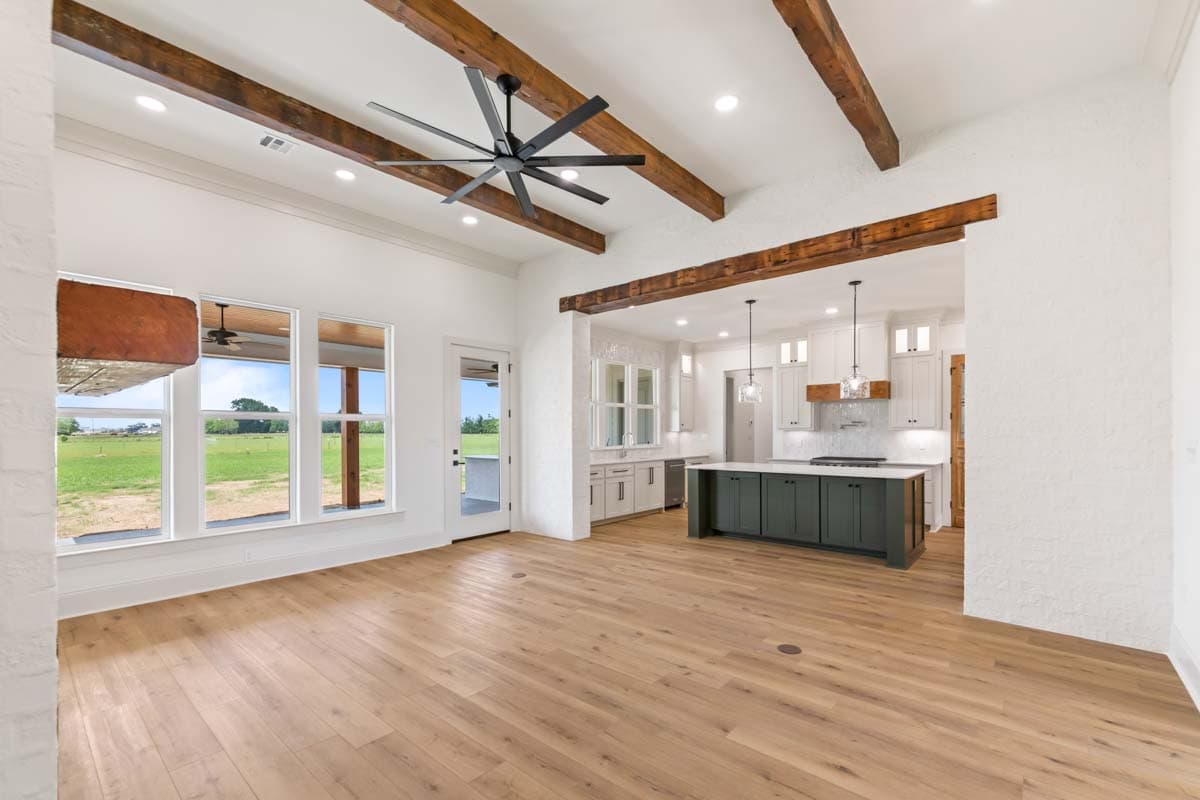

The kitchen is outfitted with plenty of cupboard space, a butler's pantry, and a walk-in pantry. The primary bedroom has a walk-in closet equipped with custom built-ins and an island with drawers.

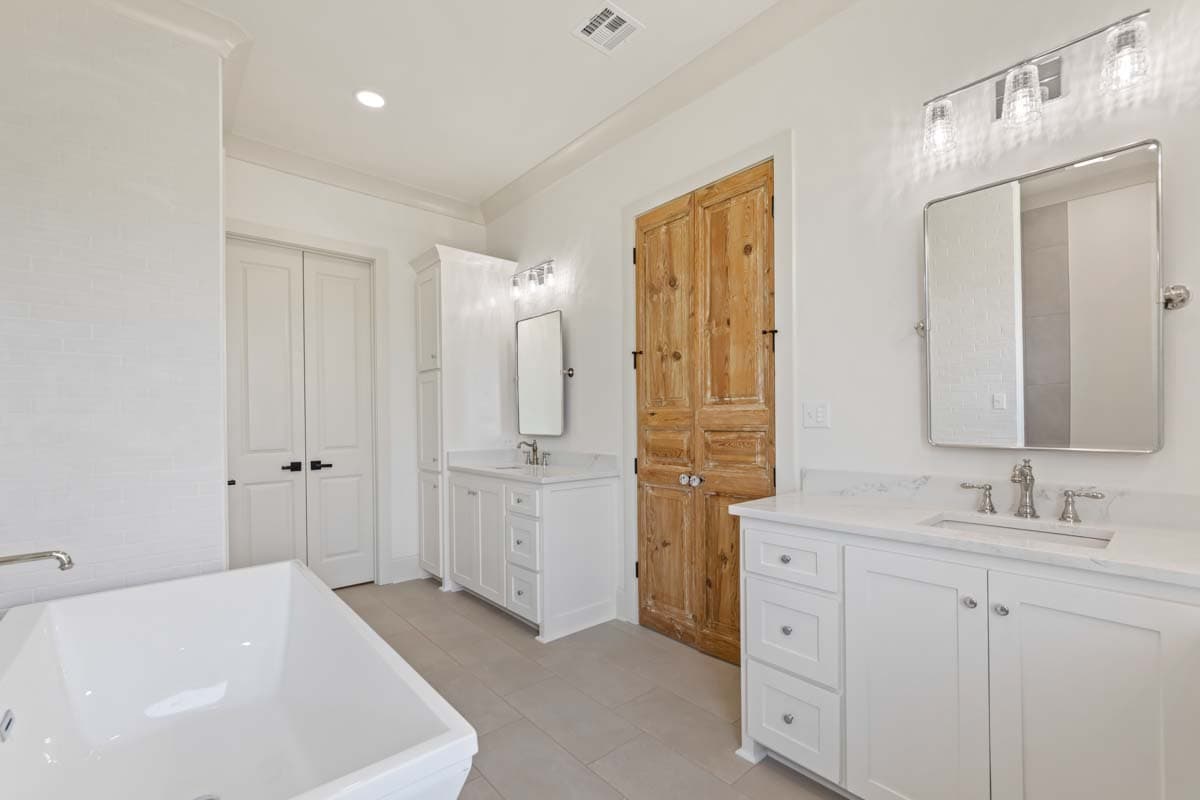

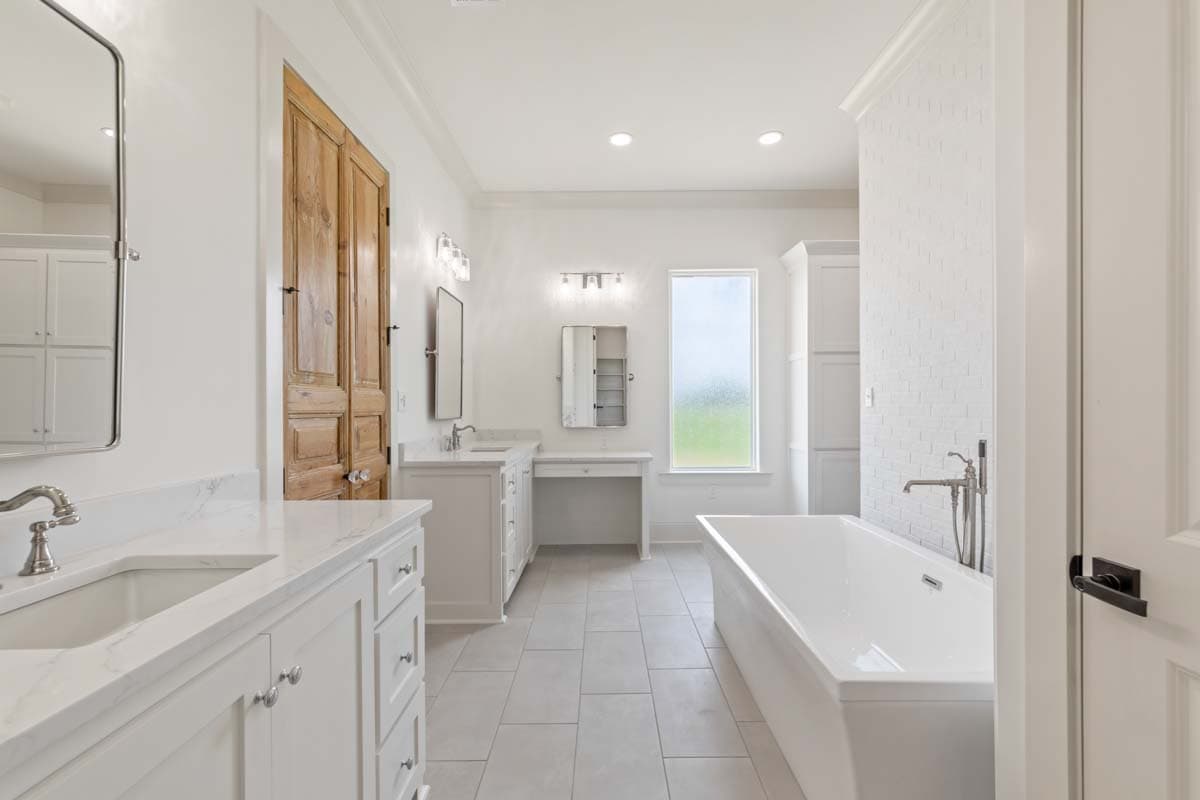

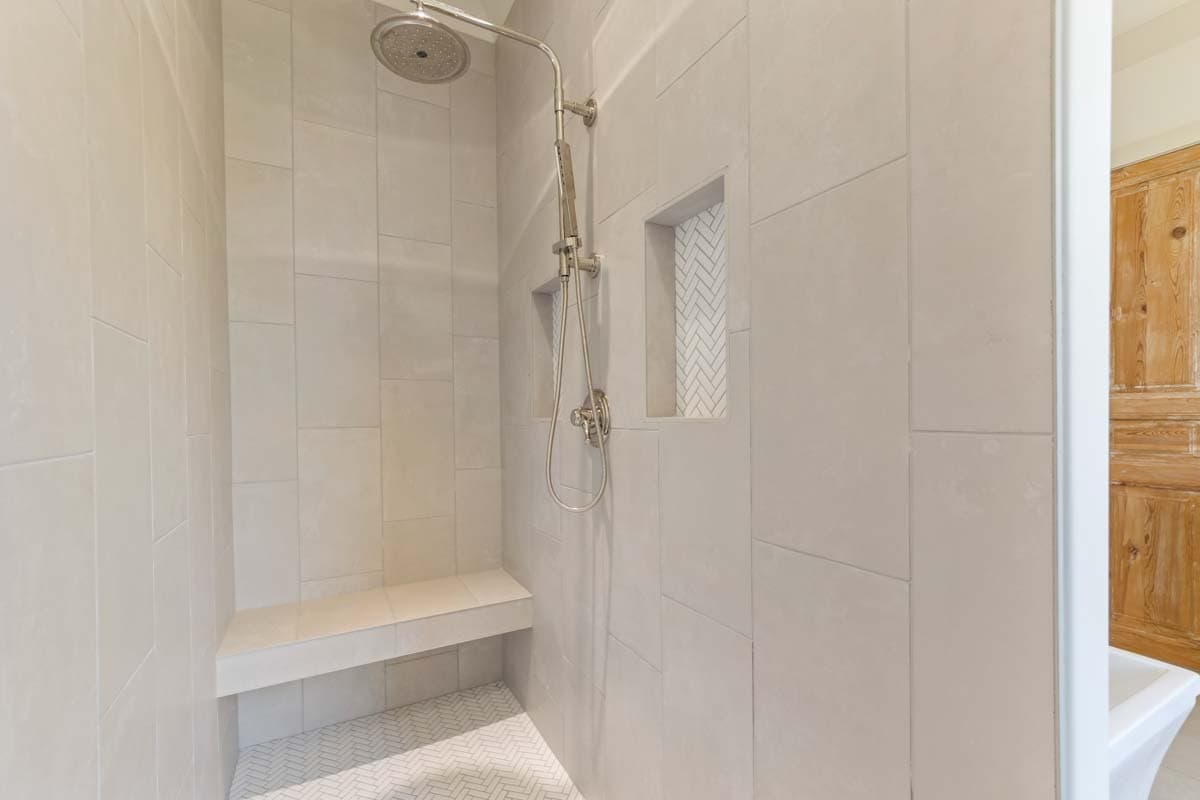

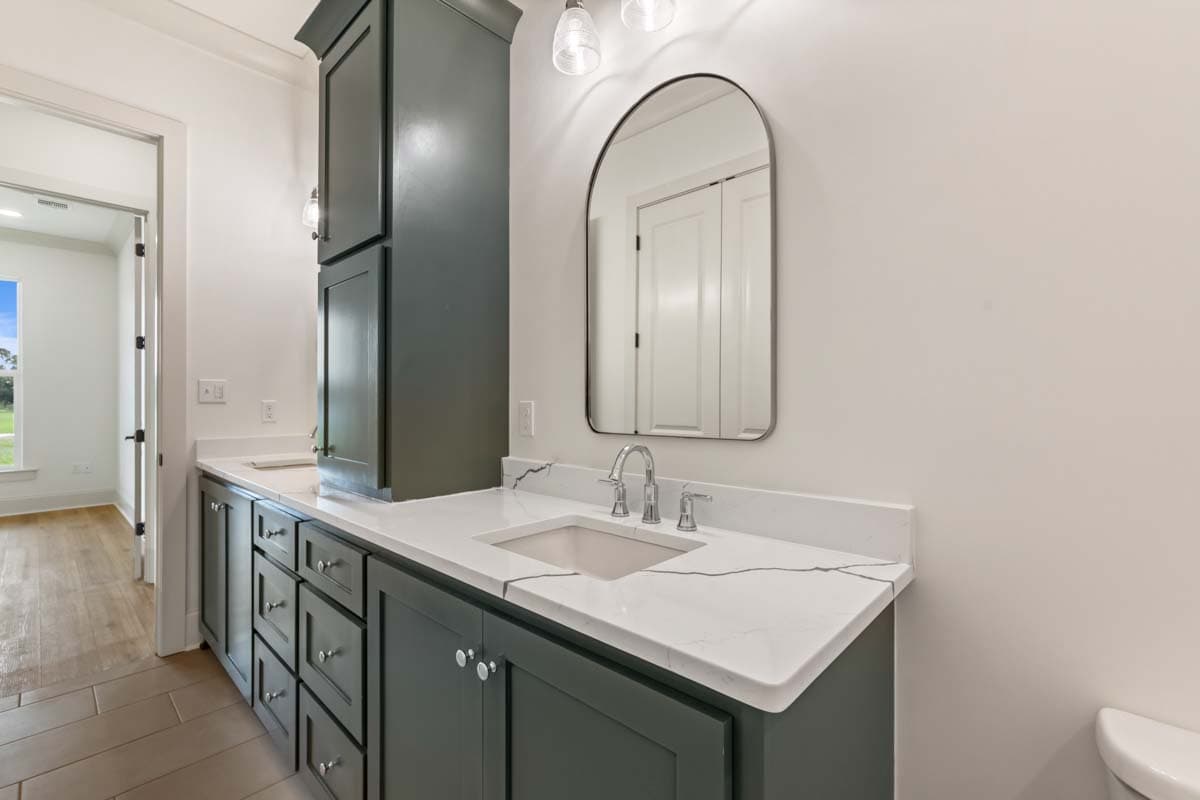

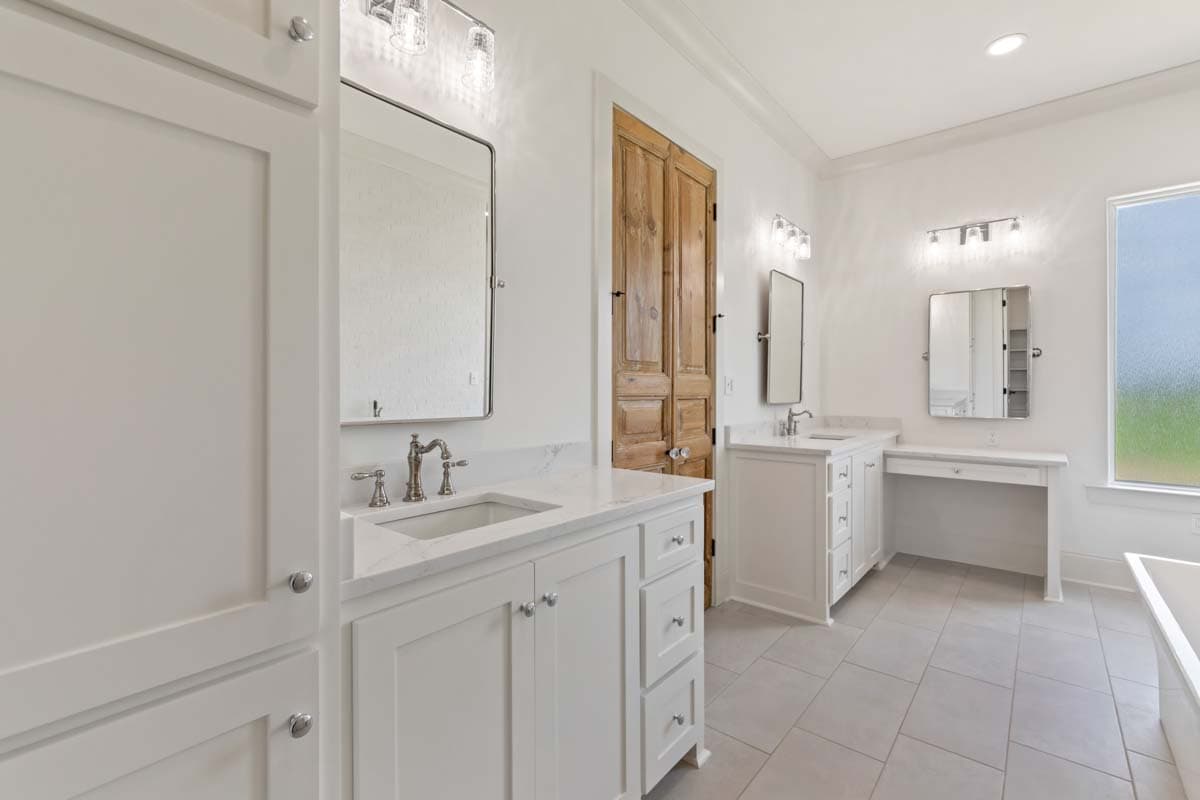

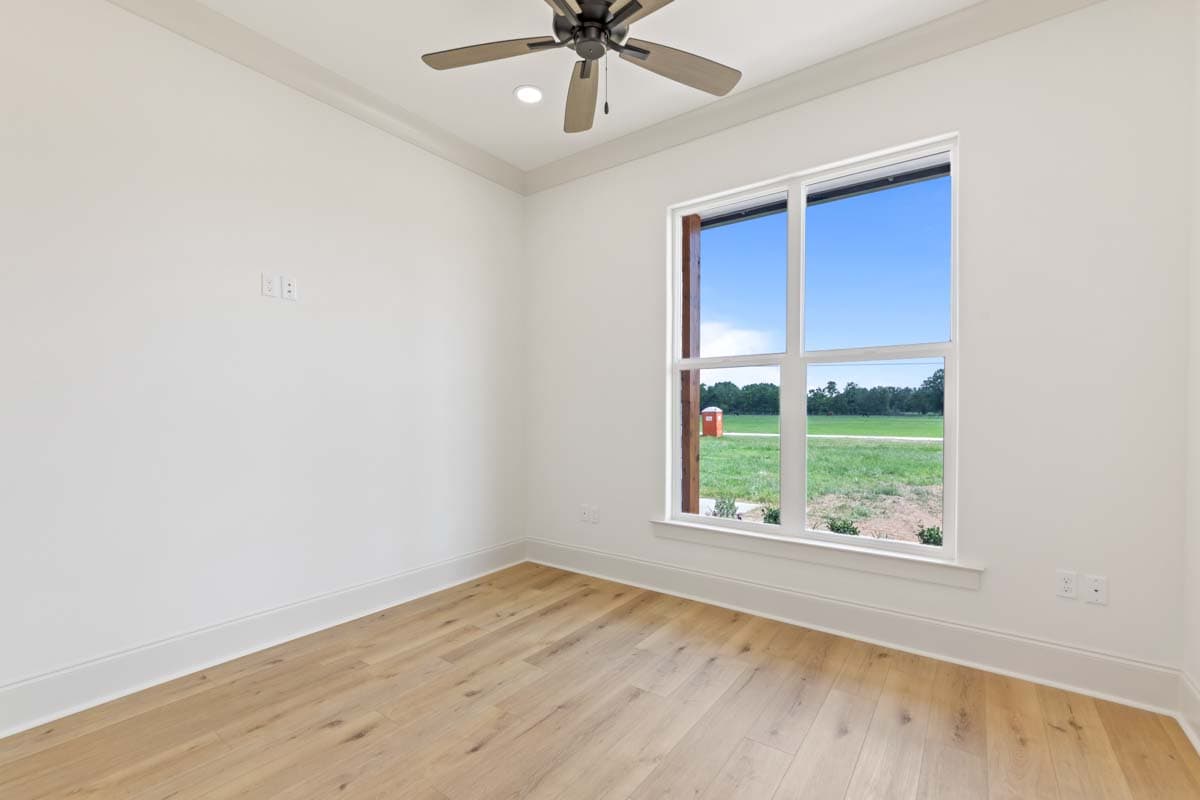

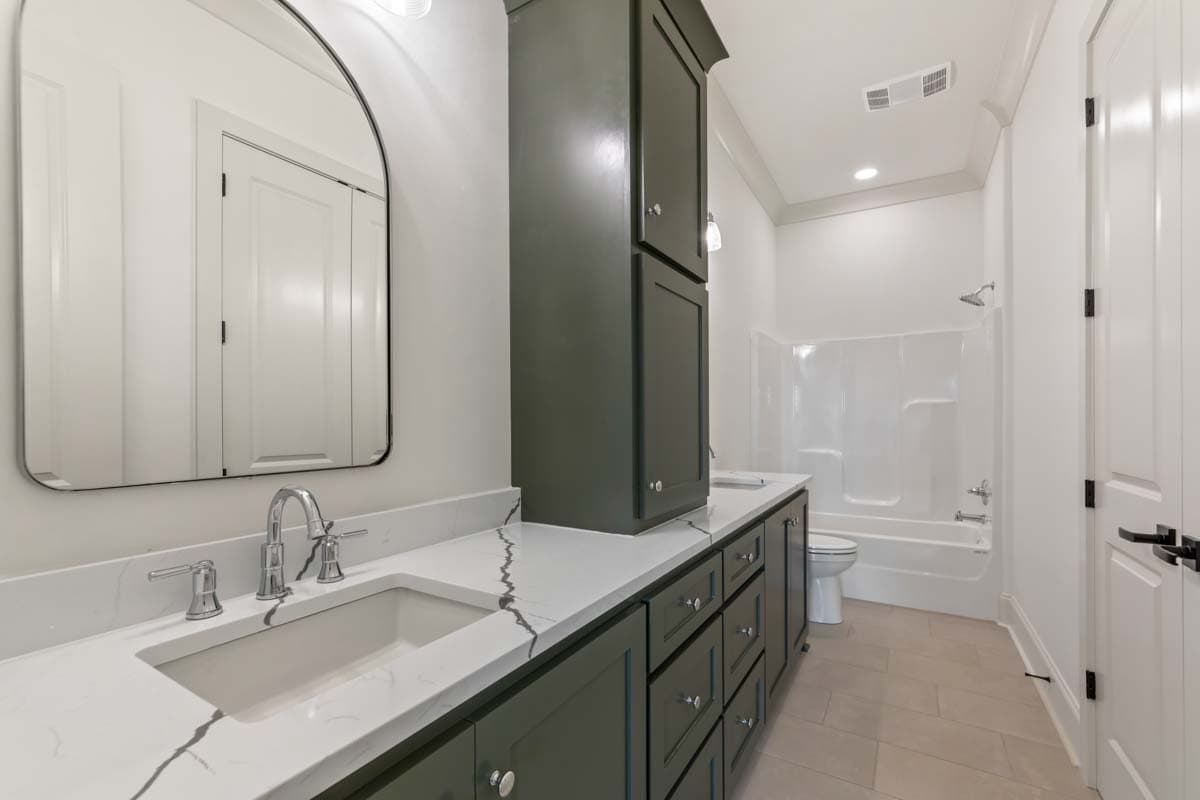

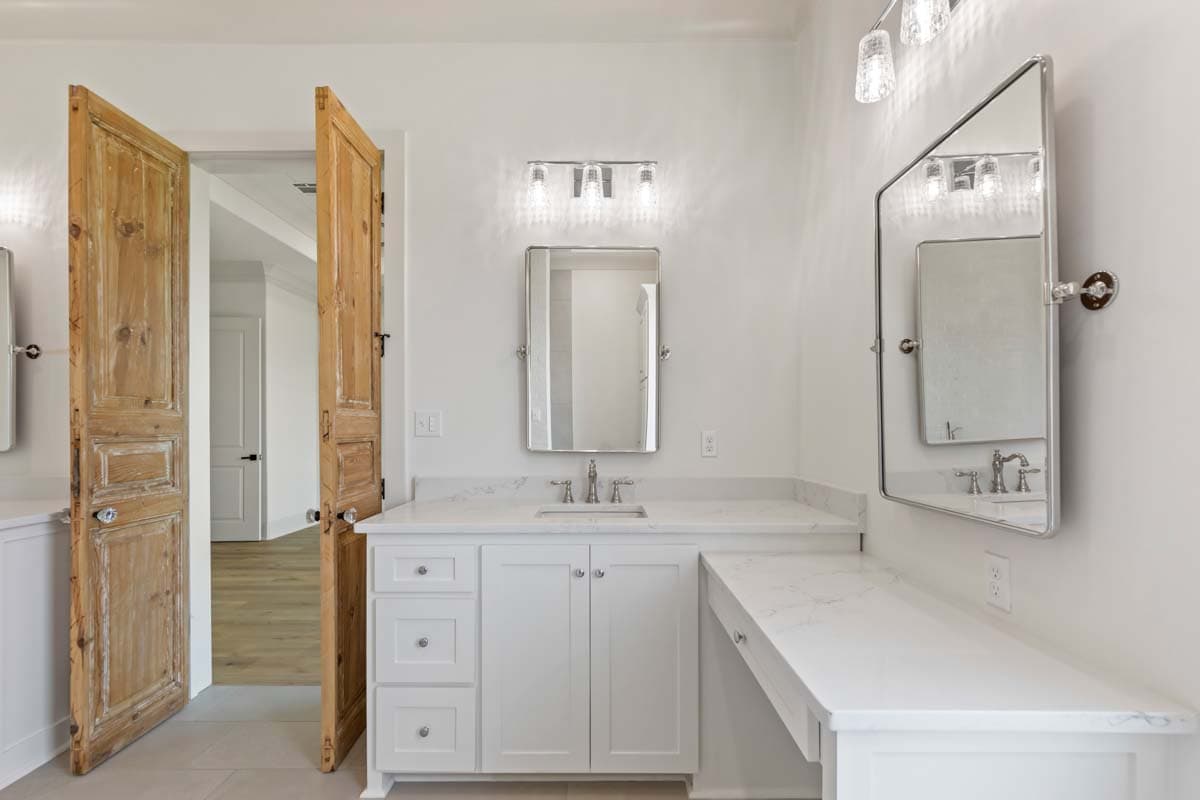

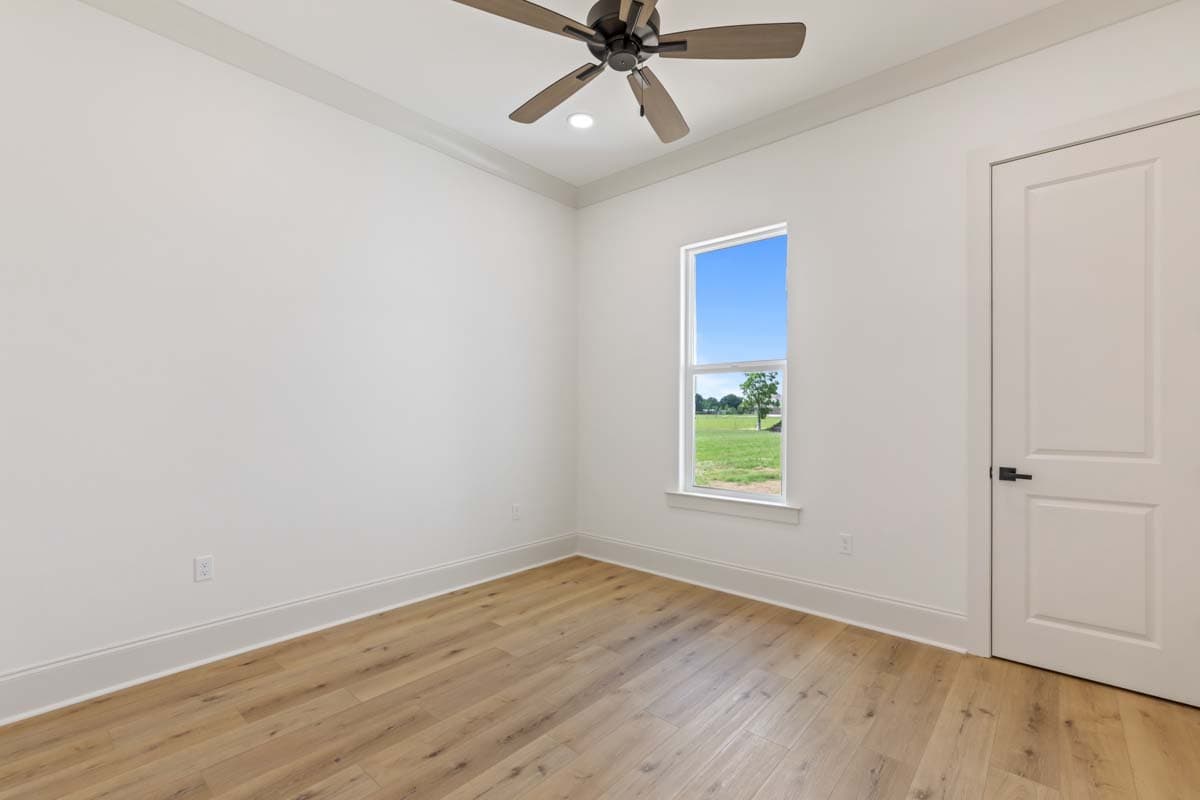

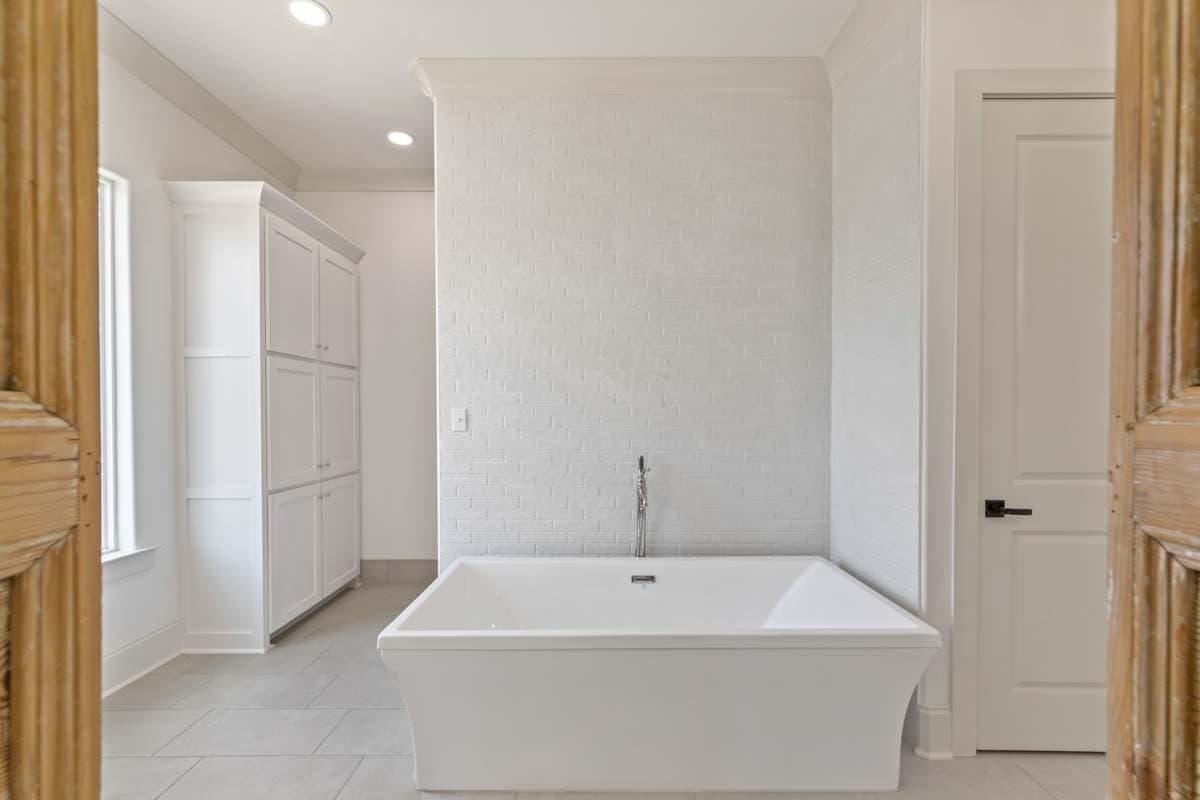

The primary bathroom boasts separate vanities, linen closet, a freestanding tub, a walk in shower, and a toilet closet. Furthermore, three additional bedrooms are shared by a hallway bathroom that is supplied with a double vanity and the ideal amount of storage space.

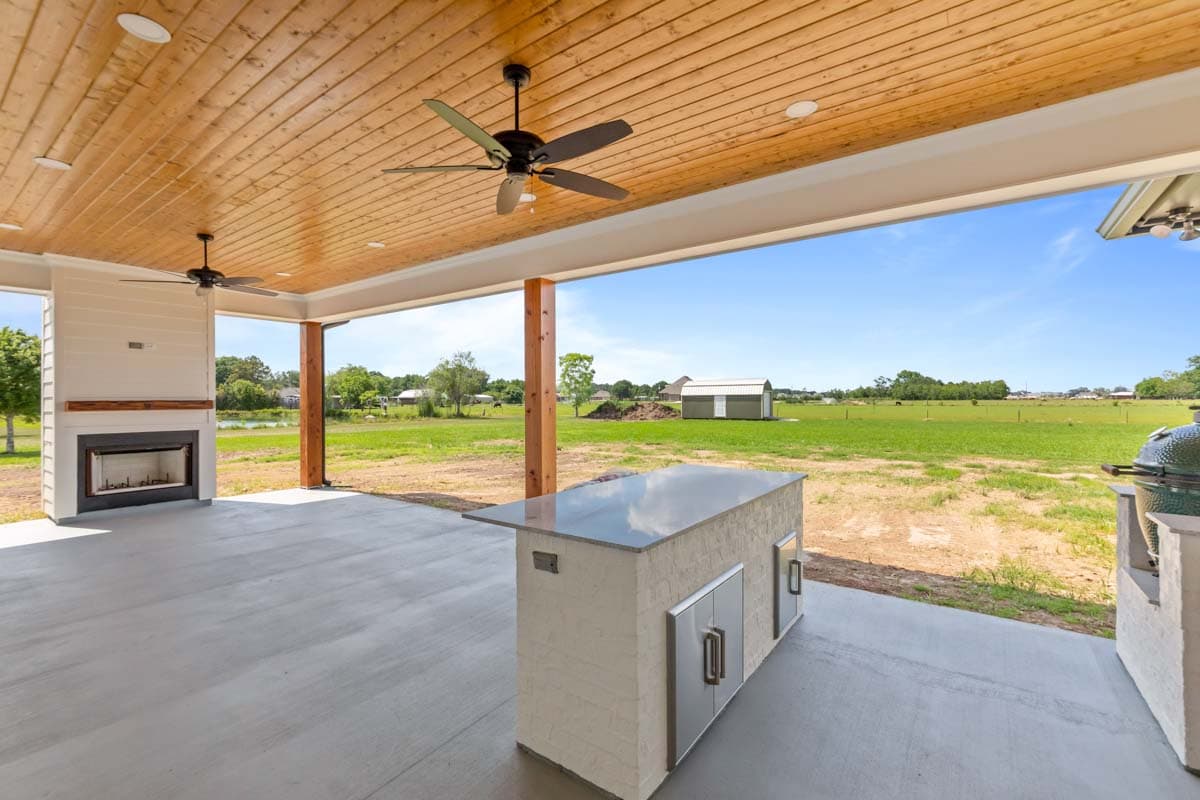

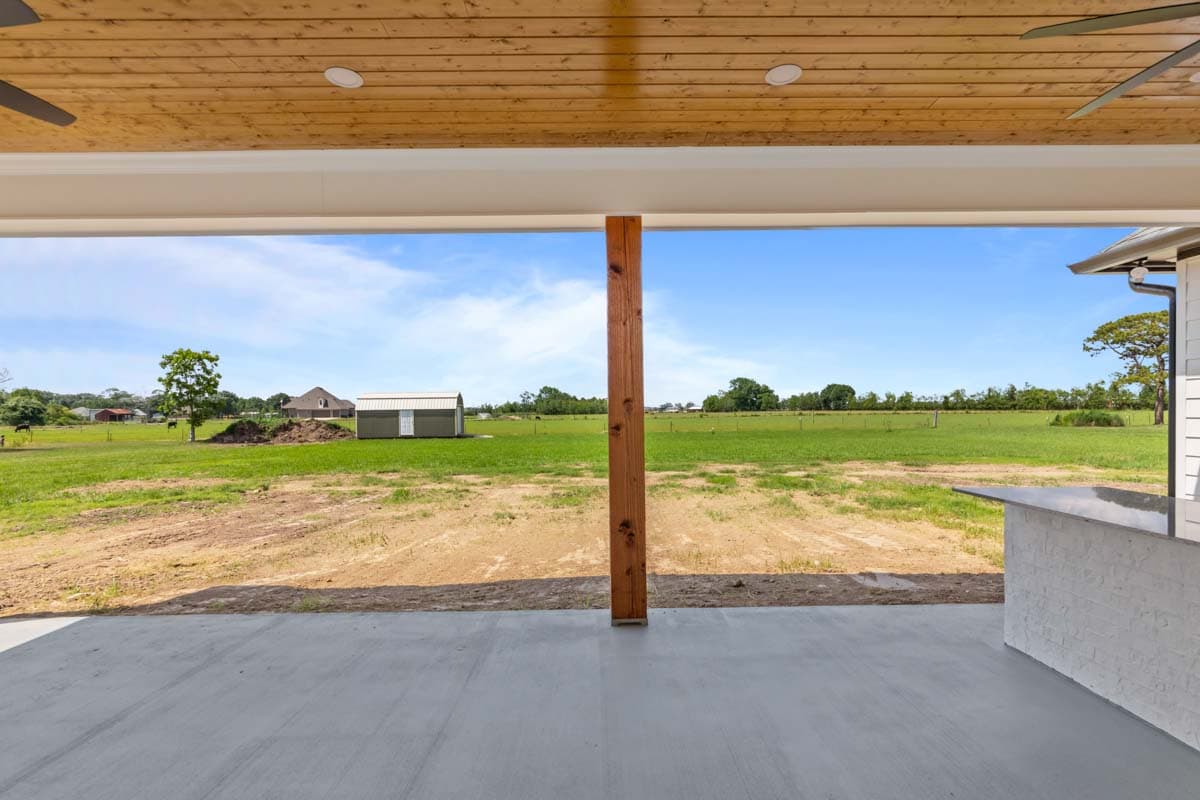

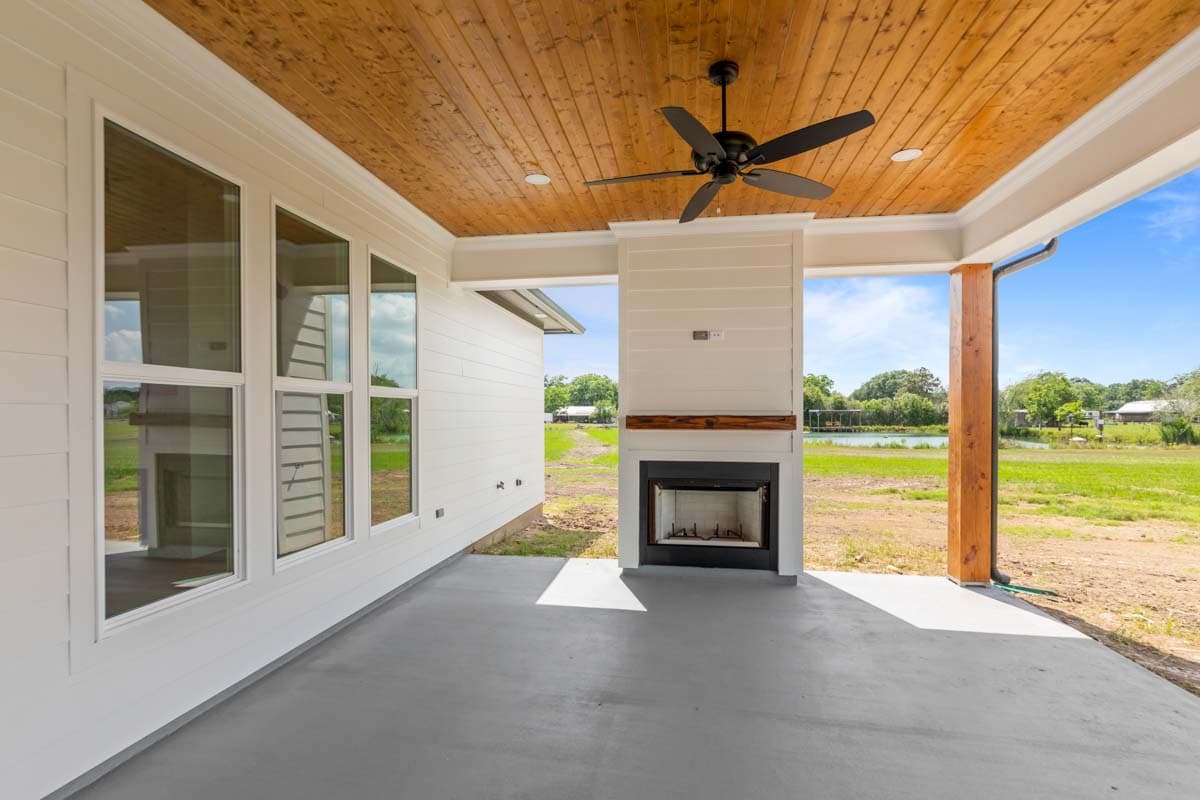

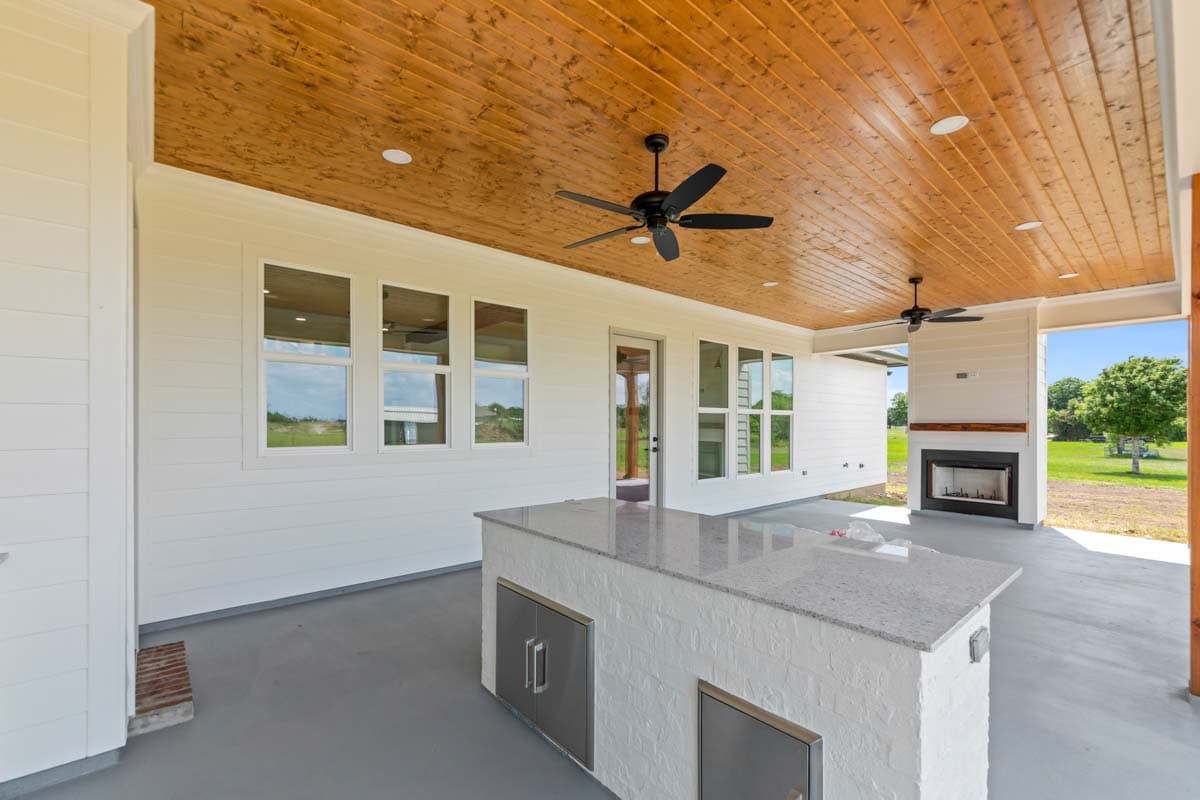

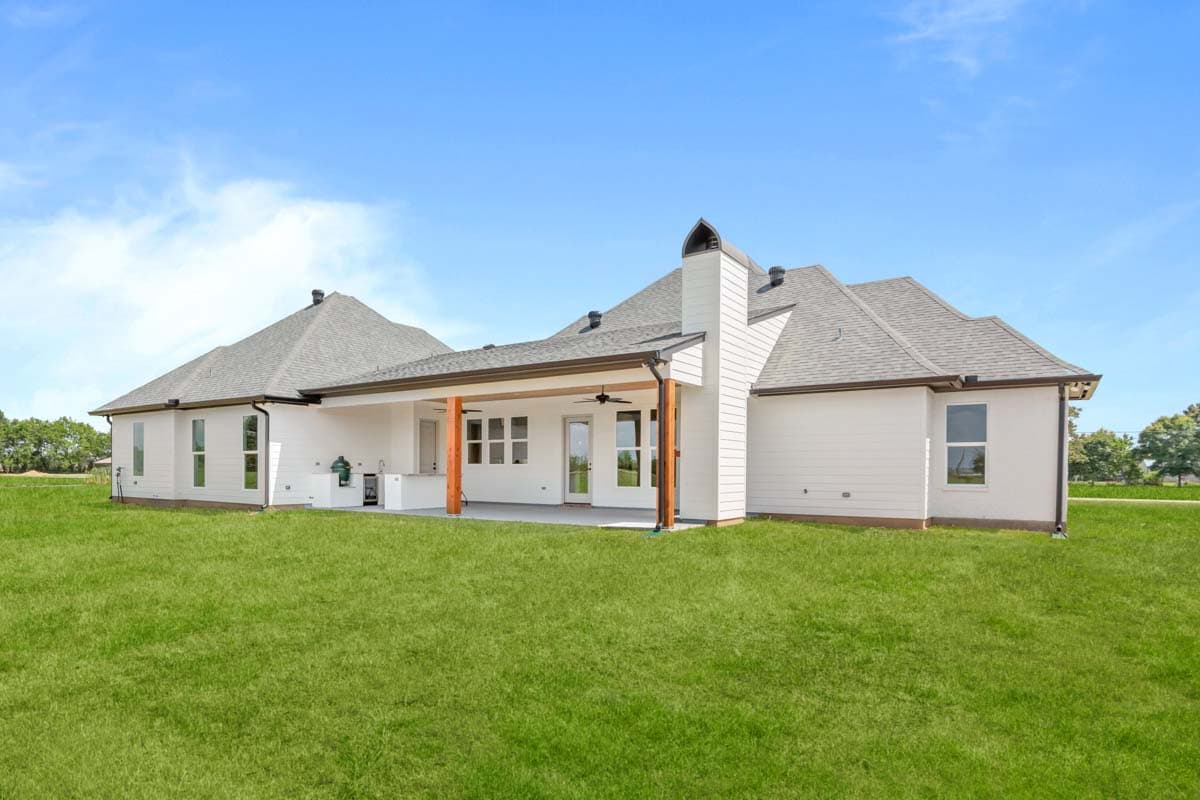

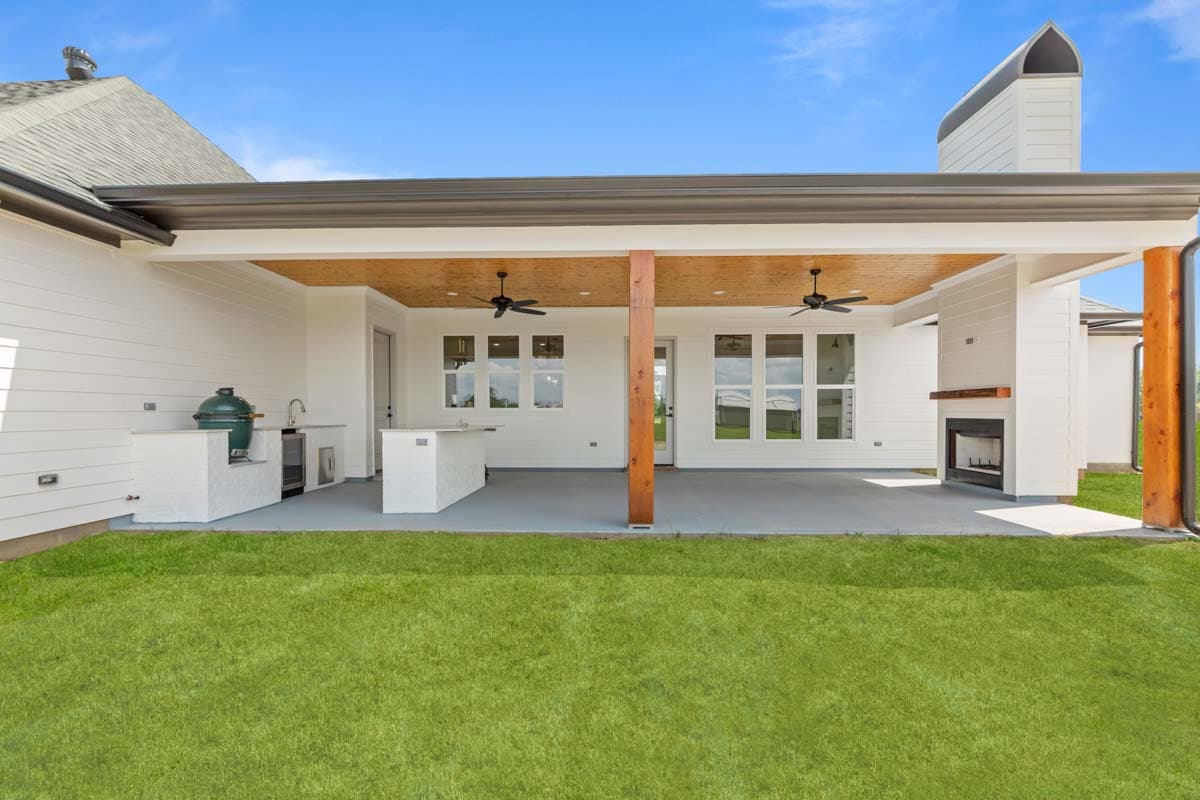

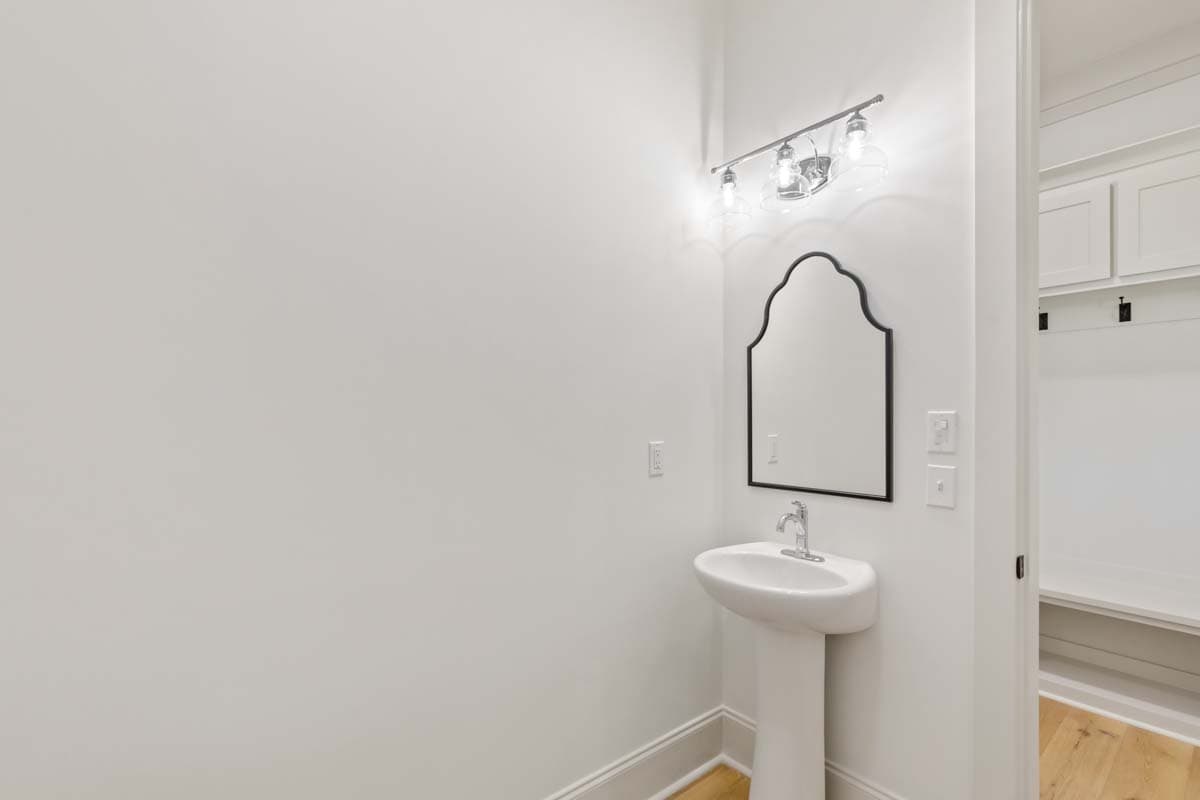

A powder bath is also available with access both indoors and outdoors. Outside, a large back porch has a wood-burning fireplace and an outdoor kitchen perfect for entertaining.

What's Included

Cover Sheet with general notes, rendering perspectives, sheet index
Detailed floor plan (includes window and door schedule, plumbing fixture locations, trim notes, floor notes etc.)
Roof plan (birds eye view of roof) with wall and foundation details
Foundation plan with details

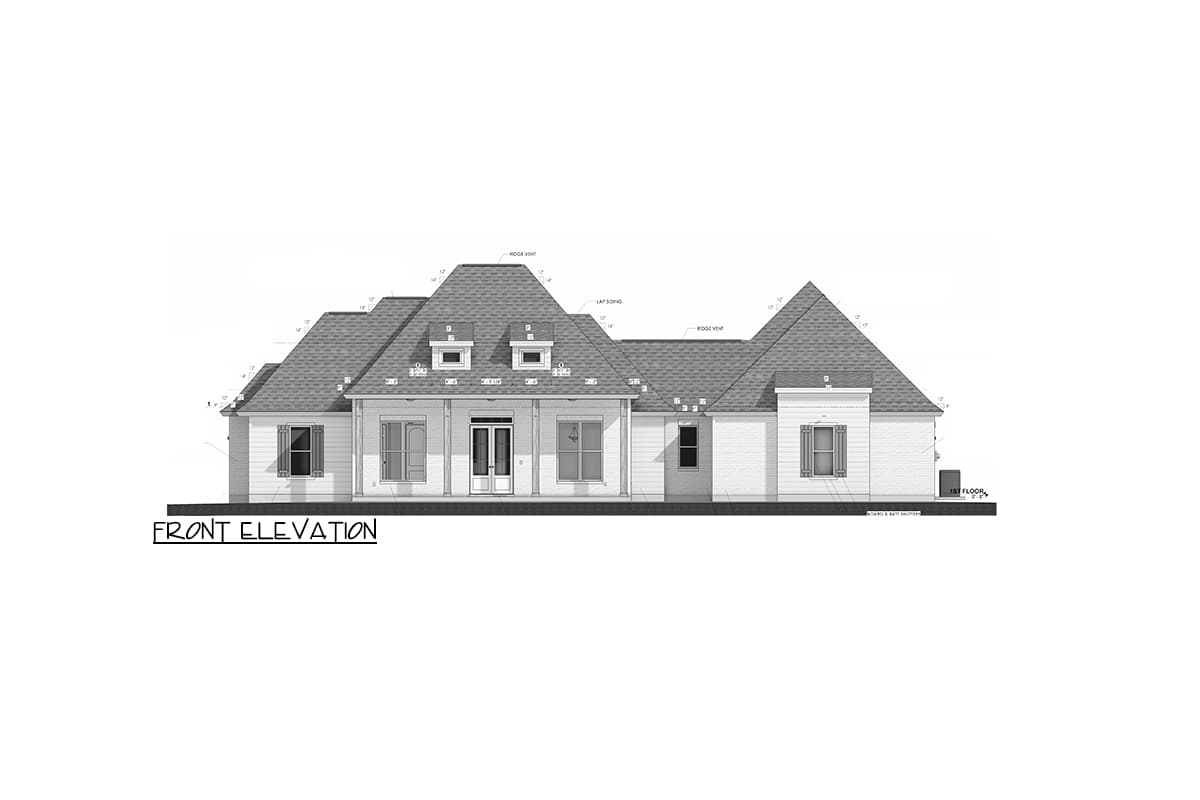

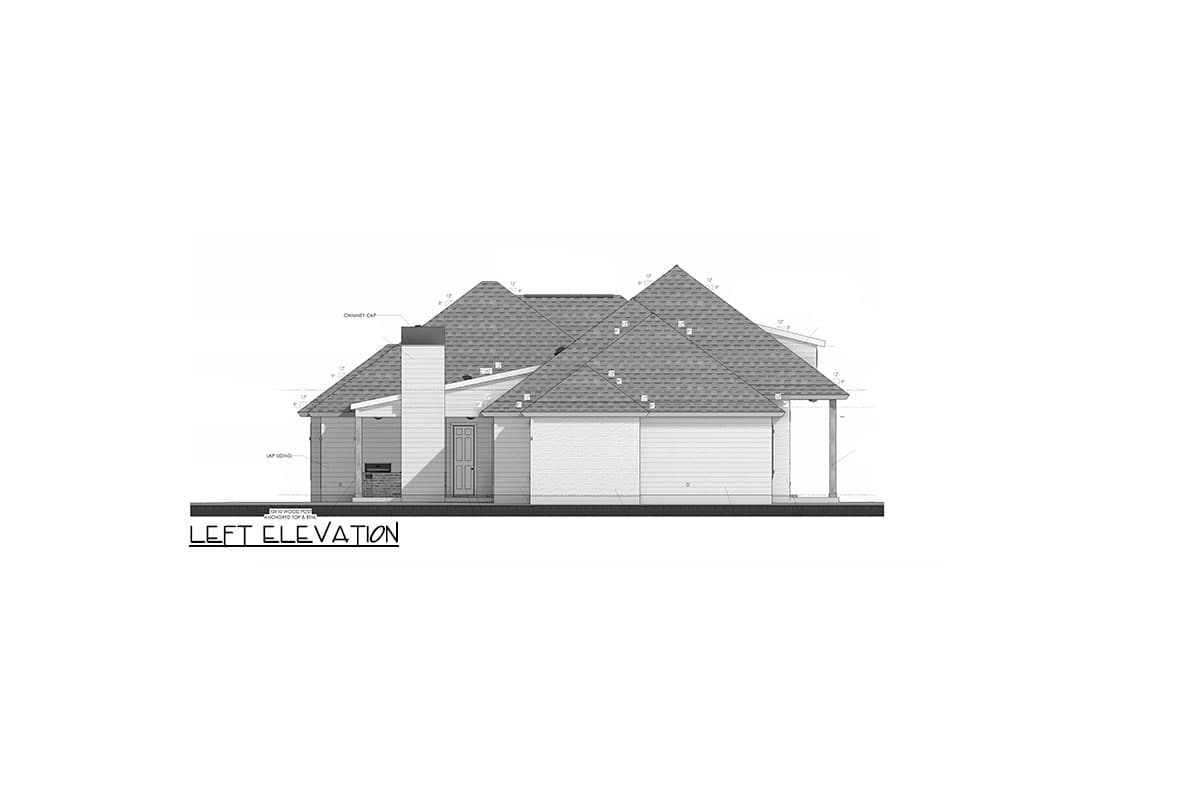

Four exterior views (front, rear, right, left)
Electrical layout plan included with some plans. Contact us for details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require
