Plan 421530CHD

4-Bed Transitional Home Plan Just Under 4,000 Square Feet

Heated S.F.

3,916

Beds

4

Baths

3.5

Stories

2

Cars

3

Floor Plan

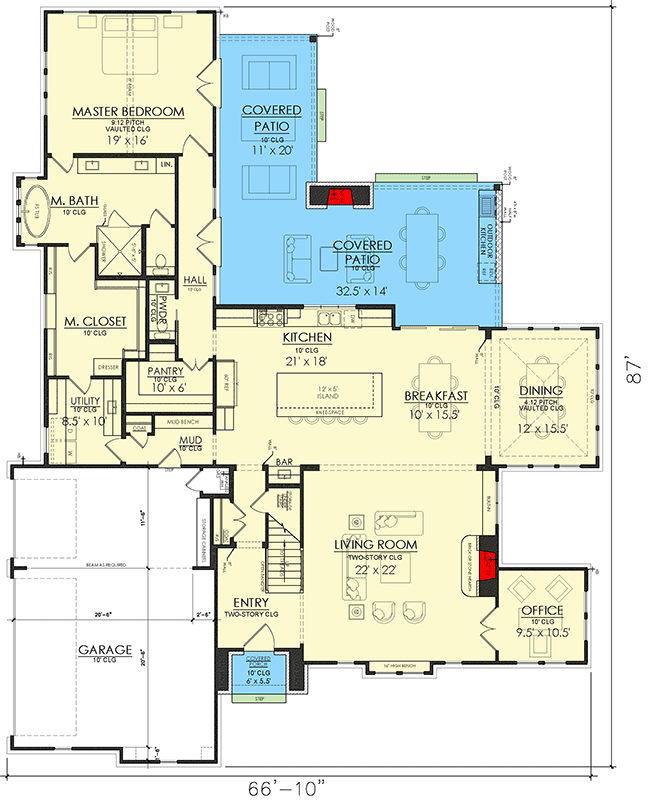

Main Level

floor plan image Main Level

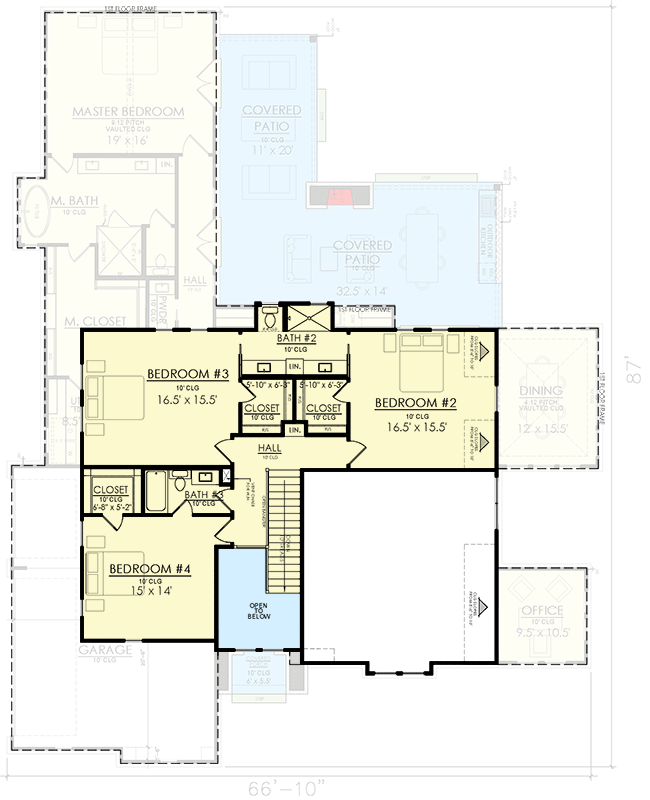

2nd Floor

floor plan image 2nd Floor

Plan Details

The high-pitched roof, combined with sloping angles and copper accents, makes this 4-bedroom Transitional home plan stand out in any neighborhood.
Filled with luxurious amenities, the shared living spaces on the main level feature a fireplace in the living room and covered patio, home office, island kitchen, and formal dining room that is surrounded by windows.
The master bedroom enjoys a location on the first floor and boasts a vaulted ceiling, access to the patio, and a shortcut to the laundry room through the walk-in closet.
Sizable service areas include a mudroom, laundry room with utility sink, and a walk-in pantry, while the 3-car garage offers entry from the side.
Three bedrooms reside upstairs, each with a walk-in closet, and a Jack-and-Jill bathroom is shared by two of the bedrooms.

What's Included

Cover Page
Foundation Plan with Notes and Footing Details
Dimensioned Floor Plans with Notes
Exterior Elevations and Roof Plan with Notes
Electrical Layout Plans with Legend

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,916 sq. ft.

1st Floor

2,743 sq. ft.

2nd Floor

1,173 sq. ft.

Porch, Front

48 sq. ft.

Porch, Rear

673 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 10"

Depth

87' 0"

Garage

Type

Attached

Area

806 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Entry

Second Story

0' 0''

Living Room

Second Story

0' 0''

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,916 sq. ft.

1st Floor

2,743 sq. ft.

2nd Floor

1,173 sq. ft.

Porch, Front

48 sq. ft.

Porch, Rear

673 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

66' 10"

Depth

87' 0"

Garage

Type

Attached

Area

806 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Entry

Second Story

0' 0''

Living Room

Second Story

0' 0''

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room
