Plan 911027JVD
4-Bed Transitional Home Plan Under 3300 Square Feet with 14' Ceiling above Great Room
Heated S.F.
3,278
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 911027JVD

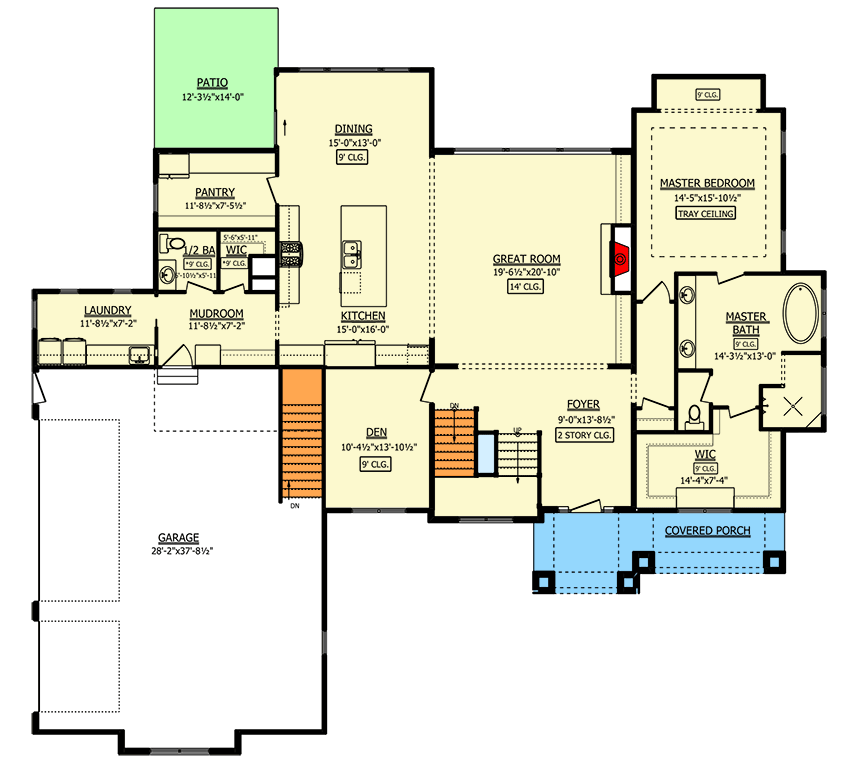

Main Level
slide image 0

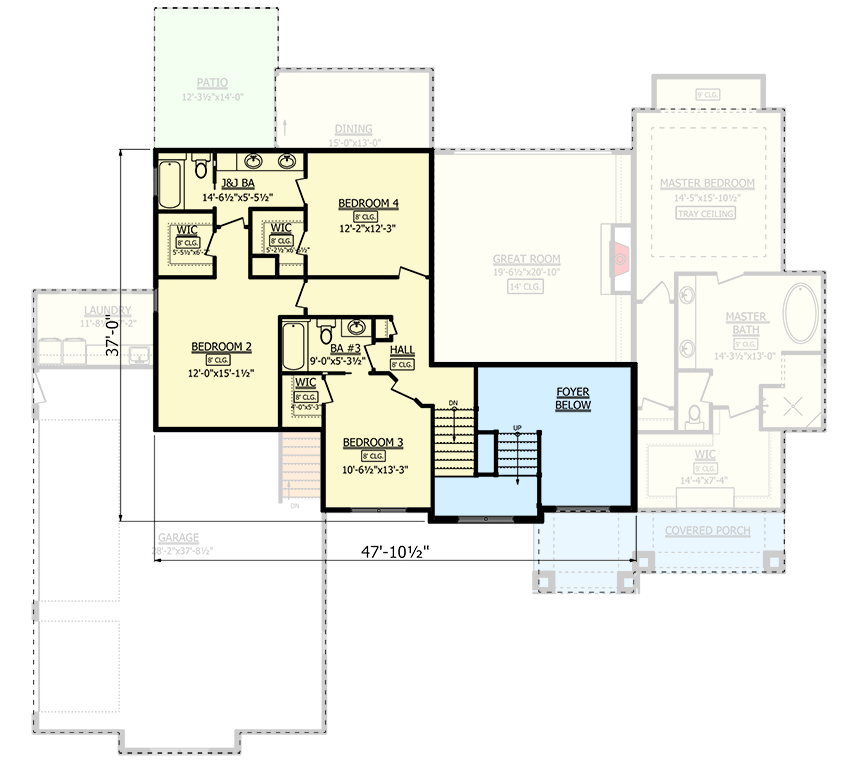

2nd Floor
slide image 1

Plan 911027JVD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

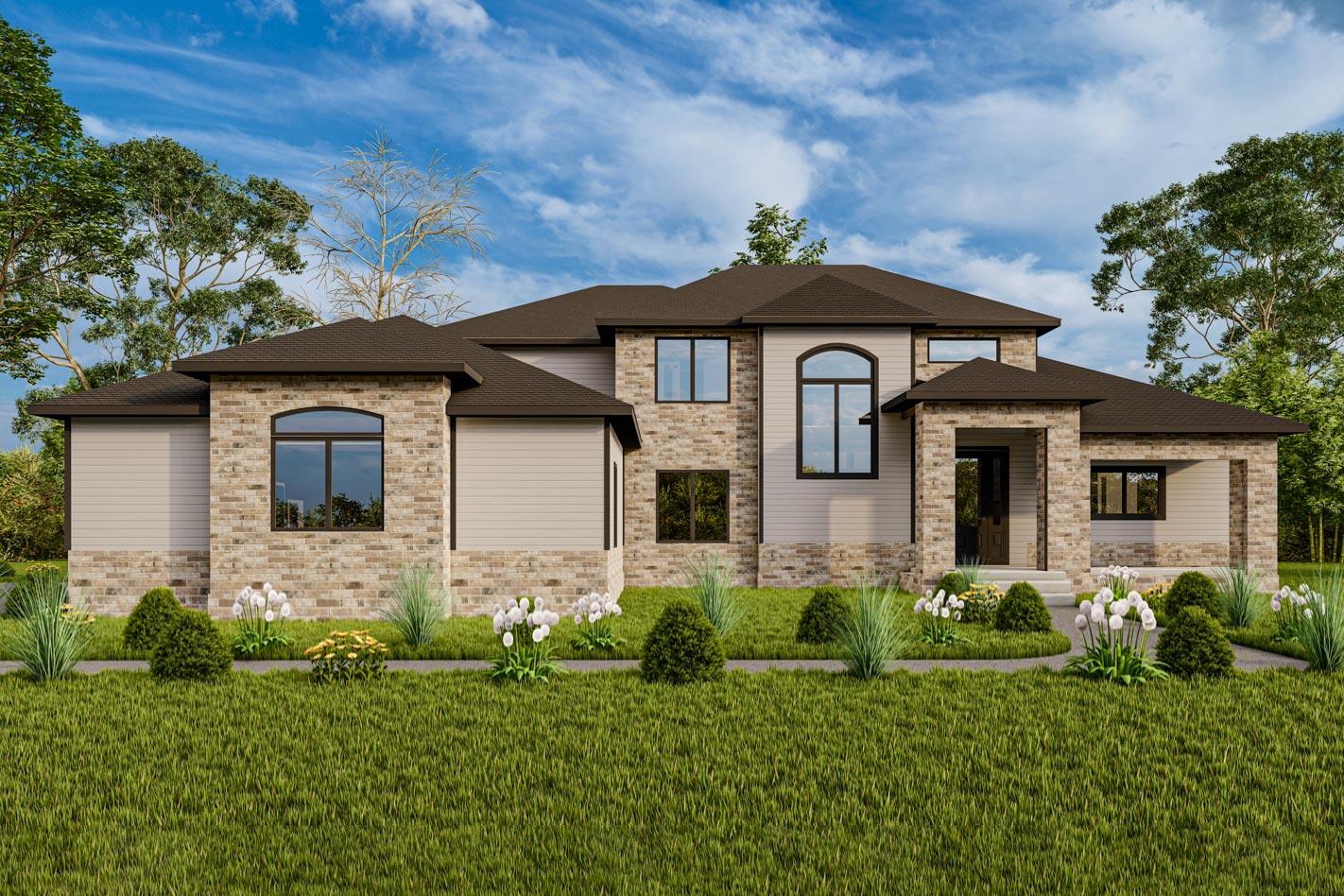

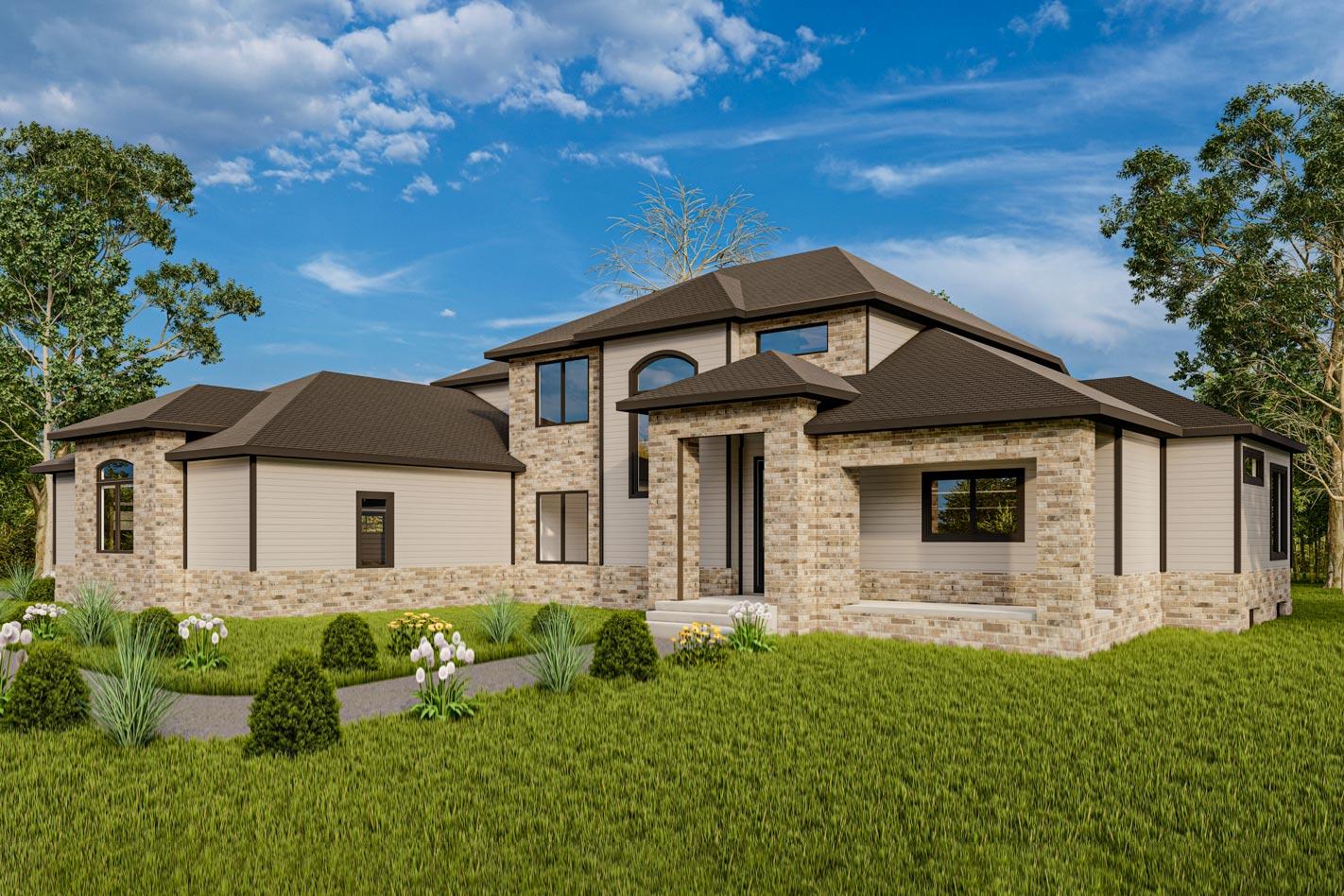

  • A blend of siding materials, topped by a low-pitched hip and valley roof, converge to form this Transitional home plan.

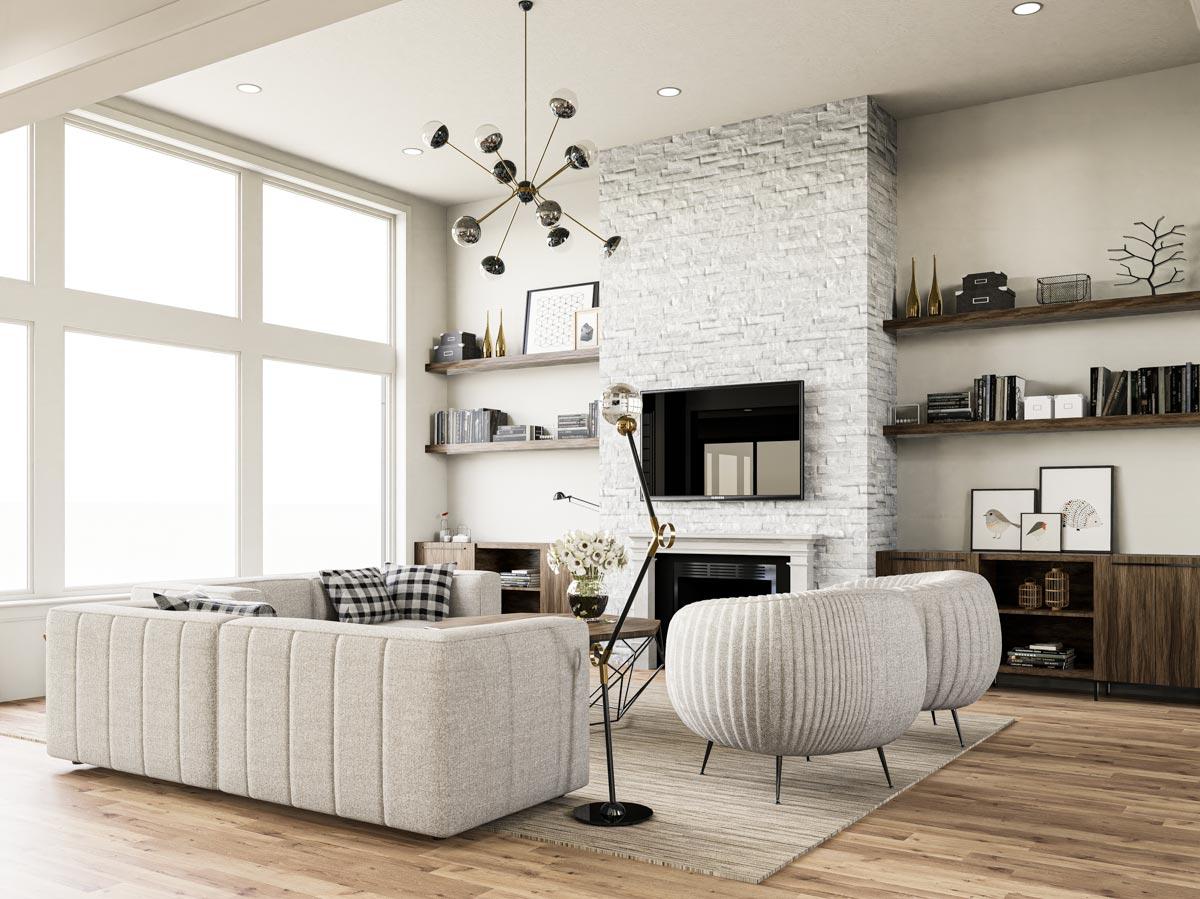

  • Tall ceilings (14') above the great room accommodate oversized windows to maximize access to natural light, while builtins surround a fireplace along the right wall.

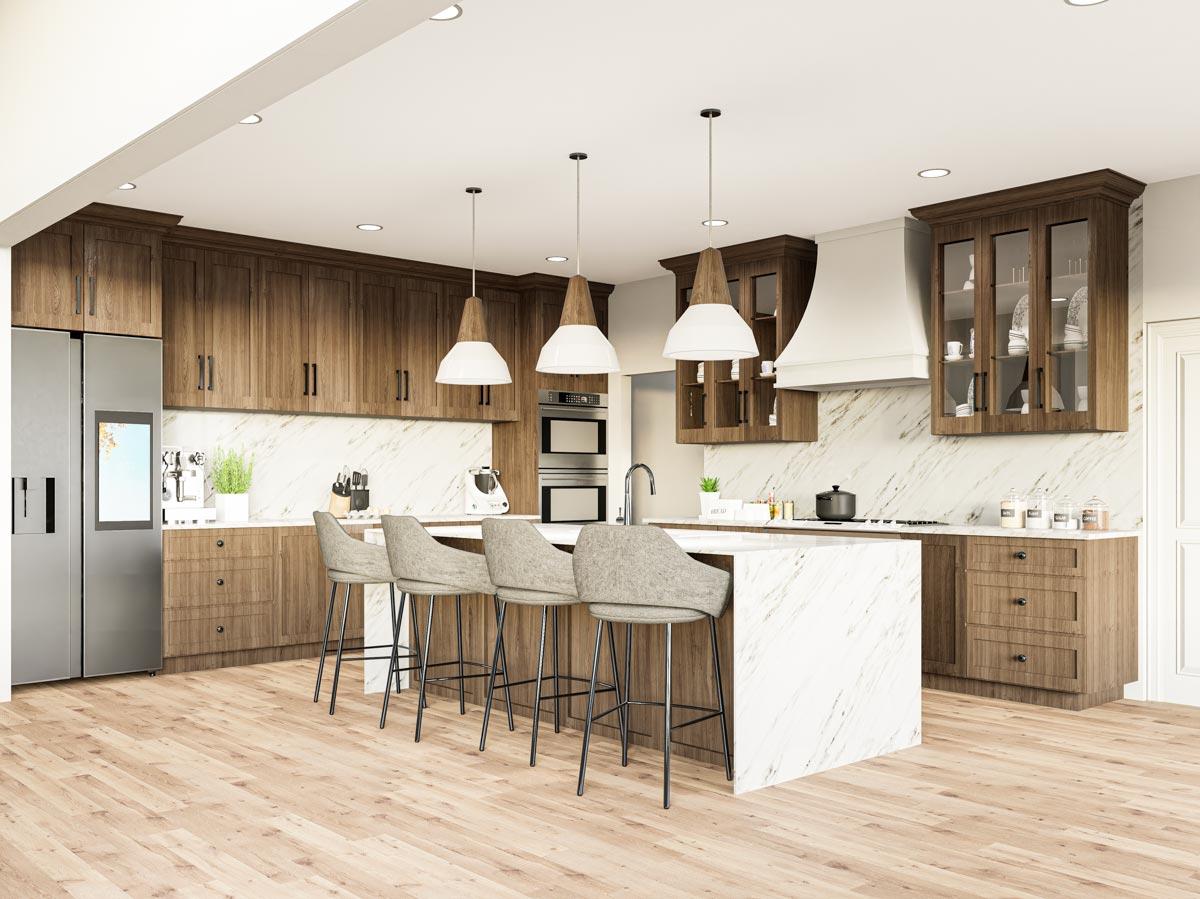

  • The island kitchen features additional workspace in the sizable walk-in pantry and a patio off the dining area is perfect for BBQs.

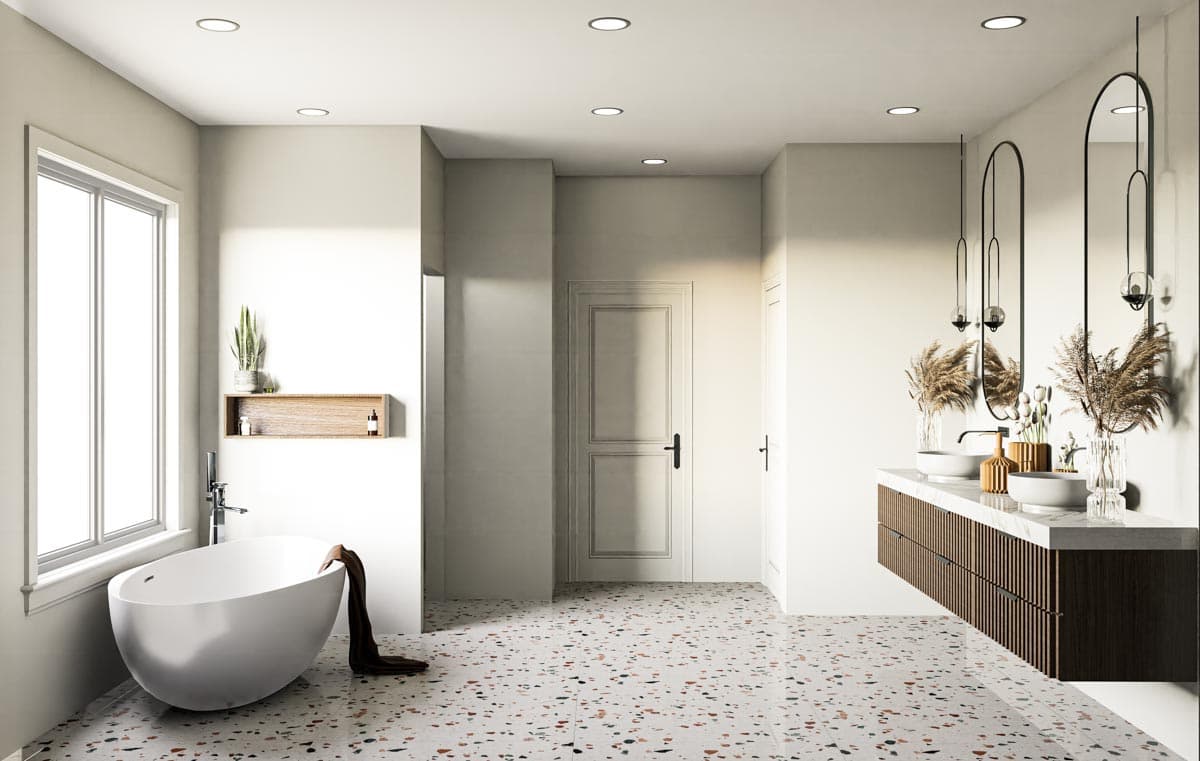

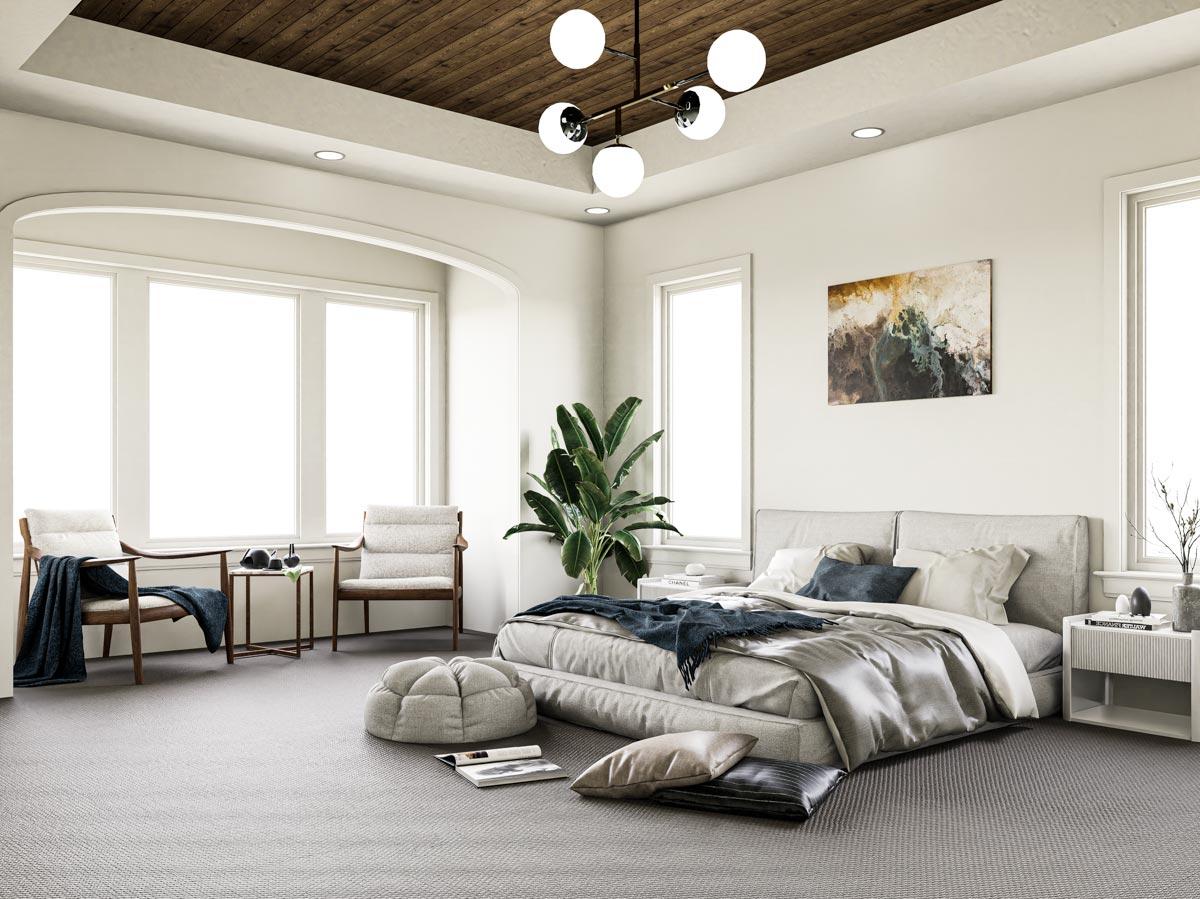

  • Retreat to the den or master bedroom, both located on the main level, for peace and quiet. The master bedroom delights in a sitting nook, tray ceiling, and deluxe ensuite with a roomy closet.

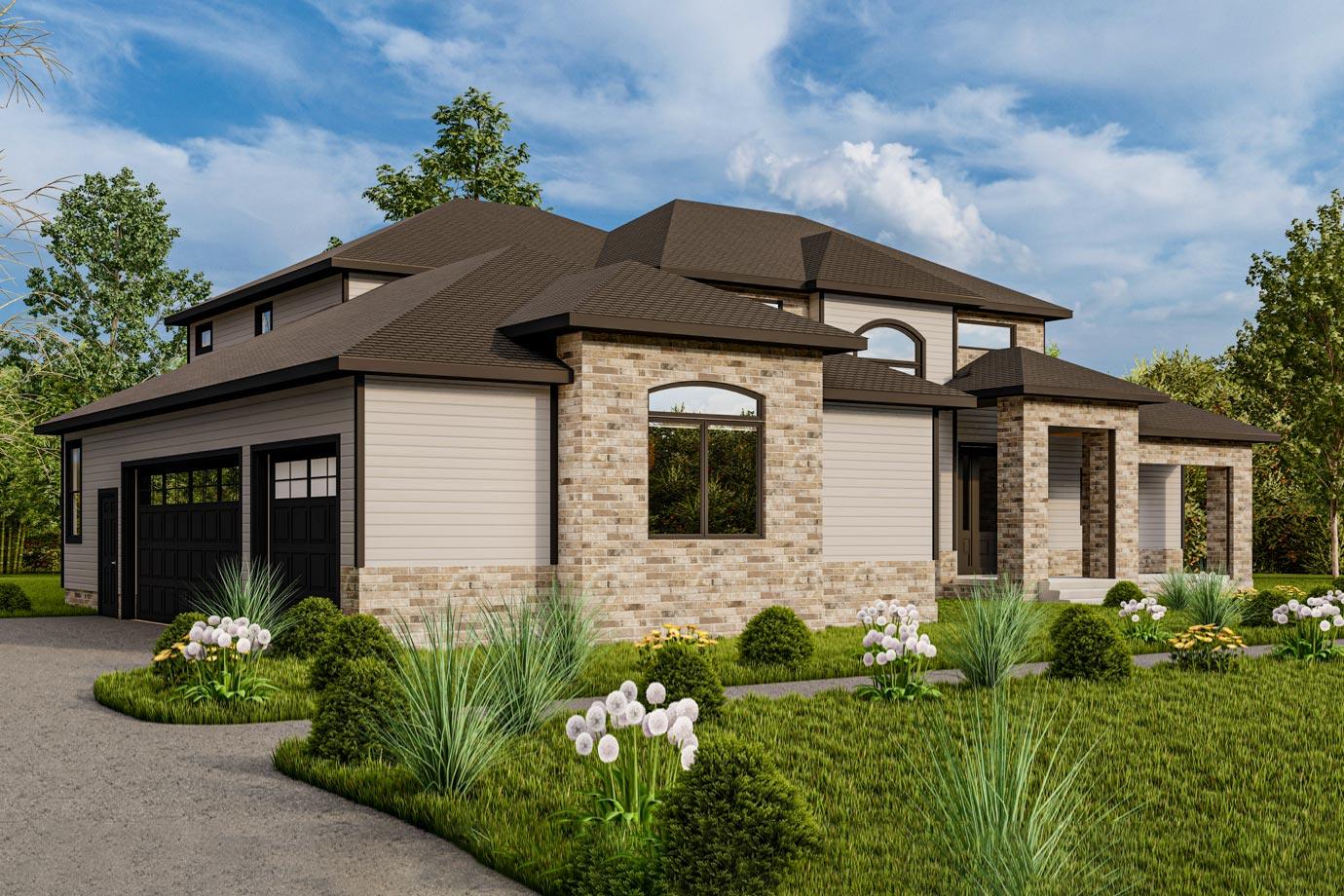

  • The remaining bedrooms can be found upstairs, while the spacious service areas reside next to the 3-car garage.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,278 sq. ft.

Lower Level

986 sq. ft.

1st Floor

2,398 sq. ft.

2nd Floor

880 sq. ft.

Basement Unfinished

1,505 sq. ft.

Porch, Front

168 sq. ft.

Porch, Rear

168 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Daylight

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

78' 7"

Depth

68' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

1066 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Transitional

Special Features

Butler Walk-in Pantry

Den

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Square Footage Breakdown

Total Heated Area

3,278 sq. ft.

Lower Level

986 sq. ft.

1st Floor

2,398 sq. ft.

2nd Floor

880 sq. ft.

Basement Unfinished

1,505 sq. ft.

Porch, Front

168 sq. ft.

Porch, Rear

168 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Daylight

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

78' 7"

Depth

68' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

1066 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Transitional

Special Features

Butler Walk-in Pantry

Den

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom
