Plan 860080MCD
4-Bed Transitional House Plan with Outdoor Kitchen and Fireplace - 3410 Sq Ft
Heated S.F.
3,410
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 860080MCD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 860080MCD

1-800-854-7852

1-262-521-4596

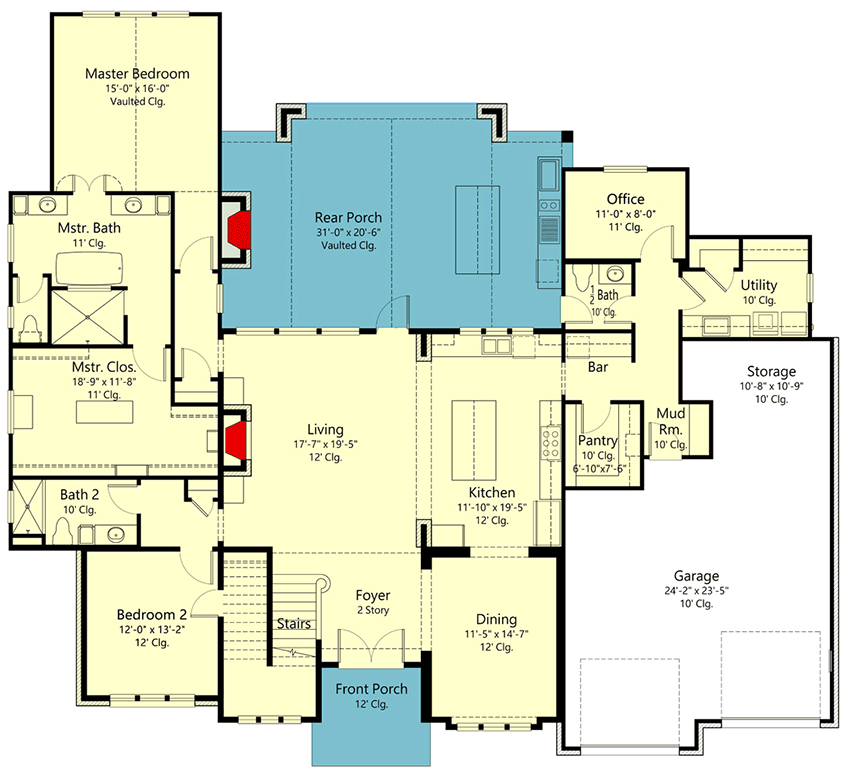

Main Level
floor plan image Main Level

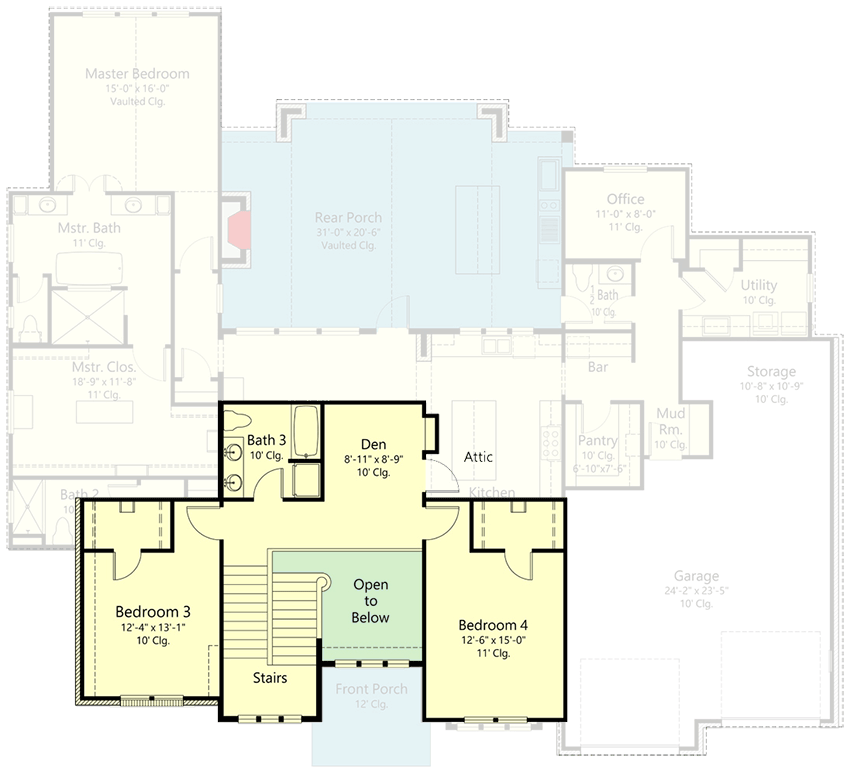

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This charming transitional house plan welcomes you with a front porch leading into a grand two-story foyer.
  • To the right, a formal dining room connects to a cozy living room with a fireplace, flowing seamlessly into the kitchen. The kitchen features a large pantry off a wetbar serving area, and leads you down to a home office, laundry room, half bath, and mudroom leading to the oversized 2-car garage with storage or workshop space.
  • On the opposite side, the master suite offers an ensuite bathroom and a spacious walk-in closet, while a nearby bedroom and bathroom provide additional space.
  • The rear porch features an outdoor kitchen and fireplace, perfect for outdoor gatherings.
  • Upstairs, two more bedrooms, a bathroom, and a versatile loft or den complete the home.
What's Included

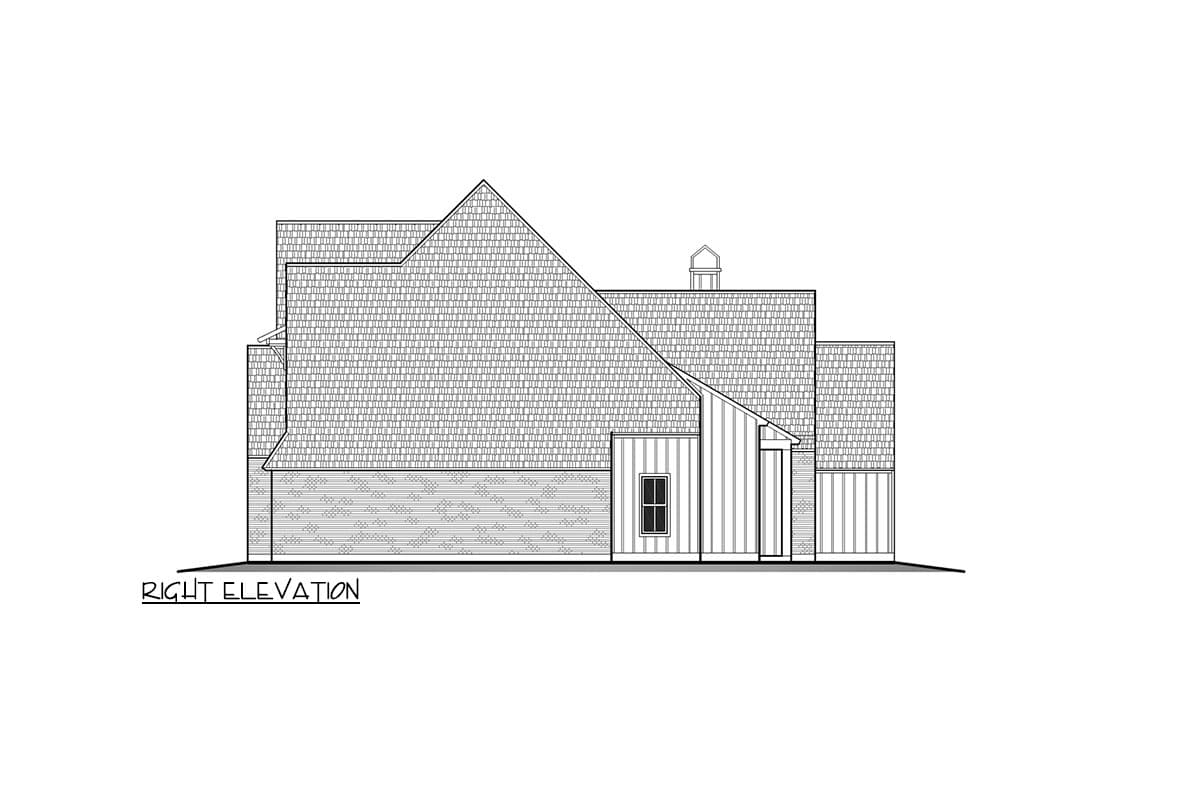

  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,410 sq. ft.

1st Floor

2,500 sq. ft.

2nd Floor

910 sq. ft.

Porch, Combined

703 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

75' 7"

Depth

68' 8"

Max Ridge Height

40' 0"

Garage

Type

Attached

Area

763 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

New American

Transitional

Tudor

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Formal Dining

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Wet Bar

Workshop
