4-Bed Transitional House Plan with Vaulted Outdoor Living Space - 3650 Sq Ft
Heated S.F.
3,650
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 493025GNT

Main Level
slide image 0
2nd Floor
slide image 1

Plan 493025GNT

1-800-854-7852

1-262-521-4596

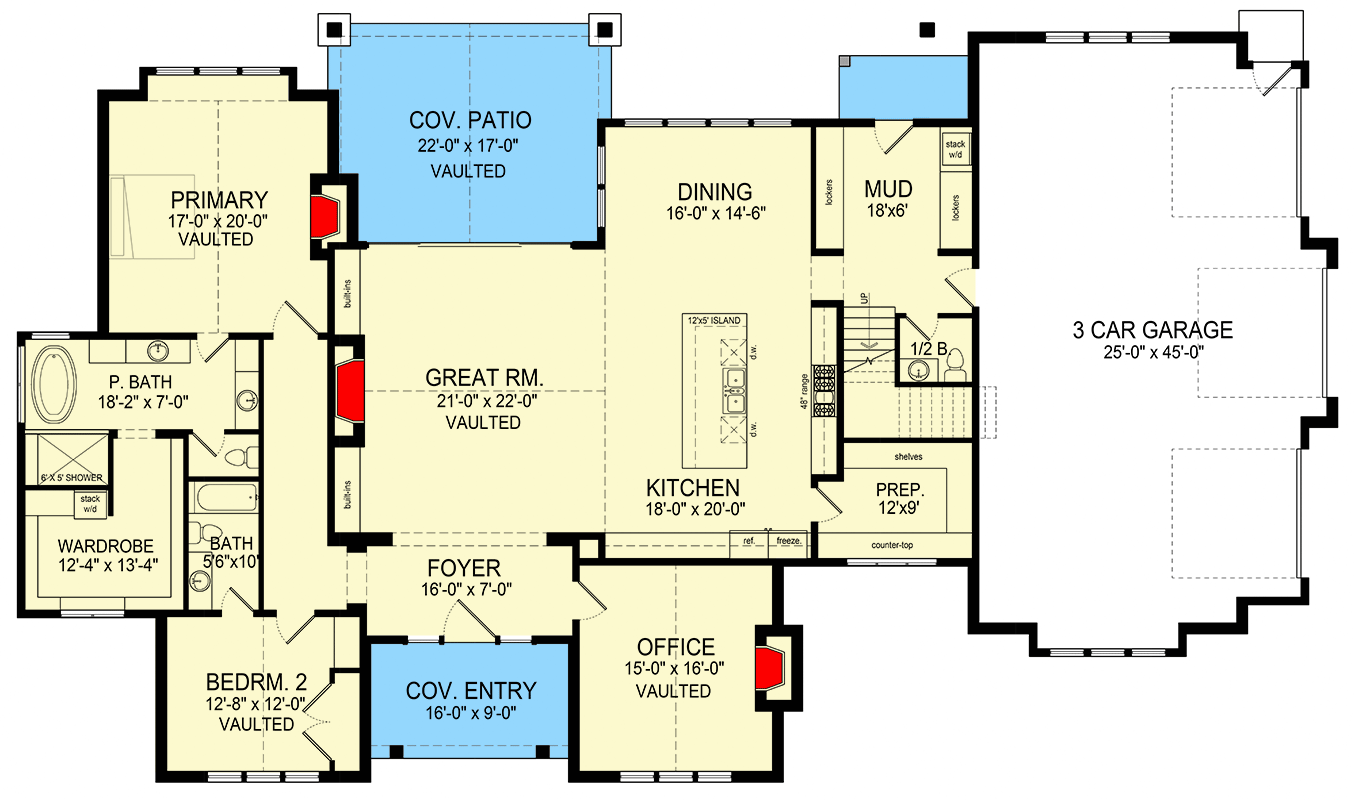

Main Level
floor plan image Main Level

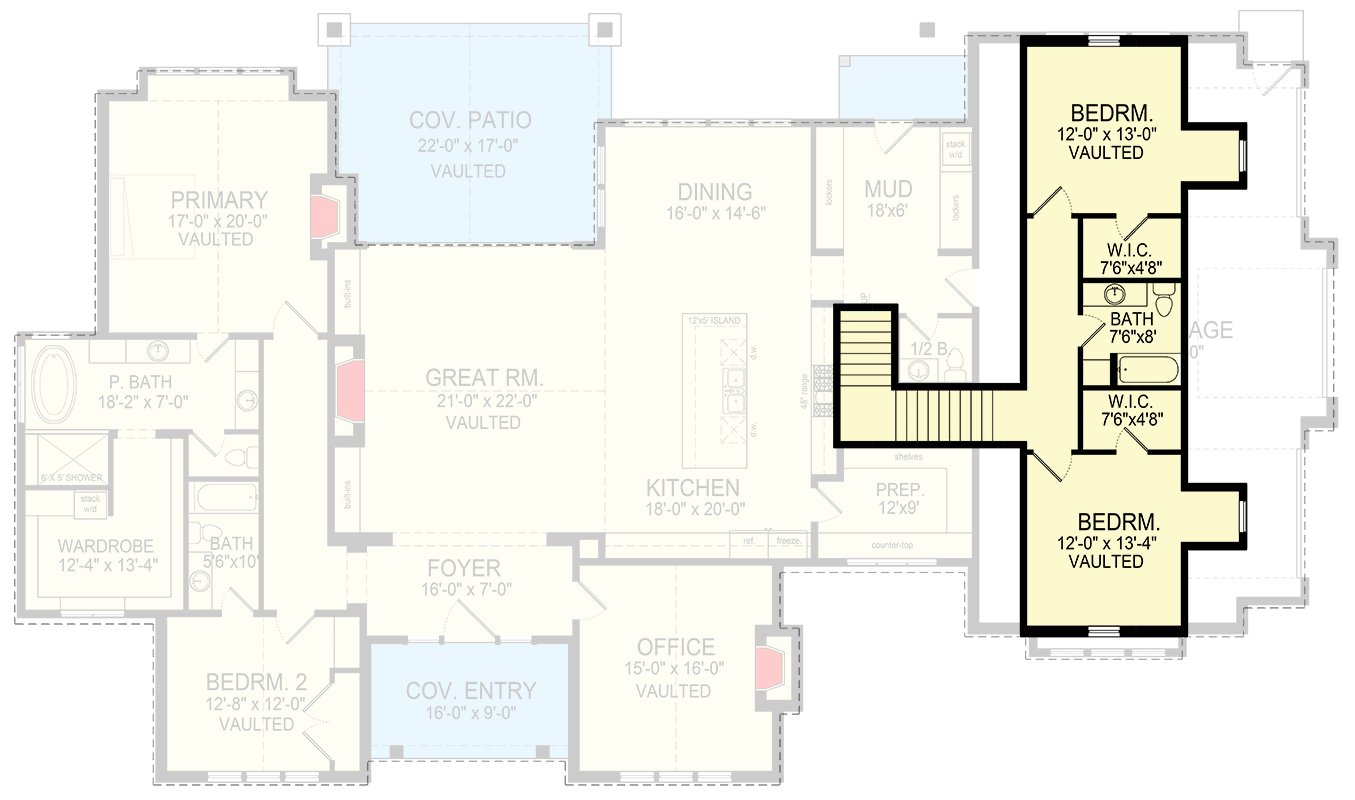

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This transitional house plan offers you 3,650 square feet of heated living space with 4 beds, 3.5 baths and a 1,211 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a similar version that has a different floor plan with house plan 493023GNT (3871 sq ft).
What's Included
  • Cover Sheet
  • General Notes
  • Foundation Plan
  • Main Level/Second Level (if applicable) door and window schedules
  • Fully Dimensioned Floor Plans
  • Elevations
  • Exterior Perspective Views
  • Building Section
  • Typical Construction Details
  • Bird's Eye Roof Plan
  • Suggested Electrical Layout (Outlets, Fixtures, Switches)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,650 sq. ft.

1st Floor

2,997 sq. ft.

2nd Floor

653 sq. ft.

Optional Lower Level

2,800 sq. ft.

Porch, Rear

359 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

102' 0"

Depth

58' 2"

Max Ridge Height

33' 9"

Garage

Type

Attached

Area

1211 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,650 sq. ft.

1st Floor

2,997 sq. ft.

2nd Floor

653 sq. ft.

Optional Lower Level

2,800 sq. ft.

Porch, Rear

359 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

102' 0"

Depth

58' 2"

Max Ridge Height

33' 9"

Garage

Type

Attached

Area

1211 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
