Plan 93220EL

Exclusive

4-Bed Transitional New American House Plan with Outdoor Kitchen and Fireplace - 3448 Sq Ft
Heated S.F.
3,448
Beds
3 - 4
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 93220EL

Main Level
slide image 0
2nd Floor
slide image 1

Plan 93220EL

1-800-854-7852

1-262-521-4596

Main Level

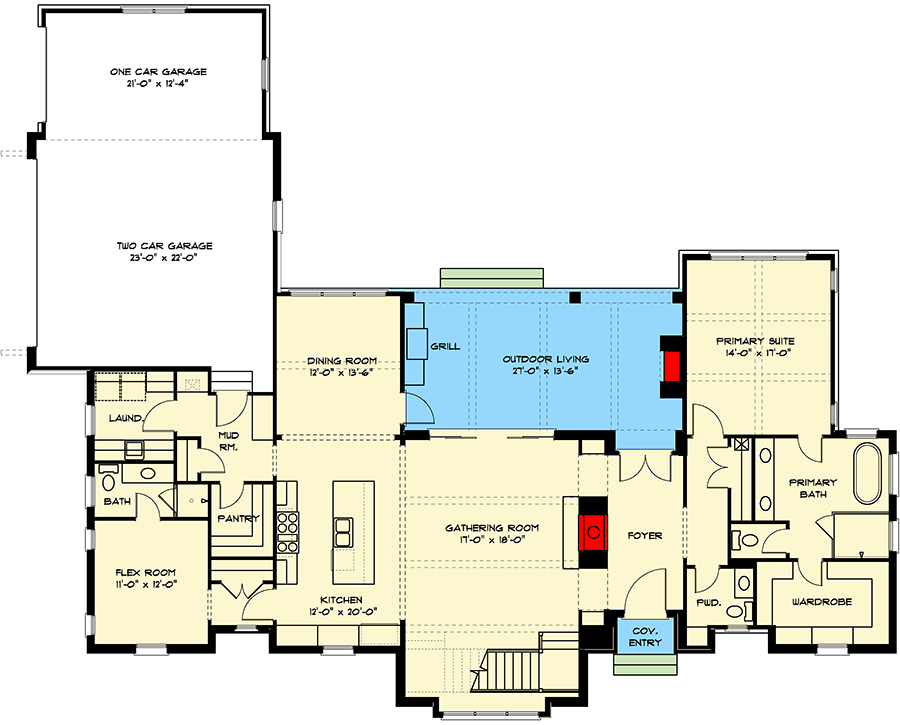

floor plan image Main Level
2nd Floor

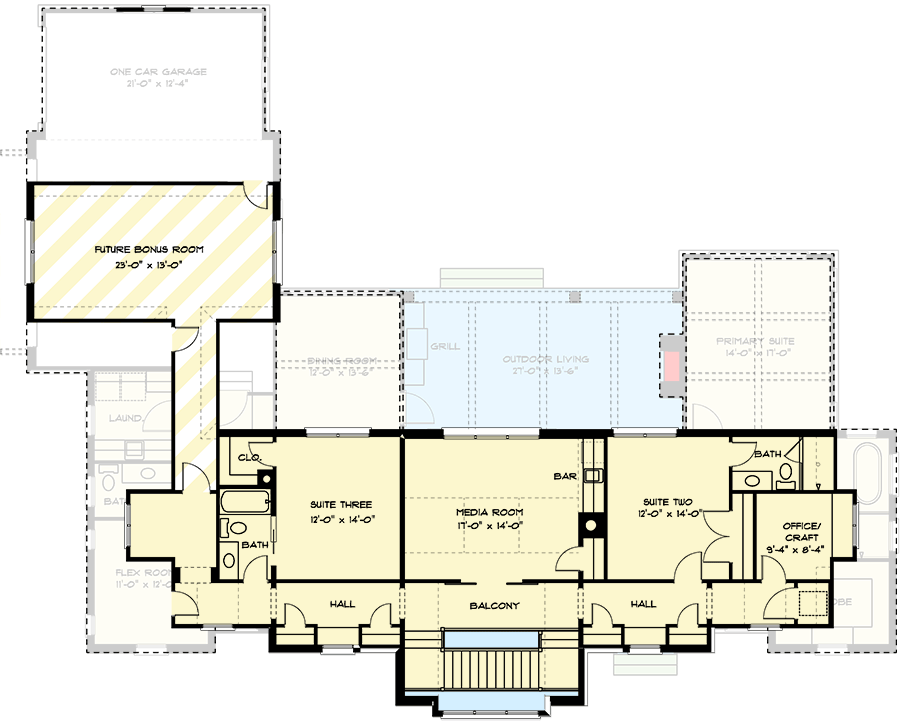

floor plan image 2nd Floor
Plan Details
  • This transitional New American house plan offers you 3,448 square feet of heated living area, with 4 bedrooms, 4.5 baths, and a 824 square foot 3-car garage with a side-entry configuration at the rear-left side of the home.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • Floor Plan
  • Roof Framing Plan
  • 4 Elevations
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • Electrical

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,448 sq. ft.

1st Floor

2,159 sq. ft.

2nd Floor

1,289 sq. ft.

Bonus

402 sq. ft.

Porch, Front

25 sq. ft.

Porch, Rear

387 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 5"

Depth

69' 3"

Max Ridge Height

34' 9"

Garage

Type

Attached

Area

824 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

16 on 12

Architectural Style

Contemporary

European

New American

Transitional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Plan Collections

Exclusive
