Plan 31568GF
4-Bed Vacation Home Plan with Ample Outdoor Living Space - 3003 Sq Ft
Heated S.F.
3,003
Beds
4
Baths
4
Stories
2
Cars
2
Floor Plan

Plan 31568GF

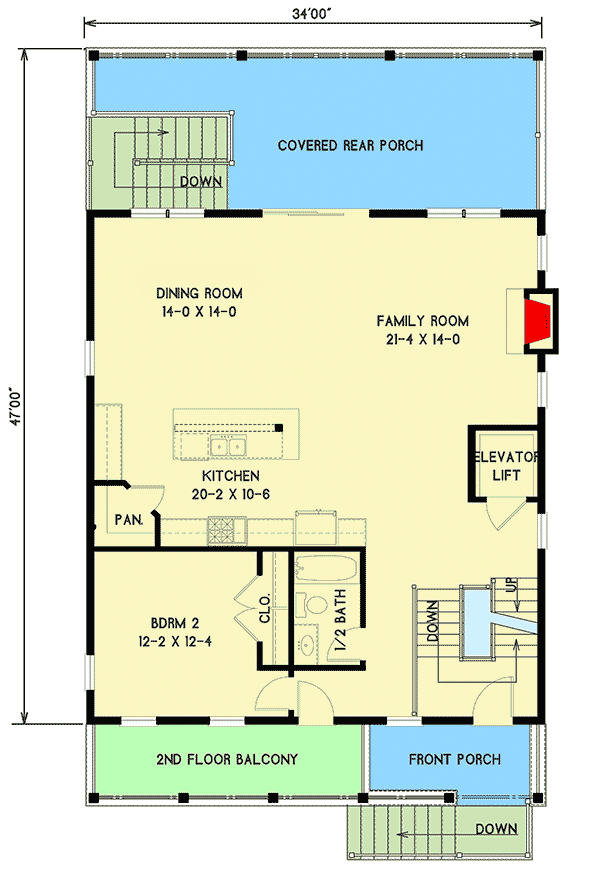

Main Level
slide image 0

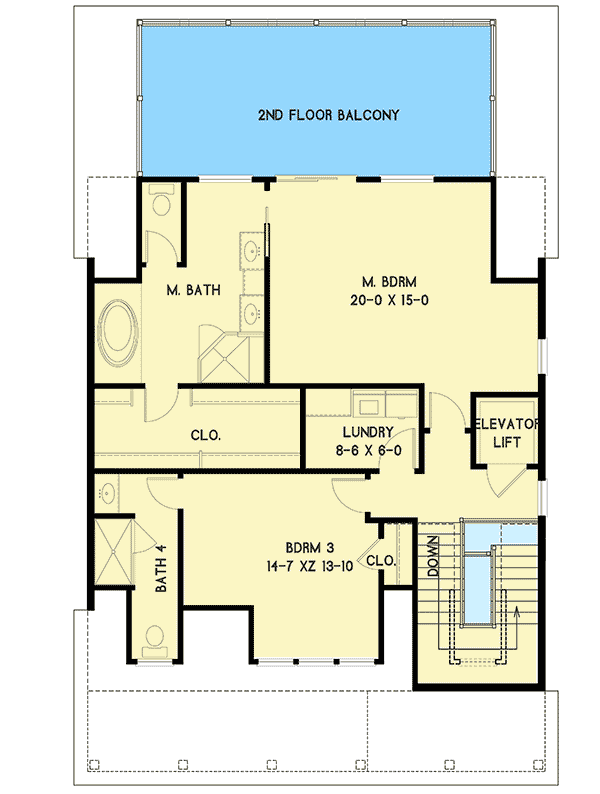

2nd Floor
slide image 1

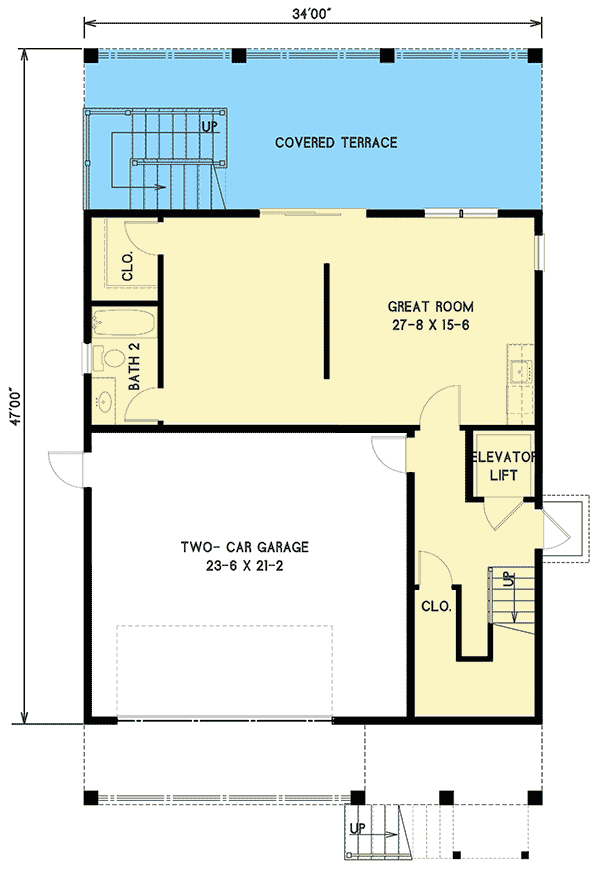

Lower Level
slide image 2

Plan 31568GF

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Lower Level
floor plan image Lower Level
Plan Details
  • Shed dormers rest atop the gable roof on this 4-bedroom, vacation home plan, with an inviting front porch welcoming visitors and adding to the curb appeal.
  • The heart of the home is rear facing and extends outdoors onto a covered porch, taking advantage of any rearward views.
  • The kitchen features a double-bowl sink in the island, and a corner pantry boosts storage space. A bedroom just off the entryway is ideal for guests, and neighbors a full bath.
  • Upstairs, the deluxe master bedroom boasts a private balcony, along with a comfortable en suite and large, walk-in closet. A second bedroom on this level includes a full bath.
  • The lower level consists not only of the 2-car garage, but also a great room, full bath, and covered terrace. The elevator considers your future needs, while providing an easy way to move between floors.
What's Included
  • Cover Sheet: Shows typical notes and requirements.

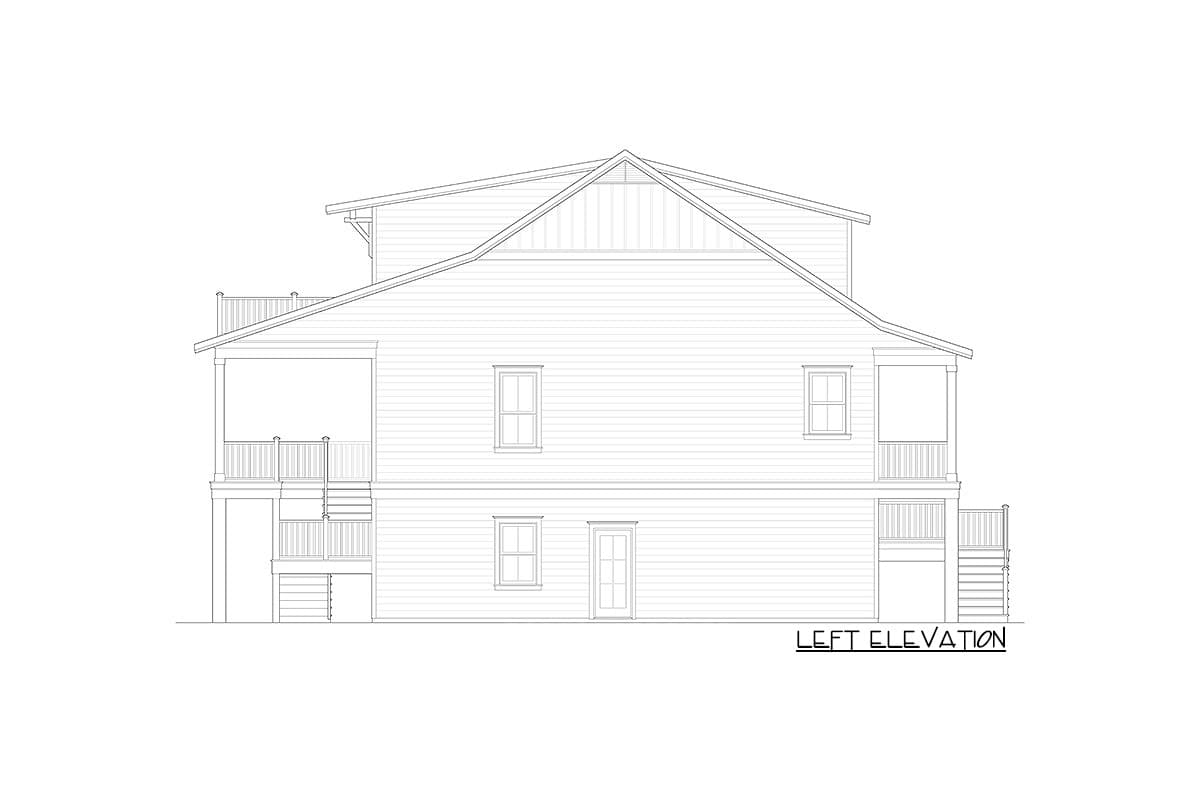

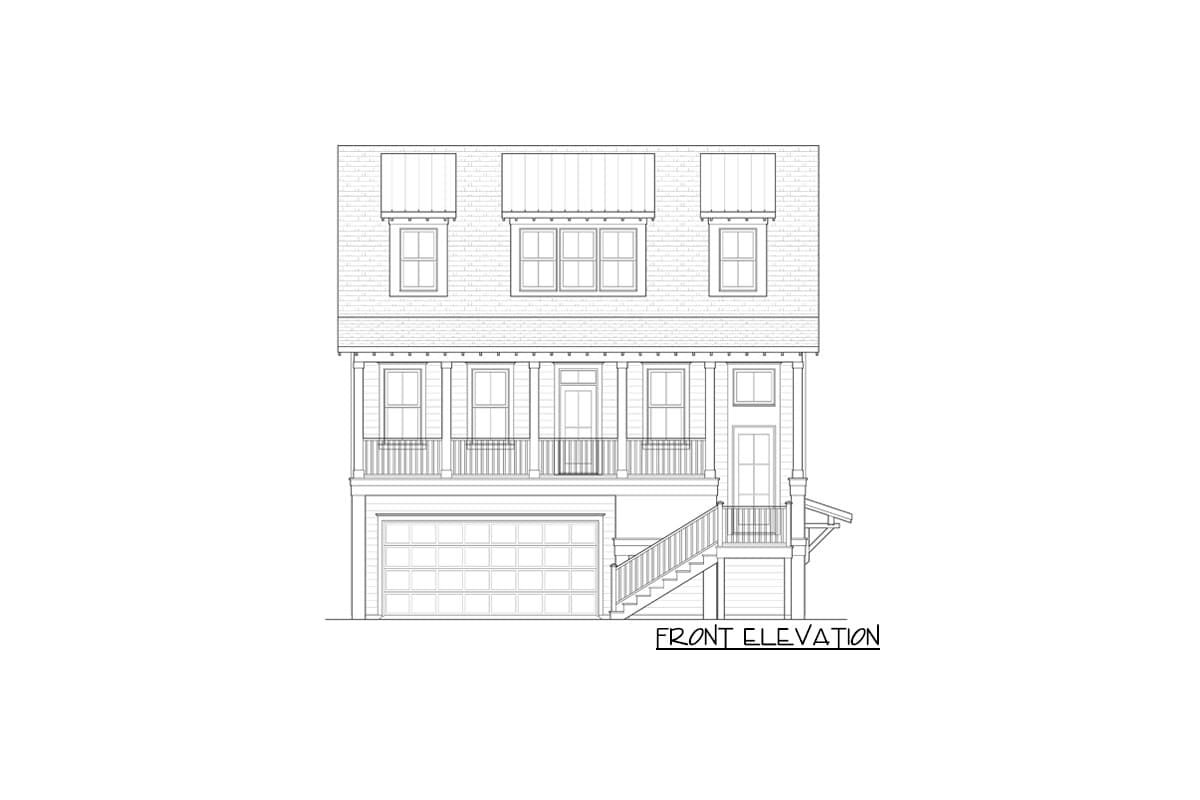

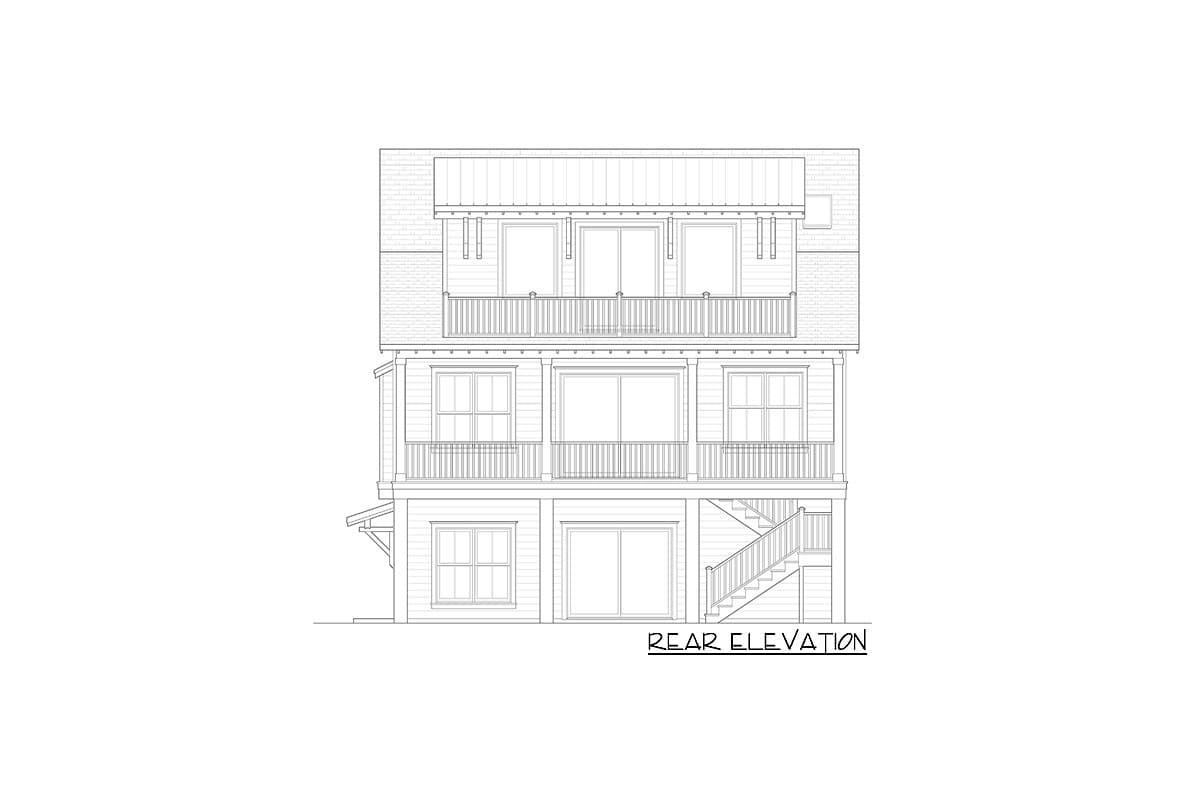

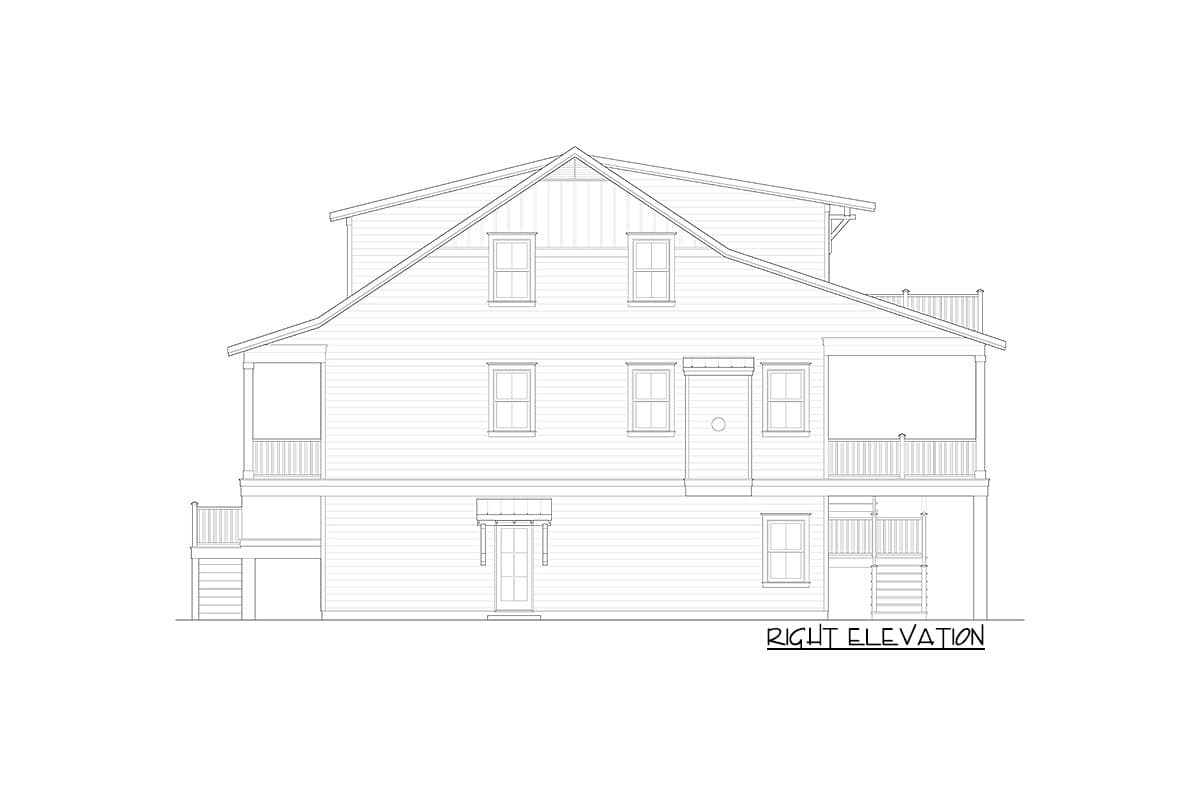

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,003 sq. ft.

Lower Level

778 sq. ft.

1st Floor

1,200 sq. ft.

2nd Floor

1,025 sq. ft.

Porch, Combined

126 sq. ft.

Deck

335 sq. ft.

Balcony / Veranda

313 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

38' 2"

Max Ridge Height

35' 9"

Garage

Type

Drive Under

Area

520 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 5"

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Beach

Coastal

Country

Low Country

Vacation

Special Features

Elevator

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

3,003 sq. ft.

Lower Level

778 sq. ft.

1st Floor

1,200 sq. ft.

2nd Floor

1,025 sq. ft.

Porch, Combined

126 sq. ft.

Deck

335 sq. ft.

Balcony / Veranda

313 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

38' 2"

Max Ridge Height

35' 9"

Garage

Type

Drive Under

Area

520 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 5"

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Beach

Coastal

Country

Low Country

Vacation

Special Features

Elevator

Laundry - Upstairs

Master Suite - 2nd Floor
