Plan 80754PM
4 Bedroom Farmouse With Stone Facade
Heated S.F.
3,500
Beds
4
Baths
2.5+
Stories
2
Cars
2
Floor Plan

Plan 80754PM

Main Level
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2
2nd Floor
slide image 3

Plan 80754PM

1-800-854-7852

1-262-521-4596

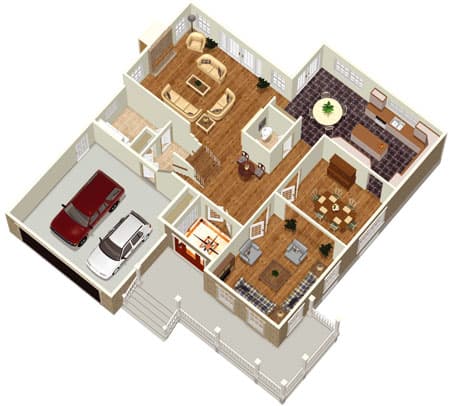

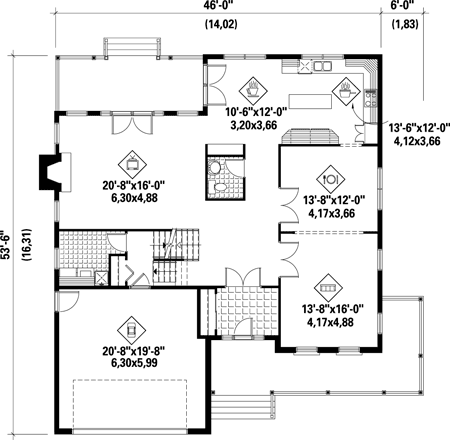

Main Level
floor plan image Main Level
Main Level
floor plan image Main Level

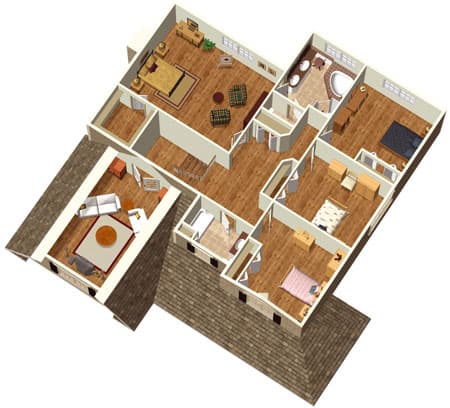

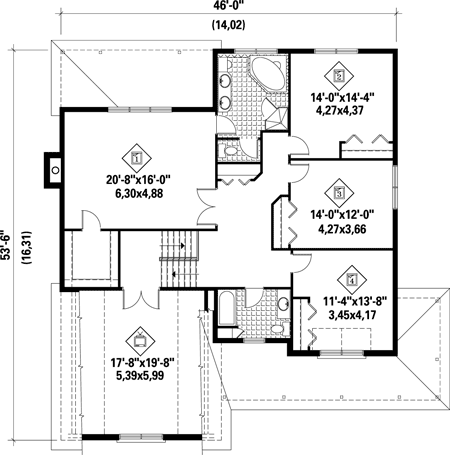

2nd Floor
floor plan image 2nd Floor
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 4 bedroom farmhouse plan has an attractive stone facade with some wood exposure plus a great porch which wraps around the right.
  • All bedrooms are upstairs leaving the main floor for familiy and friends and fun.
  • A back porch is accessible from the breakfast area and the living room giving you more room to expand.
What's Included
Please note this plan is designed to the National Building Code of Canada.

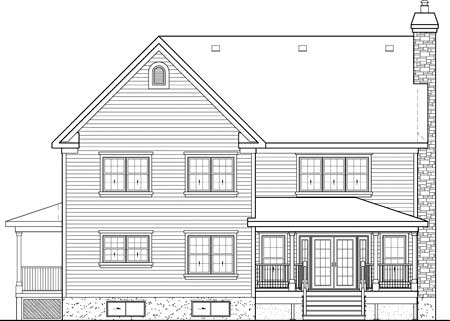

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,500 sq. ft.

1st Floor

1,562 sq. ft.

2nd Floor

1,938 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

53' 6"

Max Ridge Height

36' 10"

Garage

Type

Attached

Area

536 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Farmhouse

Traditional

Special Features

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

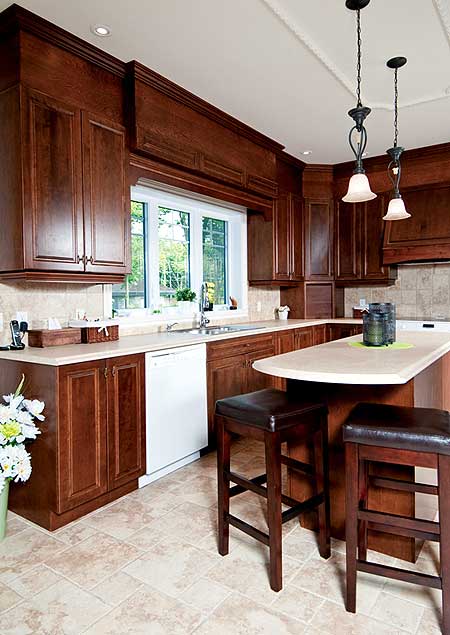

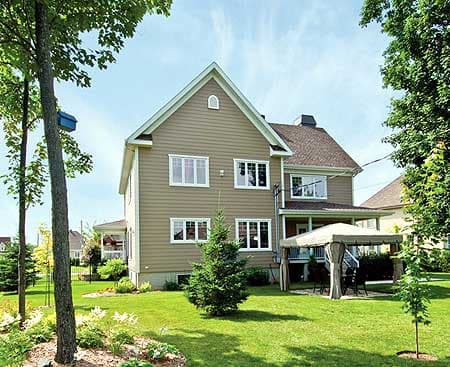

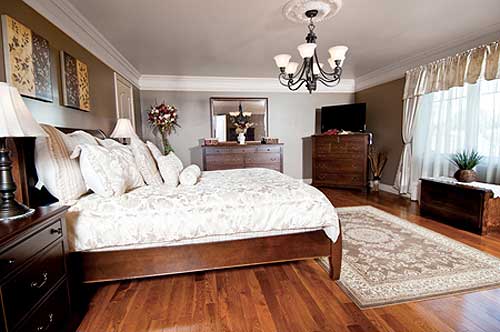

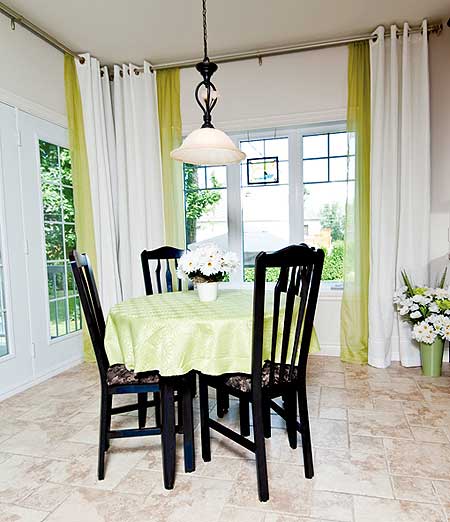

Photo Gallery
