Plan 290103IY
4-Bedroom House Plan with Optional Lower Level
Heated S.F.
2,540
Beds
4 - 6
Baths
2.5 - 3.5
Stories
2
Cars
3
Floor Plan

Plan 290103IY

Main Level
slide image 0
2nd Floor
slide image 1
Optional Lower Level
slide image 2

Plan 290103IY

1-800-854-7852

1-262-521-4596

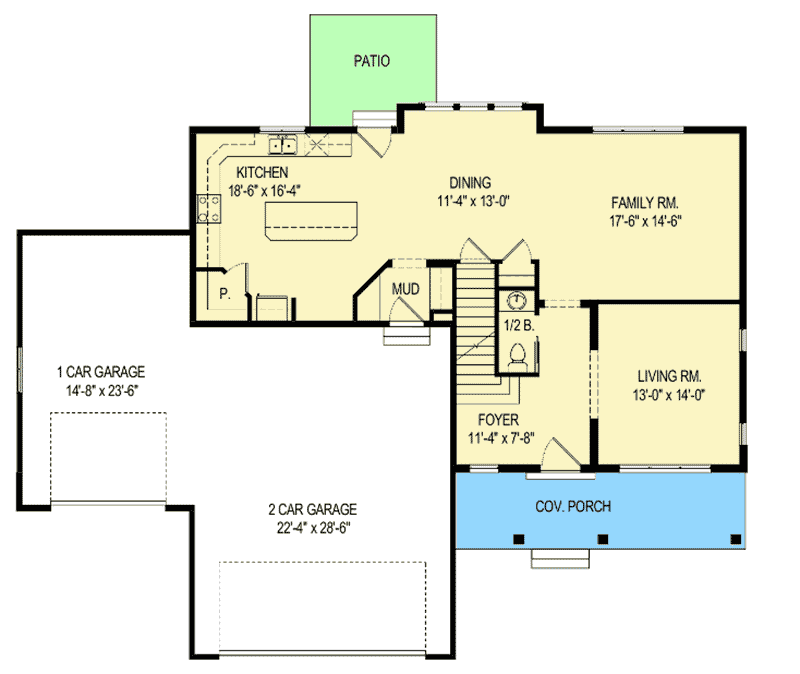

Main Level
floor plan image Main Level

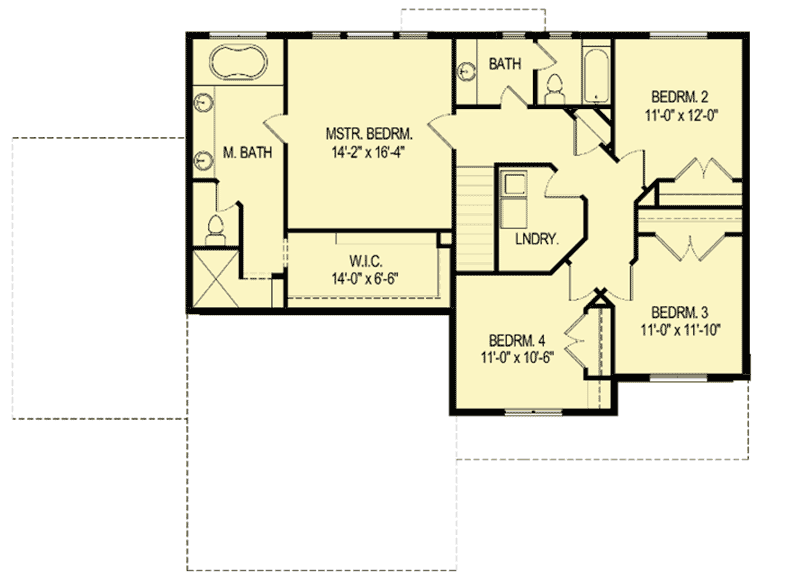

2nd Floor
floor plan image 2nd Floor

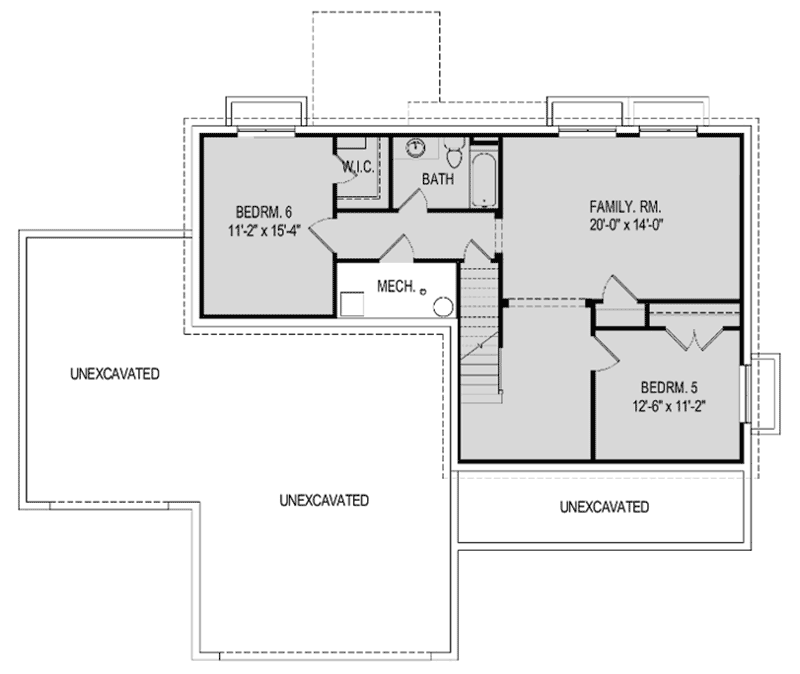

Optional Lower Level
floor plan image Optional Lower Level
Plan Details

  • This 4-bedroom house plan, featuring an inviting covered front porch and 3-car garage, gives you plenty of room to grow.
  • A formal living room in the front of the home creates a comfortable space for welcoming guests.
  • At the heart of the home, an open-concept family room, dining room, and kitchen enable you to create bright, versatile spaces for entertaining, gathering, and meals.
  • The wraparound kitchen offers seating for casual meals at the oversized island, and a walk-in pantry lends convenience and a touch of luxury.
  • On the upper level, you’ll discover a well-appointed master suite with a 5-piece bath and large walk-in closet. Enjoy the convenience of an upper-level laundry room.
  • The optional lower-level plan includes two additional bedrooms, a spacious family room, and a full bath.

What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans

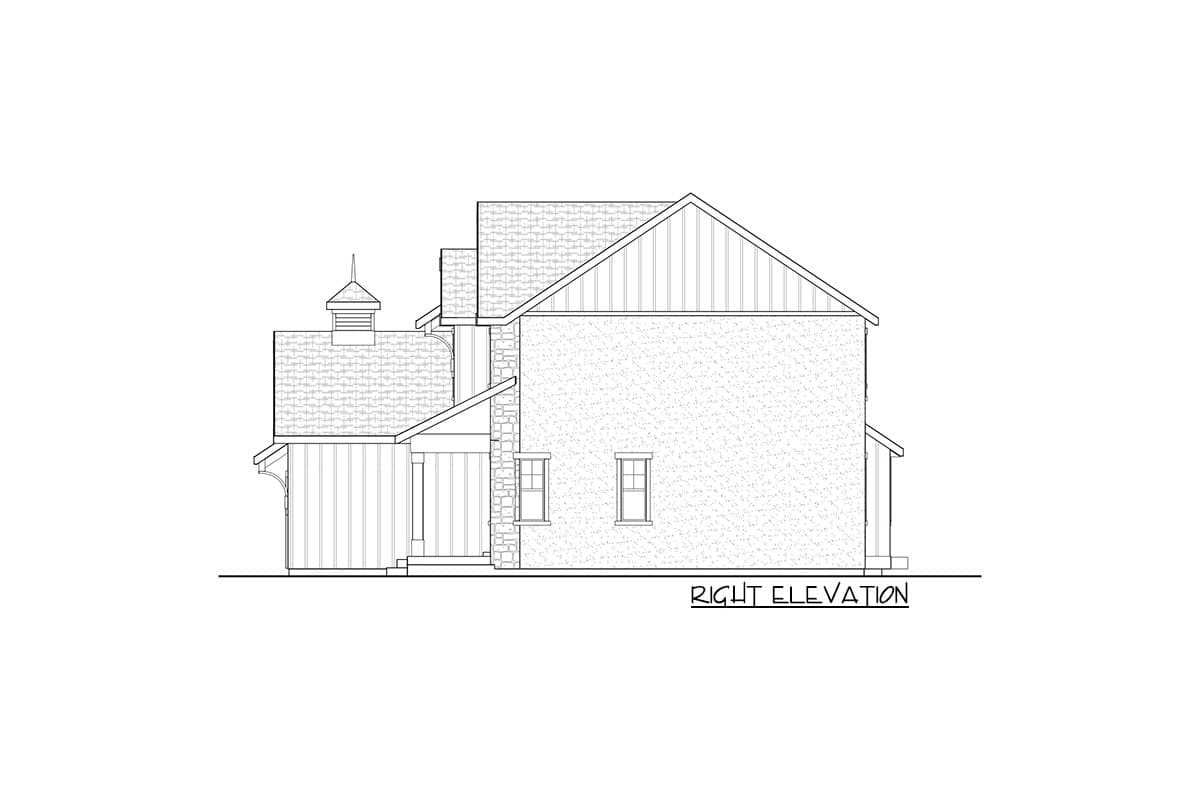

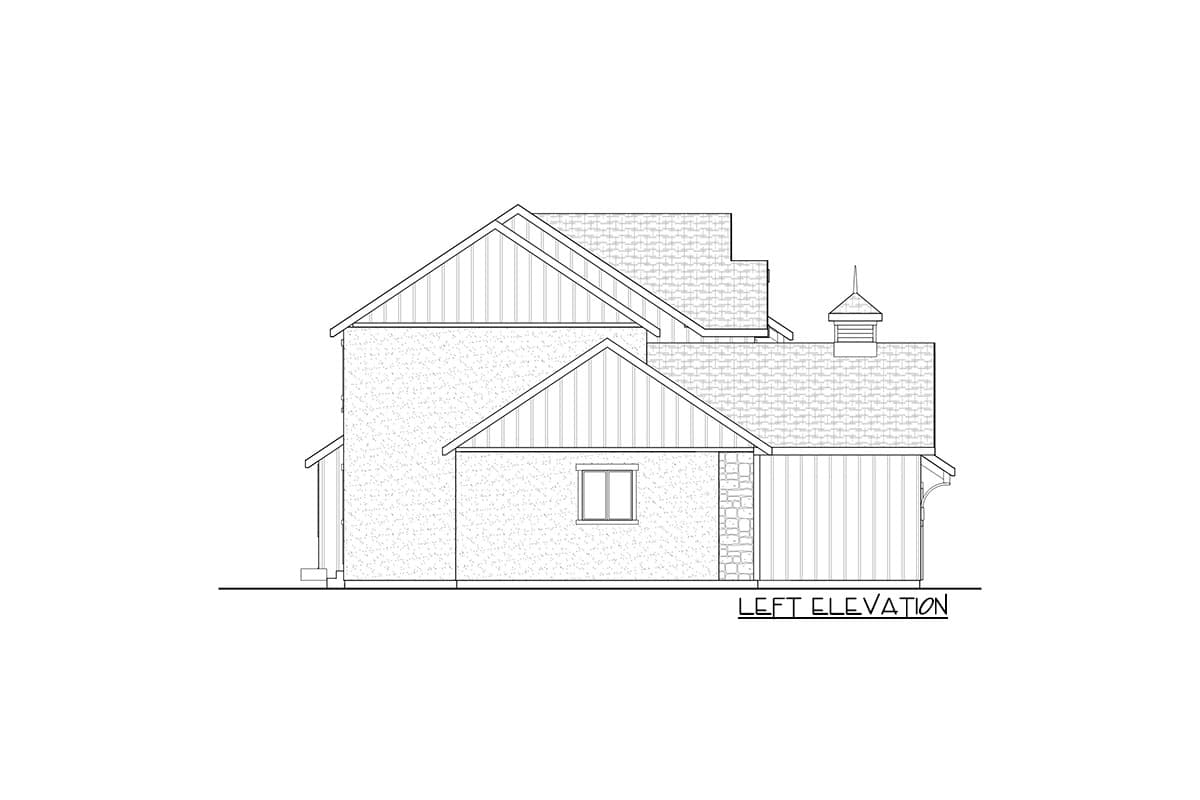

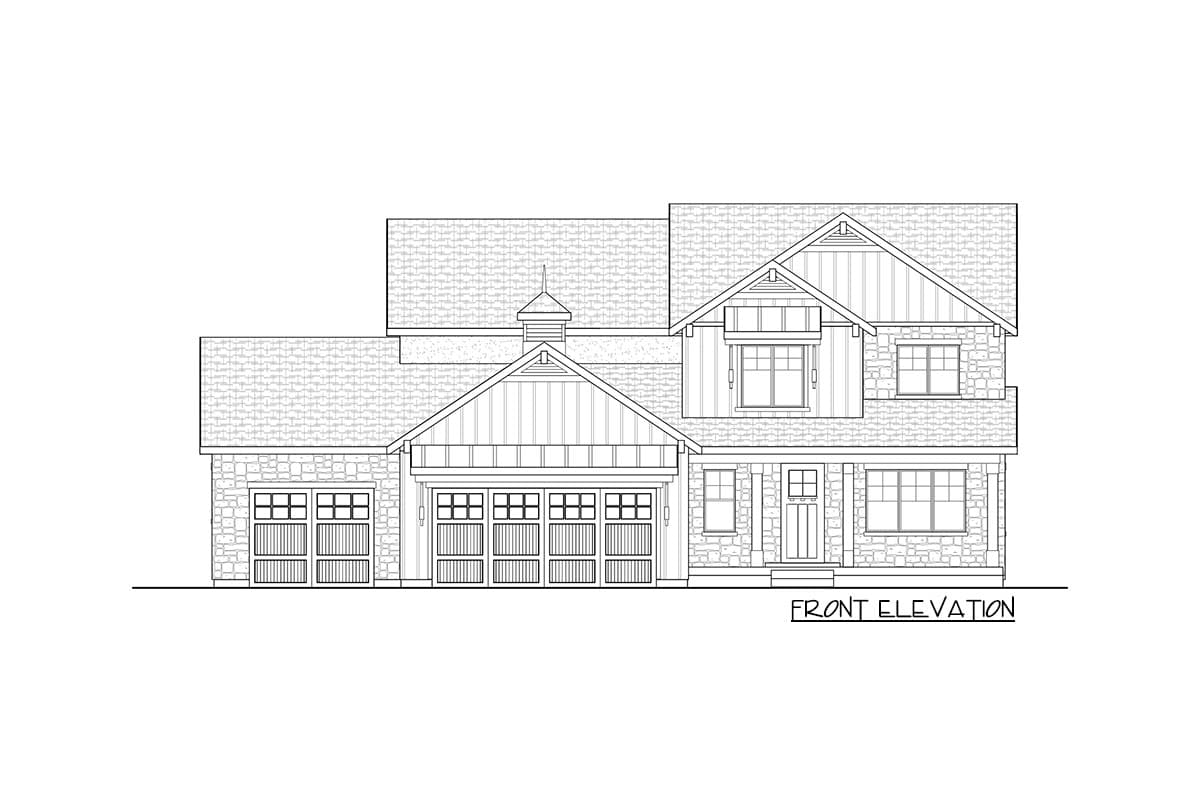

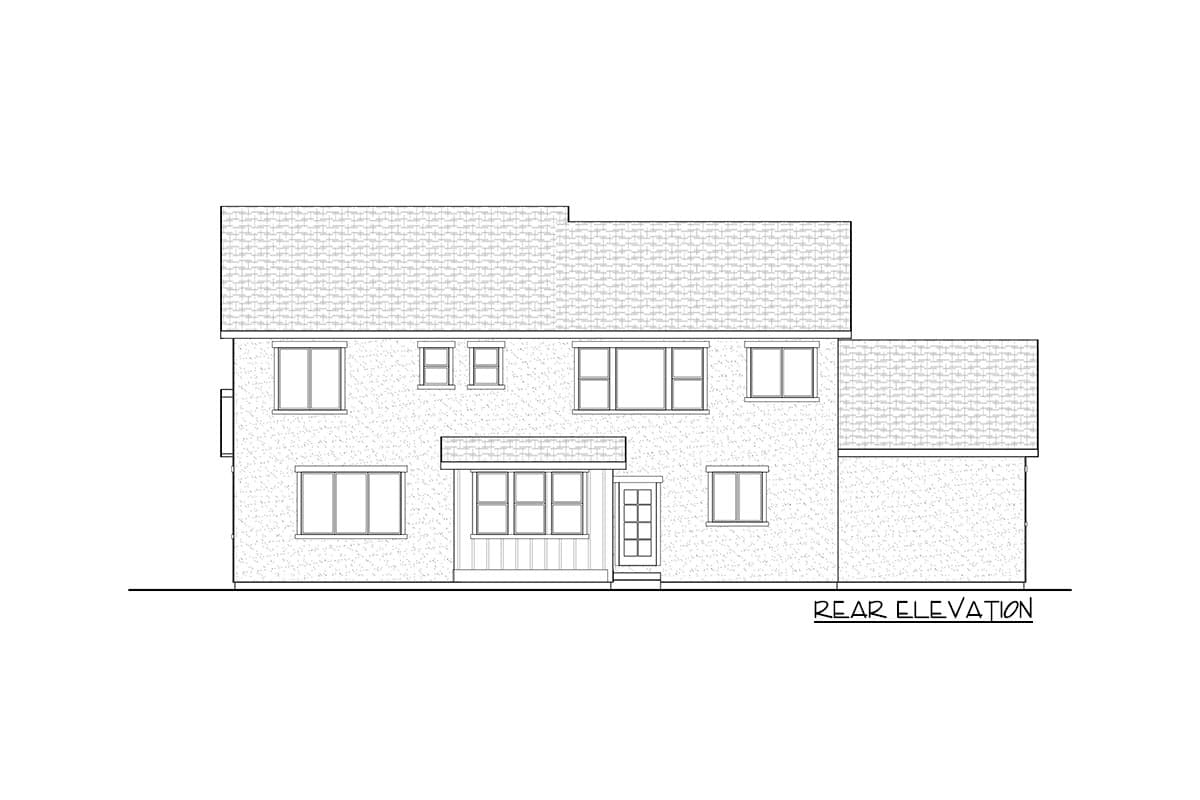

  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,540 sq. ft.

1st Floor

1,184 sq. ft.

2nd Floor

1,356 sq. ft.

Optional Lower Level

996 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 4"

Depth

48' 2"

Max Ridge Height

30' 10"

Garage

Type

Attached

Area

1021 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

9'

Architectural Style

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Sloping Lot
