Plan 330026WLE
4-Bedroom New American House Plan with Flex Room - 3422 Sq Ft
Heated S.F.
3,422
Beds
4 - 5
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 330026WLE

Main Level
slide image 0
2nd Floor
slide image 1

Plan 330026WLE

1-800-854-7852

1-262-521-4596

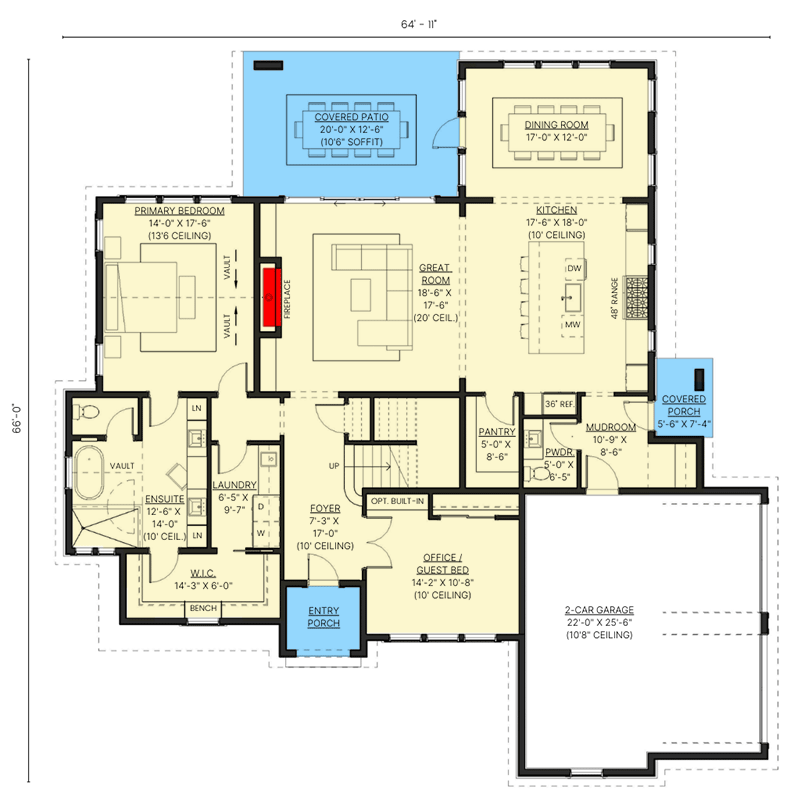

Main Level
floor plan image Main Level

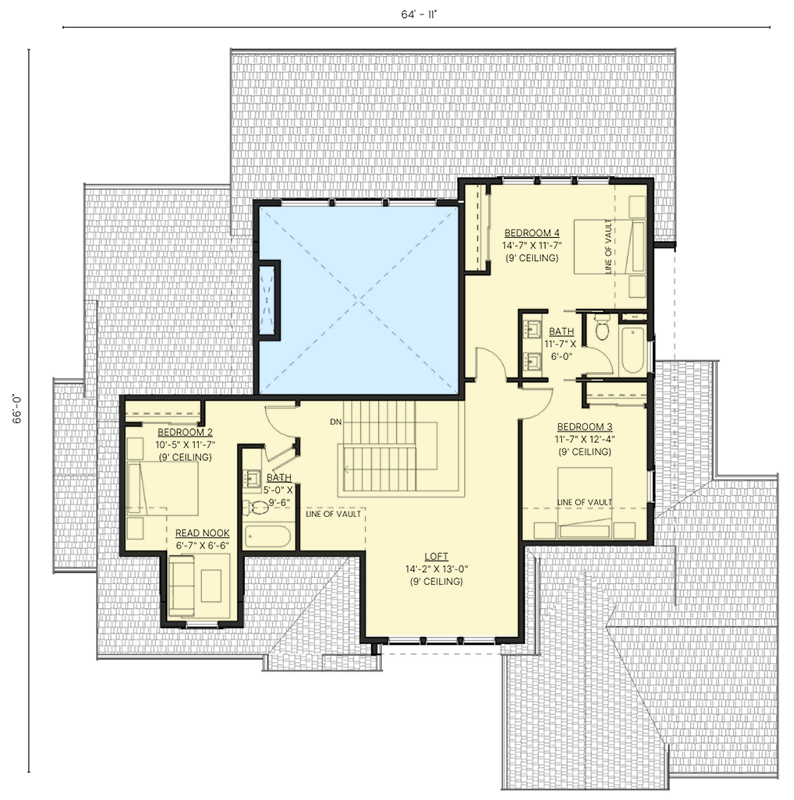

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This New American house plan gives you 3,422 square feet of heated living space with 4-5 bedrooms, 3.5 bathrooms and a 588 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation Plan - Foundation wall and footing locations
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

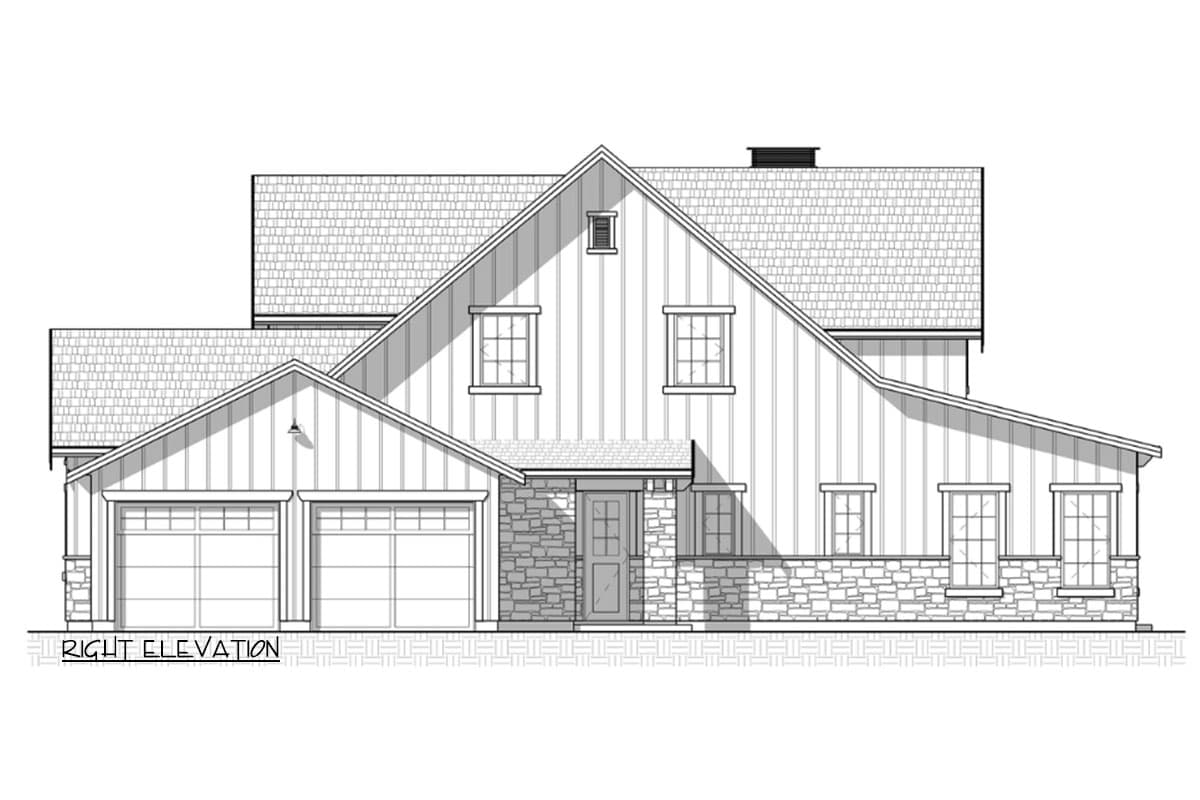

  • Exterior Elevations - Views of the front, rear, and sides of the home. Plus material and color legends that align with the renderings.
  • Sections - Full building cross sections.
  • Details - Typical details for foundation, floor framing, roof and any necessary details for specific Architectural elements.
  • Electrical Plans - Basic locations of lights, outlets, switches, panels and switching diagrams.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  • Plumbing Drawings
  • Framing and roof framing layouts with beam sizes and locations
  • Footing sizing, depths and rebar calculations
  • Material lists
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,422 sq. ft.

1st Floor

2,161 sq. ft.

2nd Floor

1,261 sq. ft.

Covered Patio

314 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 11"

Depth

66' 0"

Max Ridge Height

29' 11"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

New American

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,422 sq. ft.

1st Floor

2,161 sq. ft.

2nd Floor

1,261 sq. ft.

Covered Patio

314 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 11"

Depth

66' 0"

Max Ridge Height

29' 11"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

New American

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Canadian House Plans
