Plan 36704TX
4 Bedroom Stone Clad House Plan with 2 Bedrooms on Each Floor - 4193 Sq Ft
Heated S.F.
4,193
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 36704TX

Main Level
slide image 0
2nd Floor
slide image 1

Plan 36704TX

1-800-854-7852

1-262-521-4596

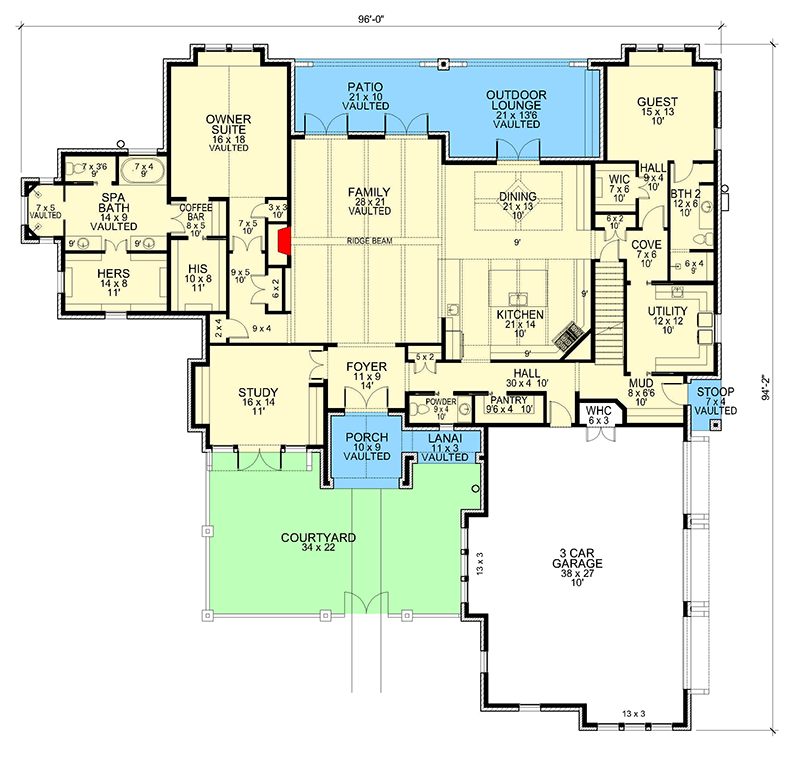

Main Level
floor plan image Main Level

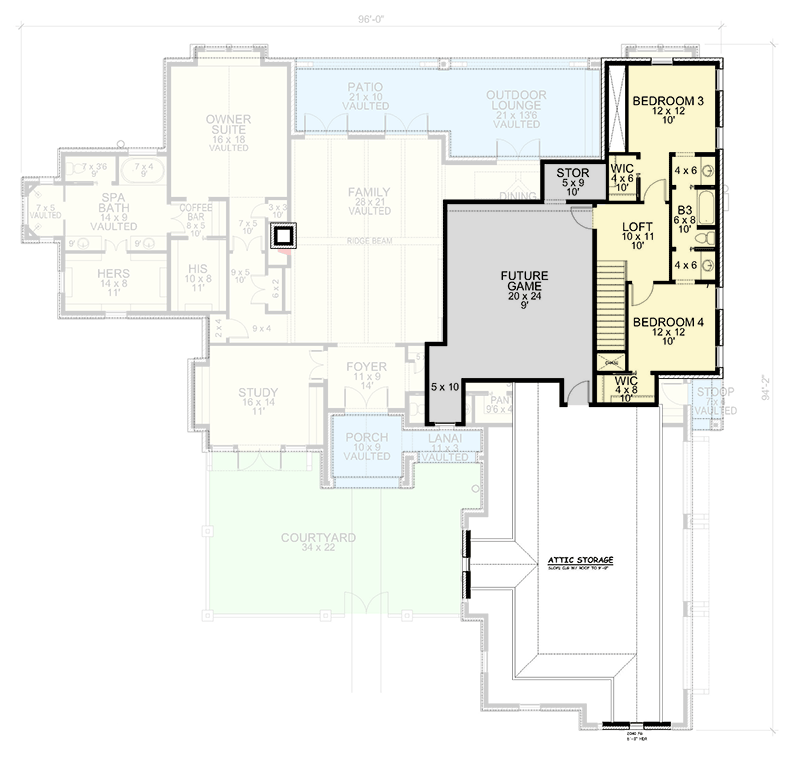

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 4-bed, 3.5 bath house plan with a stone clad exterior gives you 4,193 square feet of heated living with 2 bedrooms on each floor and a future game room upstairs as well.
  • A 34' by 22' enclosed courtyard welcomes your guests to the front door and a 1,148 square foot 3-car garage accesses the home by a nice-sized mud room.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,193 sq. ft.

1st Floor

3,552 sq. ft.

2nd Floor

641 sq. ft.

Porch, Front

35 sq. ft.

Porch, Rear

175 sq. ft.

Balcony / Veranda

152 sq. ft.

Covered Patio

526 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

96' 0"

Depth

94' 2"

Max Ridge Height

34' 10"

Garage

Type

Attached

Area

1148 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Architectural Style

European

Hill Country

Transitional

Special Features

Bonus Room

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

4,193 sq. ft.

1st Floor

3,552 sq. ft.

2nd Floor

641 sq. ft.

Porch, Front

35 sq. ft.

Porch, Rear

175 sq. ft.

Balcony / Veranda

152 sq. ft.

Covered Patio

526 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

96' 0"

Depth

94' 2"

Max Ridge Height

34' 10"

Garage

Type

Attached

Area

1148 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Architectural Style

European

Hill Country

Transitional

Special Features

Bonus Room

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor
