Plan 680078VR
4-Car 1200 Square Foot Detached Garage with Workshop and Large Upstairs Loft
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
4
Floor Plan

Plan 680078VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680078VR

1-800-854-7852

1-262-521-4596

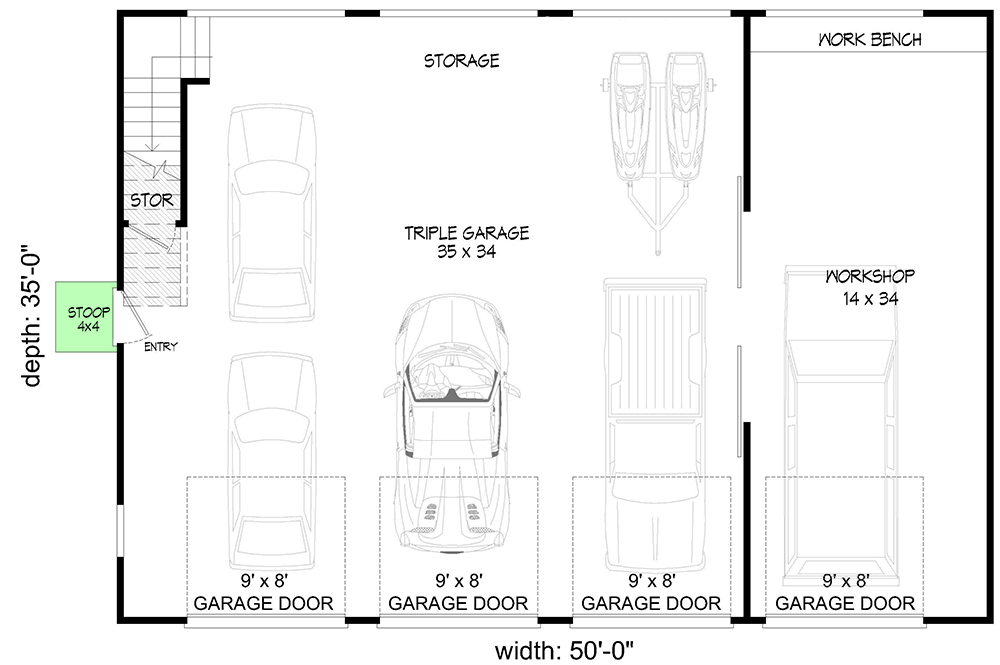

Main Level
floor plan image Main Level

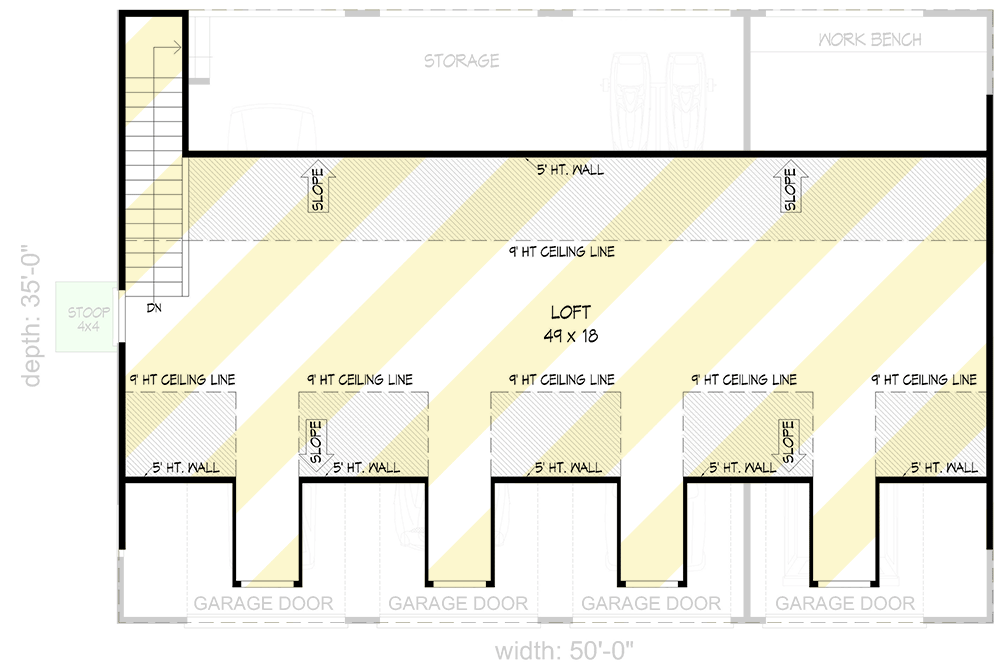

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This detached garage plan gives you 4 bays with 4 attractive dormers above helping create usable space on the upper level.
  • The garage doors are each 9'x8' giving you wide berth for your vehicles.
  • The upstairs is a raw 1,078 square foot space that can be used as storage or as a workshop, office, or playroom.
  • Related Plans: Get alternate versions with garage plans 68604VR, 68439VR, 68548VR, 68482VR, 68545VR and 68600VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

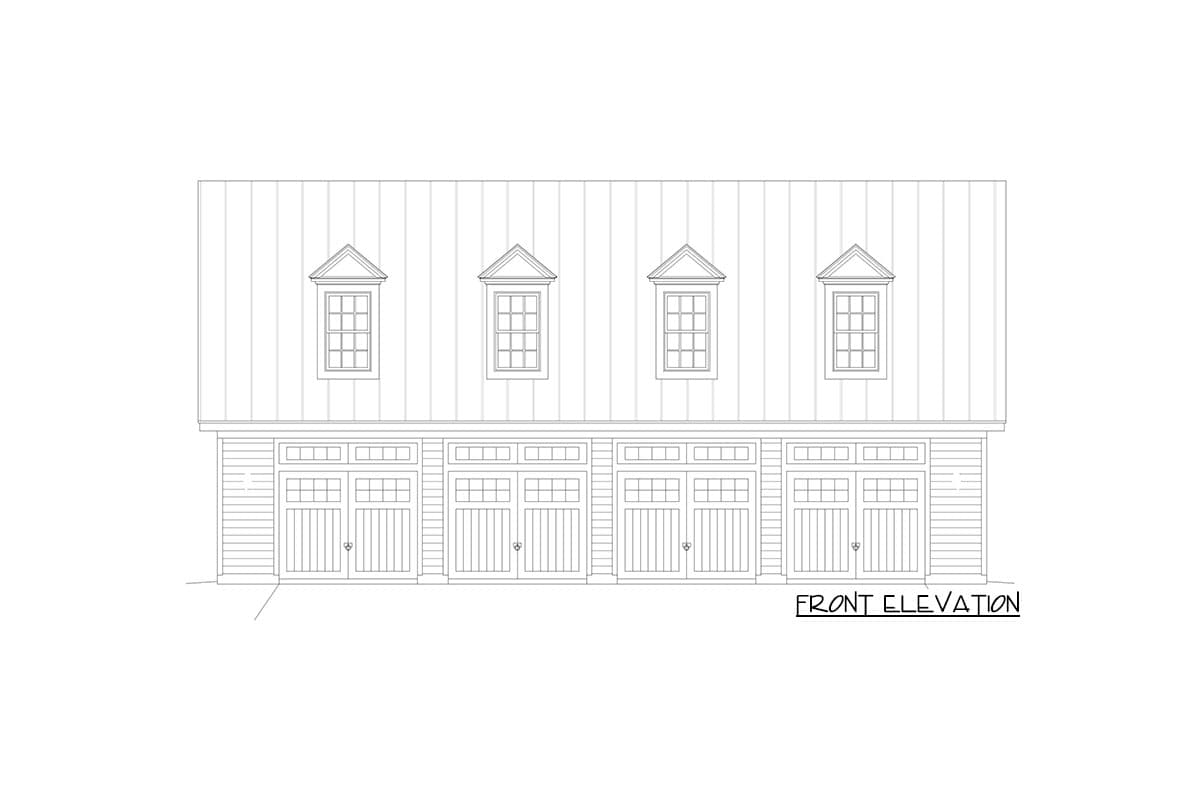

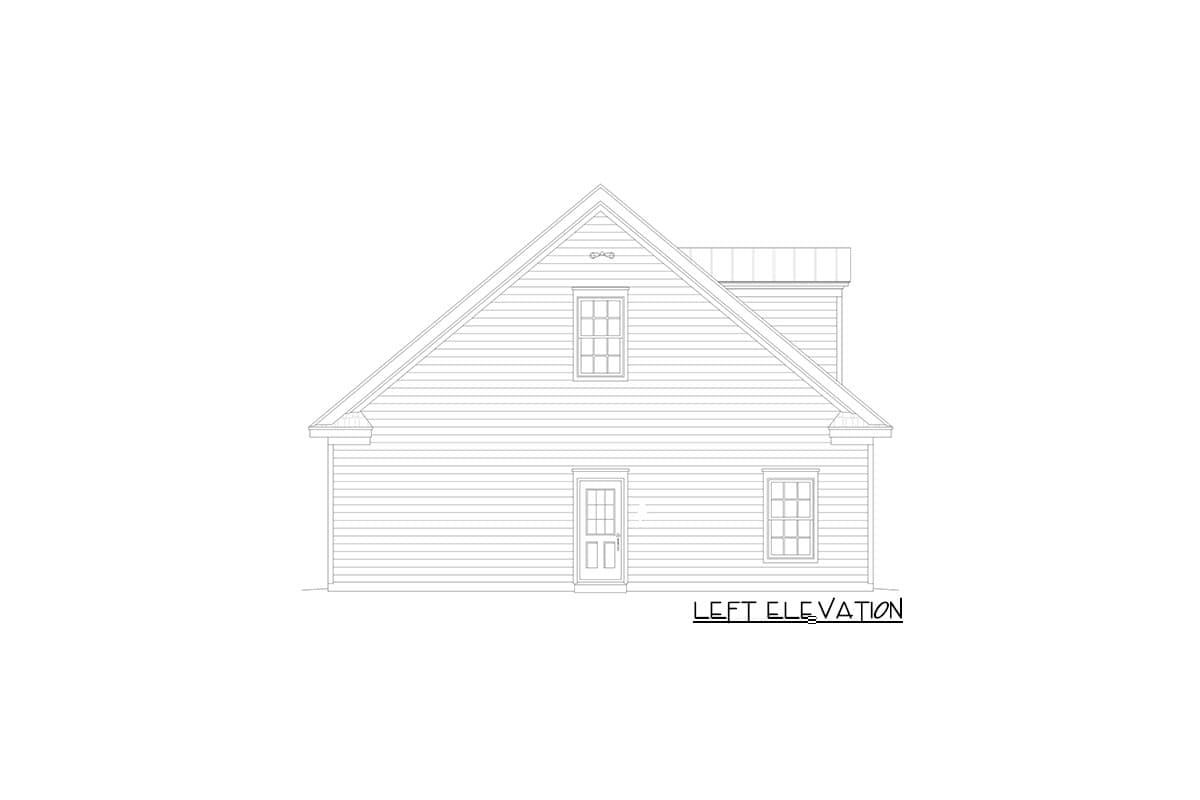

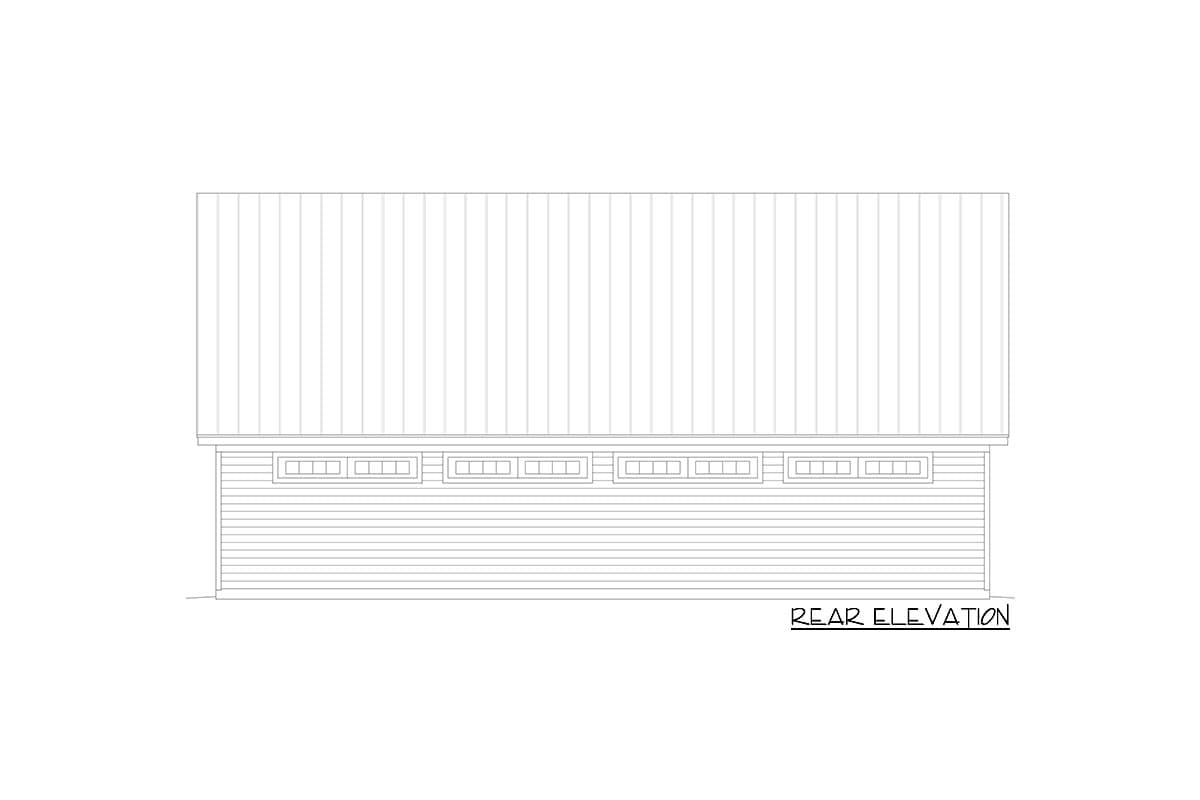

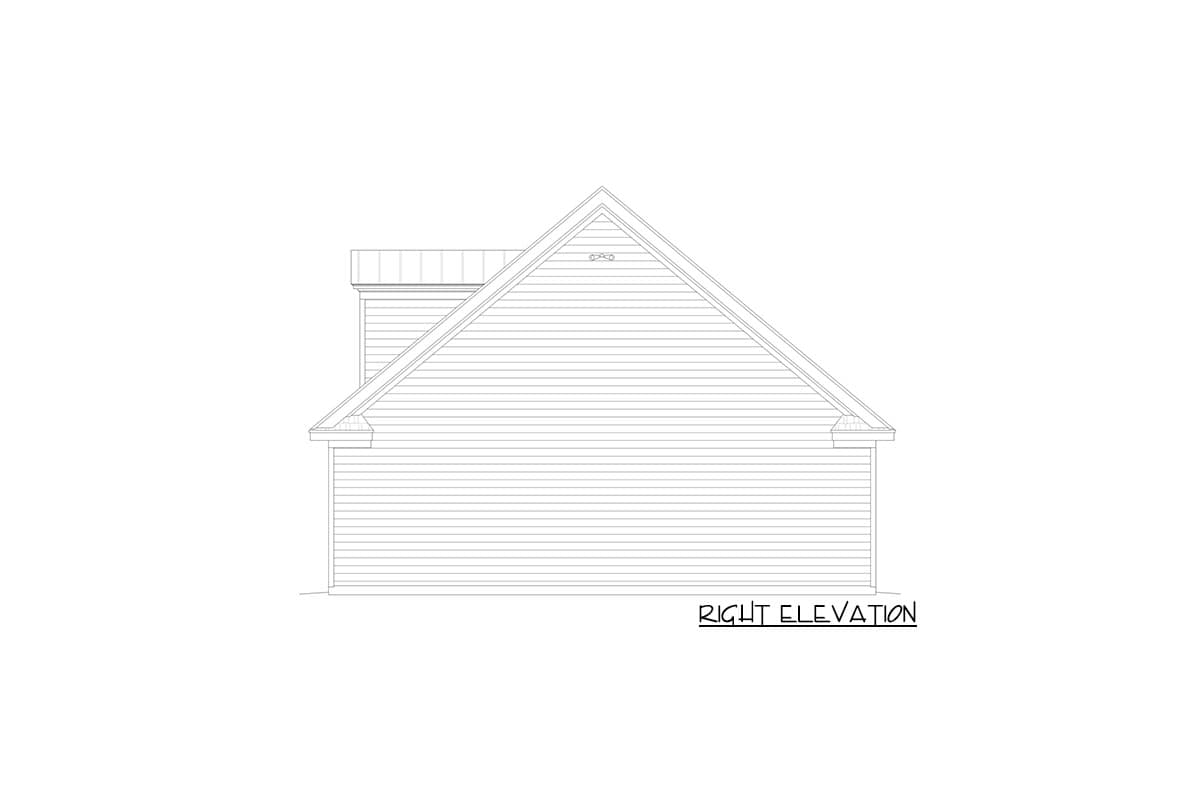

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

1,078 sq. ft.

Workshop

496 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

35' 0"

Max Ridge Height

25' 7"

Garage

Type

Detached

Area

1254 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Loft

Vaulted

5' 0''

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Loft

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

1,078 sq. ft.

Workshop

496 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

35' 0"

Max Ridge Height

25' 7"

Garage

Type

Detached

Area

1254 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Loft

Vaulted

5' 0''

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Loft

Workshop
