Plan 135017GRA
4-Car Detached Garage Plan with Garage Apartment Above
Heated S.F.
905
Beds
1
Baths
1
Stories
2
Cars
4
Floor Plan

Plan 135017GRA

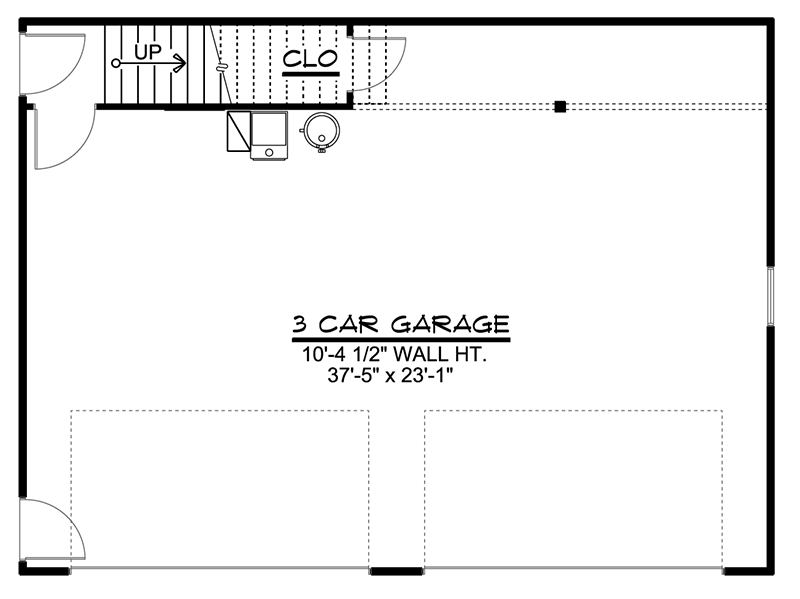

Main Level
slide image 0

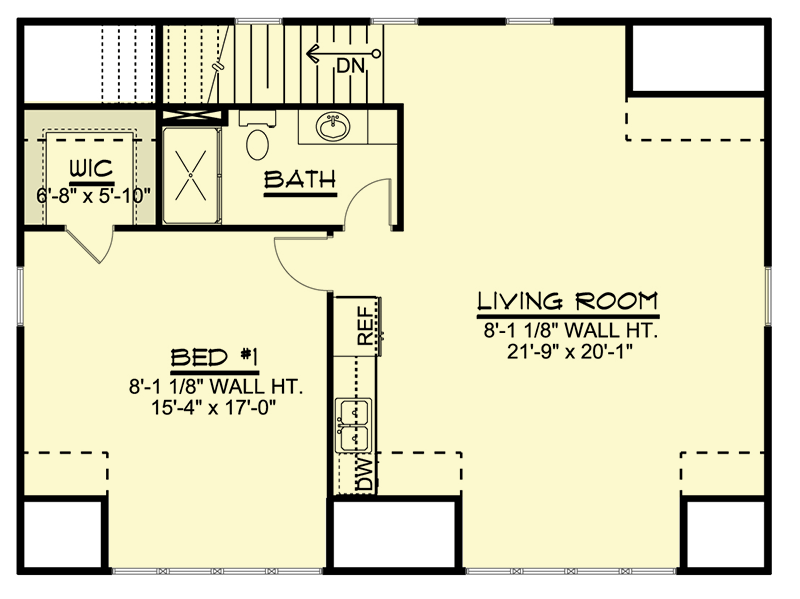

2nd Floor
slide image 1

Plan 135017GRA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This detached garage plan is perfect as an addition to a home that lacks adequate parking or as an ADU or guest house that can be used for visitors or for passive residual rental income. It has two 15' by 8' garage doors making it a roomy 4-car garage.
  • Two garage bays in front give access to your vehicles and a man door in the back-left corner let you in and out without having to be in a car. There's room for utilities in back of the garage and a dedicated storage closet under the stairs going up.
  • The stairs take you to an open living room with a linear kitchen giving your guests - be they friends or rentals - the ability to serve up a decent meal of their own.
  • A walk-in closet in the bedroom and a bathroom with shower complete this plan.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
