Plan 680320VR
4-Car Garage with RV Parking and ADU Living Space Above
Heated S.F.
1,766
Beds
3
Baths
1
Stories
2
Cars
4
Floor Plan

Plan 680320VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680320VR

1-800-854-7852

1-262-521-4596

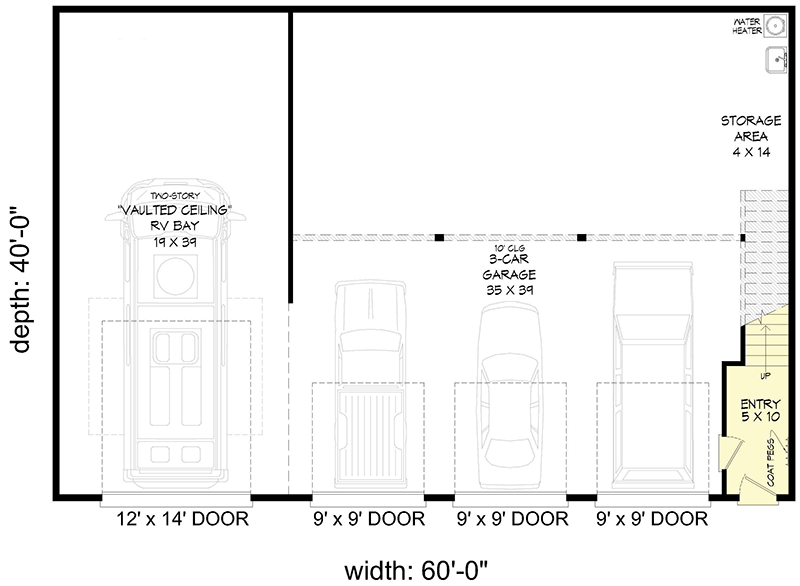

Main Level
floor plan image Main Level

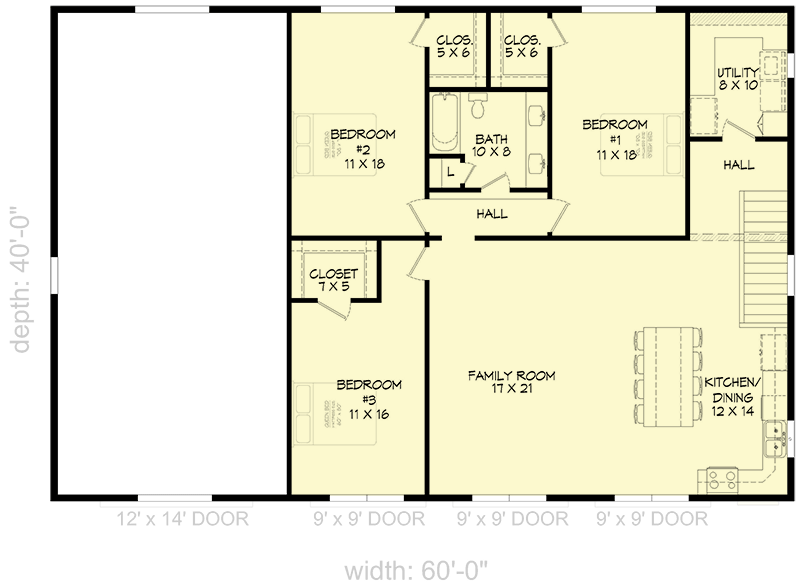

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The main floor of this 4-car garage apartment is dedicated to your wheeled vehicles. Three single bays with 9' by 9' garage doors and a fourth bay with a 12' by 14' garage door for your RV give you loads of vehicle storage.
  • In back of the back of the 3-car bays there is a storage  area with 10' ceilings. The RV bay is lift-friendly and has a 2-story ceiling.
  • A man-door on the right opens to a small entry area with stairs taking you to the upstairs living level where you'll find two bedrooms sharing a bath and a large open living area with a kitchen and eating area.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,766 sq. ft.

1st Floor

128 sq. ft.

2nd Floor

1,638 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

40' 0"

Max Ridge Height

25' 5"

Garage

Type

RV Garage, Detached

Area

2400 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

2 on 12

Architectural Style

Carriage

Contemporary

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Workshop

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

1,766 sq. ft.

1st Floor

128 sq. ft.

2nd Floor

1,638 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

40' 0"

Max Ridge Height

25' 5"

Garage

Type

RV Garage, Detached

Area

2400 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

2 on 12

Architectural Style

Carriage

Contemporary

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Workshop

Plan Collections

ADU
