Plan 42150DB
4-Family House Plan with Paired 2-Bed Units - 1320 Sq Ft and 1629 Sq Ft
Heated S.F.
5,898
Units
4
Width
Depth
Floor Plan

Plan 42150DB

Main Level
slide image 0
2nd Floor
slide image 1
Optional Second Level
slide image 2

Plan 42150DB

1-800-854-7852

1-262-521-4596

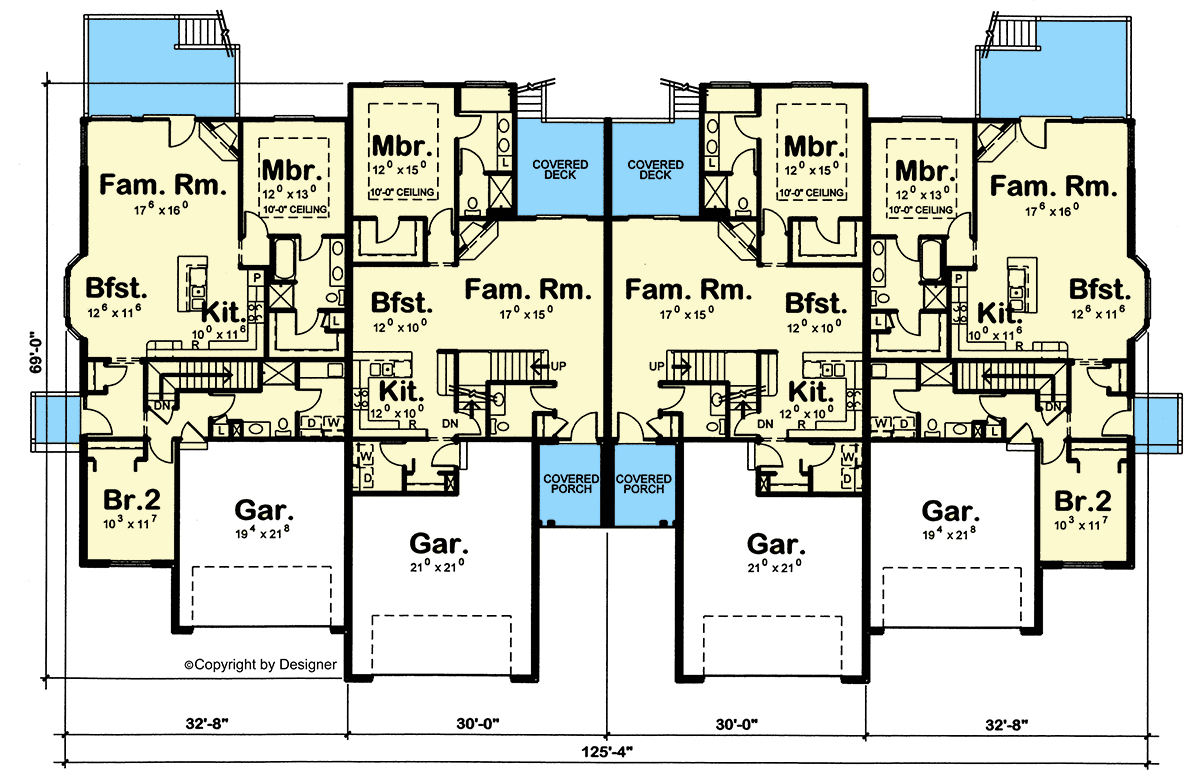

Main Level
floor plan image Main Level

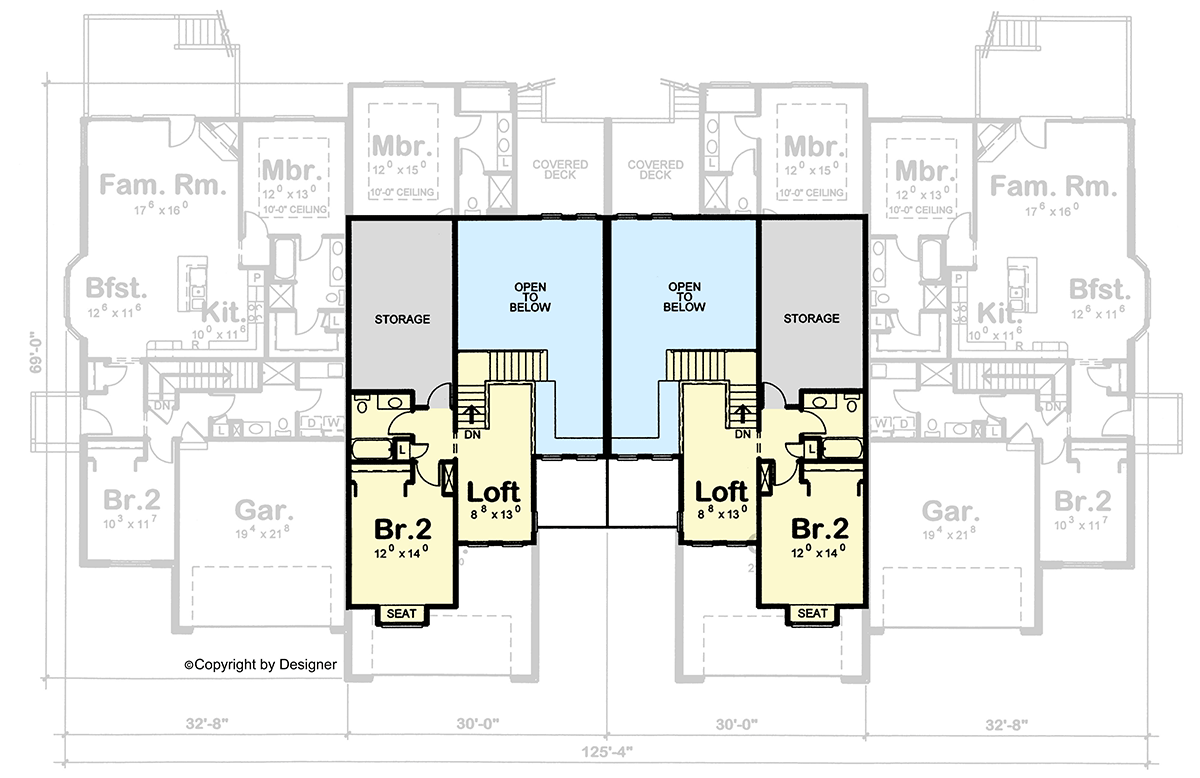

2nd Floor
floor plan image 2nd Floor

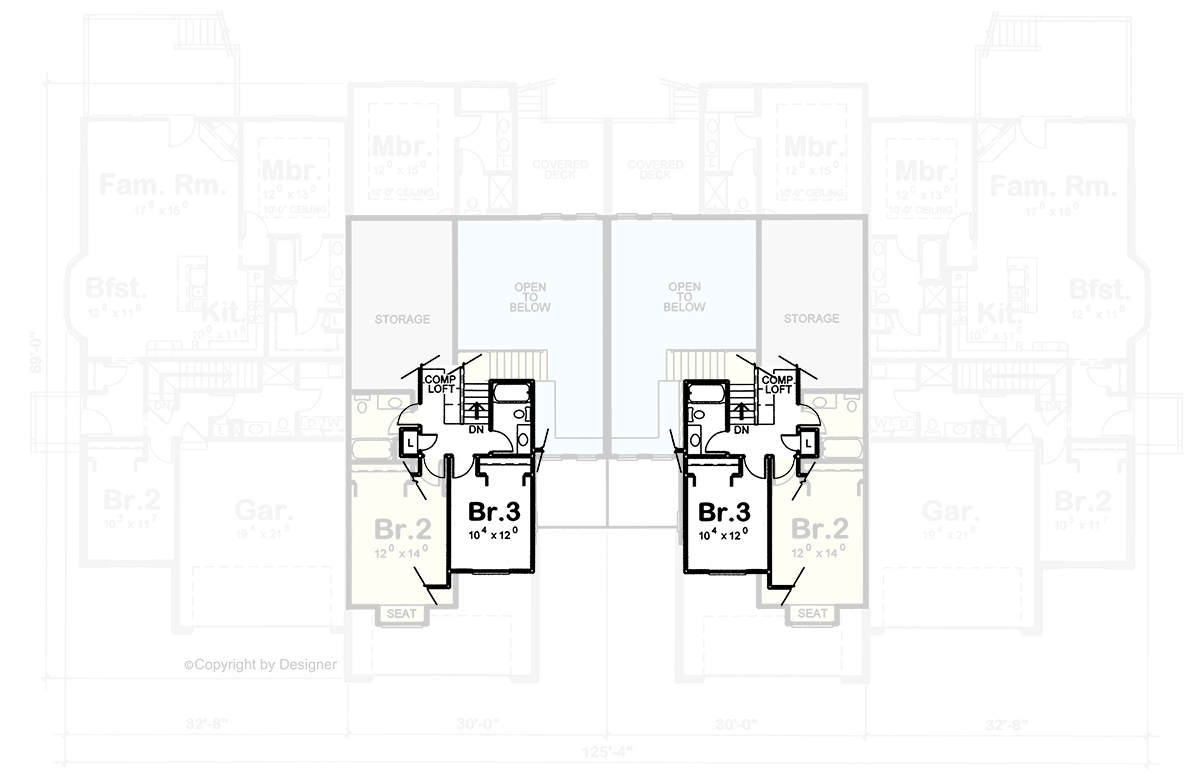

Optional Second Level
floor plan image Optional Second Level
Plan Details
  • This 4-family house plan gives you 2-bedroom units in two different sizes. The units on the ends are 1,320 square feet and the ones in the middle are 1,629 square feet.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,320Sq. Ft.
1320 Sq. Ft.
1st Floor
2Beds
2Full Baths
2Vehicle
Attached
435 Sq. Ft.
32' 8"width
69' 4"depth
26' 8"height
Unit B
1,629Sq. Ft.
4954 Sq. Ft.
1st Floor
944 Sq. Ft.
2nd Floor
2Beds
2Full Baths
2Vehicle
Attached
435 Sq. Ft.
30'width
69'depth
26' 8"height
Unit C
1,629Sq. Ft.
1157 Sq. Ft.
1st Floor
472 Sq. Ft.
2nd Floor
2Beds
2Full Baths
2Vehicle
Attached
435 Sq. Ft.
30'width
69' 4"depth
26' 8"height
Unit D
1,320Sq. Ft.
1320 Sq. Ft.
1st Floor
2Beds
2Full Baths
2Vehicle
Attached
435 Sq. Ft.
32' 8"width
69' 4"depth
226' 8"height
What's Included
  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,898 sq. ft.

1st Floor

4,954 sq. ft.

2nd Floor

944 sq. ft.

Porch, Front

71 sq. ft.

Porch, Rear

117 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

125' 4"

Depth

69' 0"

Max Ridge Height

26' 8"

Garage

Type

Attached

Area

435 sq. ft.

Count

8 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Architectural Style

Traditional

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor
