Plan 83677CRW
4 or 5 Bed New American House Plan with Office or Guest Room - 2648 Sq Ft
Heated S.F.
2,648
Beds
4 - 5
Baths
2.5
Stories
2
Cars
2
Tour
Floor Plan

Plan 83677CRW

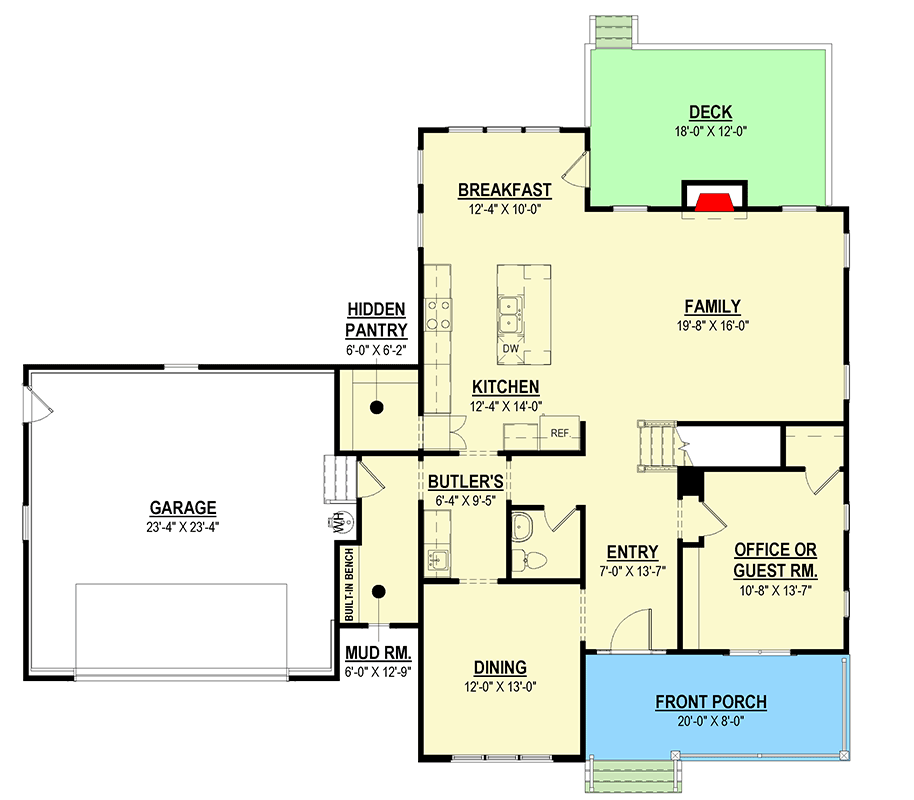

Main Level
slide image 0

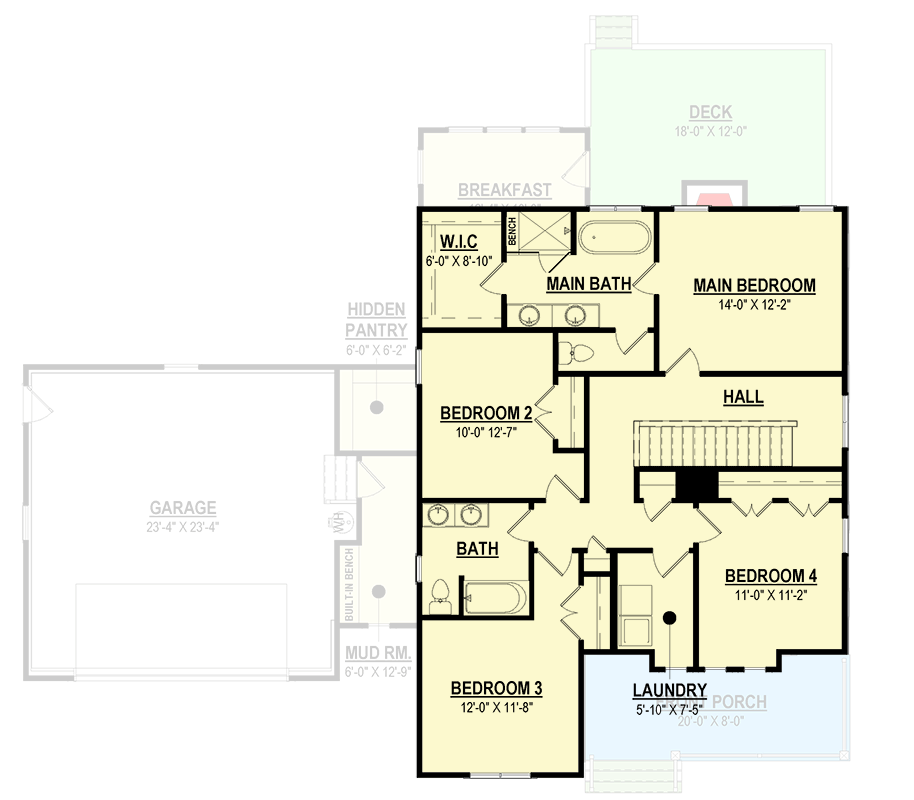

2nd Floor
slide image 1

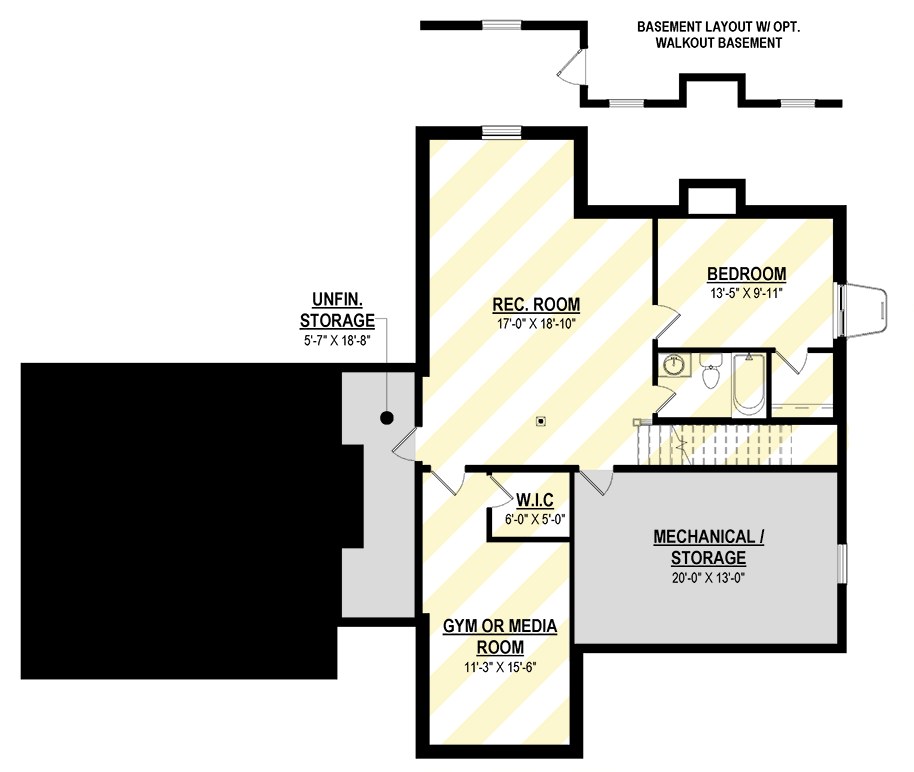

Optional Lower Level
slide image 2

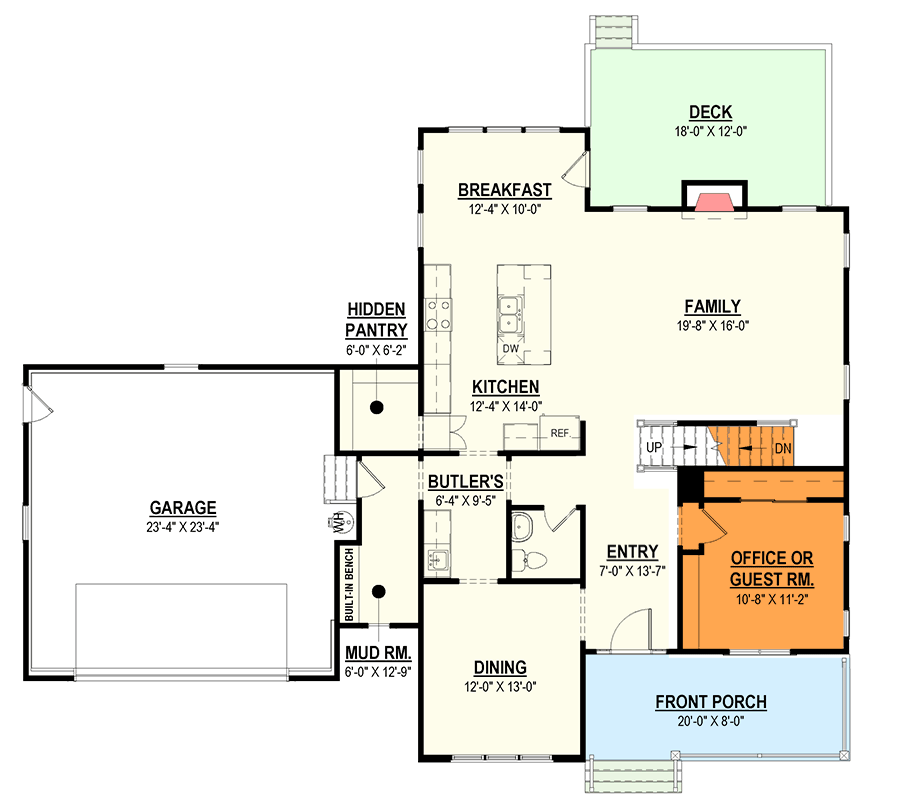

Main Level - Basement Stairs Location
slide image 3

Plan 83677CRW

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Optional Lower Level
floor plan image Optional Lower Level
Main Level - Basement Stairs Location
floor plan image Main Level - Basement Stairs Location
Plan Details
  • This New American house plan offers you 2,648 square feet of heated living space with 4 beds, 2.5 baths and a 580 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)
  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,648 sq. ft.

1st Floor

1,406 sq. ft.

2nd Floor

1,242 sq. ft.

Optional Lower Level

1,416 sq. ft.

Porch, Front

160 sq. ft.

Deck

216 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 8"

Depth

48' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

580 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

Modern Farmhouse

New American

Special Features

Breakfast Nook

Butler Walk-in Pantry

Den

Flex Room

Formal Dining

Home Office

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,648 sq. ft.

1st Floor

1,406 sq. ft.

2nd Floor

1,242 sq. ft.

Optional Lower Level

1,416 sq. ft.

Porch, Front

160 sq. ft.

Deck

216 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 8"

Depth

48' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

580 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

Modern Farmhouse

New American

Special Features

Breakfast Nook

Butler Walk-in Pantry

Den

Flex Room

Formal Dining

Home Office

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Mudroom
