Plan 48626FM

Exclusive

4-Unit House Plan with 3-Beds 2.5 Baths and 1307 Sq Ft Per Unit
Heated S.F.
5,228
Units
4
Width
Depth
Floor Plan

Plan 48626FM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 48626FM

1-800-854-7852

1-262-521-4596

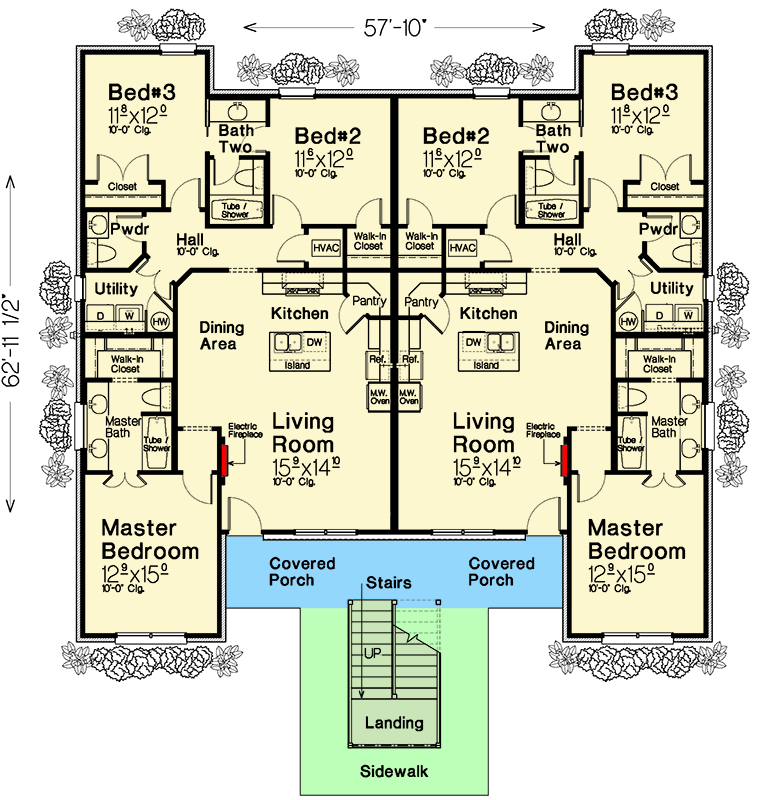

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This two story four-family house plan gives you 4 number of units each with 1,307 square feet of heated living space , 3 beds, 2.5 baths.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,307Sq. Ft.
1307 Sq. Ft.
1st Floor
3Beds
2Full Baths
1Half Bath
28' 6"width
63'depth
30'height
Unit B
1,307Sq. Ft.
1307 Sq. Ft.
1st Floor
3Beds
2Full Baths
1Half Bath
28' 6"width
63'depth
30'height
Unit C
1,307Sq. Ft.
2614 Sq. Ft.
1st Floor
2614 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
28' 6"width
63'depth
30'height
Unit D
1,307Sq. Ft.
1307 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
28' 6"width
63'depth
30'height
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan

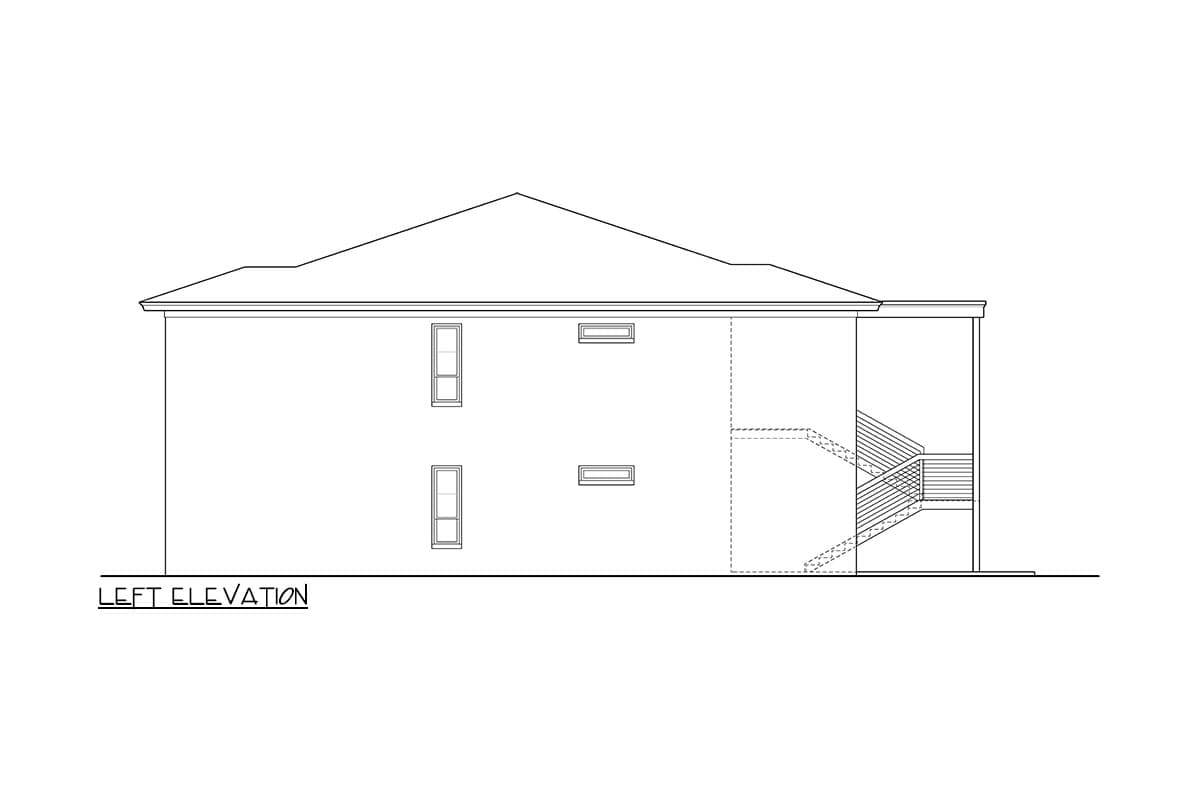

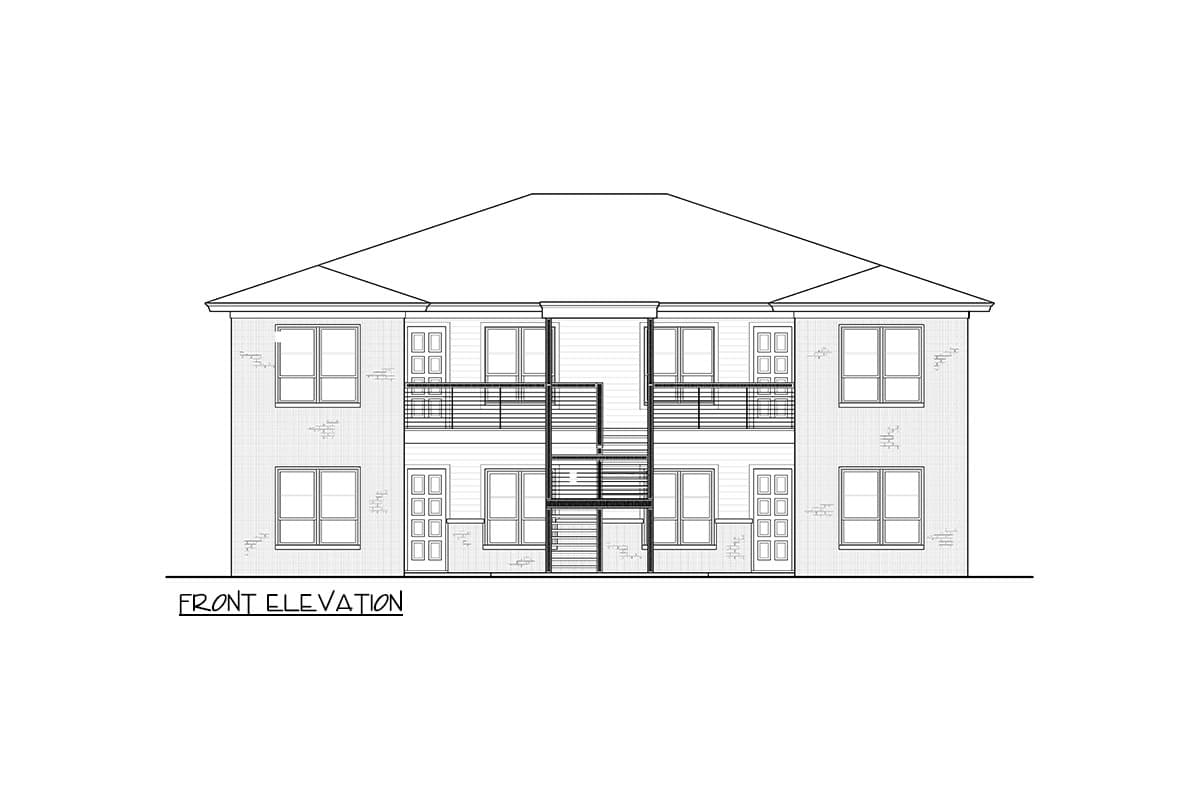

  • Front and Left Elevation

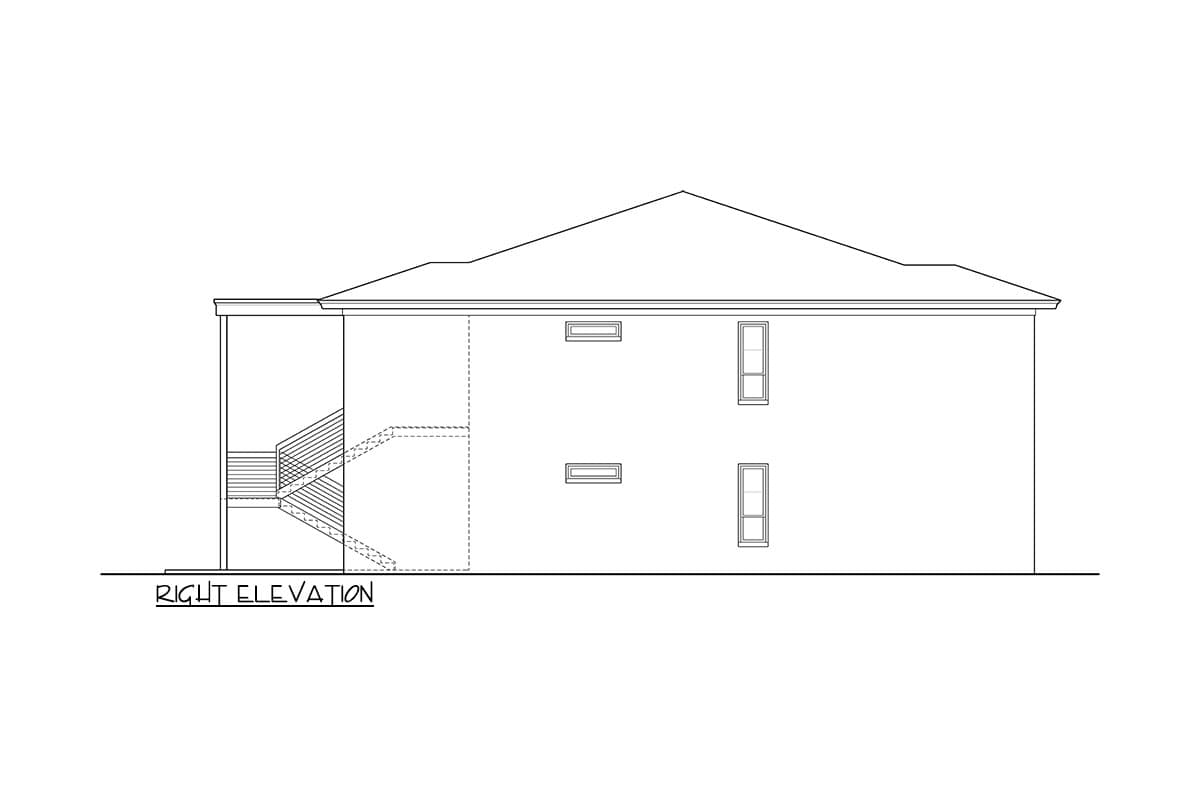

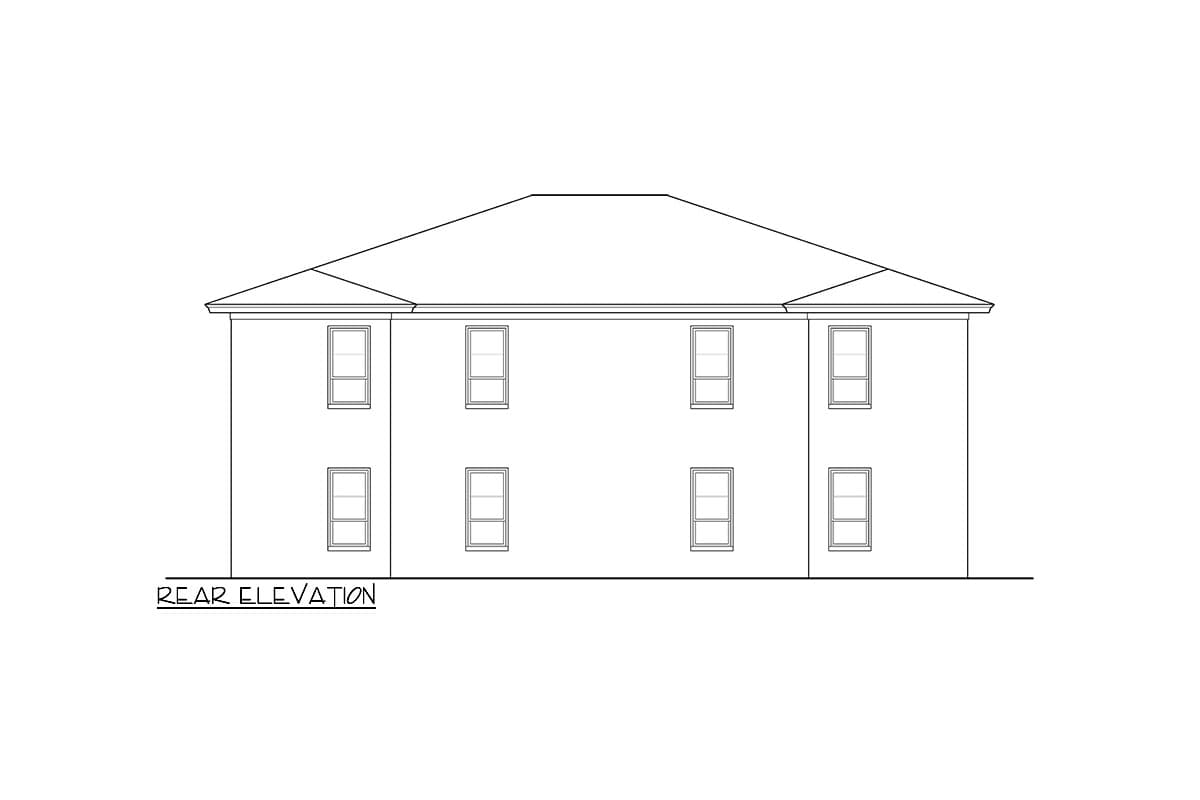

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,228 sq. ft.

1st Floor

2,614 sq. ft.

2nd Floor

2,614 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 10"

Depth

63' 0"

Max Ridge Height

30' 0"

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

0 on 12

Secondary Pitch

4 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - 2nd Floor
