Plan 36691TX

4500 Square Foot Euro-Style House Plan with 4-Car Garage and Outdoor Entertaining Space

Heated S.F.

4,547

Beds

Baths

4.5+

Stories

Cars

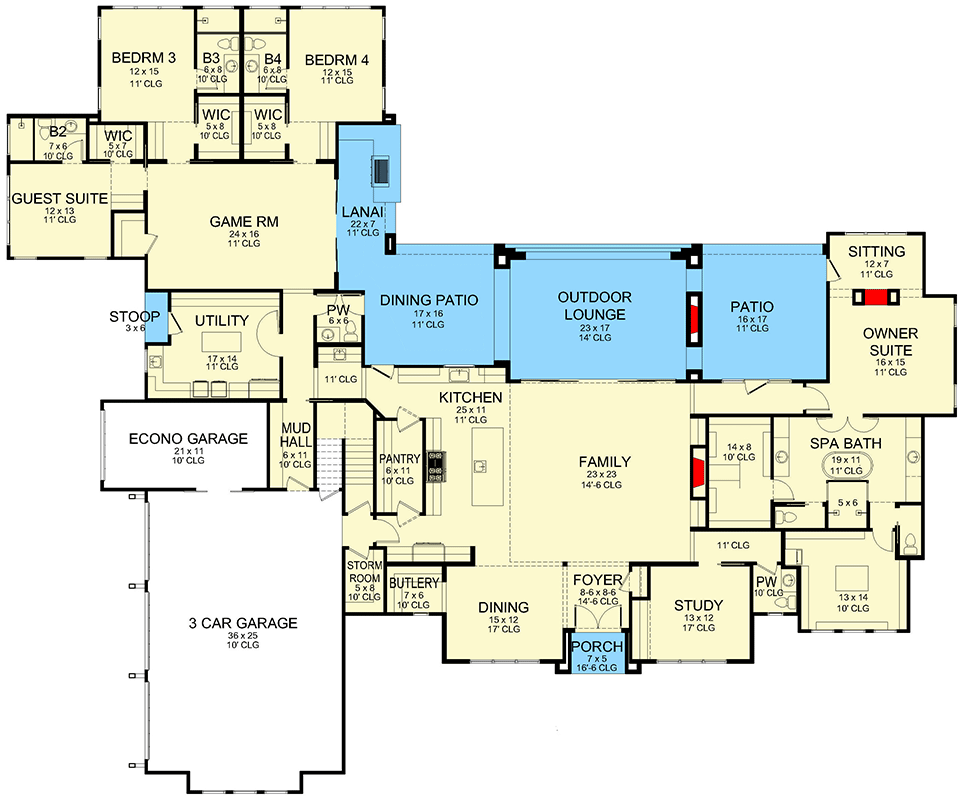

Floor Plan

Main Level

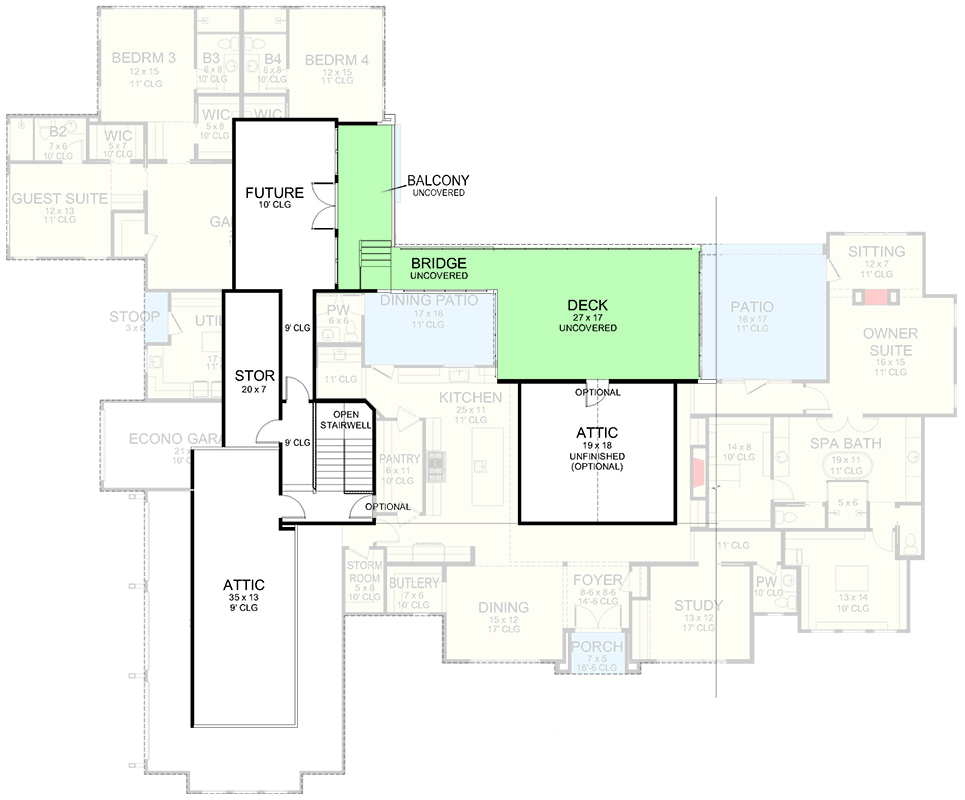

2nd Floor

Plan Details

This European-style house plan gives you 4 beds, 4.5 baths and 4,547 square feet of heated living. A 4-car garage has 1,224 square feet of parking space including a 3-car section and a 1-car portion.
French doors open to the foyer which opens to the family room with fireplace ahead which has a collapsible rear wall connecting it to the outdoor lounge.
The kitchen has a large island, a pantry accessible from two sides and a butlery that serves the dining room.
On the right, the master suite has a fireplace separating it from a sitting room that opens to the back patio and a stackable washer/dryer in the walk-in closet. Across the home, three bedrooms - each with their own walk-in closet and bathroom - are located around the game room which has lanai access.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

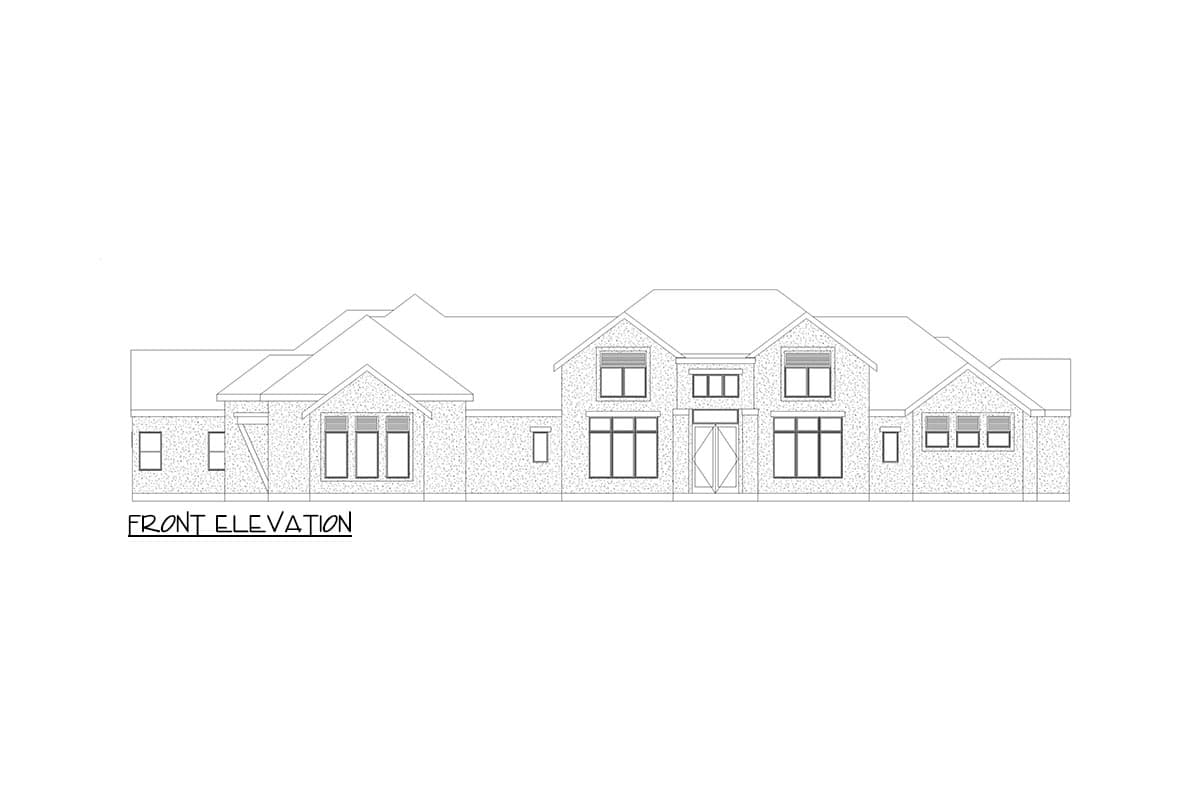

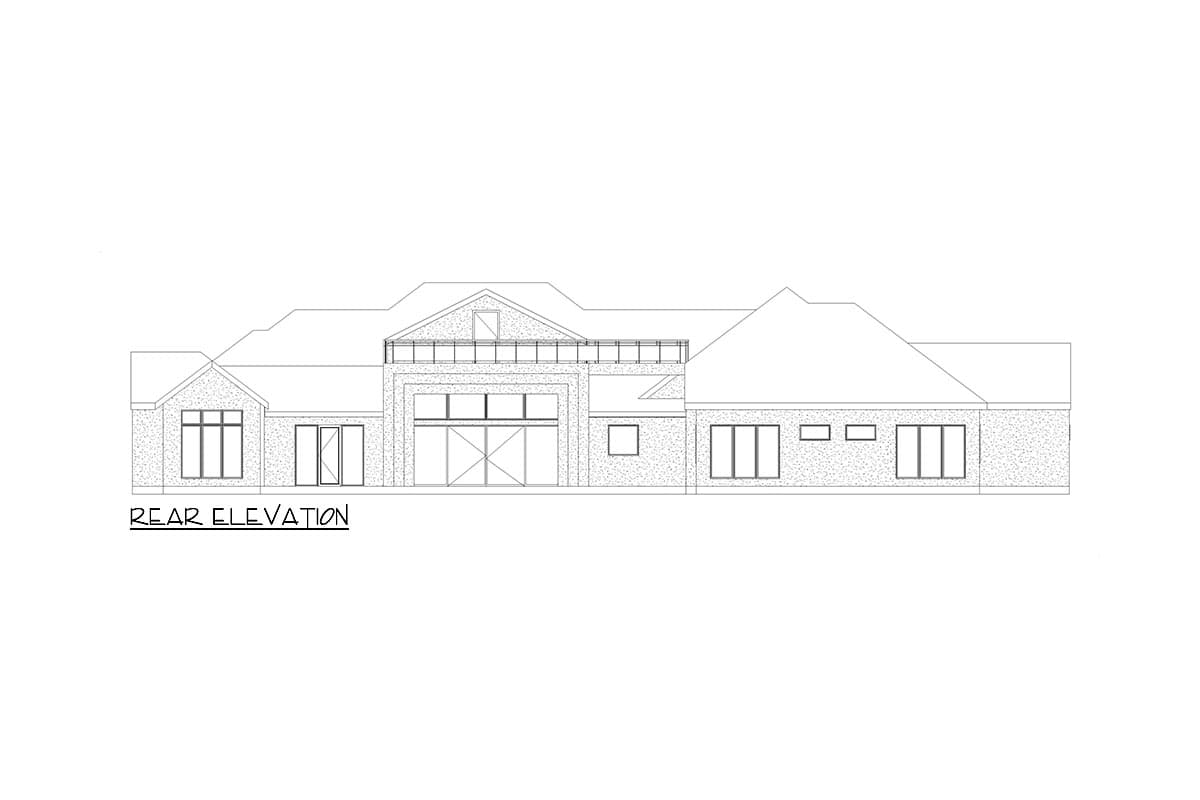

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

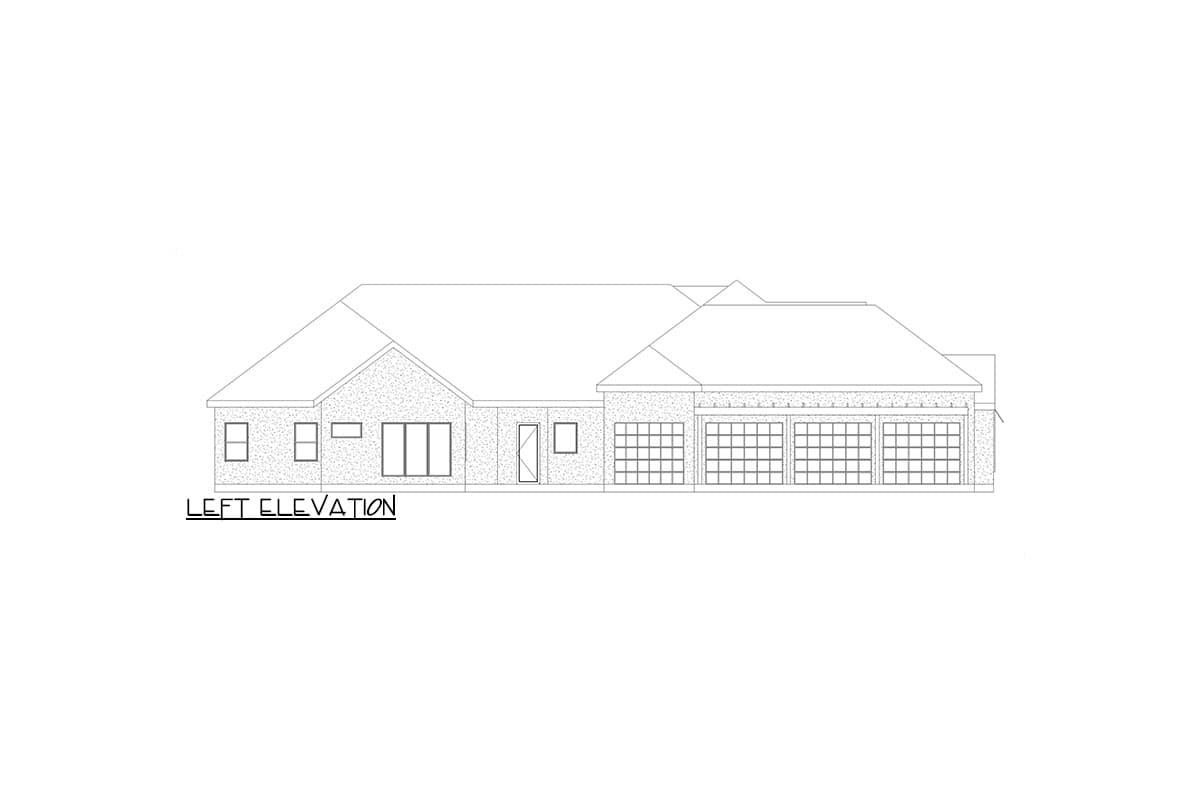

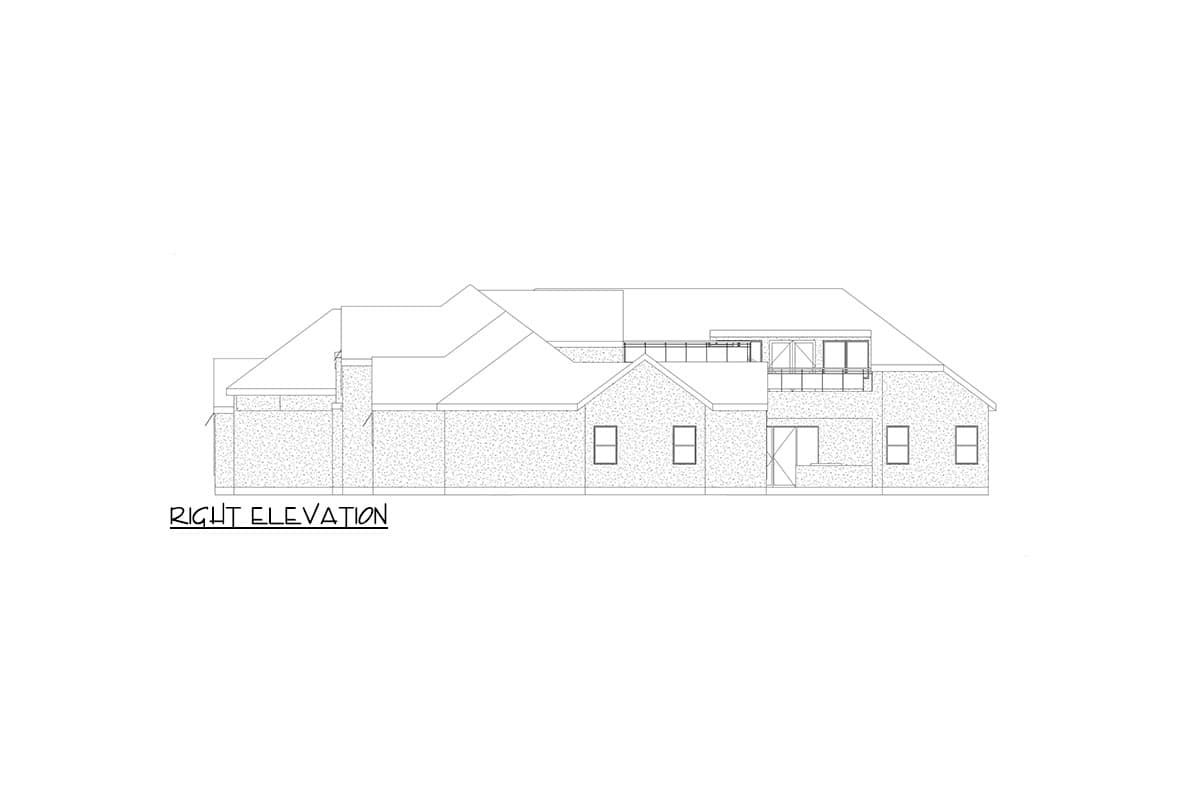

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
