Plan 72524DA
4901 Square Foot Ranch Home Plan with Vaulted Family Room
Heated S.F.
4,901
Beds
4
Baths
4.5
Stories
1
Cars
3
Floor Plan

Plan 72524DA

Main Level
slide image 0

Plan 72524DA

1-800-854-7852

1-262-521-4596

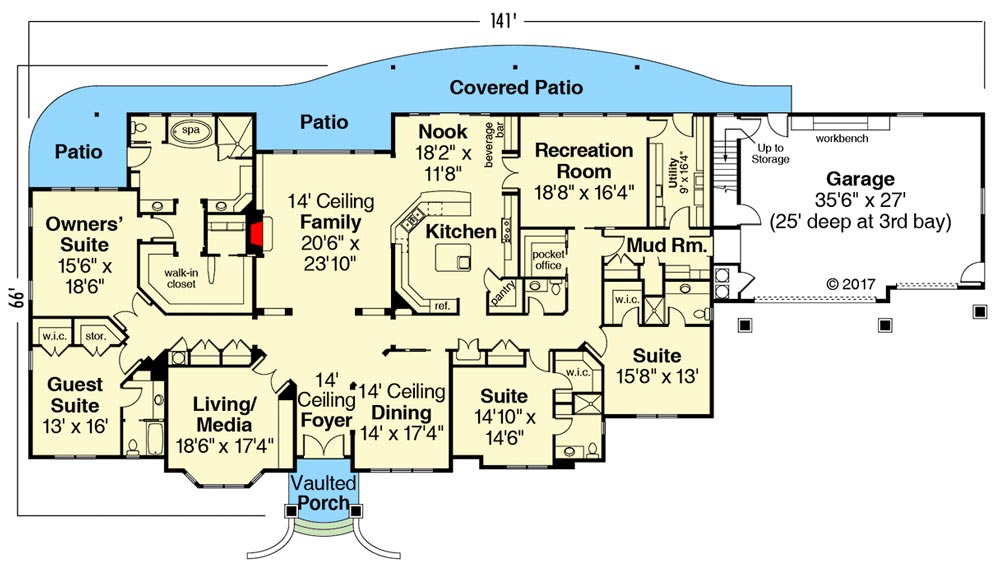

Main Level
floor plan image Main Level
Plan Details
  • The arched entrance way with vaulted ceiling, beautiful transoms and specialty windows let you know you've arrived.
  • Open kitchen, nook and family room make an impression as to the spaciousness.
  • Master suite has extra large luxury bathroom as well as an extra large walk-in closet.
  • Bayed living/media room has a double French door.
  • Beautiful curved covered patio extends the entire length of the house which is seen out every rear window.
  • Extra tall ceilings in many of the main rooms add to the dynamics of this gorgeous home plan.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

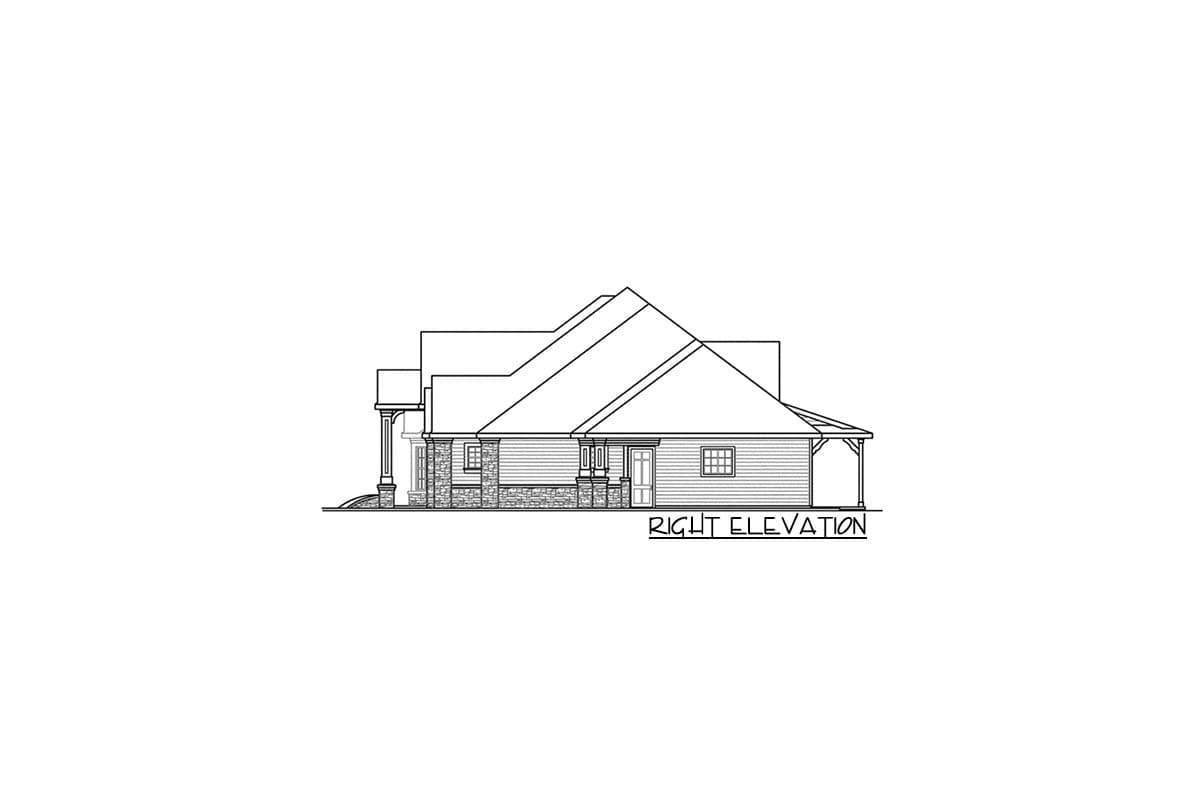

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,901 sq. ft.

1st Floor

4,901 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

141' 0"

Depth

66' 0"

Max Ridge Height

32' 4"

Garage

Type

Attached

Area

1092 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

14'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Flex Room

Formal Dining

Master Suite - 1st Floor

Media Room

Two Story Great Room

Square Footage Breakdown

Total Heated Area

4,901 sq. ft.

1st Floor

4,901 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

141' 0"

Depth

66' 0"

Max Ridge Height

32' 4"

Garage

Type

Attached

Area

1092 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

14'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Flex Room

Formal Dining

Master Suite - 1st Floor

Media Room

Two Story Great Room
