Name: Plan 23547JD: 5-Bed 5880 Square Foot Shingle Style Home Plan
SKU: 23547JD
Price: 3400.0 USD
Availability: InStock

Plan 23547JD

5-Bed 5880 Square Foot Shingle Style Home Plan

Heated S.F.

5,880

Beds

Baths

5.5

Stories

Cars

Floor Plan

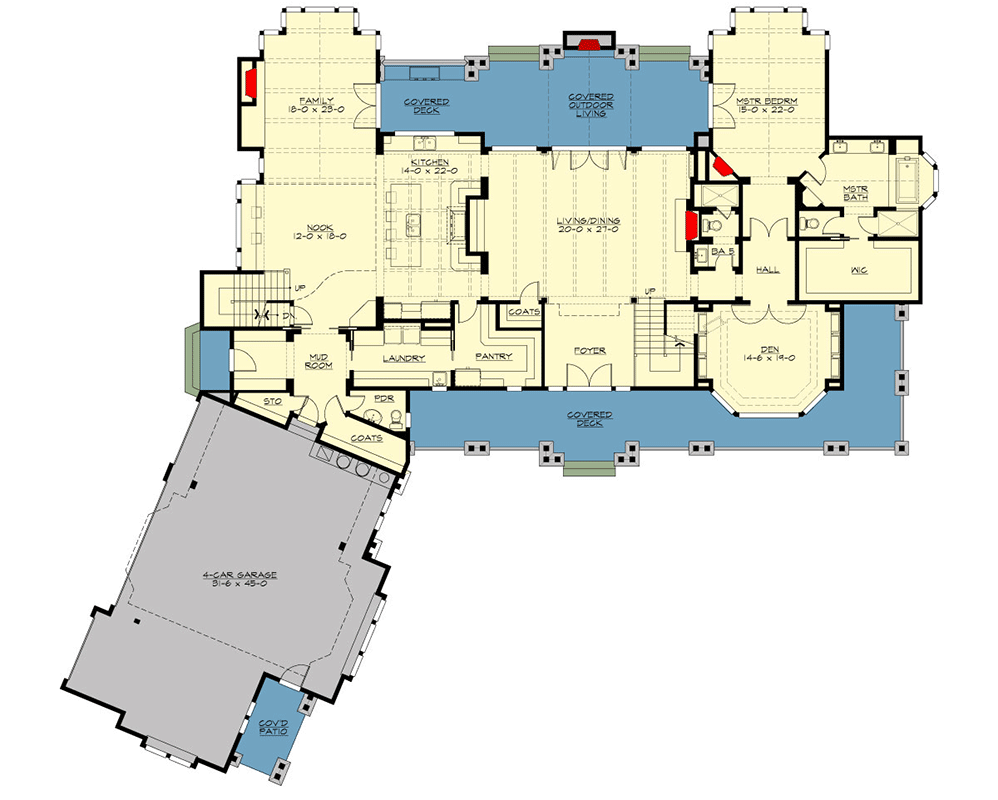

Main Level

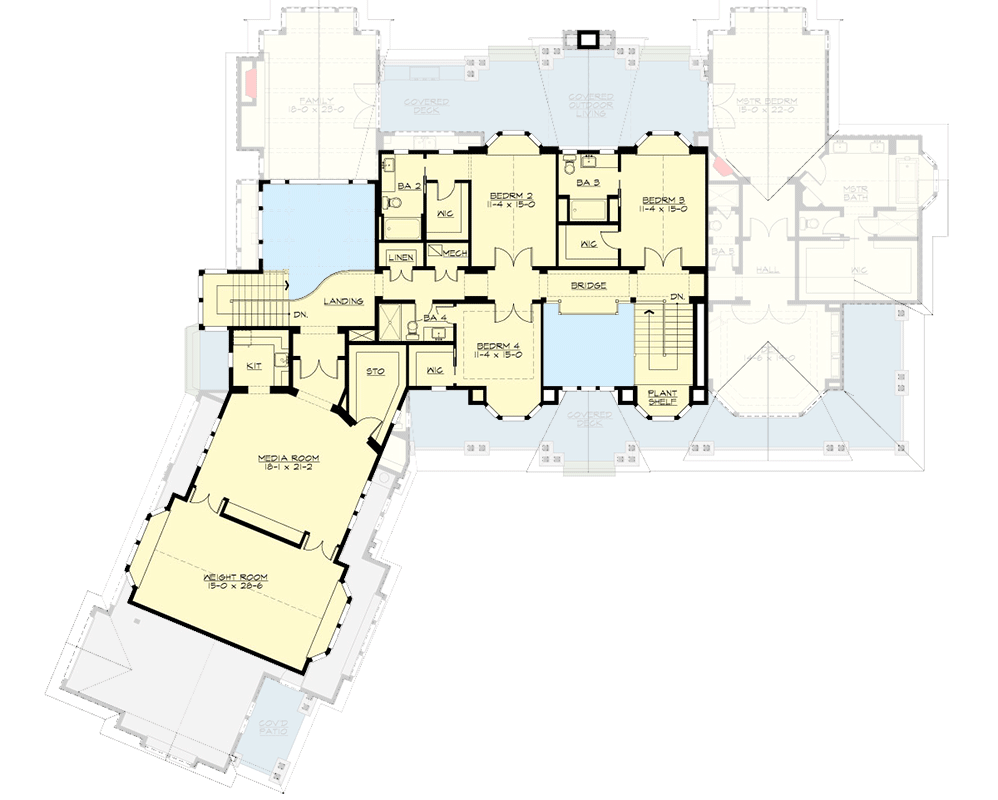

2nd Floor

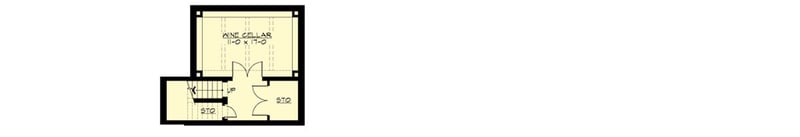

Wine Cellar Under The Nook

Plan Details

This spacious and luxurious Shingle-style house plan gives you 5,880 square feet of heated living with 4 beds and 5.5 baths. Covered decks and porches offer magnificent outdoor spaces to relax in.
Open sightlines greet you right from the front door as you look through the huge beamed living and dining room with its wall of glass all across the back.
The gourmet kitchen has a coffered ceiling and an island that comfortably sits four. The family room has a vaulted and beamed ceiling. A unique wine cellar lies under the breakfast nook and has an extra storage closet. Work from home in the big den with a bay window to bring in extra light.
The master ceiling is also vaulted and beamed. Enjoy the corner fireplace and sitting area tucked away at one end.
A magnificent second floor boasts a media room with kitchen and a huge weight room for exercising. Each of the bedrooms on this level has a bay window, large walk-in closet and private bathroom.
Related Plan: Get an alternate version with house plan 23643JD.
NOTE: If building in the state of Washington, your plan purchase cannot be done online. Please contact us directly.

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
