Plan 70857MK
5-Bed Barndominium-Style Modern Farmhouse Plan with Wrap Around Porch
Heated S.F.
3,779
Beds
5
Baths
5.5
Stories
2
Cars
4
Floor Plan

Plan 70857MK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 70857MK

1-800-854-7852

1-262-521-4596

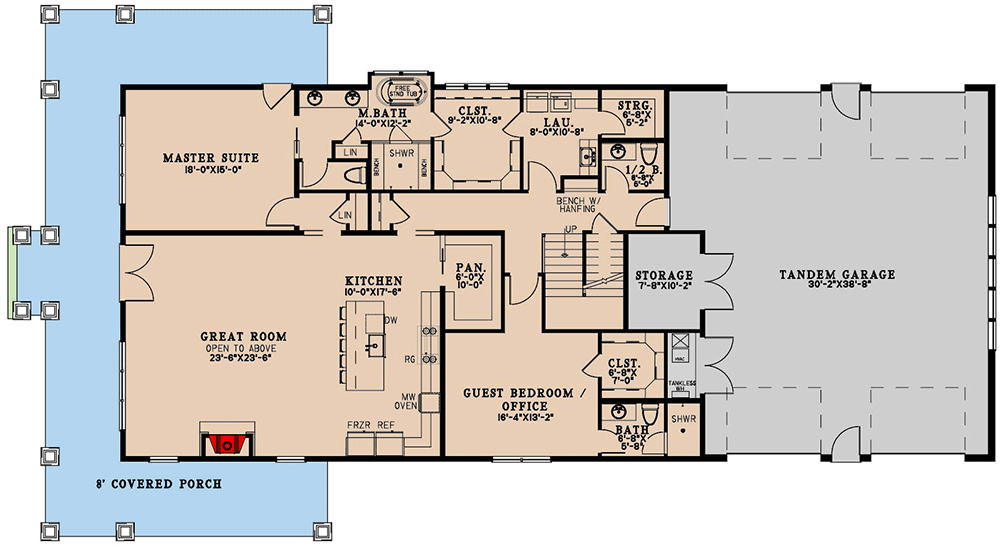

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

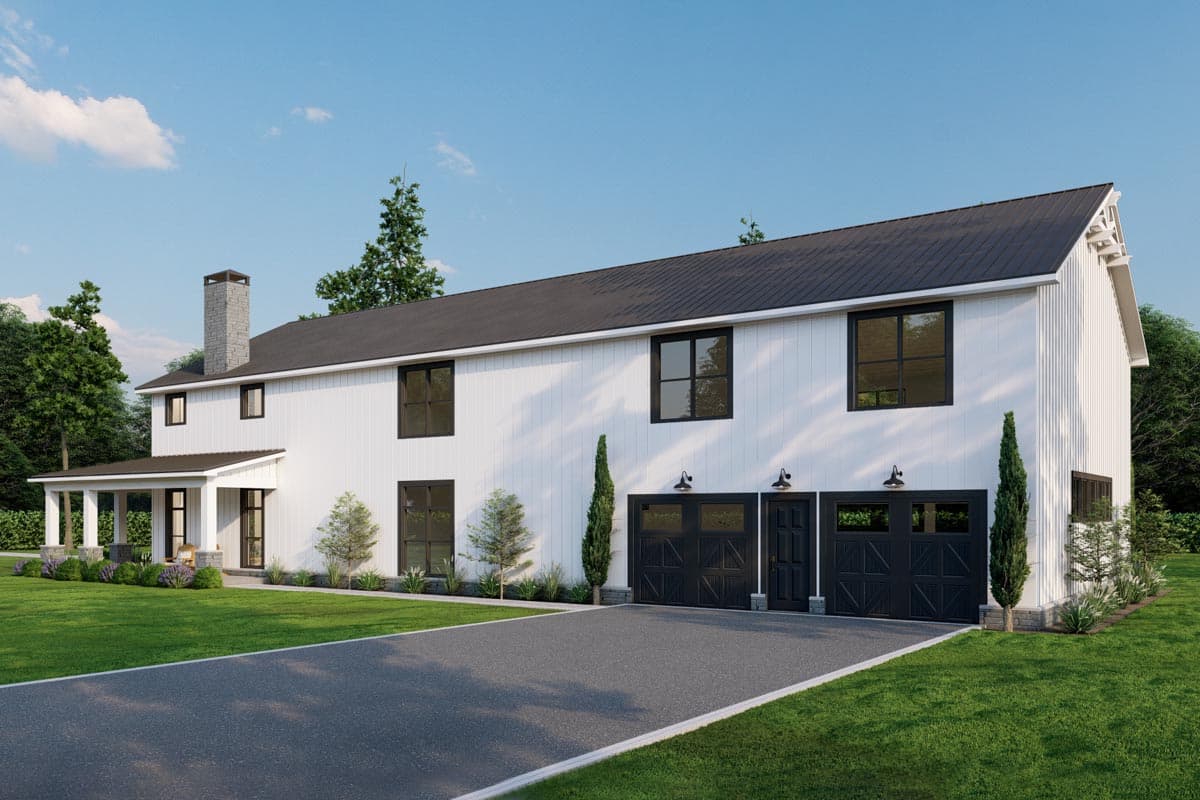

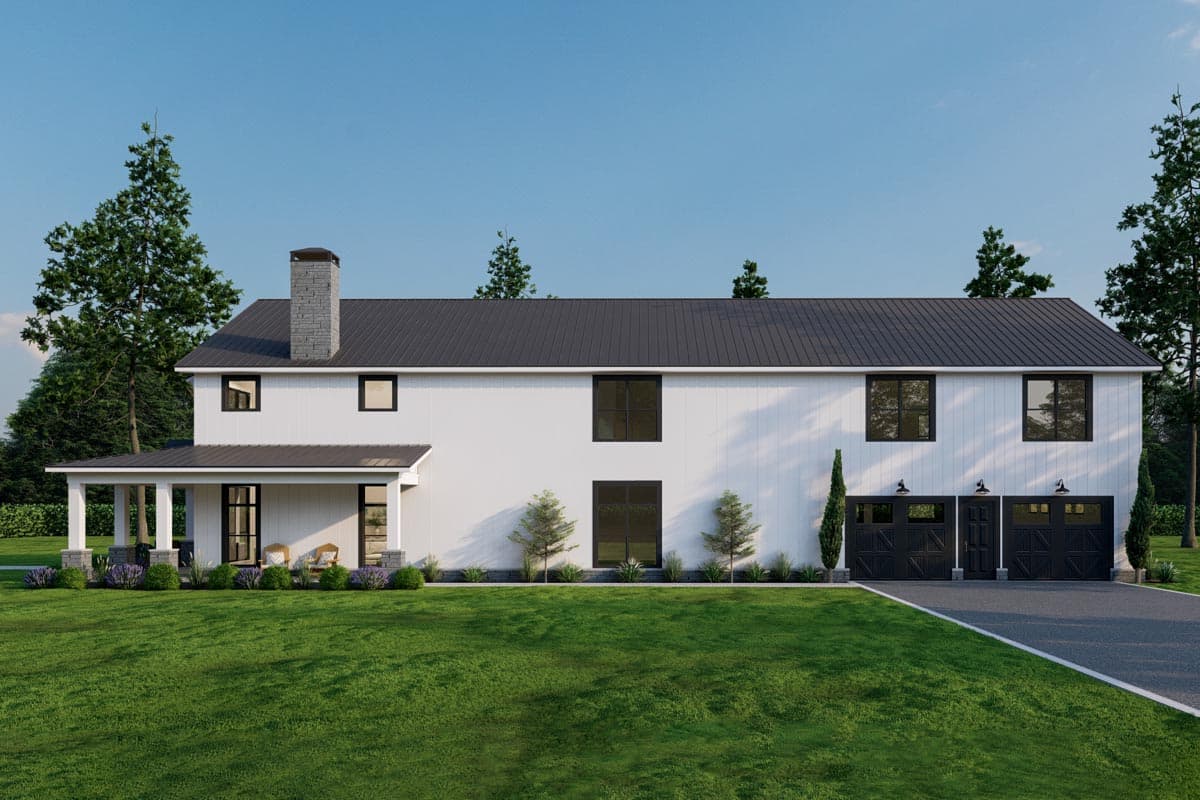

  • This Barndominium-style home greets you with a charming modern farmhouse inspired exterior with wrap-around porch, setting the tone for a cozy yet modern living experience.

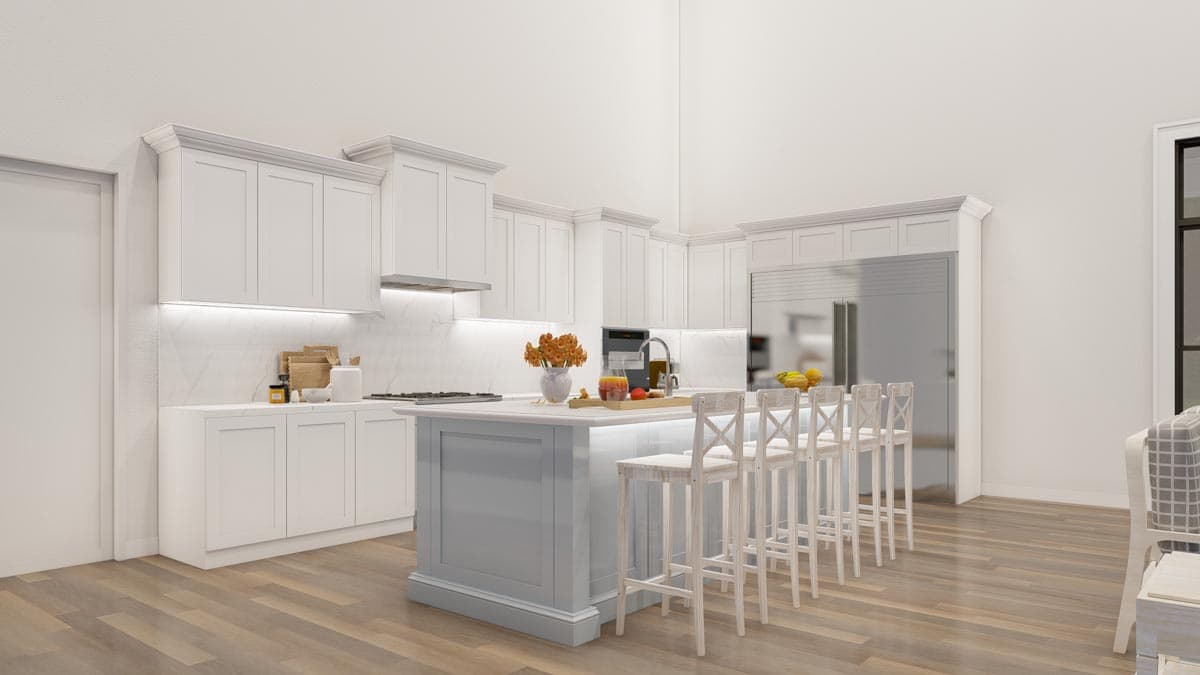

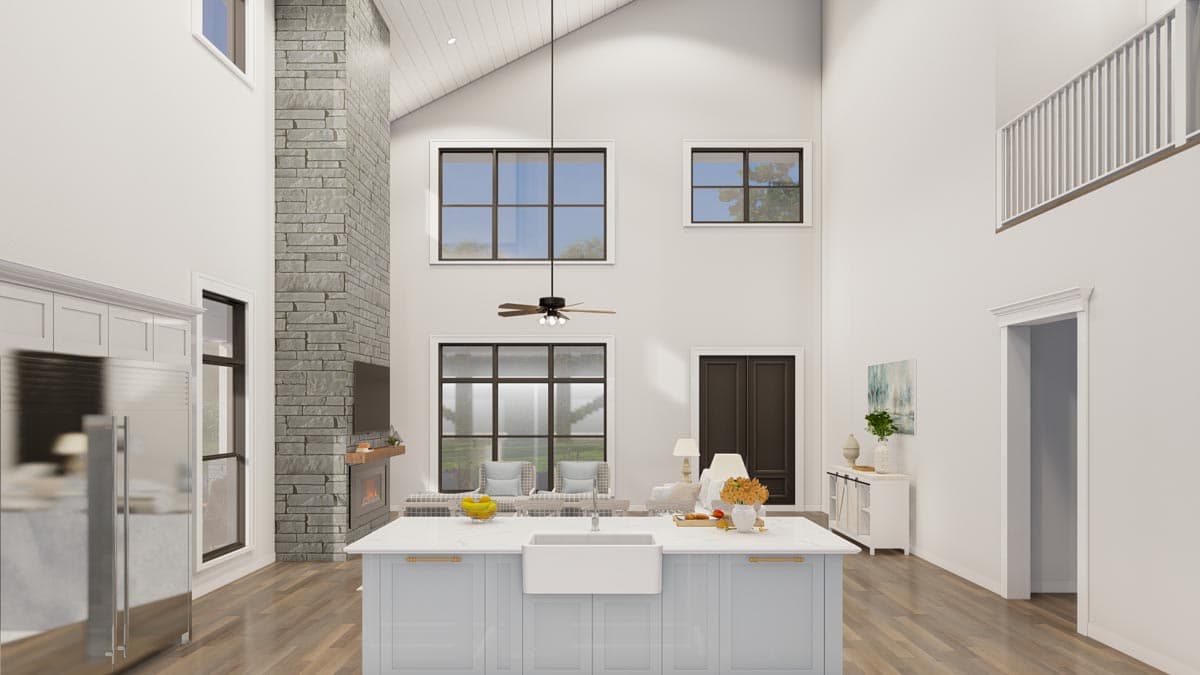

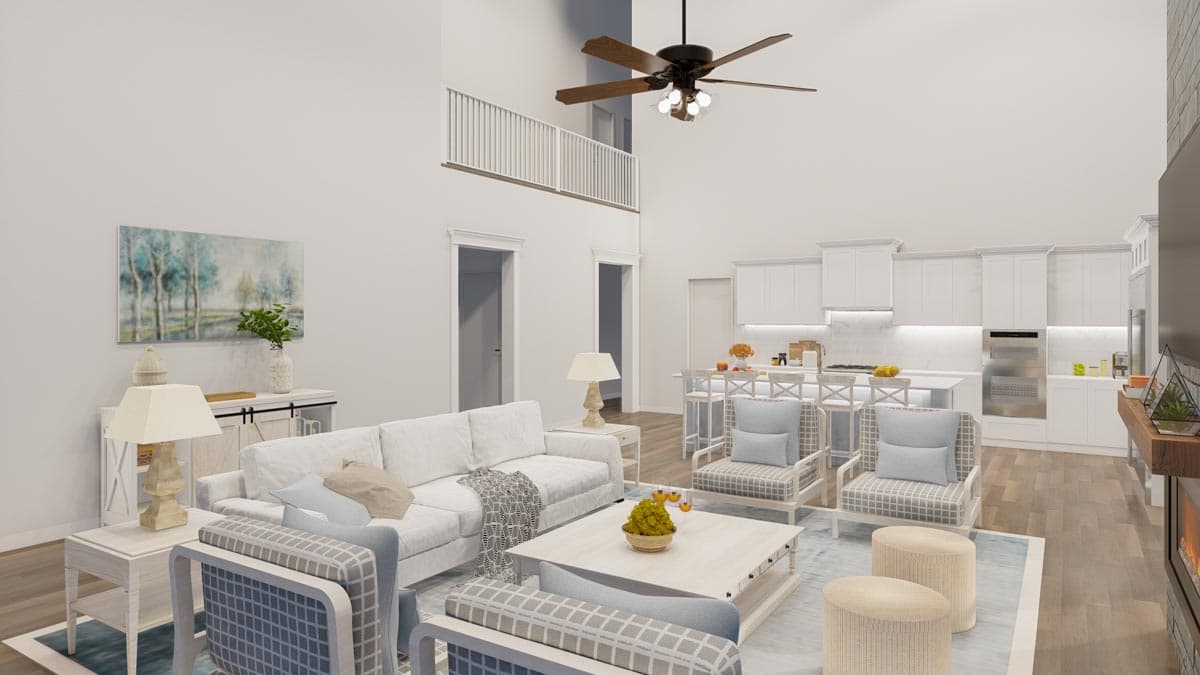

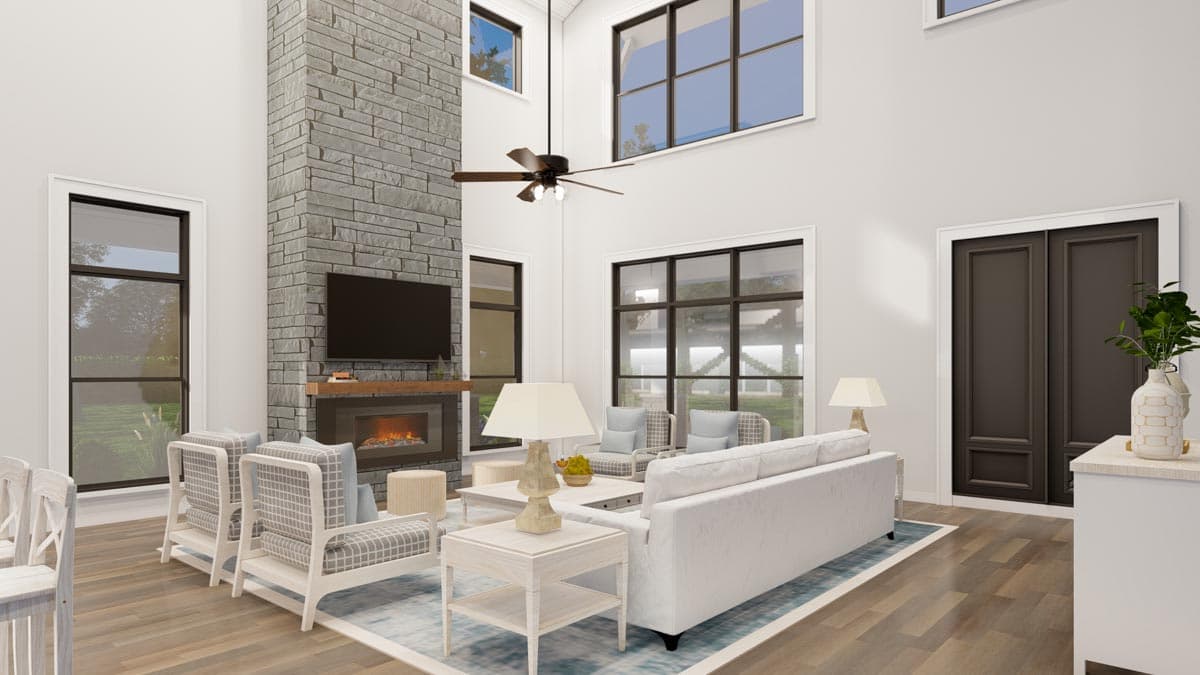

  • Inside, the open floor plan of the great room and kitchen is bathed in natural light, courtesy of ample windows and two-story ceiling. T
  • he main floor includes a luxurious master suite with a freestanding tub, a walk-in closet, a guest office/bedroom with an ensuite bathroom, and a spacious 4-bay tandem garage.
  • Upstairs, you'll find bedrooms 3 bedrooms each with its own bathroom for ultimate convenience.
  • The upper floor also features a laundry room, extra storage, and a versatile bonus room with endless possibilities.
  • This home also features a wrap around porch.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,779 sq. ft.

1st Floor

2,313 sq. ft.

2nd Floor

1,466 sq. ft.

Bonus

1,345 sq. ft.

Porch, Combined

827 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

101' 0"

Depth

56' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

1406 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

56 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Barndominium

Country

Craftsman

Farmhouse

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Flex Room

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wrap Around Porch
