Name: Plan 660020JMD: 5-Bed Contemporary House Plan with Upstairs Loft with Outdoor Access - 4492 Sq Ft
SKU: 660020JMD
Price: 4000.0 USD
Availability: InStock

Plan 660020JMD

5-Bed Contemporary House Plan with Upstairs Loft with Outdoor Access - 4492 Sq Ft

Heated S.F.

4,492

Beds

Baths

5.5

Stories

Cars

Floor Plan

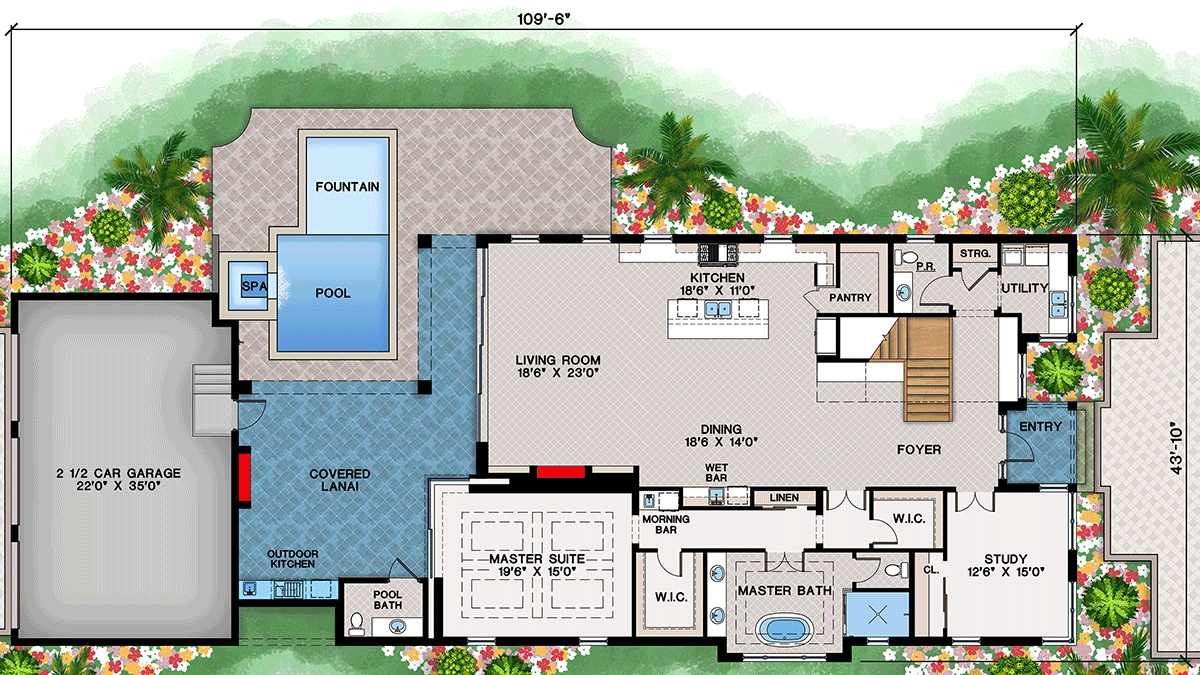

Main Level

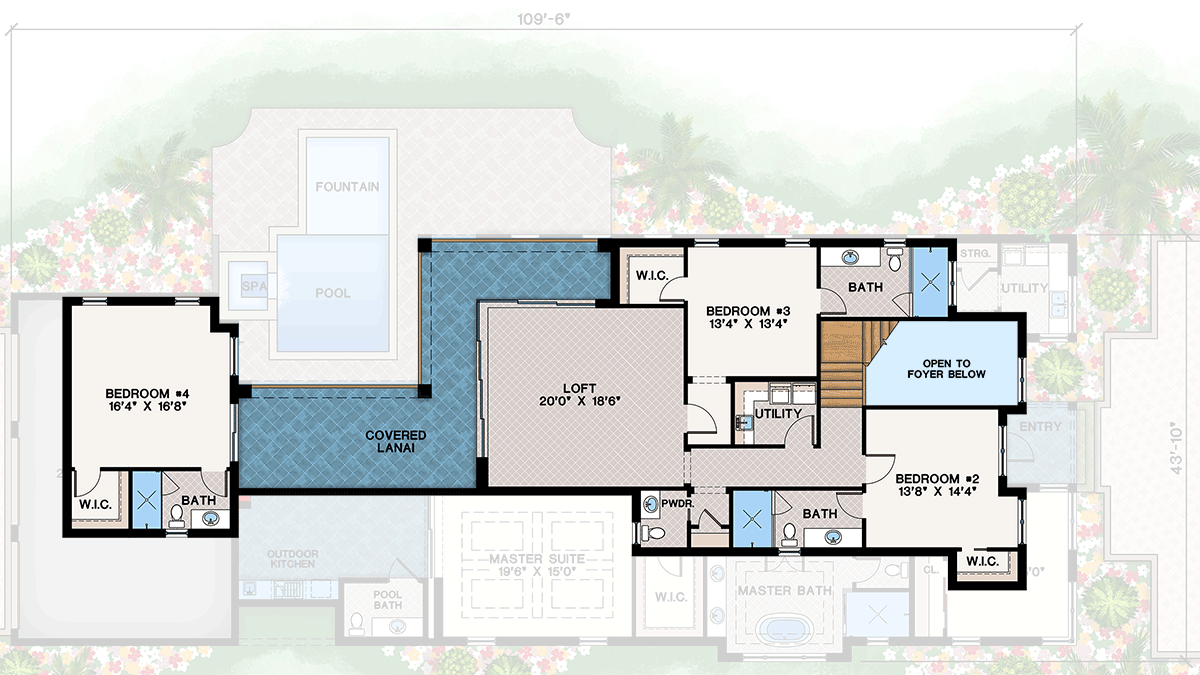

2nd Floor

Plan Details

This 5-bed contemporary house plan gives you 4,492 square feet of heated living space with covered outdoor space - 595 square feet on the main floor and 454 square feet on the second level - on both floor.
Enter through the foyer and you are captivated by the views that extend all the way through the home to the collapsible wall in back which opens to the covered lanai, giving you the best of indoor/outdoor living. A study to your left makes a great work-from-home space while the utilities and a half bath are tucked away to the right.
Continue into an open space that includes the living, dining room, and kitchen with a roomy walk-in pantry. The island has a double sink and space for casual seating.
The left side houses the master suite with an ensuite bathroom and outdoor access. At the rear of the home, a covered lanai with an outdoor kitchen and fireplace leads to the detached garage.
Upstairs, there are three bedrooms - one of which is accessible from the lanai - a second laundry room, and a loft with lanai access.
NOTE: Please allow 3 to 5 business days for delivery.

What's Included

Elevations Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

Roof Design Plan Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
