Plan 666292RAF
5-Bed Contemporary Modern House Plan with Outdoor Fireplace - 4945 Sq Ft
Heated S.F.
4,945
Beds
5
Baths
5.5
Stories
2
Cars
3
Floor Plan

Plan 666292RAF

Main Level
slide image 0
2nd Floor
slide image 1

Plan 666292RAF

1-800-854-7852

1-262-521-4596

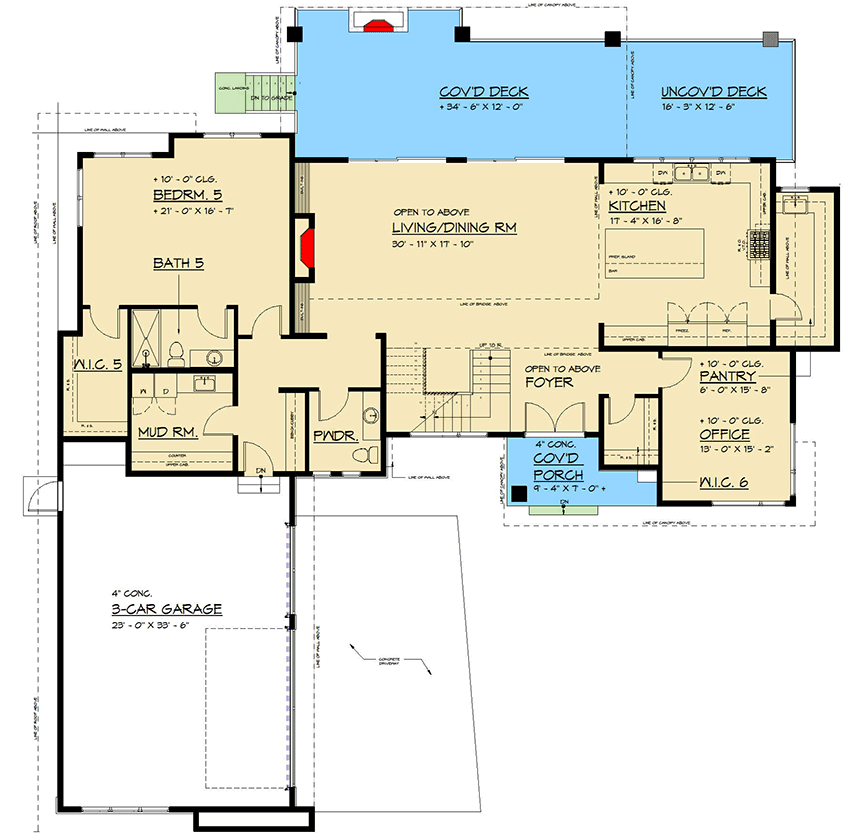

Main Level
floor plan image Main Level

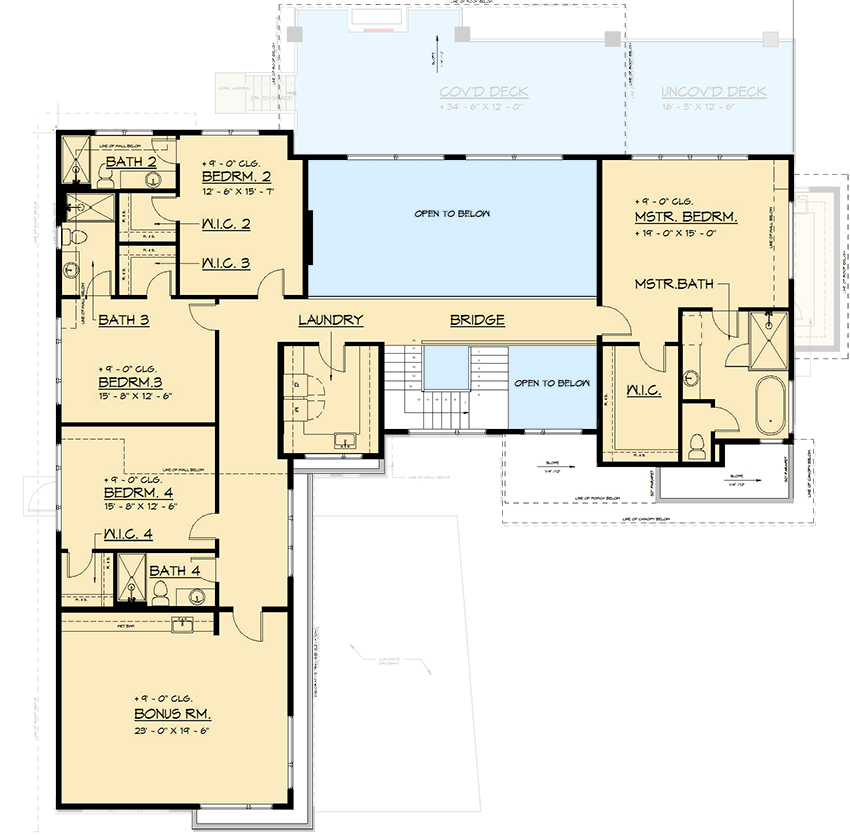

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 4,945 square foot contemporary house plan gives you 5 beds, 5.5 baths and a 840 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,945 sq. ft.

1st Floor

2,415 sq. ft.

2nd Floor

2,530 sq. ft.

Porch, Front

87 sq. ft.

Deck

196 sq. ft.

covered deck

432 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 3"

Depth

70' 10"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

840 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 2

Secondary Pitch

1 on 12

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Flex Room

Home Office

Laundry - Main Level

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Outdoor Fireplace

Two Story Great Room

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

4,945 sq. ft.

1st Floor

2,415 sq. ft.

2nd Floor

2,530 sq. ft.

Porch, Front

87 sq. ft.

Deck

196 sq. ft.

covered deck

432 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 3"

Depth

70' 10"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

840 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 2

Secondary Pitch

1 on 12

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Flex Room

Home Office

Laundry - Main Level

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Outdoor Fireplace

Two Story Great Room

Plan Collections

Luxury
