Plan 23388JD
5 Bed Cotemporary Northwest-Inspired House Plan with 2-Car Drive Under Garage
Heated S.F.
2,951
Beds
5
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 23388JD

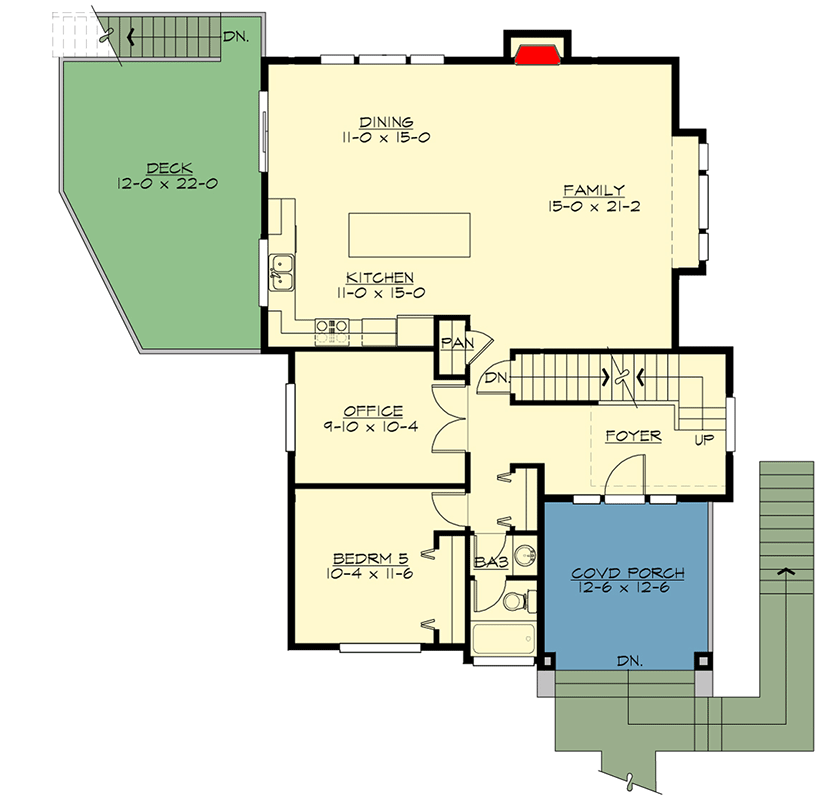

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 23388JD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

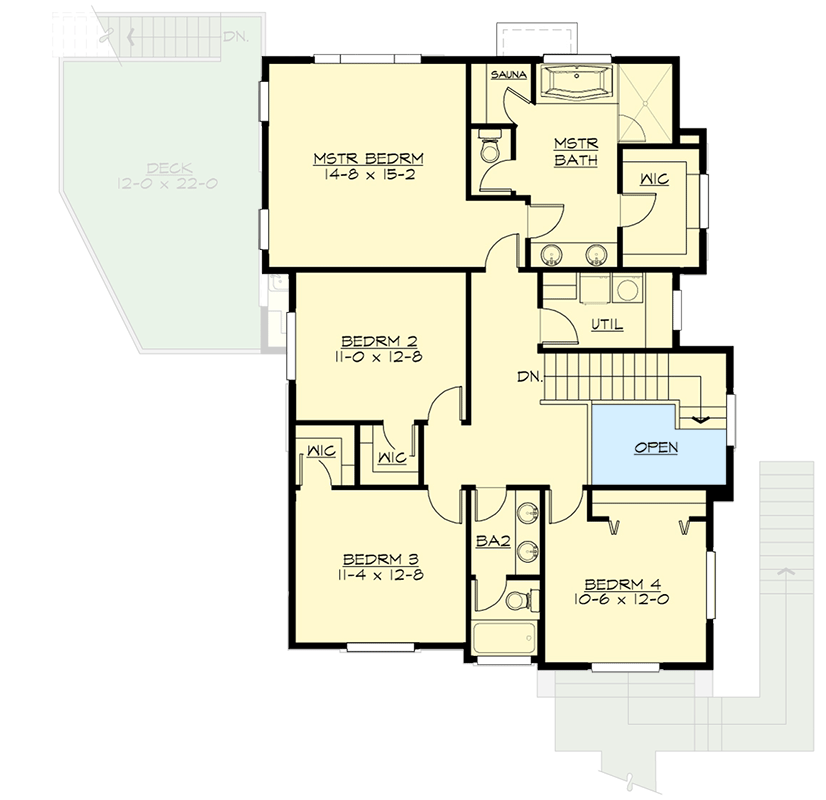

2nd Floor
floor plan image 2nd Floor
Lower Level
floor plan image Lower Level
Plan Details
  • This 2,951 square foot contemporary Northwest-inspired house plan gives you 5 beds, 3 baths and has a 2-car (667 square foot) side load garage accessible on the lower level.
  • Enter from the 12'6" by 12'6" front porch and find yourself in the foyer with stairs ahead going up and a home office to your left.
  • A box-bay window highlights the family room that is open to the kitchen and dining area. Sliding doors on the side open to the 12' by 22' deck.
  • Upstairs the master suite is located in back and has a roomy walk-in closet and a five-fixture bath. Three additional bedrooms share a hall bath. Laundry is conveniently placed o this floor.
  • In addition to the garage, there is an exercise area in the lower level.
  • Related Plan: Get a 3-car garage with house plan 23059JD. And get alternate exteriors with house plans 23102JD and 23103JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
