Plan 86340HH
5-Bed Country Cottage with 2-Story Family Room
Heated S.F.
2,766
Beds
5
Baths
4
Stories
2
Cars
2
Floor Plan

Plan 86340HH

Main Level
slide image 0

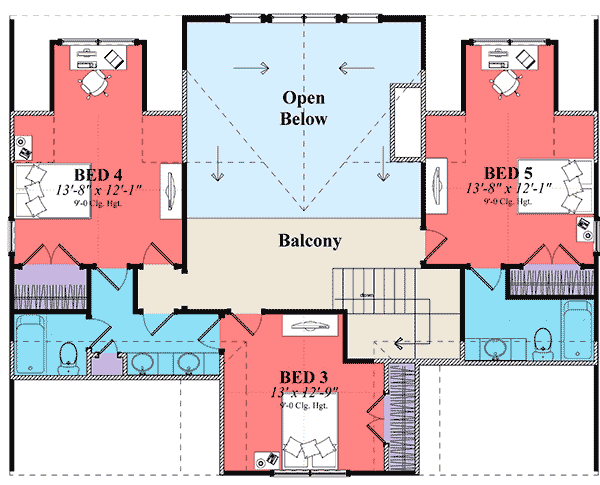

2nd Floor
slide image 1

Plan 86340HH

1-800-854-7852

1-262-521-4596

Main Level

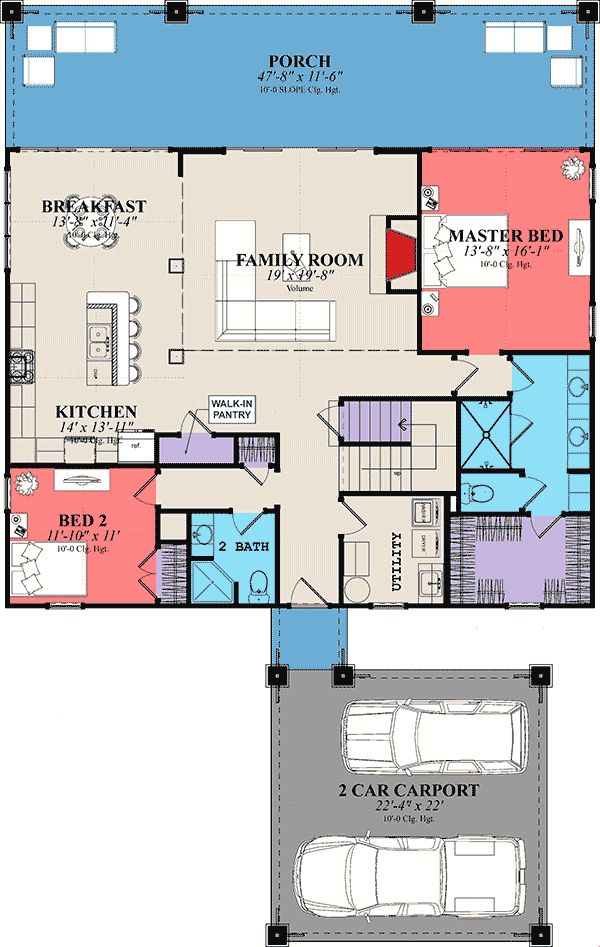

floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

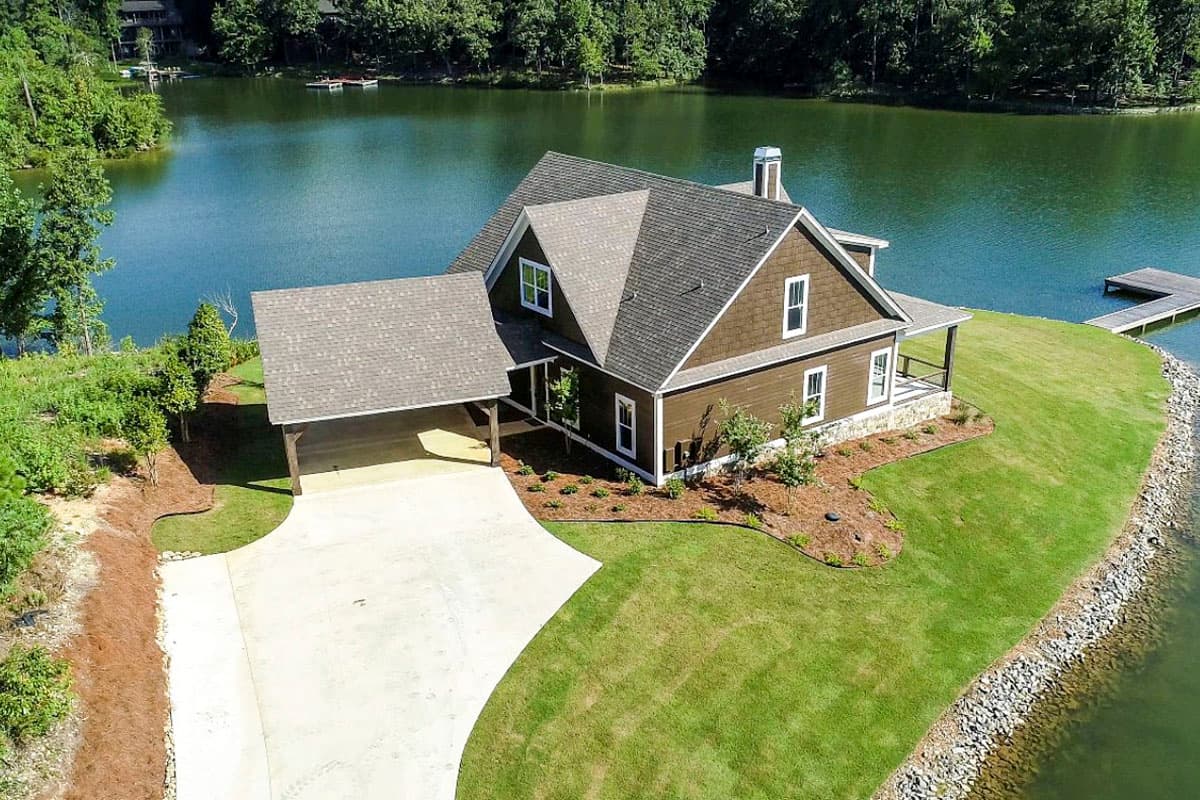

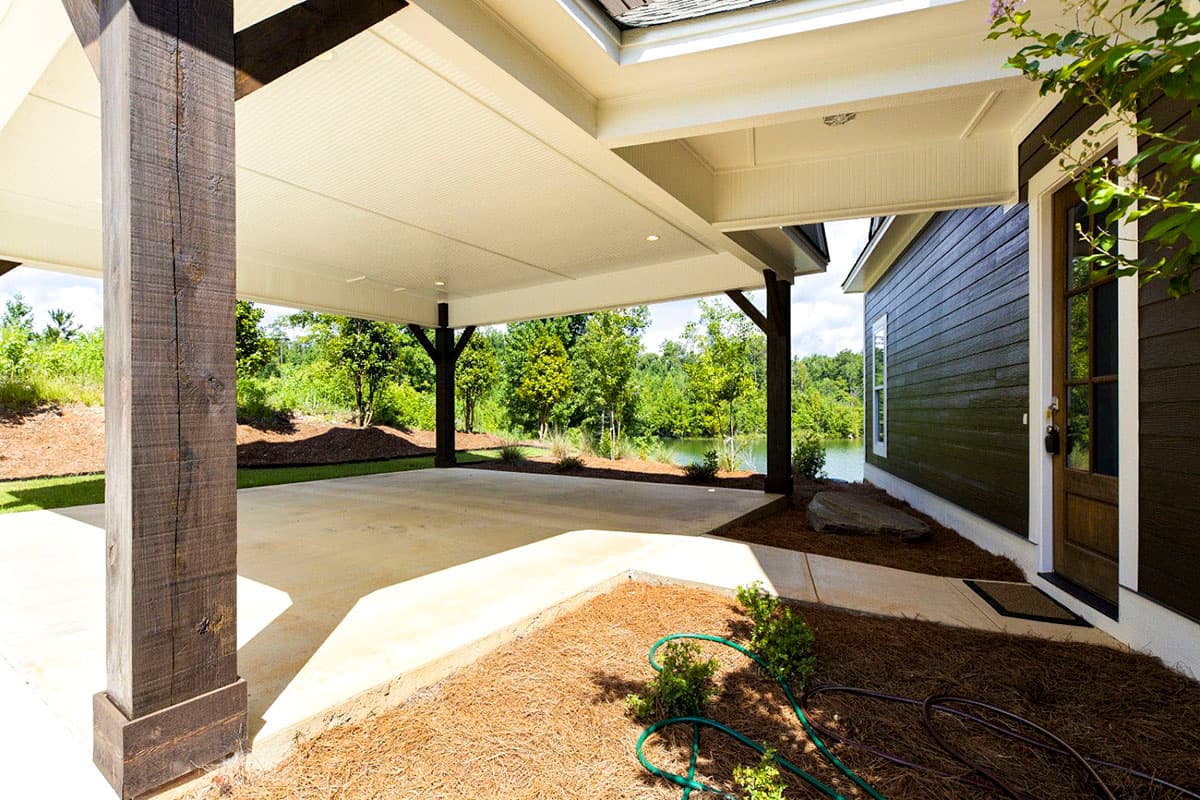

  • This 5-bedroom, country cottage presents immense character inside and out, complete with a large back porch taking advantage of any rearward views. A carport in the front of the home serves as protection for 2 cars.

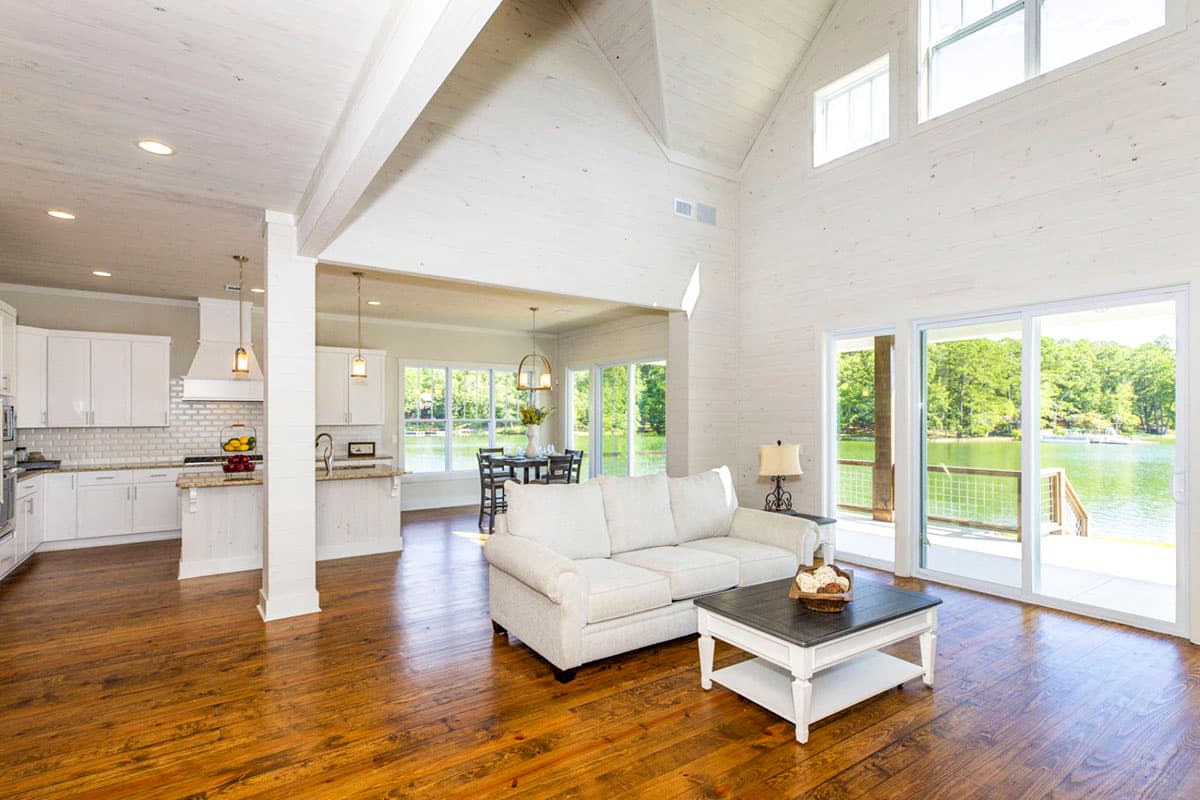

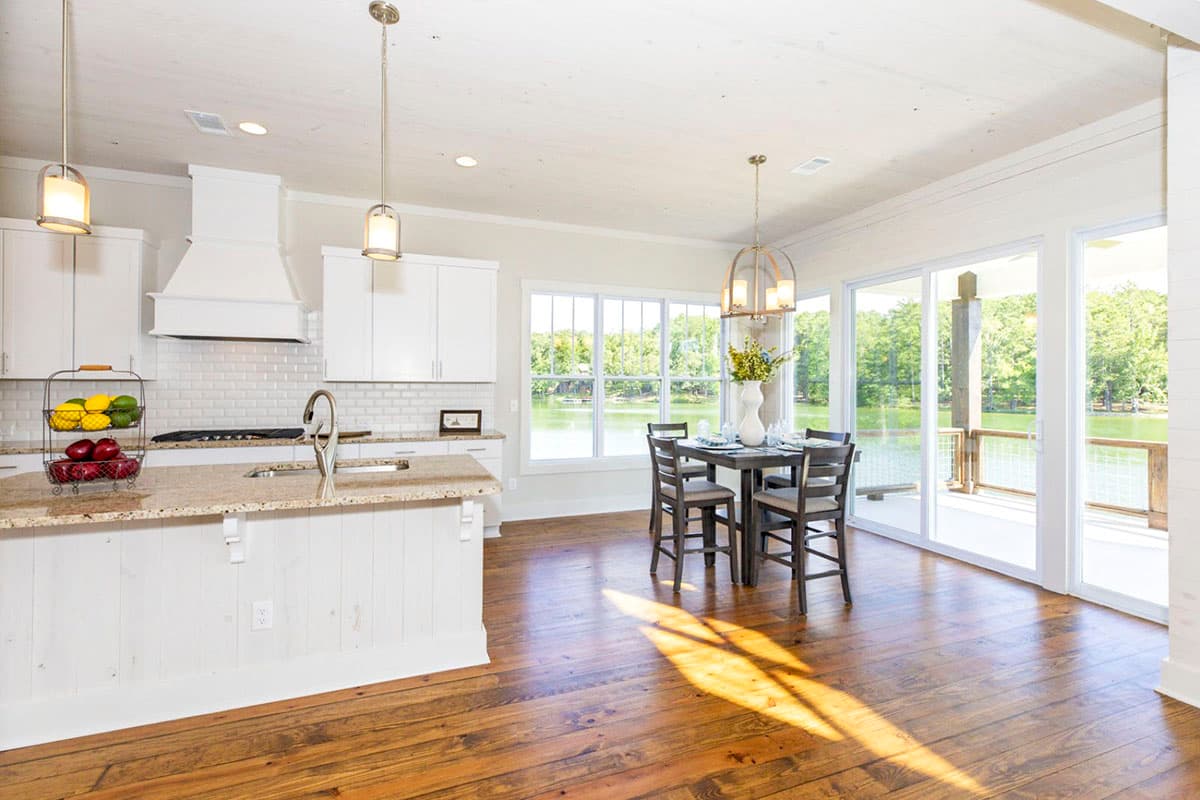

  • The heart of the home features an open layout combining the family room, kitchen, and breakfast nook. Double-height ceilings in the family room provide a feeling of spaciousness, while allowing natural light to fill the interior.

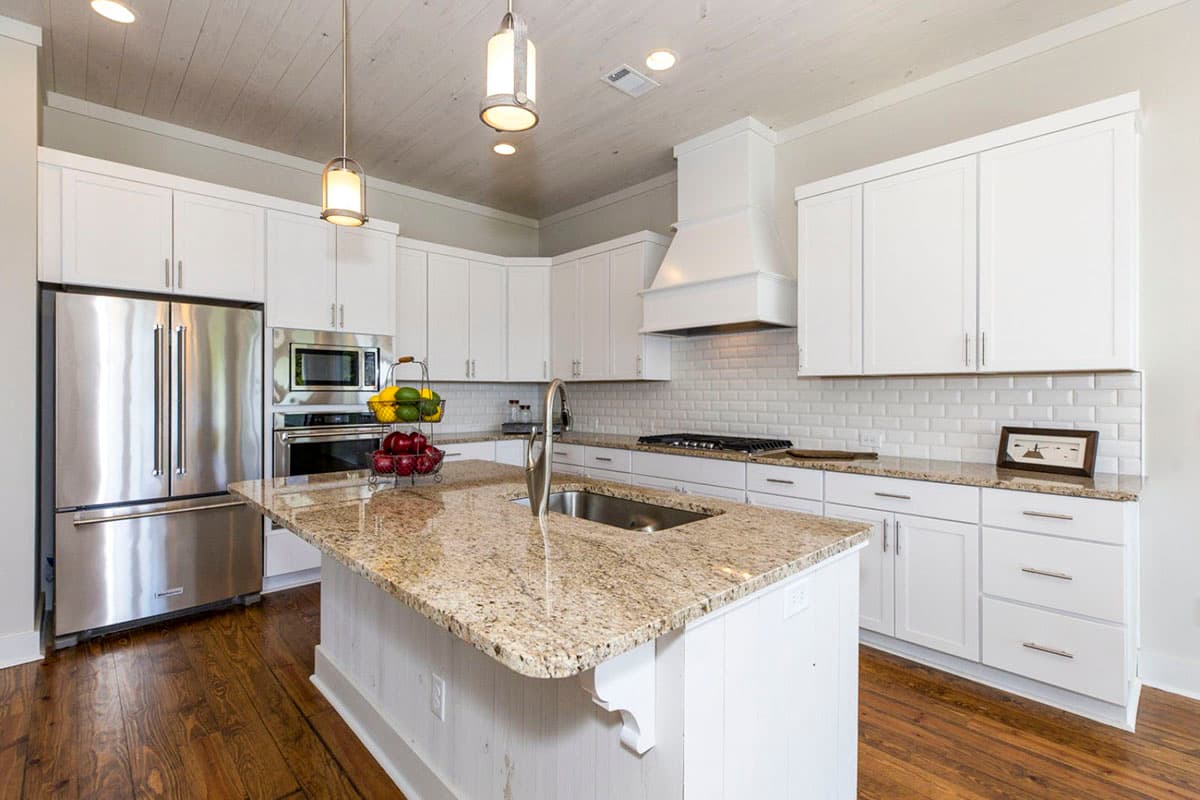

  • The large, kitchen island offers bar-height seating for four, and a walk-in pantry provides plenty of dry storage space.

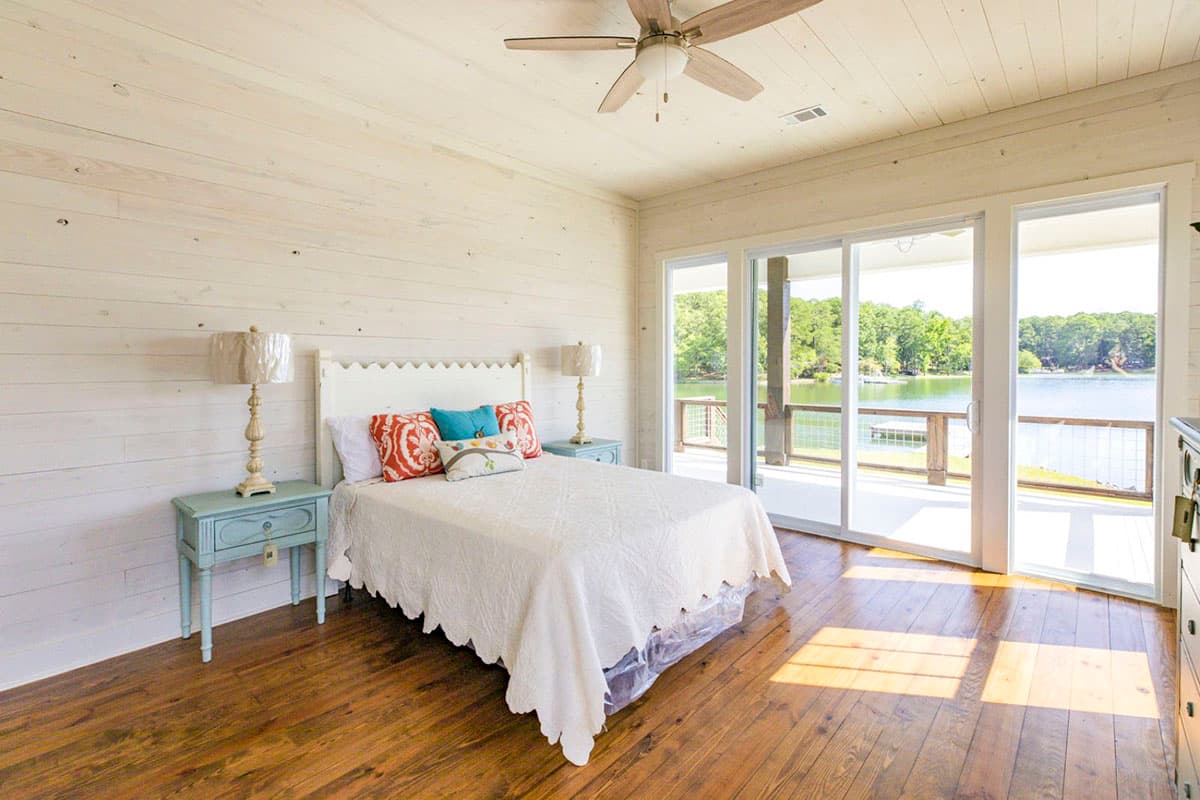

  • The master bedroom is located on the main level, and includes an oversized shower in the 4-fixture bath, along with a roomy walk-in closet.

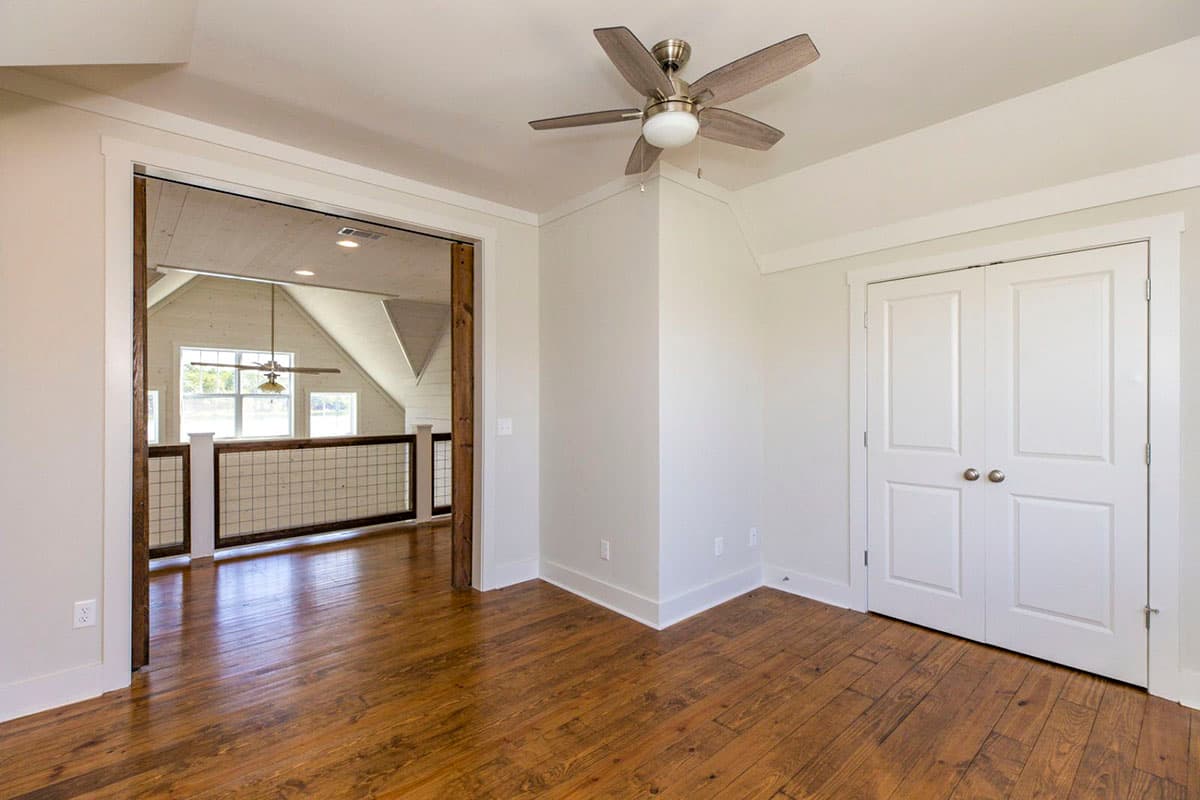

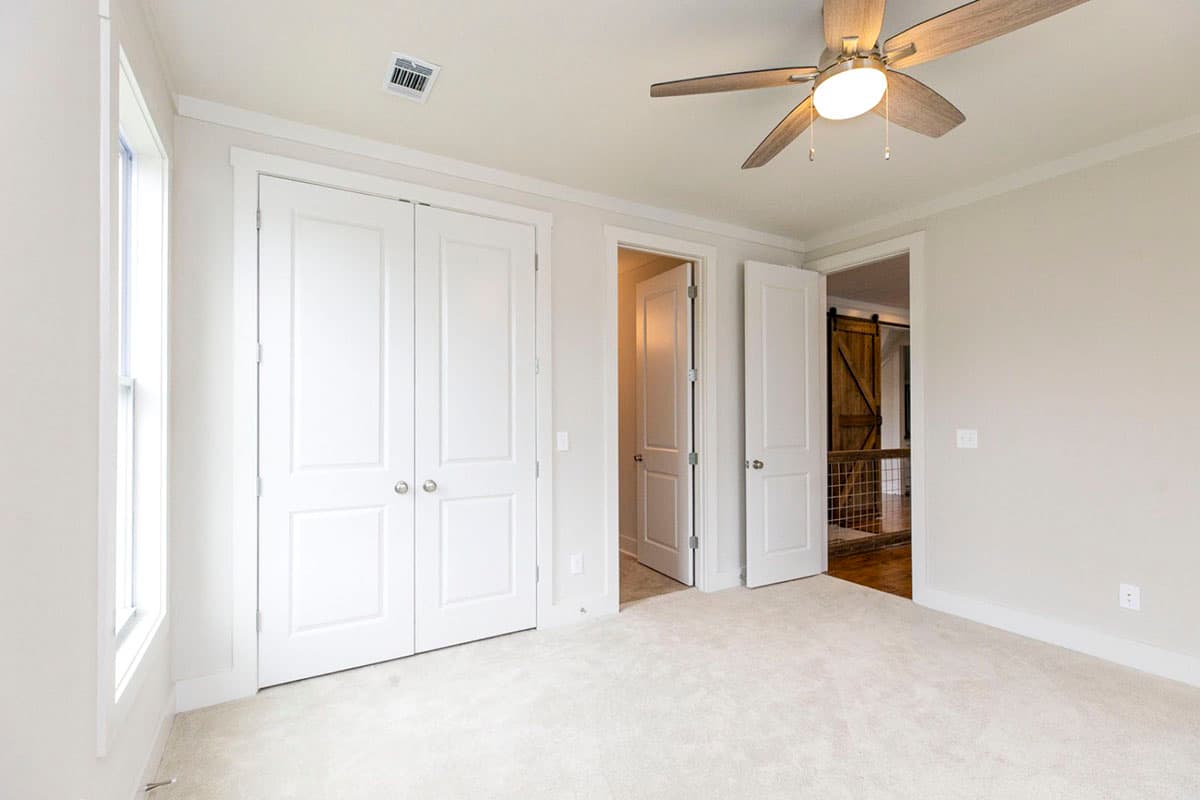

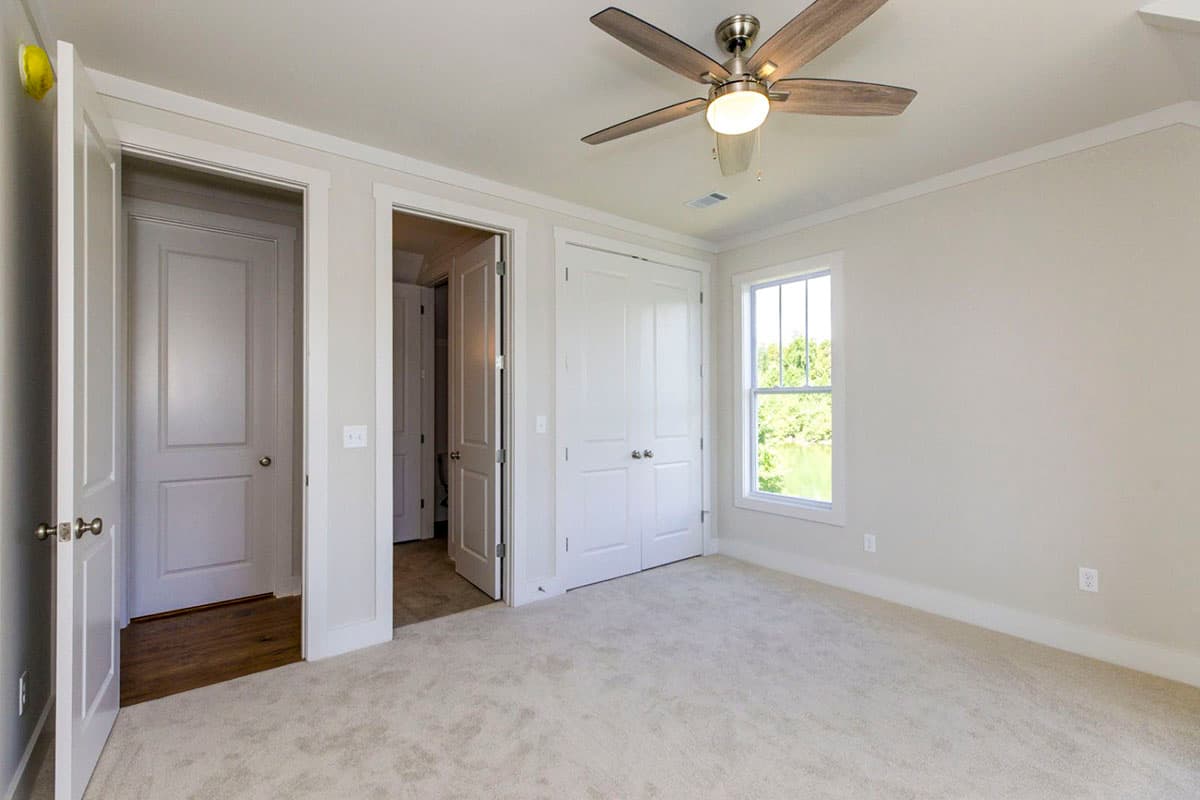

  • A second bedroom on this level neighbors a full bath. Upstairs, discover three additional bedrooms; two share a Jack-and-Jill bath, and one includes a full bath.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,766 sq. ft.

1st Floor

1,776 sq. ft.

2nd Floor

990 sq. ft.

Carport

522 sq. ft.

Porch, Combined

548 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

48' 2"

Depth

76' 3"

Max Ridge Height

27' 6"

Garage

Type

Carport

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 15

Architectural Style

Cottage

Country

Craftsman

Lake House

New American

Vacation

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Lake House Plans

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

2,766 sq. ft.

1st Floor

1,776 sq. ft.

2nd Floor

990 sq. ft.

Carport

522 sq. ft.

Porch, Combined

548 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

48' 2"

Depth

76' 3"

Max Ridge Height

27' 6"

Garage

Type

Carport

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 15

Architectural Style

Cottage

Country

Craftsman

Lake House

New American

Vacation

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Lake House Plans

Photo Gallery

Premium Collection
