Plan 710100BTZ
5-Bed House Plan with Upstairs Children's Retreat
Heated S.F.
3,162
Beds
5
Baths
4
Stories
2
Cars
2
Floor Plan

Plan 710100BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710100BTZ

1-800-854-7852

1-262-521-4596

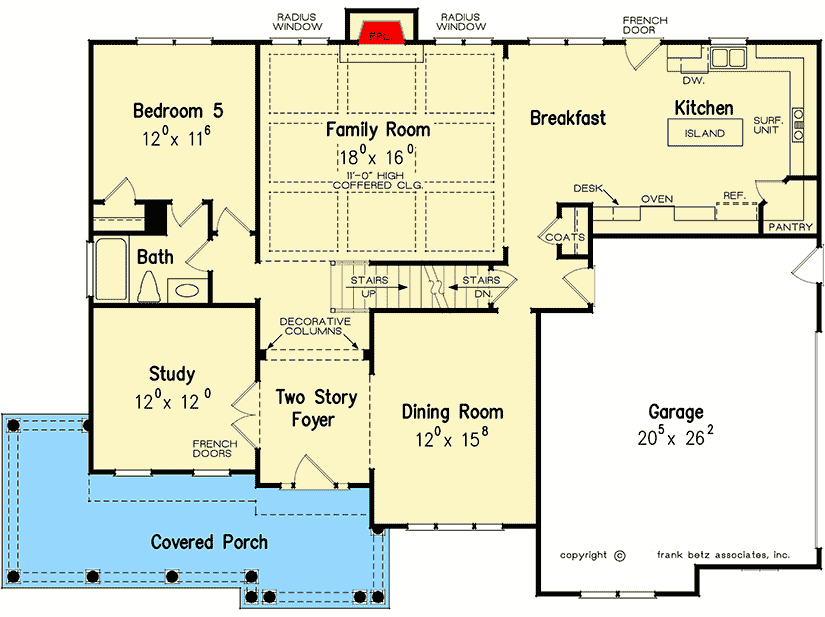

Main Level
floor plan image Main Level

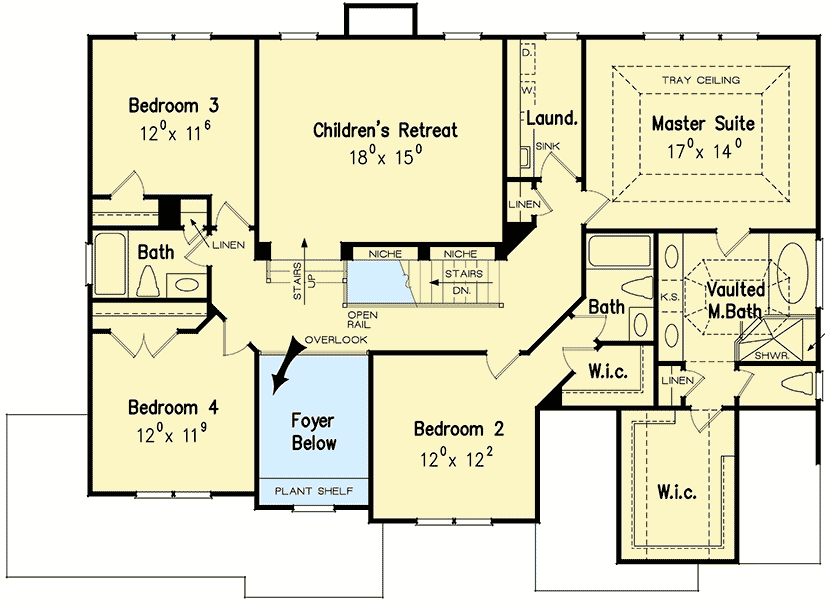

2nd Floor
floor plan image 2nd Floor
Plan Details

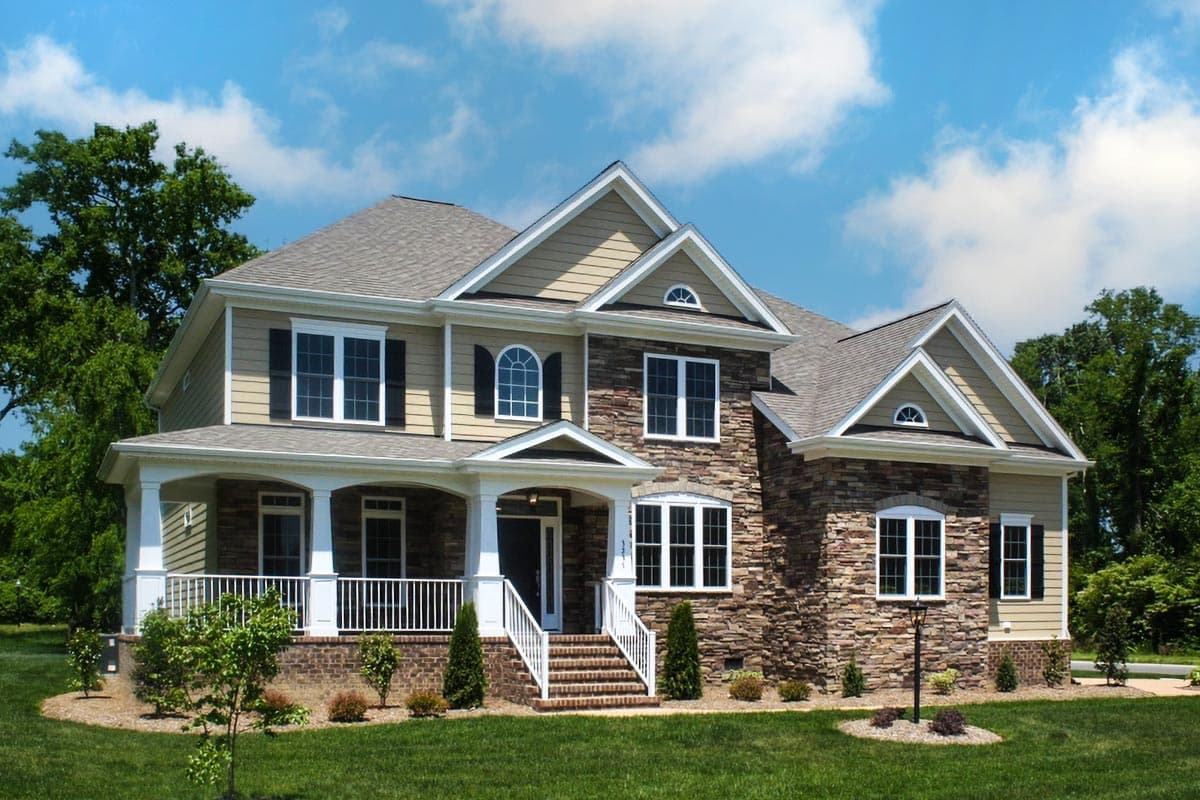

  • This 5-bed house plan has a stone and clapboard exterior with a entry porch with an eyebrow dormer above (seen on the rendering; not built in the photo) giving the home great curb appeal.
  • A 2-story foyer welcomes you and opens to the dining room on your right and leads you to the family room with coffered ceiling ahead giving the home a circular flow.
  • The kitchen and breakfast room are linked seamlessly to the family room. A corner pantry and the nearby garage entry make unloading groceries a breeze. A study and guest bedroom complete the main floor.
  • Four bedrooms are upstairs as well as a raised children's retreat and convenient laundry. The master suite has a tray vaulted ceiling and bath and large walk-in closet.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,162 sq. ft.

1st Floor

1,448 sq. ft.

2nd Floor

1,714 sq. ft.

Basement Unfinished

1,448 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

43' 10"

Max Ridge Height

31' 8"

Garage

Type

Attached

Area

509 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Breakfast Nook

Formal Dining

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Playroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,162 sq. ft.

1st Floor

1,448 sq. ft.

2nd Floor

1,714 sq. ft.

Basement Unfinished

1,448 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

43' 10"

Max Ridge Height

31' 8"

Garage

Type

Attached

Area

509 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Breakfast Nook

Formal Dining

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Playroom

Plan Collections

Photo Gallery
