Plan 17539LV
5-Bed Mediterranean Stunner
Heated S.F.
6,453
Beds
5
Baths
5.5
Stories
2
Cars
3
Floor Plan

Plan 17539LV

Main Level
slide image 0
2nd Floor
slide image 1

Plan 17539LV

1-800-854-7852

1-262-521-4596

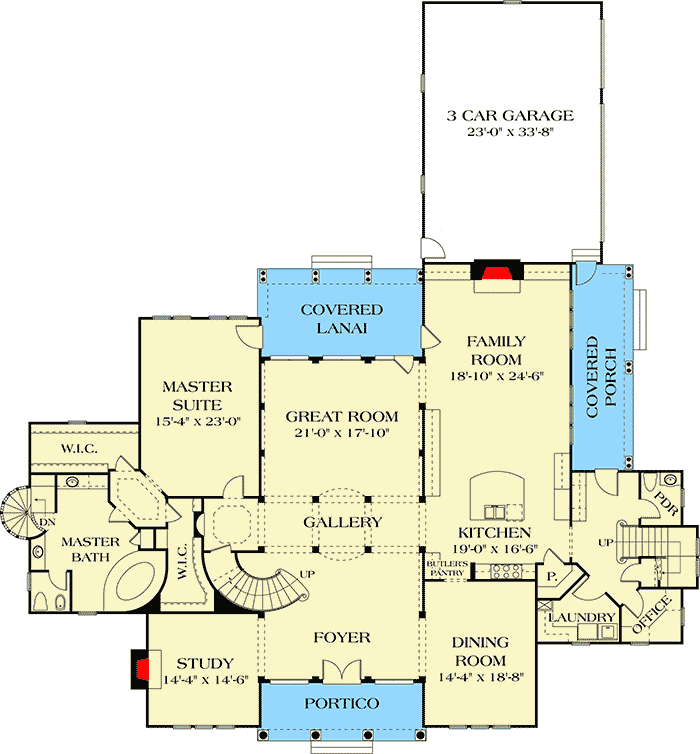

Main Level
floor plan image Main Level

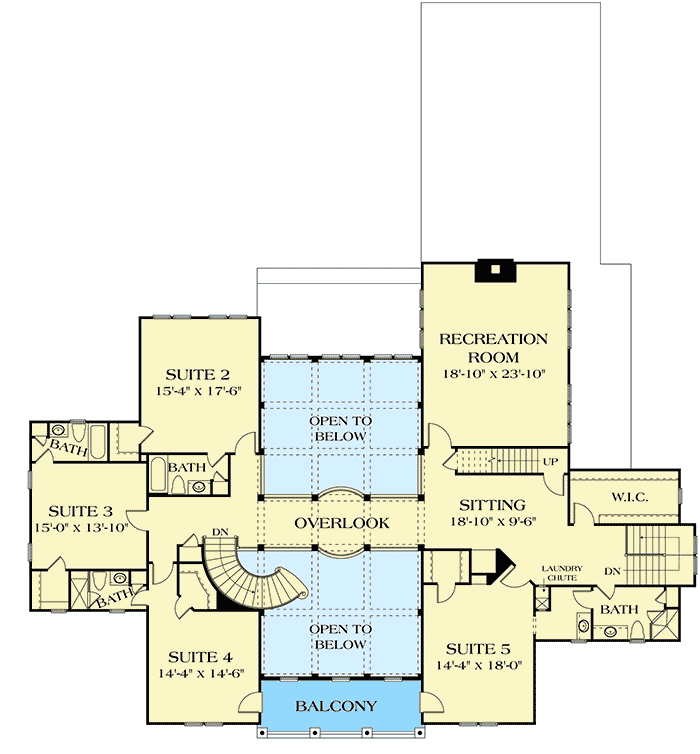

2nd Floor
floor plan image 2nd Floor
Plan Details

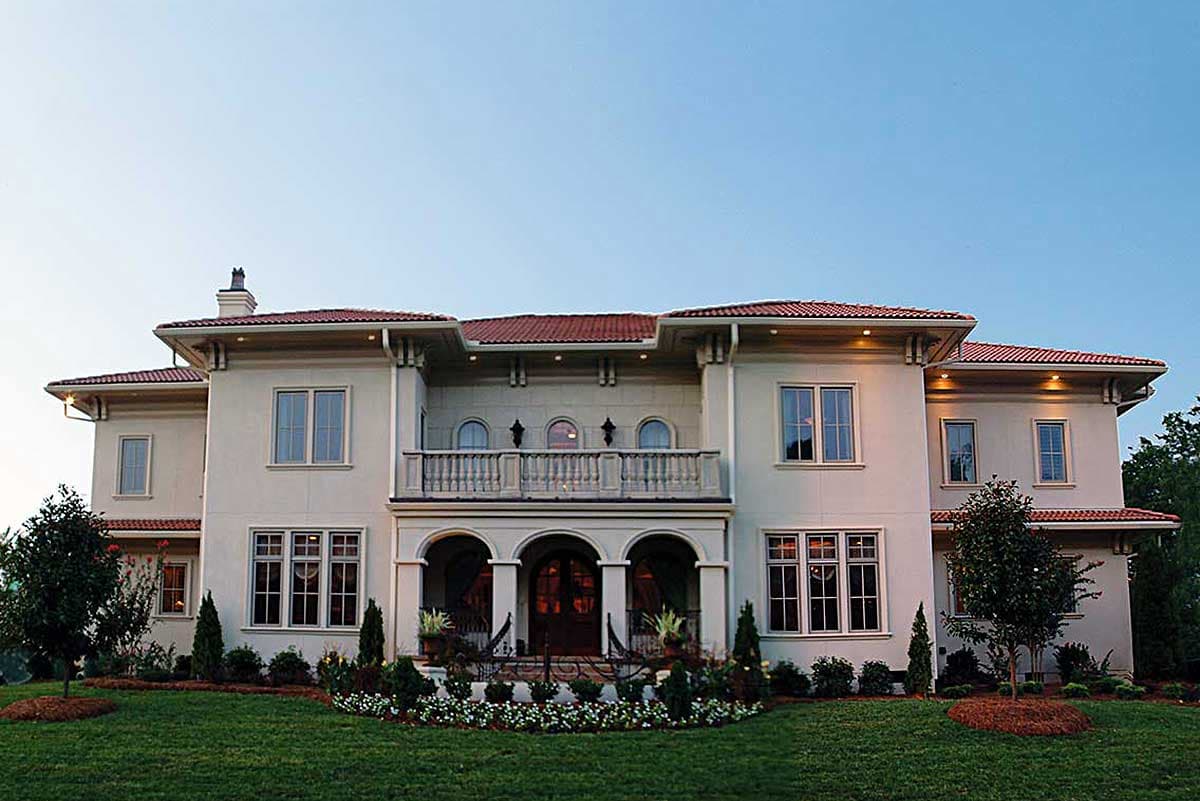

  • The design of this Mediterranean style home plan captures its ambiance with its arched stairway, coffered ceiling, covered verandas and impressive foyer.
  • The two-story foyer will blow you away. With a grand sweeping staircase and a columned mezzanine looking down from above, this truly is a one-of-a-kind welcome.
  • The great room is similarly spectacular. Two-story coffered ceiling is impressive, and you'll love being able to spread out your entertaining to the covered lanai.
  • The master suite boasts dual walk-in closets, an arched tub, and a circular glass shower.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
