Plan 23946JD
5-Bed Modern House Plan with Outdoor Living Room - 3995 Sq Ft
Heated S.F.
3,995
Beds
5
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 23946JD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 23946JD

1-800-854-7852

1-262-521-4596

Main Level

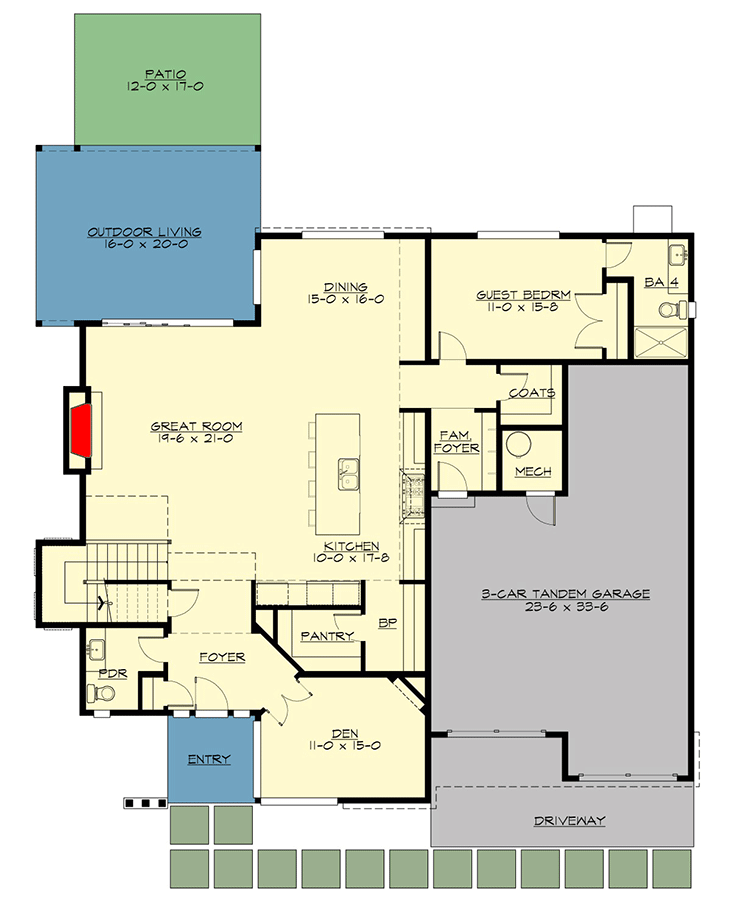

floor plan image Main Level
2nd Floor

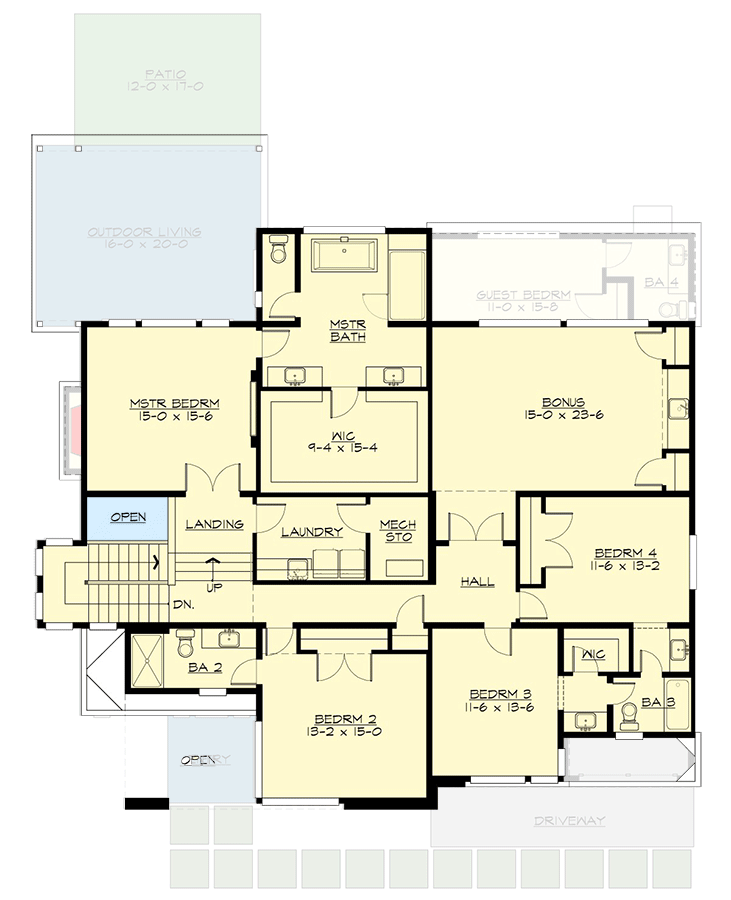

floor plan image 2nd Floor
Plan Details
  • This 5 bed, 4.5 bath modern house plan gives you 3995 square feet of heated living and has an outdoor living room in back. A dynamic exterior punctuated with abundant windows gives this home plan great curb appeal.
  • A guest bedroom is located behind the 3-car tandem garage while all the remaining bedrooms are upstairs, as is laundry for your convenience. A bonus room - factored into the total living area - can be put to many uses.
  • The main floor has an open concept design with the island kitchen having views to every room except the den off the foyer (that room would make a great home office).
  • The back wall of the great room with fireplace opens to connect you with your outdoor living room.
  • Related Plana: Get an alternate exterior with house plans 23945JD and 23947JD.
  • NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

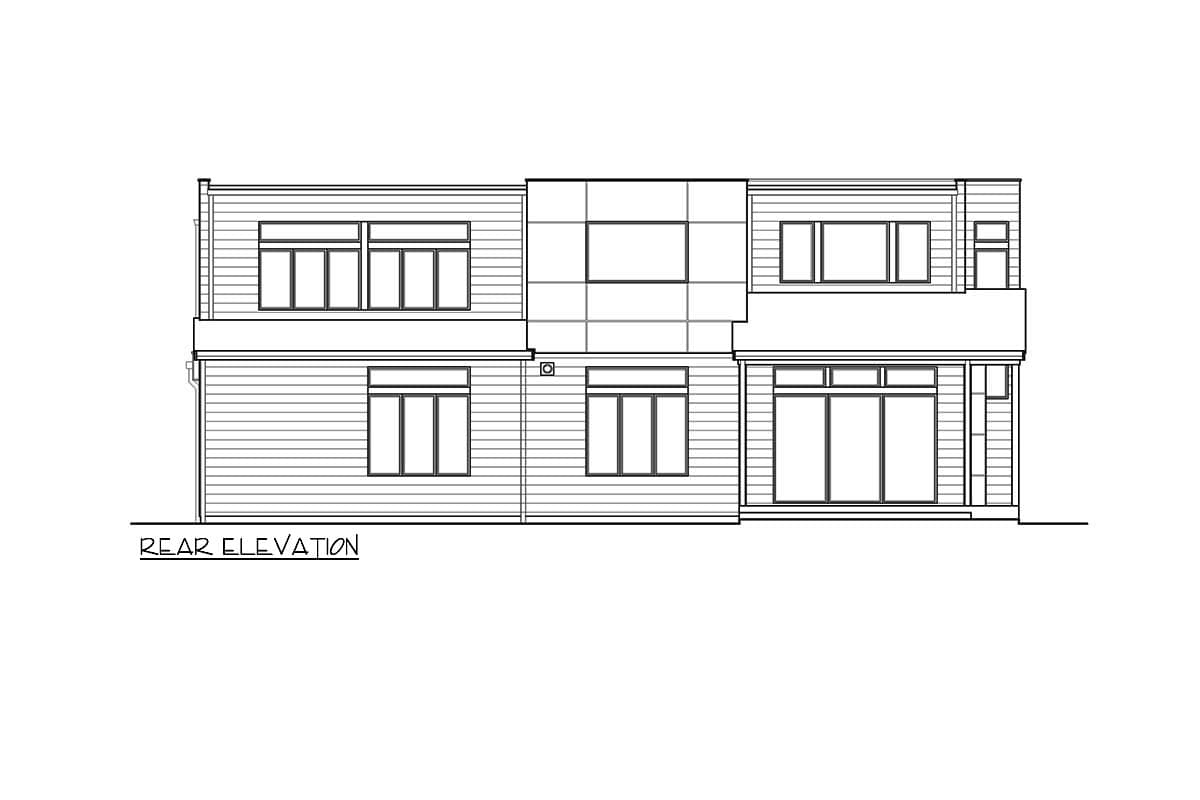

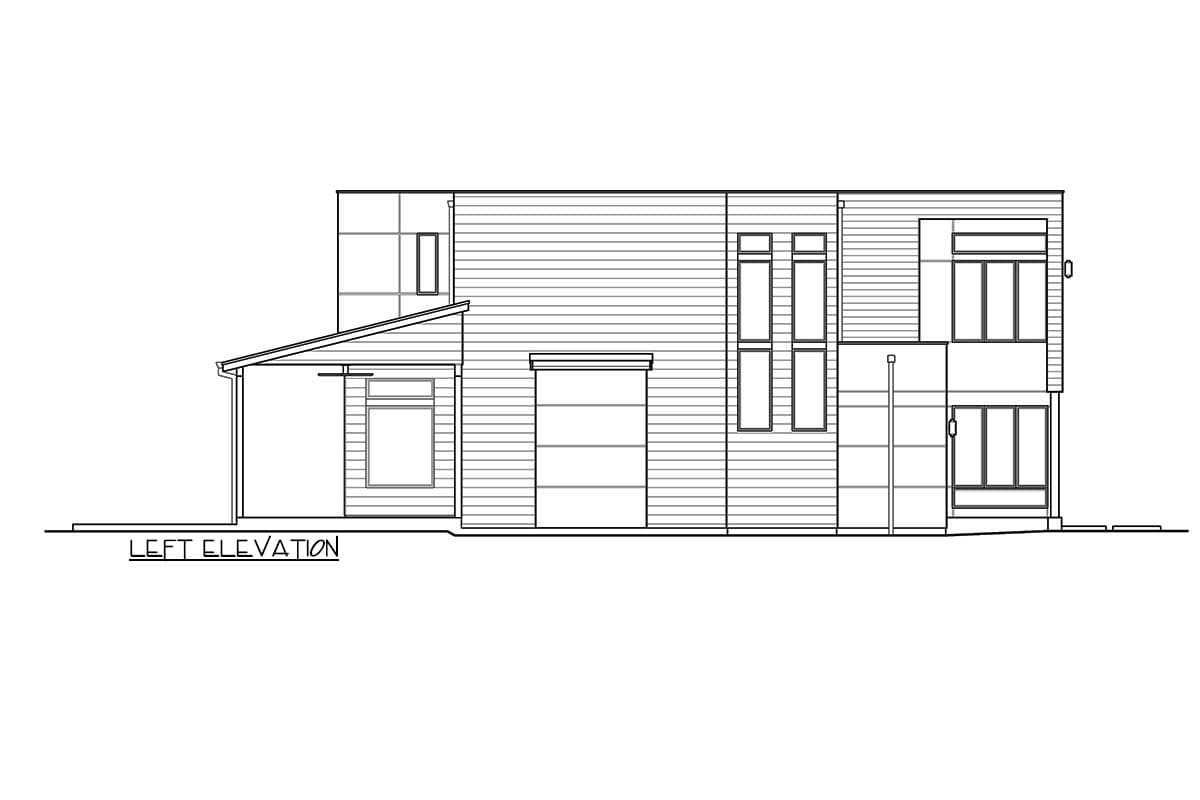

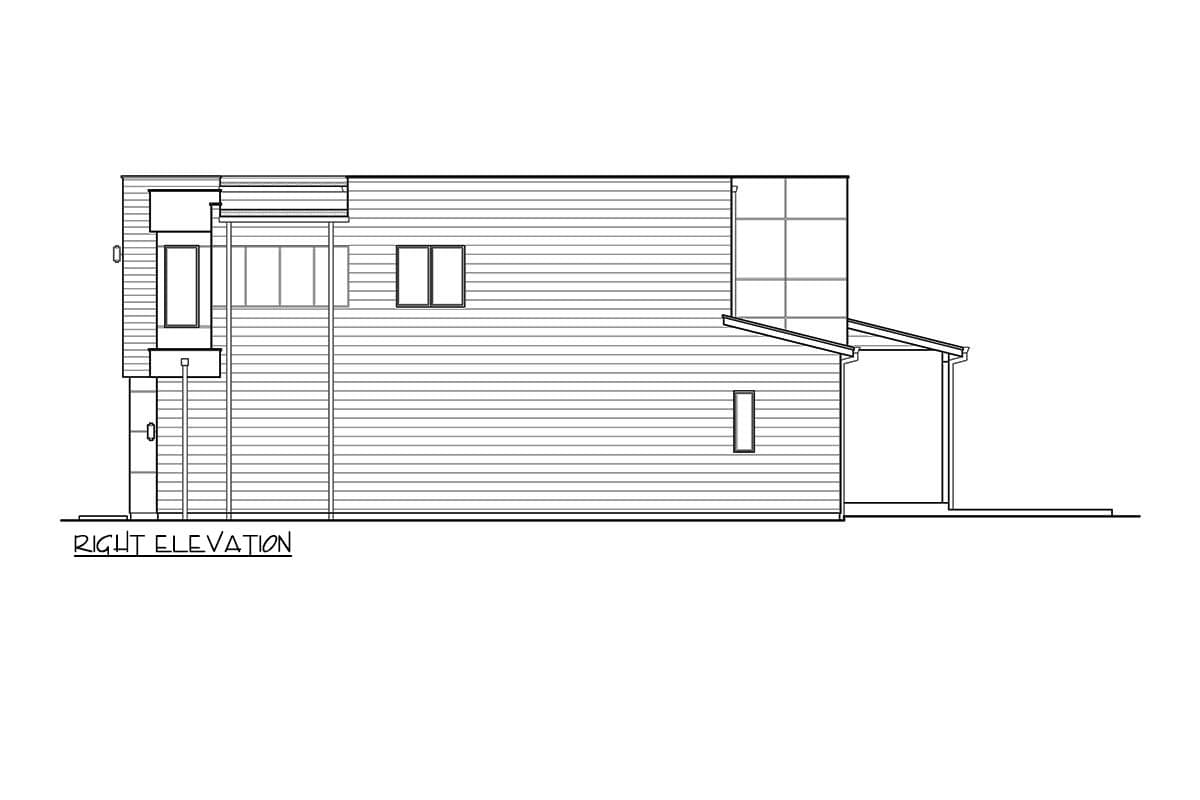

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,995 sq. ft.

1st Floor

1,819 sq. ft.

2nd Floor

2,176 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

60' 6"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

840 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

9'

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bonus Room

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 2nd Floor

Wet Bar

Square Footage Breakdown

Total Heated Area

3,995 sq. ft.

1st Floor

1,819 sq. ft.

2nd Floor

2,176 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

60' 6"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

840 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

9'

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bonus Room

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 2nd Floor

Wet Bar
