Plan 333021JHB
5-Bed Modern Mediterranean Home Plan with Private Casita
Heated S.F.
3,851
Beds
5
Baths
5
Stories
2
Cars
3
Floor Plan

Plan 333021JHB

Main Level
slide image 0
2nd Floor
slide image 1

Plan 333021JHB

1-800-854-7852

1-262-521-4596

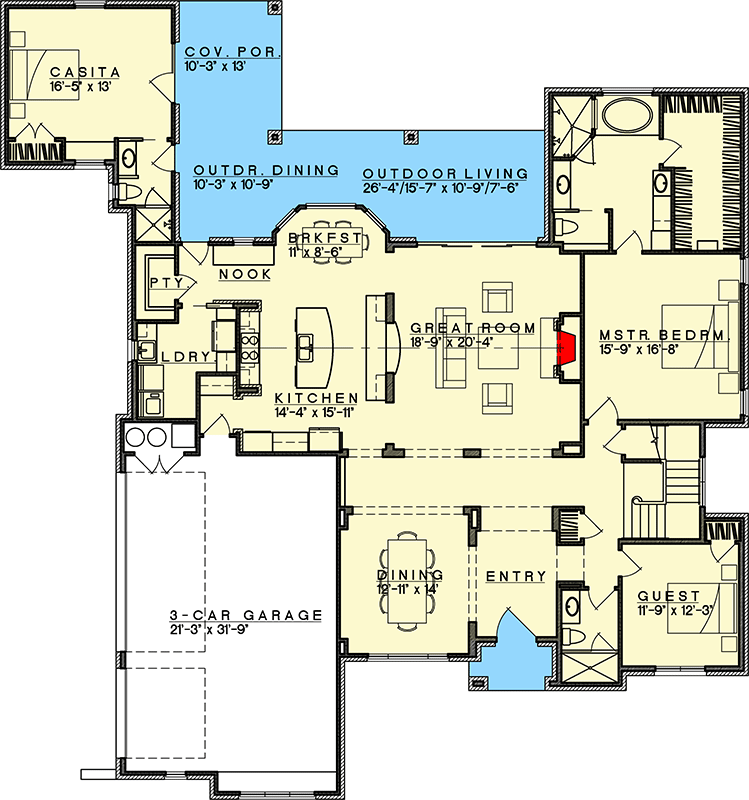

Main Level
floor plan image Main Level

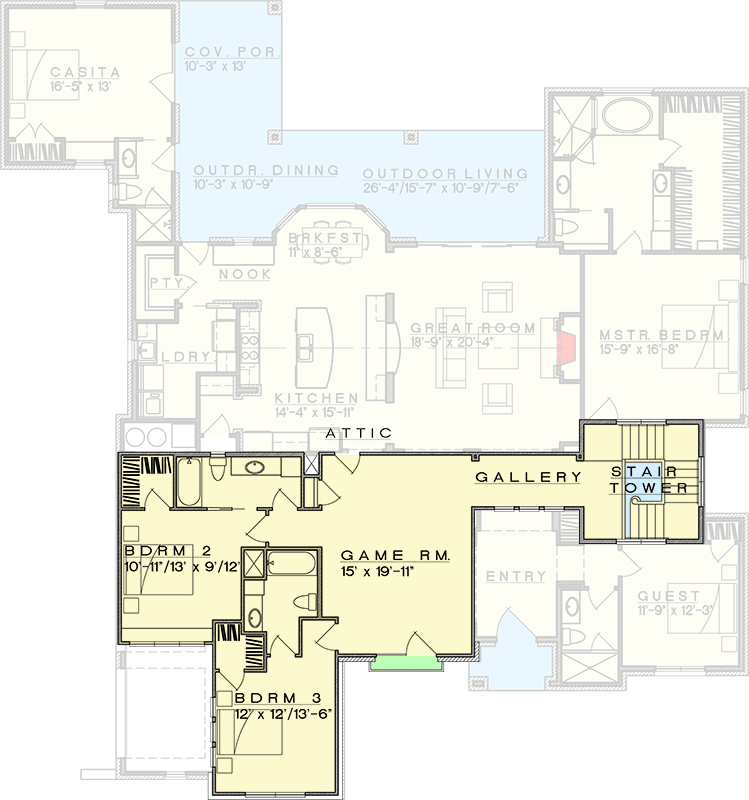

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This stone-clad home plan with a Modern Mediterranean aesthetic delivers 5 bedrooms and 5 baths, totaling 3,851 square feet of living space.
  • A fireplace anchors the central great room, which easily flows onto the covered porch. The spacious kitchen features a breakfast nook, prep island, and nearby walk-in pantry to check all of your wishlist items.
  • Unloading groceries is a breeze due to the garage's close proximity to the kitchen, and the adjacent laundry room helps when multitasking.
  • The master bedroom enjoys a main-level location and is accompanied by a 5-fixture bathroom and walk-in closet. Another guest suite and private casita round out the first floor.
  • Two bedroom suites share the upstairs with a generous game room.
What's Included

  • Cover page with legends & notes
  • Foundation details
  • Floor plan(s) [depending on whether it’s 1 or 2 stories]
  • Dimension plan(s)
  • Front view
  • Right view
  • Left view
  • Rear view
  • Building section(s)
  • Wall section
  • Interior views
  • Electrical plan(s)
  • Roof layout plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,851 sq. ft.

1st Floor

2,854 sq. ft.

2nd Floor

997 sq. ft.

Porch, Front

35 sq. ft.

Porch, Rear

498 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

75' 0"

Depth

80' 1"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

763 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,851 sq. ft.

1st Floor

2,854 sq. ft.

2nd Floor

997 sq. ft.

Porch, Front

35 sq. ft.

Porch, Rear

498 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

75' 0"

Depth

80' 1"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

763 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
