Plan 280129JWD
5-Bed New American House Plan with Apartment above Garage
Heated S.F.
3,567
Beds
5
Baths
4.5
Stories
2
Cars
3
Photos
Floor Plan

Plan 280129JWD

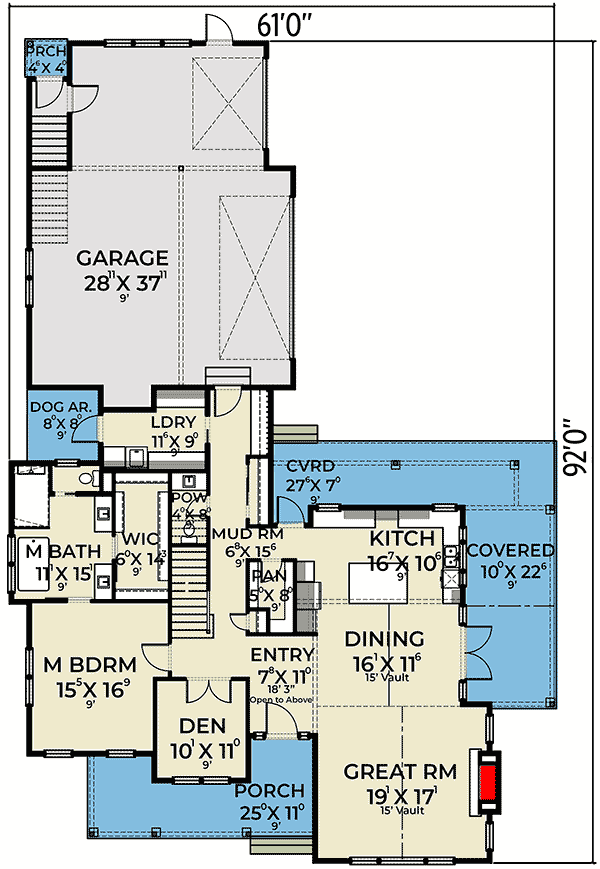

Main Level
slide image 0

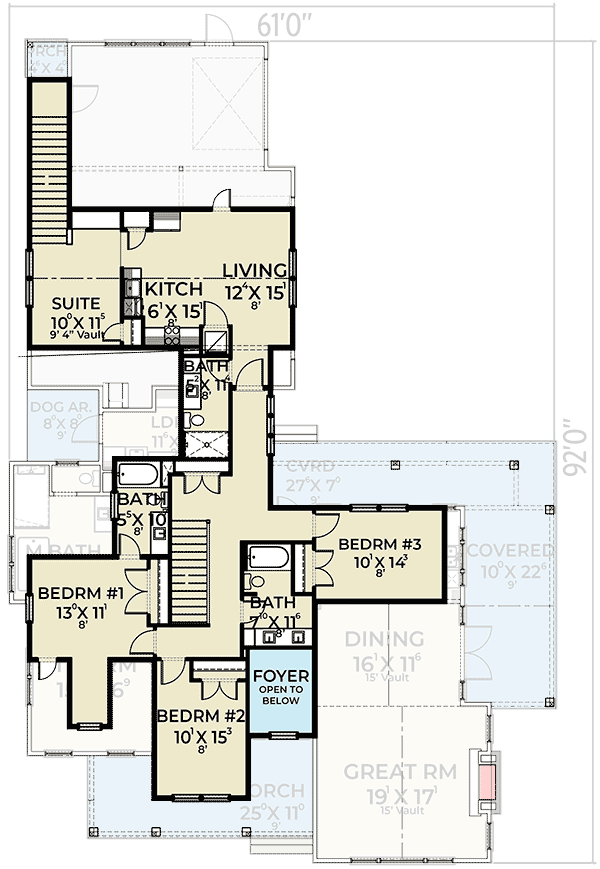

2nd Floor
slide image 1

Plan 280129JWD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Bright-white siding with dark accents give this 5-bedroom, New American house plan a modern appeal.
  • The 1-bedroom apartment above the garage is perfect for in-laws or a boomerang child, and includes a kitchen, living space, and full bath.
  • The main home features a wrap-around porch that surrounds the open and airy interior spaces. The spacious kitchen will inspire creativity when cooking and provides all of the must-haves: walk-in pantry, large island, and plenty of workspace.
  • The master bedroom is conveniently situated on the main level, next to a quiet den. The ensuite boasts a freestanding tub, toilet room, and walk-in closet.
  • Upstairs, three sizable bedrooms can be found; one includes a full bath, and the others share the hall bath with two sinks.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

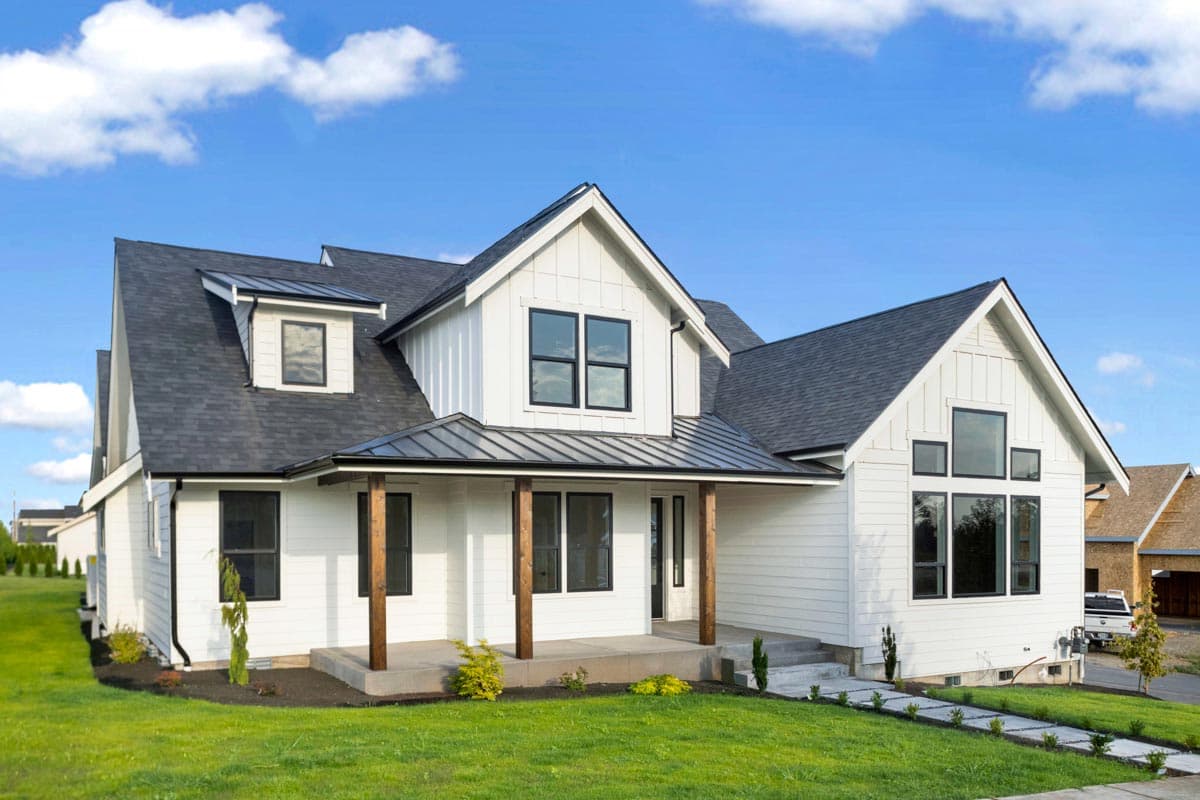

build gallery item - House Plan 280129JWD Comes to Life in Washington

House Plan 280129JWD Comes to Life in Washington

18

Photos

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,567 sq. ft.

1st Floor

1,967 sq. ft.

2nd Floor

1,600 sq. ft.

Porch, Combined

206 sq. ft.

Covered Patio

369 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

92' 0"

Max Ridge Height

28' 2"

Garage

Type

Attached

Area

1071 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Special Features

Butler Walk-in Pantry

Den

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Multiple Stairs

Plan Collections

Multi-Generational

Square Footage Breakdown

Total Heated Area

3,567 sq. ft.

1st Floor

1,967 sq. ft.

2nd Floor

1,600 sq. ft.

Porch, Combined

206 sq. ft.

Covered Patio

369 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

92' 0"

Max Ridge Height

28' 2"

Garage

Type

Attached

Area

1071 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Special Features

Butler Walk-in Pantry

Den

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Multiple Stairs

Plan Collections

Multi-Generational
