Plan 849026PGE
5-Bed New American House Plan with Finished Lower Level - 6461 Sq Ft
Heated S.F.
6,461
Beds
5
Baths
4.5
Stories
1
Cars
4
Floor Plan

Plan 849026PGE

Main Level
slide image 0
Lower Level
slide image 1

Plan 849026PGE

1-800-854-7852

1-262-521-4596

Main Level

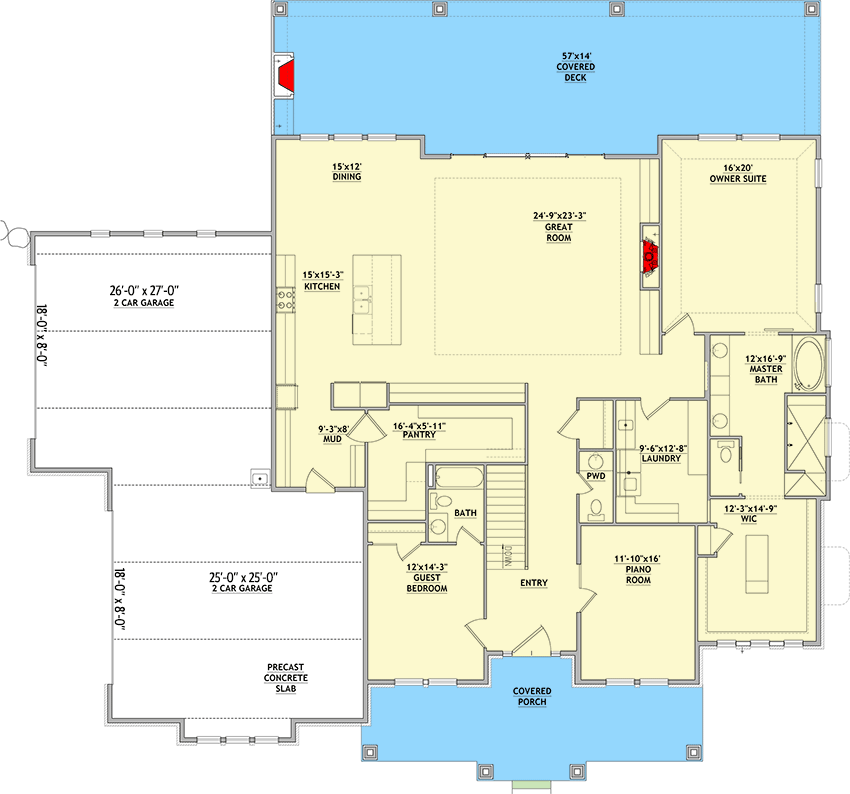

floor plan image Main Level
Lower Level

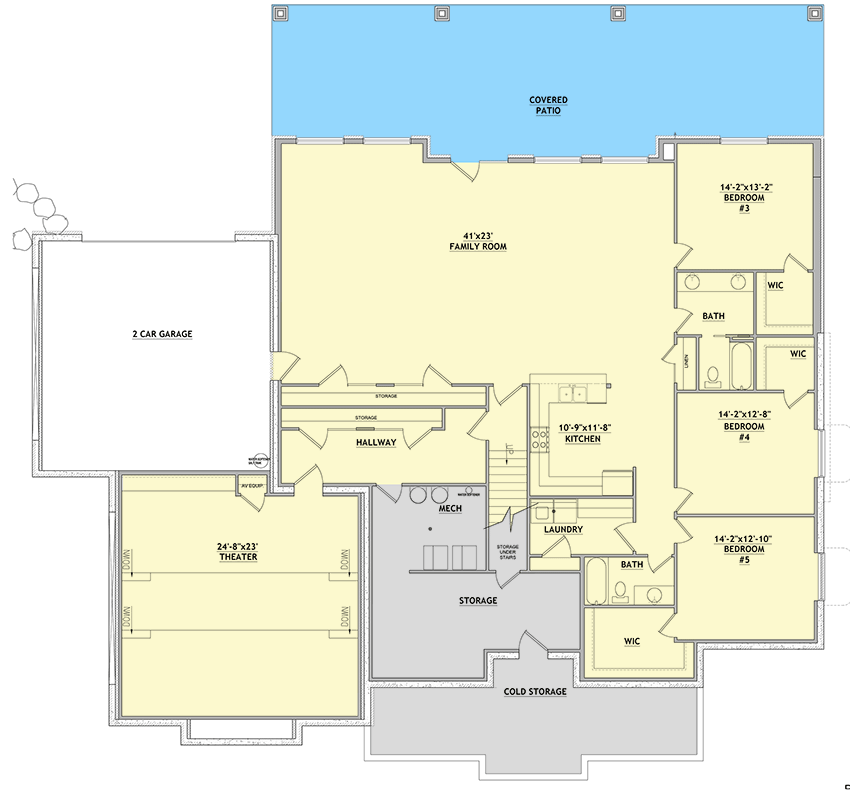

floor plan image Lower Level
Plan Details
  • This 5-bed New American house plan has a finished lower level and gives you 5 beds, 4.5 baths and 6,461 square feet of heated living area.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,461 sq. ft.

Lower Level

3,511 sq. ft.

1st Floor

2,950 sq. ft.

Basement Unfinished

833 sq. ft.

Porch, Front

272 sq. ft.

Porch, Rear

798 sq. ft.

Deck

798 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 0"

Depth

81' 0"

Max Ridge Height

25' 11"

Garage

Type

Attached

Area

1268 sq. ft.

Count

4 Cars

Entry Location

Side, Rear

Ceiling Heights

Lower Level

9'

First Floor

10'

Room

Ceiling Type

Height

Master Bedroom

Tray

0' 0''

Master Bath

0' 0''

Master WIC

Flat

0' 0''

Kitchen

Flat

0' 0''

Dining Room

Flat

0' 0''

Great Room

Coffered

0' 0''

Office

Flat

0' 0''

Bedroom 2

Flat

0' 0''

Bedroom 3

Flat

0' 0''

Bedroom 4

Flat

0' 0''

Bedroom 5

Flat

0' 0''

Laundry Room

Flat

0' 0''

Family Room

0' 0''

Garage

0' 0''

Garage

0' 0''

Garage Door Dimensions

8' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Home Office

Home Theater

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Square Footage Breakdown

Total Heated Area

6,461 sq. ft.

Lower Level

3,511 sq. ft.

1st Floor

2,950 sq. ft.

Basement Unfinished

833 sq. ft.

Porch, Front

272 sq. ft.

Porch, Rear

798 sq. ft.

Deck

798 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 0"

Depth

81' 0"

Max Ridge Height

25' 11"

Garage

Type

Attached

Area

1268 sq. ft.

Count

4 Cars

Entry Location

Side, Rear

Ceiling Heights

Lower Level

9'

First Floor

10'

Room

Ceiling Type

Height

Master Bedroom

Tray

0' 0''

Master Bath

0' 0''

Master WIC

Flat

0' 0''

Kitchen

Flat

0' 0''

Dining Room

Flat

0' 0''

Great Room

Coffered

0' 0''

Office

Flat

0' 0''

Bedroom 2

Flat

0' 0''

Bedroom 3

Flat

0' 0''

Bedroom 4

Flat

0' 0''

Bedroom 5

Flat

0' 0''

Laundry Room

Flat

0' 0''

Family Room

0' 0''

Garage

0' 0''

Garage

0' 0''

Garage Door Dimensions

8' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Home Office

Home Theater

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace
