Plan 62764DJ
5-Bed New American House Plan with Upstairs Bedrooms
Heated S.F.
3,617
Beds
5
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 62764DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 62764DJ

1-800-854-7852

1-262-521-4596

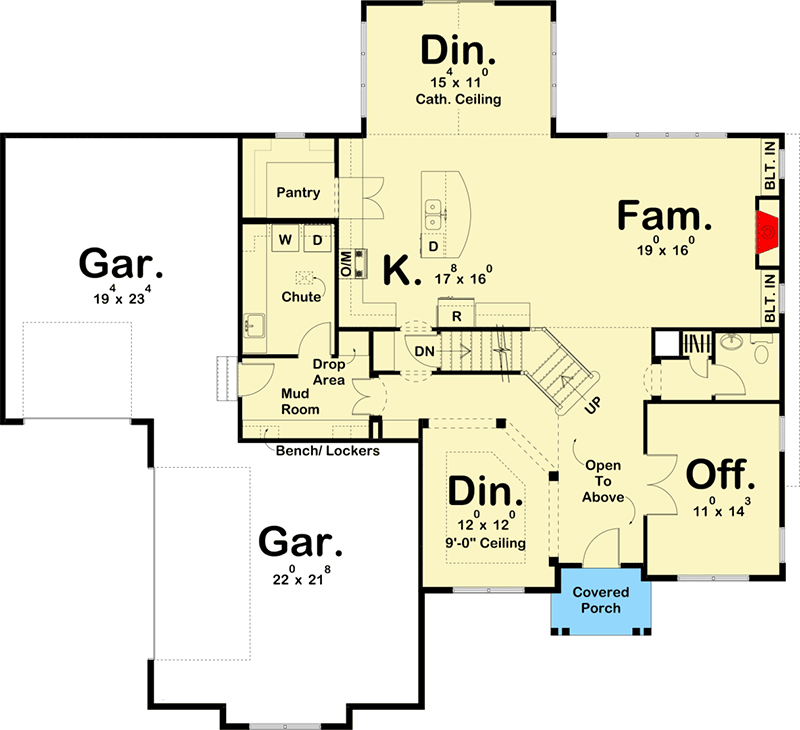

Main Level
floor plan image Main Level

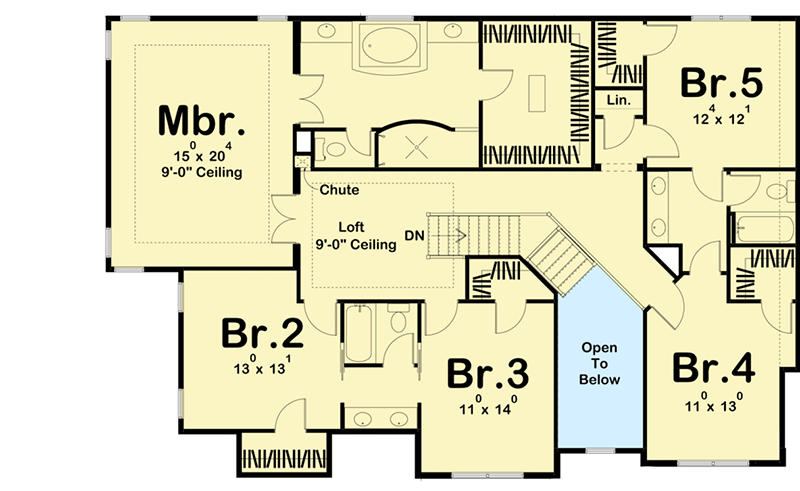

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The combination of wood, board and batten siding, and brick gives this New American house plan great curb appeal. Upon entering the home through its front covered porch you will walk into a grand 2-story entry. The entry leads to a formal dining room on one side and an office with french doors on the other. Further, into the home, the large family room is warmed by a fireplace that is flanked by built-in bookshelves. The family room flows into the kitchen that includes a large kitchen island and a large walk-in pantry.
  • Upstairs, you'll find 5 bedrooms. The master suite is perfectly situated with a large walk-in closet and a bath with his/her vanities and a large walk-in shower. Bedrooms 2 and 3 share a jack and jill bath and bedrooms 4 and 5 share a jack and jill bath.
  • Back on the main floor, the homes 3 car garage accesses the home through a convenient mudroom. A convenient laundry room is accessed from the mudroom and includes a laundry chute from upstairs.
  • Related Plan: Get an alternate exterior with house plan 62628DJ.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,617 sq. ft.

1st Floor

1,688 sq. ft.

2nd Floor

1,929 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 0"

Depth

61' 0"

Garage

Type

Attached

Area

957 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Craftsman

Modern Farmhouse

New American

Northwest

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Home Office

Jack & Jill Bath

Laundry Chute

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Plan Collections
