Plan 680064VR
5-Bed Painted Brick House Plan Under 5000 Square Feet
Heated S.F.
4,962
Beds
5
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 680064VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680064VR

1-800-854-7852

1-262-521-4596

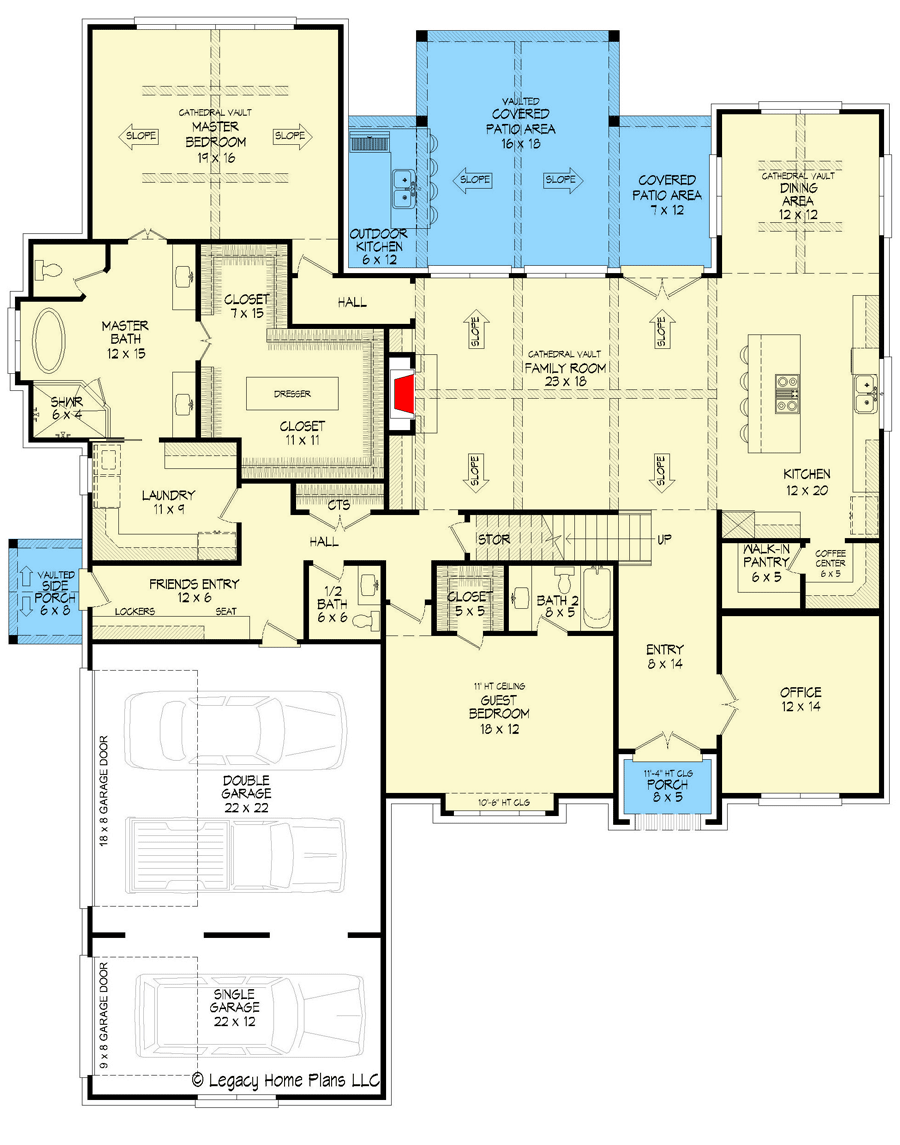

Main Level
floor plan image Main Level

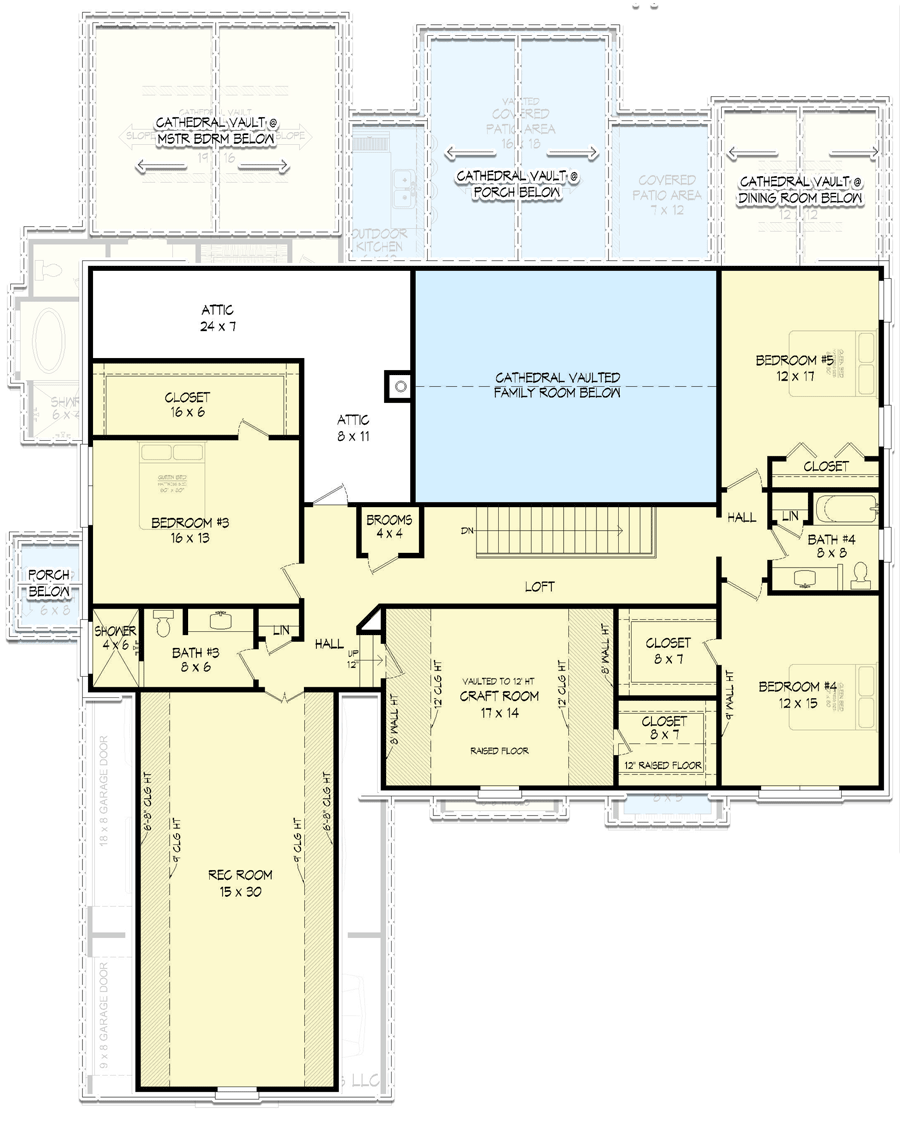

2nd Floor
floor plan image 2nd Floor
Plan Details

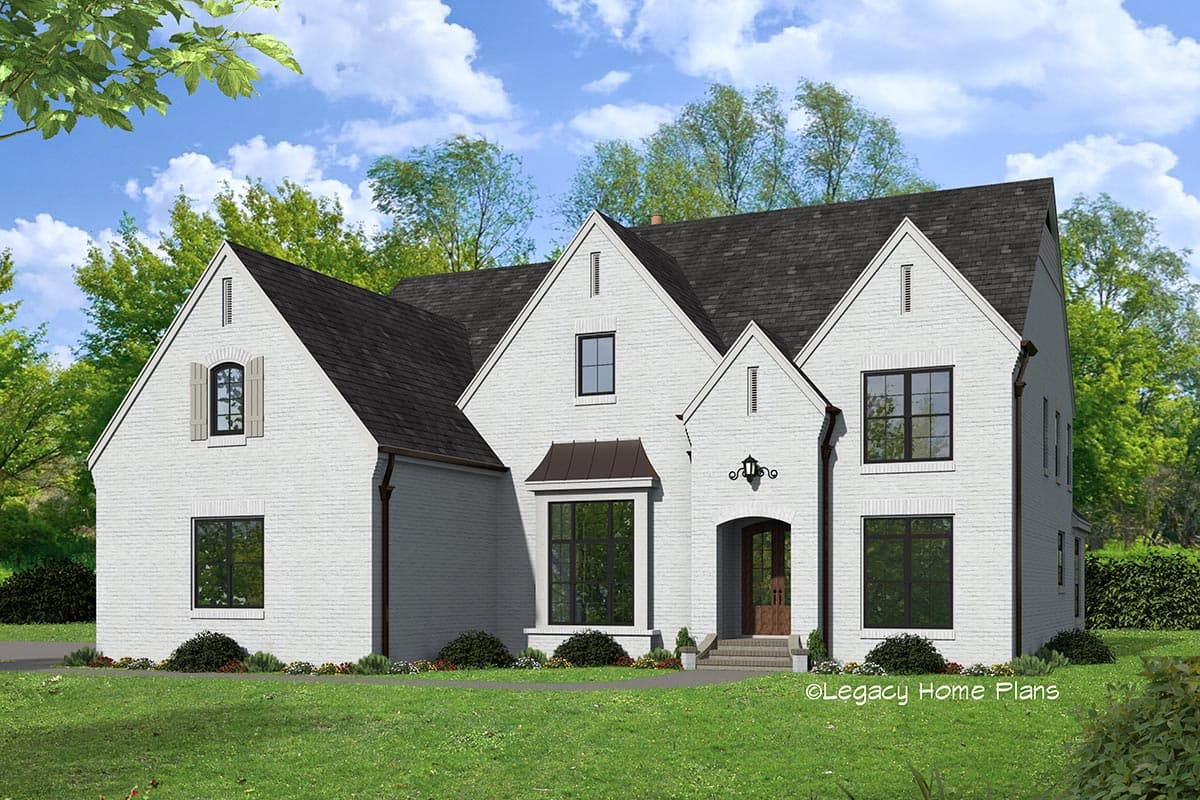

  • This 5-bed, 4.5 bath house plan has a painted brick exterior and gives you 4,962 square feet of heated living and a 3-car side entry garage (815 square feet).
  • A home office sits behind French doors off the foyer which leads to the 2-story family room. A pair of French doors - aligned with the ones in the foyer - take you to the covered patio in back which has an outdoor kitchen.
  • The master suite is on the main floor and has a roomy 2-person walk-in closet and direct access to the laundry room, a great convenience.
  • Upstairs, three bedrooms share two baths. A large rec room is located above the garage and a craft room can be put to alternate uses.
  • Related Plan: Get a porte cochere attached to an additional 2-car garage with house plan 680125VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

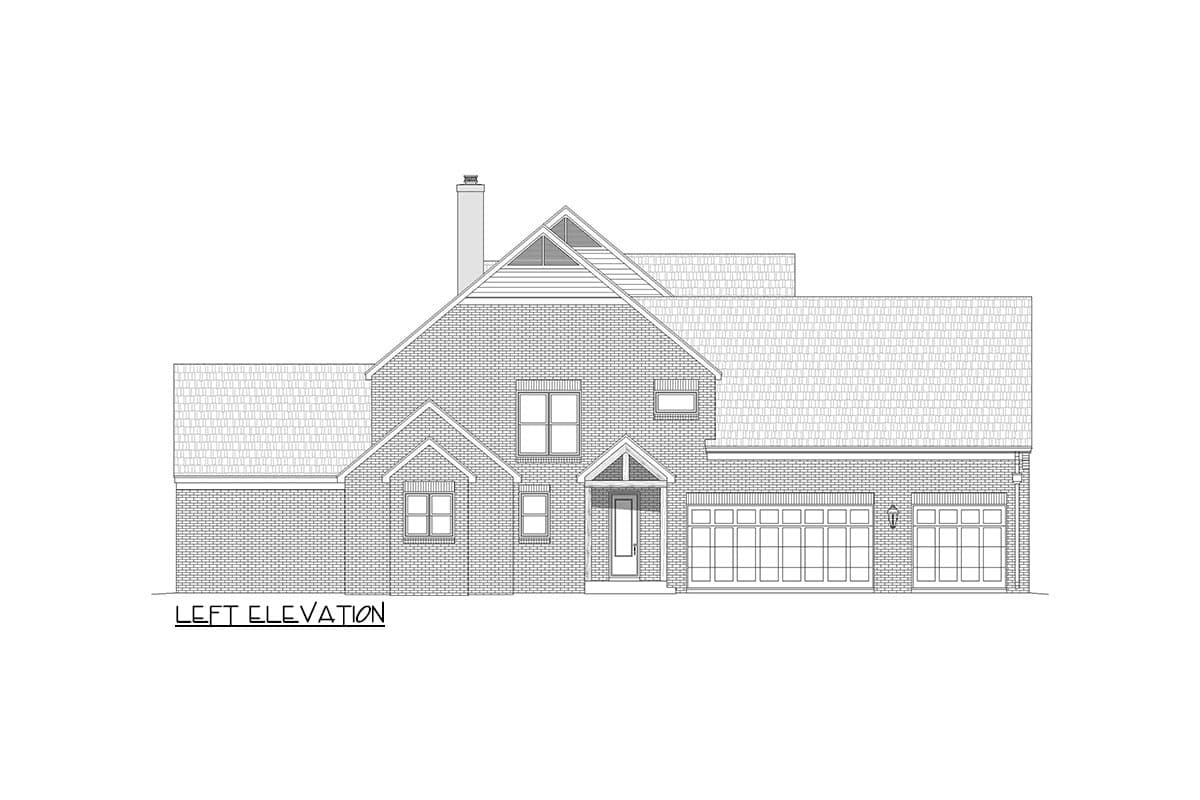

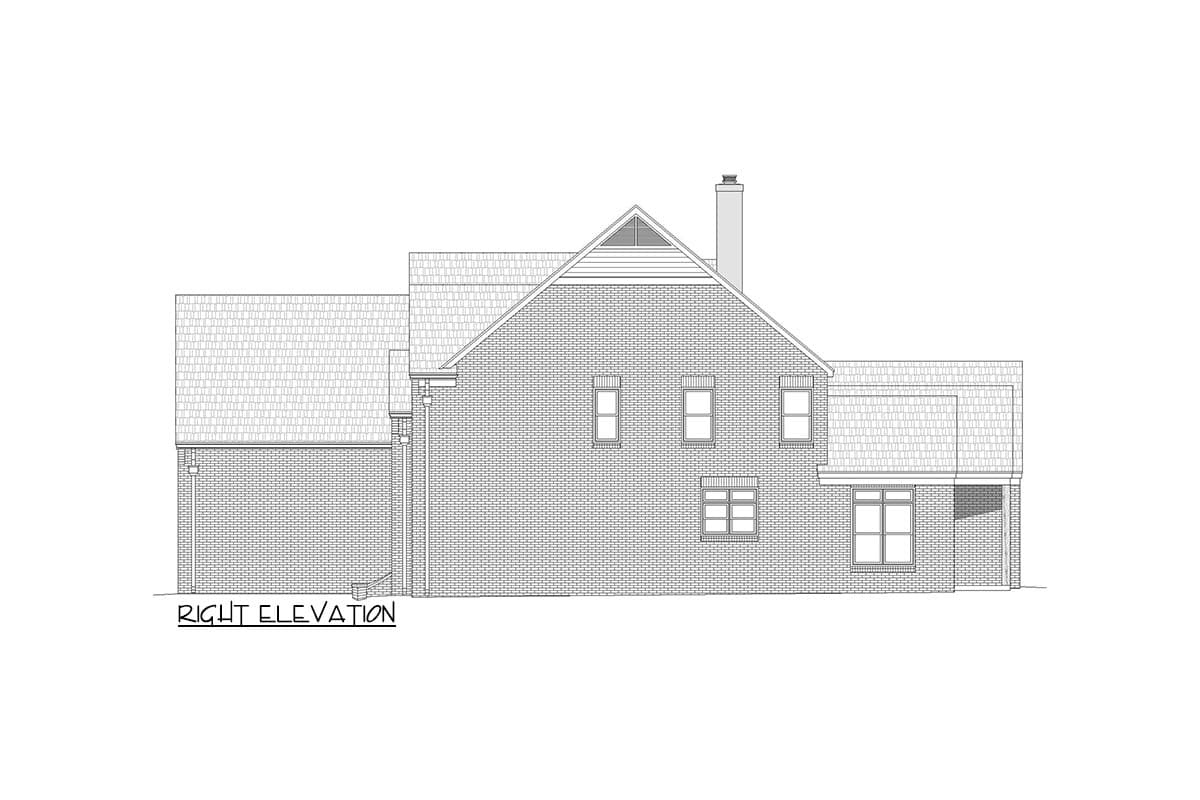

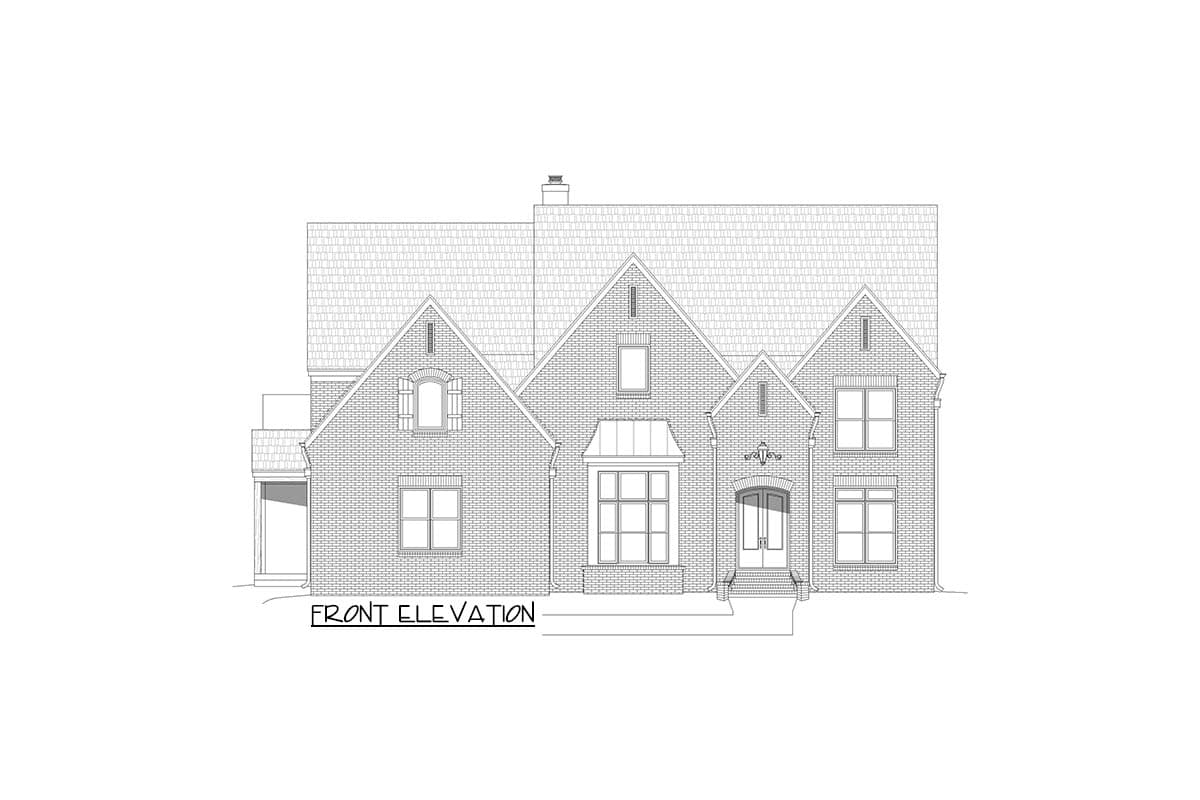

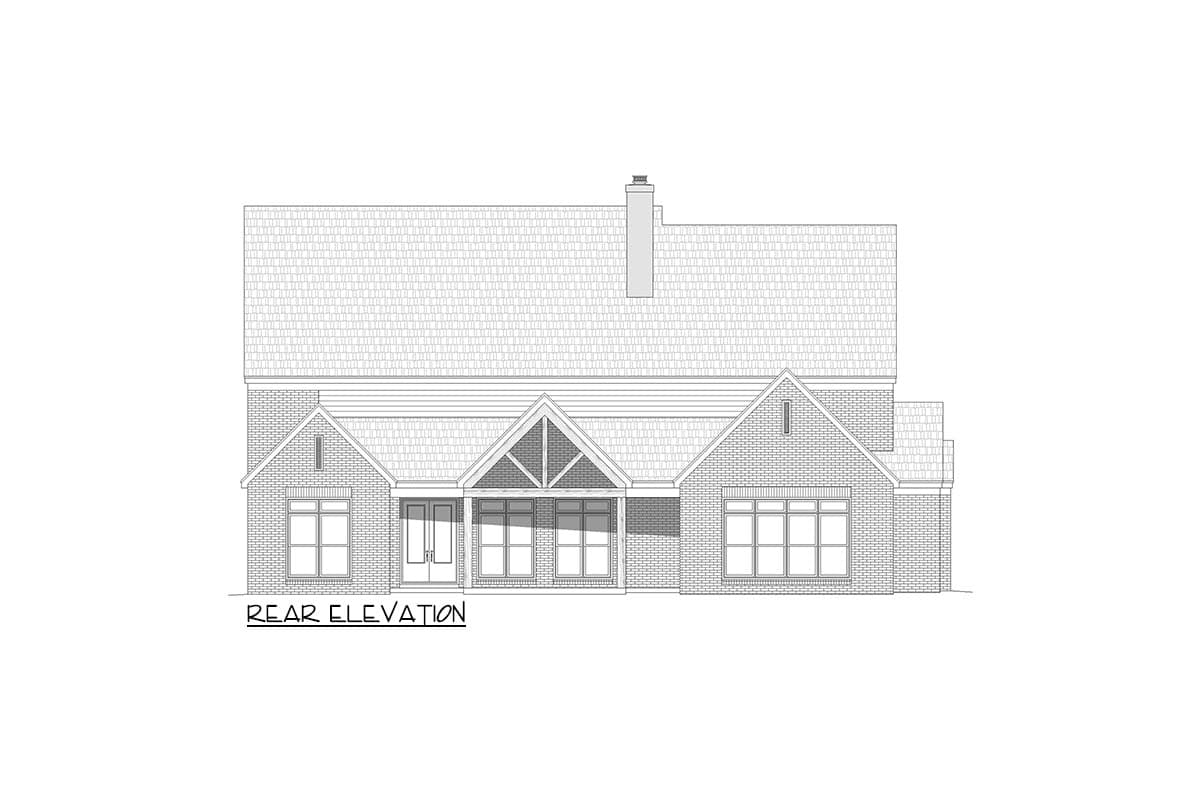

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,962 sq. ft.

1st Floor

2,862 sq. ft.

2nd Floor

2,100 sq. ft.

Porch, Combined

505 sq. ft.

Attic

279 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 1"

Depth

82' 10"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

815 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

European

Southern

Traditional

Transitional

Special Features

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Two Story Great Room

Plan Collections

Home Office
