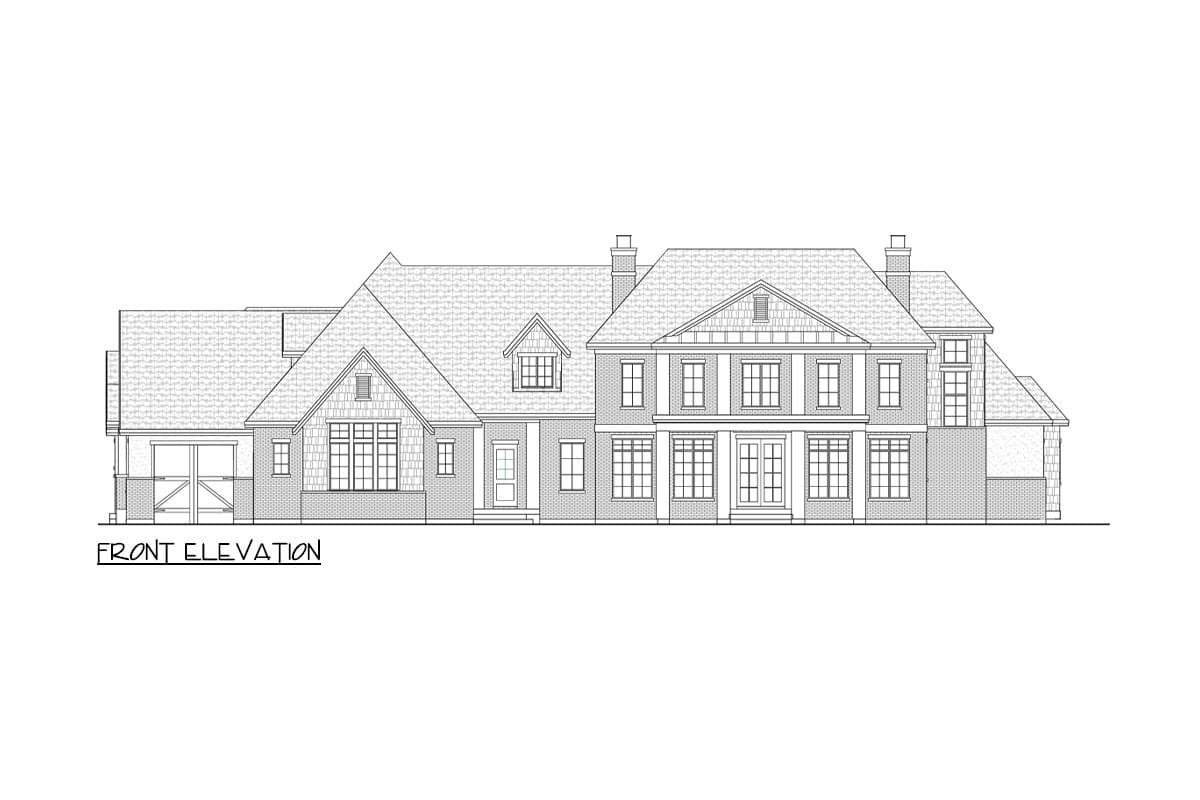

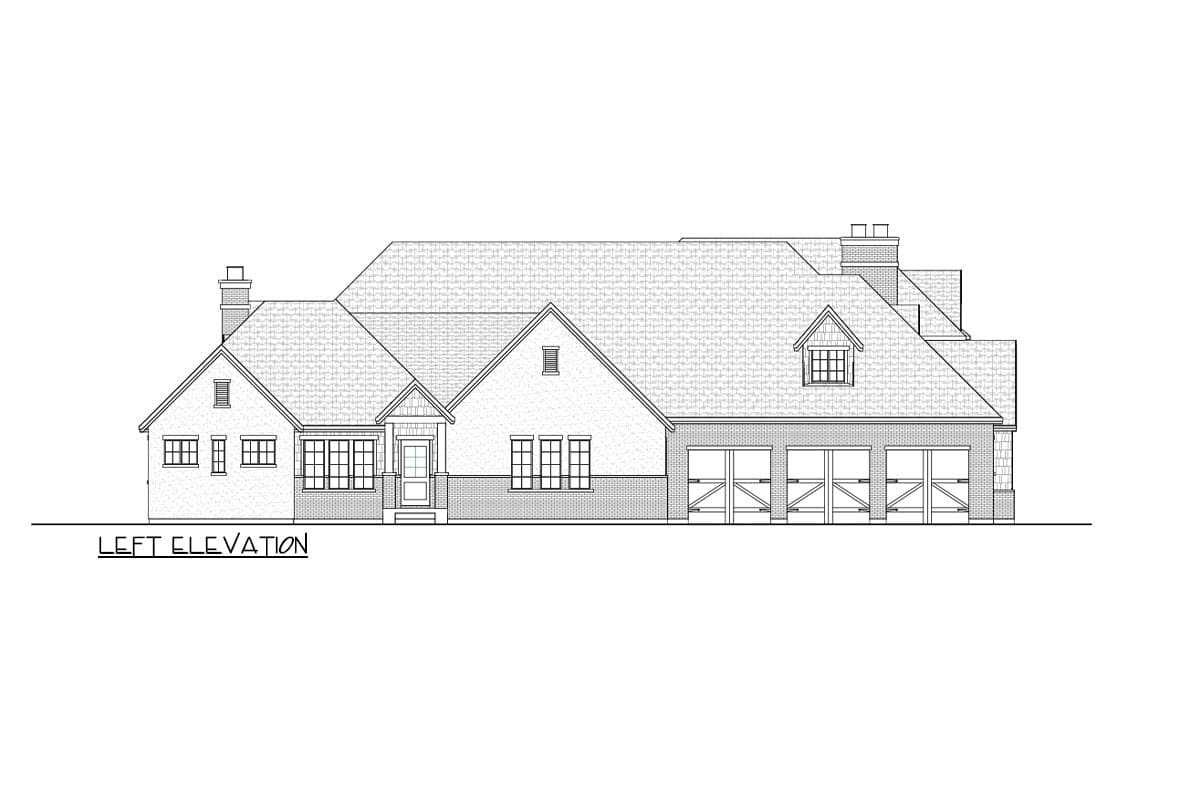

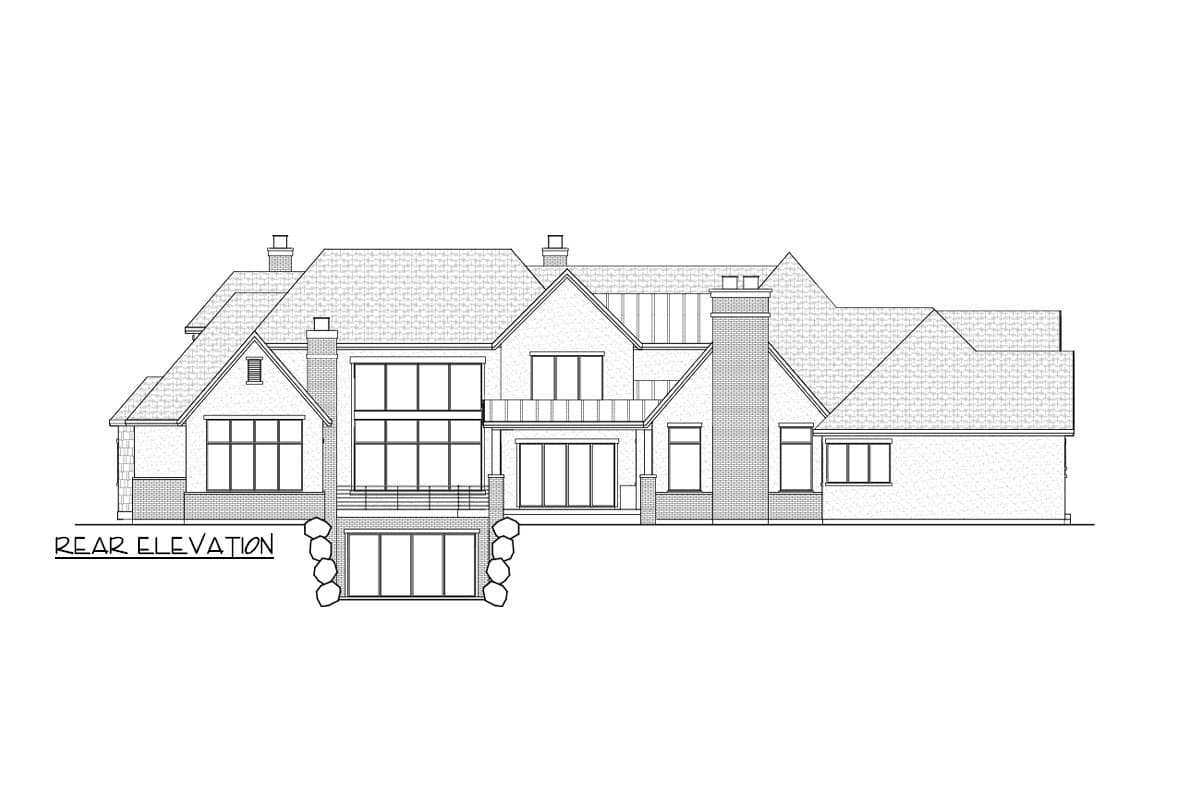

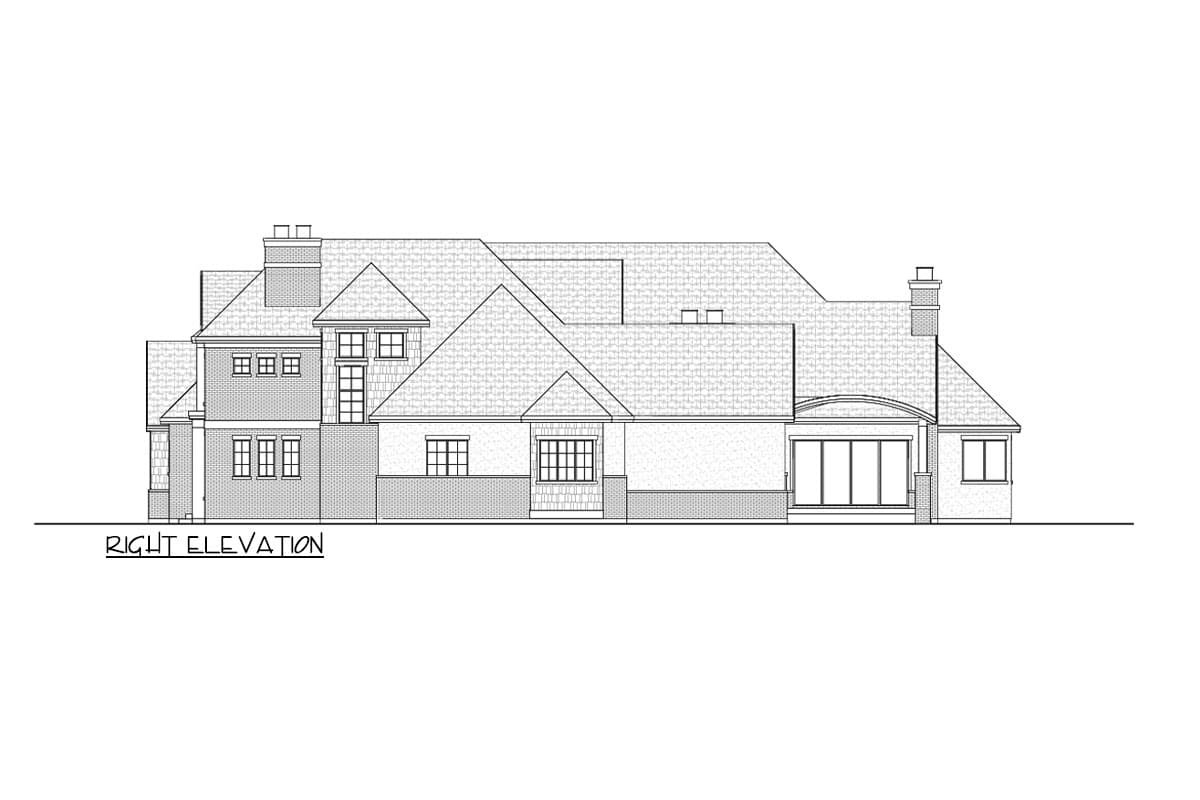

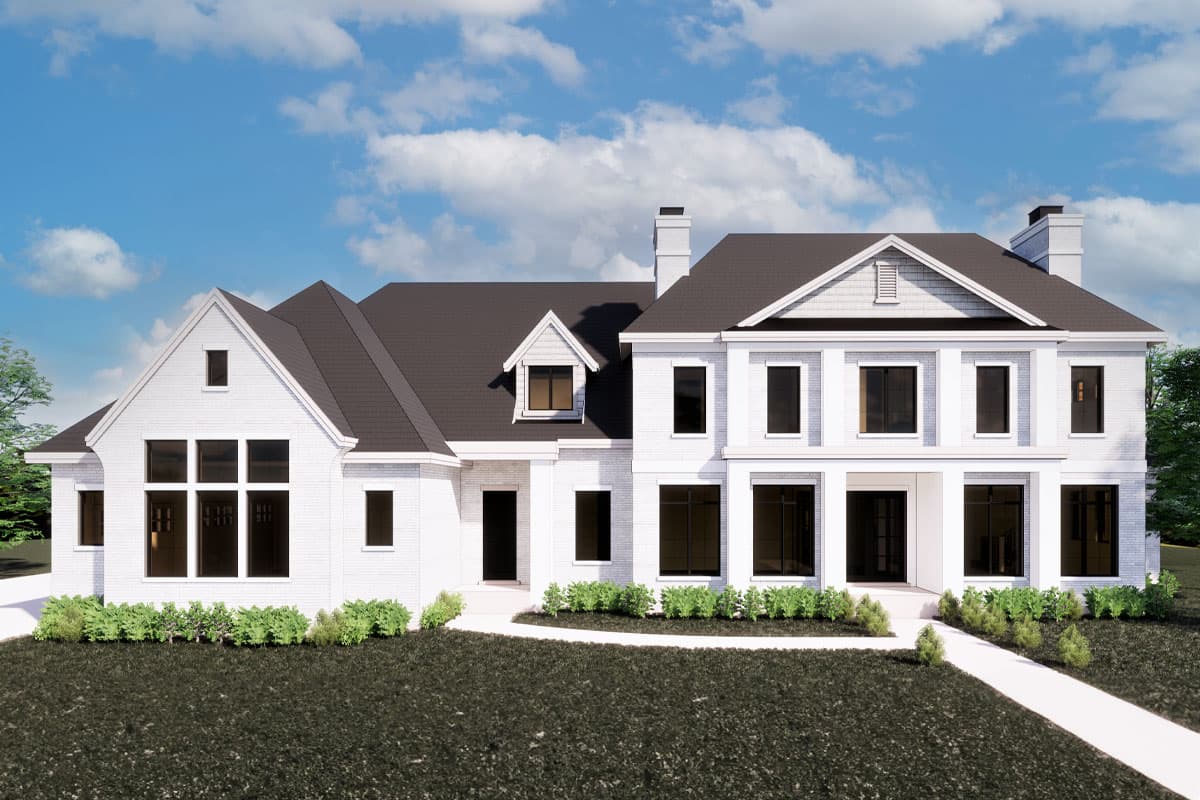

Plan 290180IY

5-Bed Southern Traditional Home Plan with Two Story Great Room and Oversized Apartment- 7644 Sq Ft

Heated S.F.

7,644

Beds

5

Baths

5.5+

Stories

2

Cars

4

Floor Plan

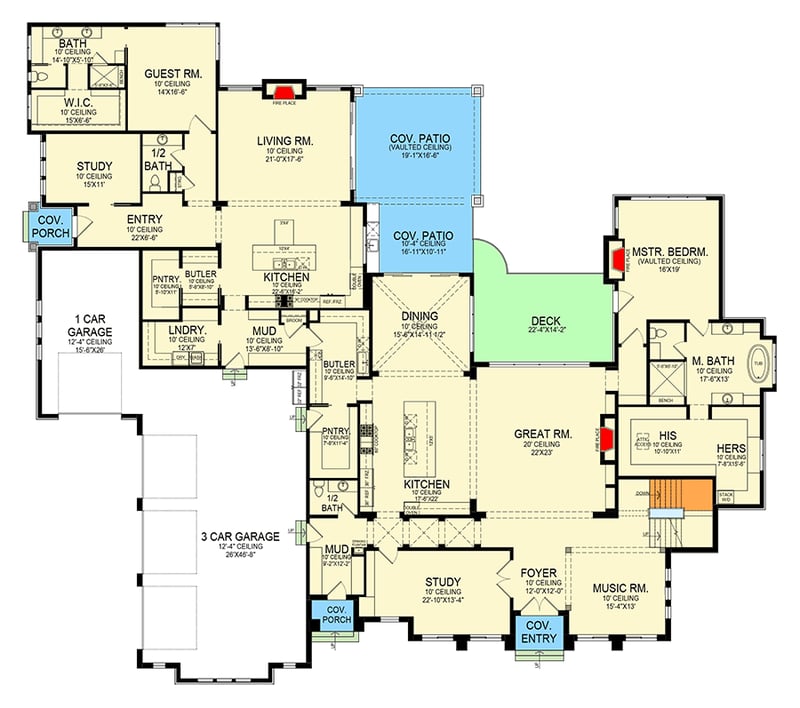

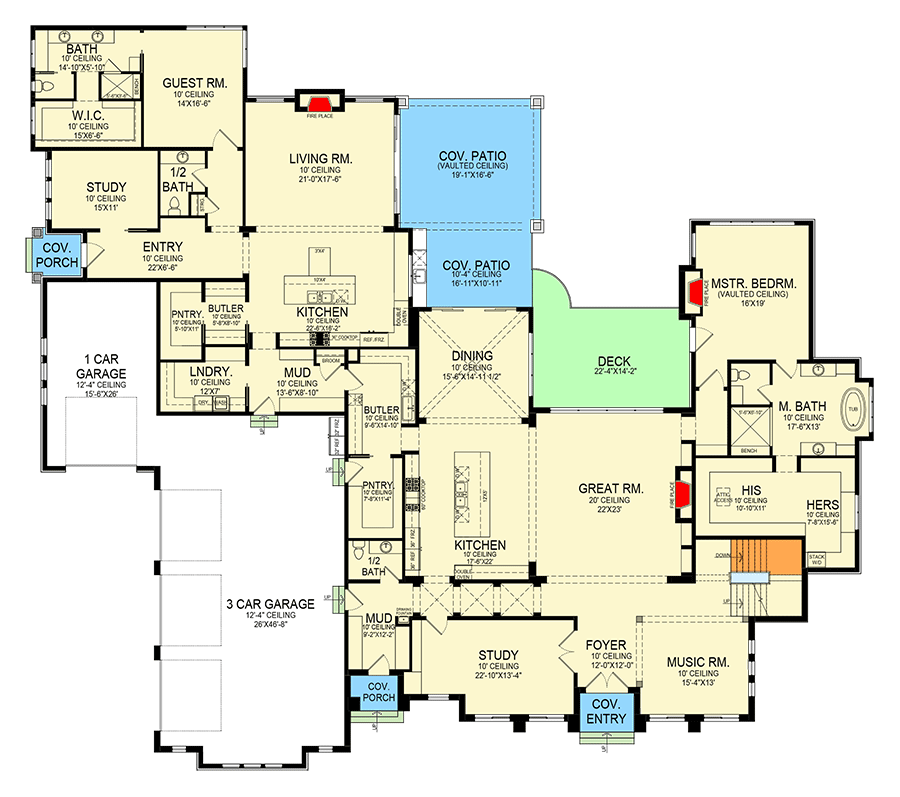

Main Level

floor plan image Main Level

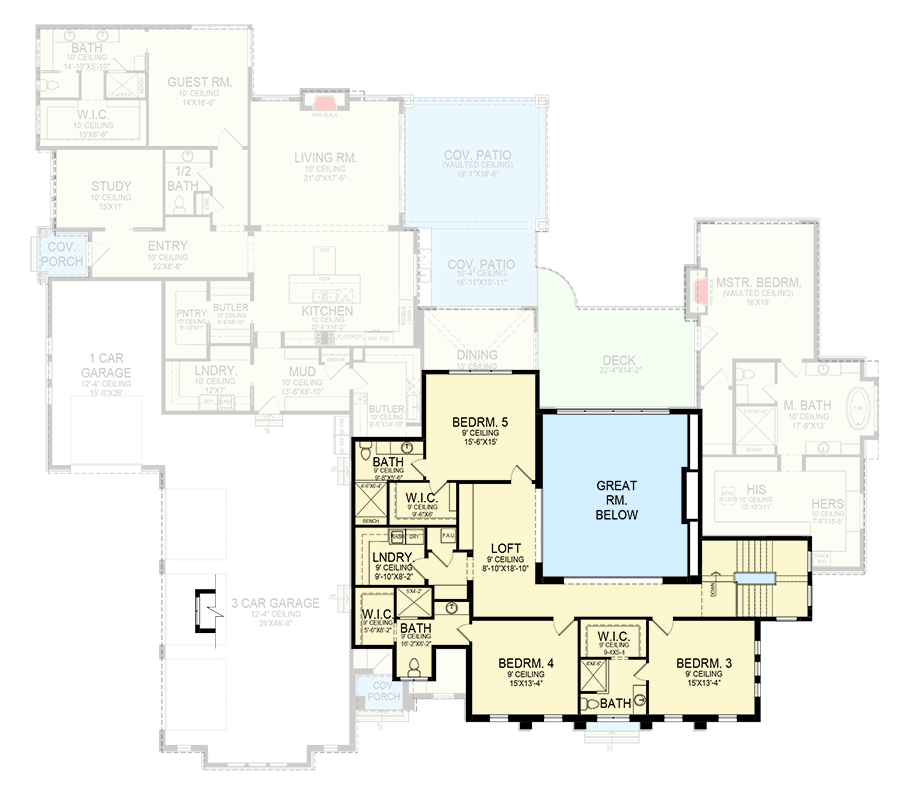

2nd Floor

floor plan image 2nd Floor

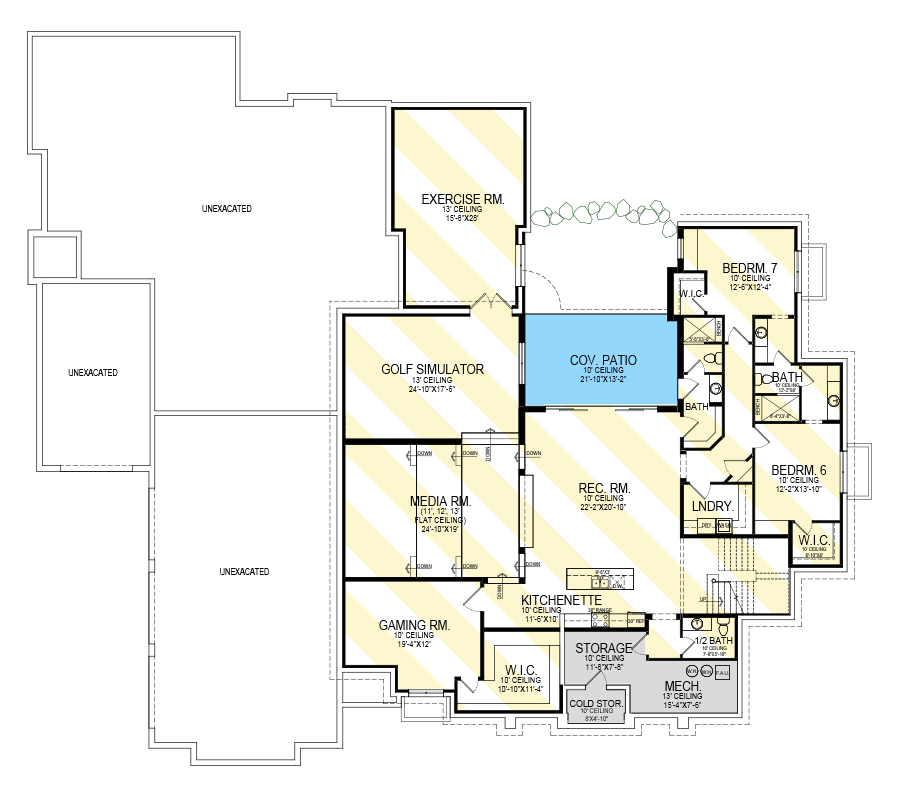

Optional Lower Level

floor plan image Optional Lower Level

Plan Details

This two-story Southern Traditional home plan gives you 4 bed in the main home, along with a 1-bedroom apartment (2,170 sq. ft. included in the total heated area) that includes a living room with a fireplace, a study and a pantry.
It gives you the option to finished lower level that gives you an extra 3,483 of heated living.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Cover sheet (with rendering)
Notes page
Complete schedule page
Foundation plan
Floor plans
Dimension plans
Elevations
Sections
Architectural details
3D perspective views (not included with all plans)
Floor finish plans
Roof plan
Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

7,644 sq. ft.

1st Floor

3,637 sq. ft.

2nd Floor

1,837 sq. ft.

Optional Lower Level

3,483 sq. ft.

Apartment

2,170 sq. ft.

Porch, Front

49 sq. ft.

Deck

349 sq. ft.

Entry

53 sq. ft.

Covered Patio

871 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

119' 5"

Depth

104' 10"

Max Ridge Height

34' 8"

Garage

Type

Attached

Area

1720 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 14

Secondary Pitch

12 on 12

Architectural Style

Southern Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Attached Apartments

Square Footage Breakdown

Total Heated Area

7,644 sq. ft.

1st Floor

3,637 sq. ft.

2nd Floor

1,837 sq. ft.

Optional Lower Level

3,483 sq. ft.

Apartment

2,170 sq. ft.

Porch, Front

49 sq. ft.

Deck

349 sq. ft.

Entry

53 sq. ft.

Covered Patio

871 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

119' 5"

Depth

104' 10"

Max Ridge Height

34' 8"

Garage

Type

Attached

Area

1720 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 14

Secondary Pitch

12 on 12

Architectural Style

Southern Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Attached Apartments
