Plan 623433DJ
5-Bed Transitional European House Plan with Outdoor Kitchen - 4665 Sq Ft
Heated S.F.
4,665
Beds
5
Baths
3.5+
Stories
2
Cars
5
Tour
Floor Plan

Plan 623433DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 623433DJ

1-800-854-7852

1-262-521-4596

Main Level

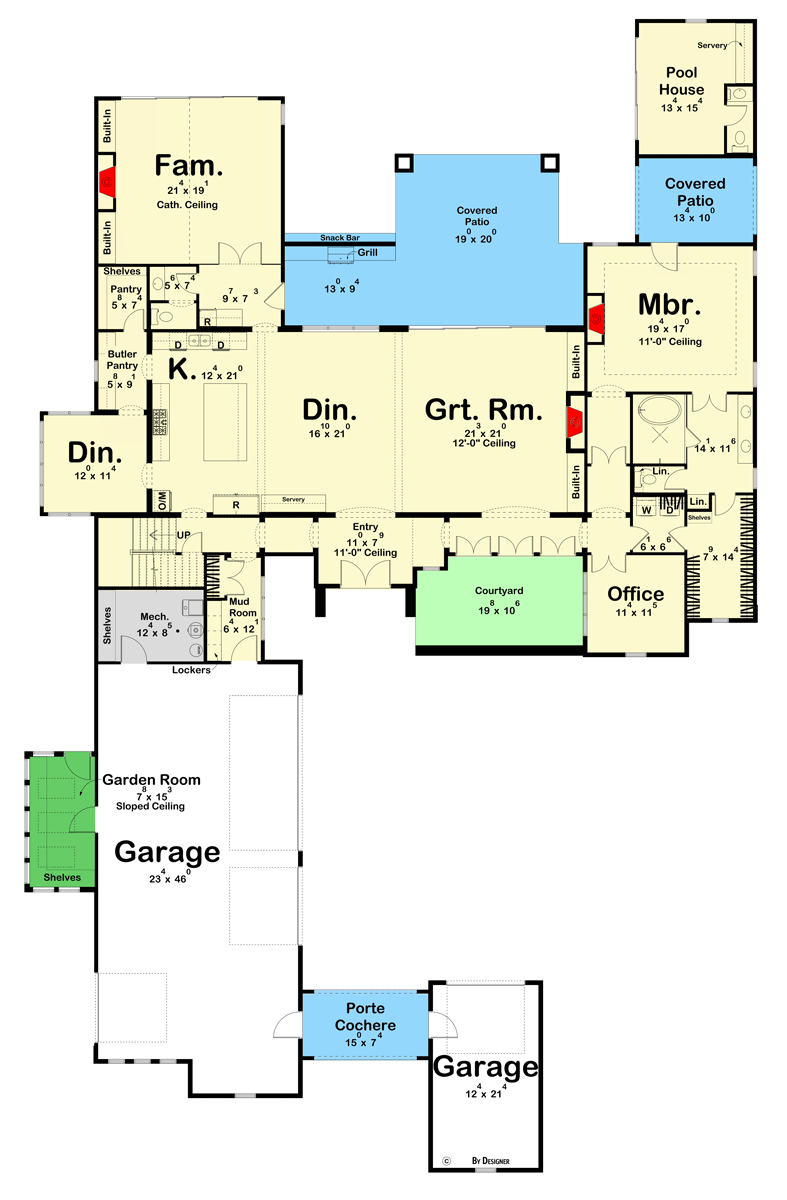

floor plan image Main Level

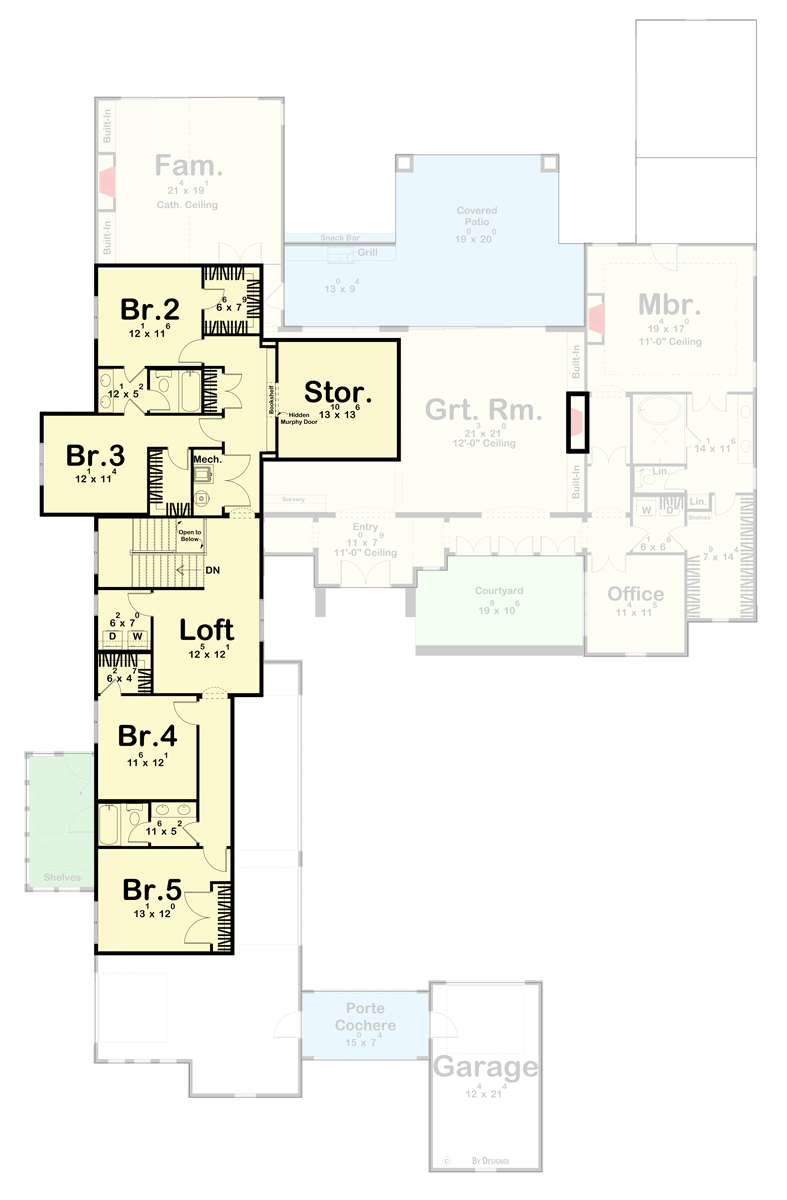

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This is a 5-bedroom, 5-bathroom transitional European home with a large great room, connected to the dining area and kitchen, with an adjacent family room and dinette.
  • The main level master suite features a fireplace, outdoor patio access, a large shower, and a freestanding tub.
  • Upstairs, you'll find additional bedrooms, a loft, and storage space.
  • The outdoor areas are designed for entertaining, with a bar, grill, and a separate pool house.
  • The home also includes two garages and a garden room with skylights, offering a serene space to enjoy the outdoors.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,665 sq. ft.

1st Floor

3,229 sq. ft.

2nd Floor

1,436 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

85' 0"

Depth

134' 0"

Max Ridge Height

32' 2"

Garage

Type

Attached, Detached

Area

1452 sq. ft.

Count

5 Cars

Entry Location

Side, Rear, Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

10 on 12

Architectural Style

European

French Country

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Courtyard

Formal Dining

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Wet Bar

Plan Collections

Luxury

Pool House

Premium Collection
