Plan 710438BTZ
5-Bed Transitional House Plan with Unfinished Bonus Room - 3702 Sq Ft
Heated S.F.
3,702
Beds
5
Baths
5.5
Stories
2
Cars
3
Floor Plan

Plan 710438BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710438BTZ

1-800-854-7852

1-262-521-4596

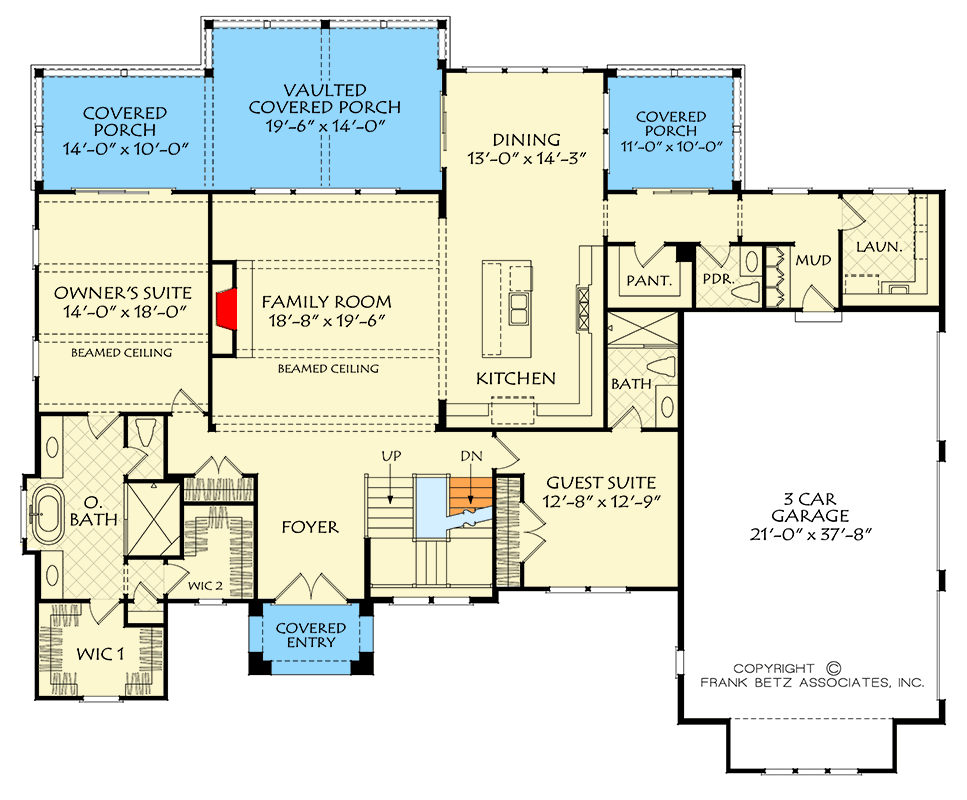

Main Level
floor plan image Main Level

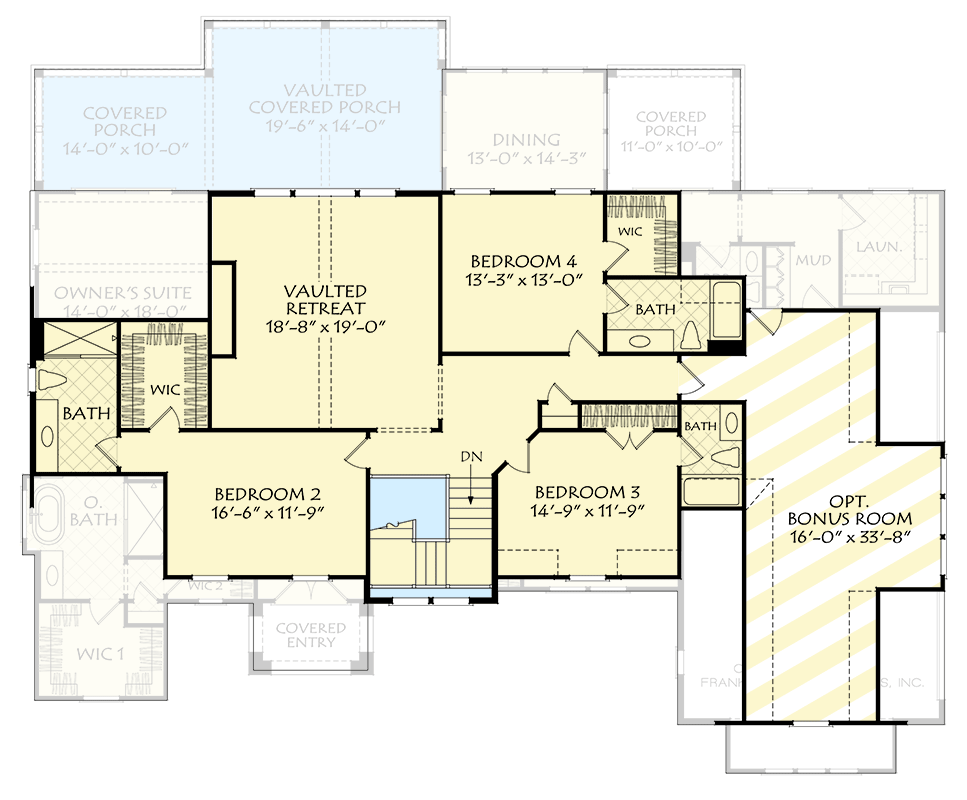

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 3,702 sq. ft. transitional house plan offers you 5 beds, 5.5 baths, and a 793 sq. ft. 3-car garage.
  • The large windows flood the interior with natural light, complementing its modern design.
  • The main level includes key amenities like an owner's suite, a guest suite, and spacious gathering areas designed for hosting large groups. The baths and service areas are well-sized for convenience.
  • A standout feature is the open stairway, which adds visual appeal inside and out.
  • Upstairs, three bedrooms each have attached bathrooms, along with a vaulted retreat space for a den or media room. A bonus room provides extra space as needed.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,702 sq. ft.

1st Floor

2,247 sq. ft.

2nd Floor

1,455 sq. ft.

Basement Unfinished

2,247 sq. ft.

Bonus

469 sq. ft.

Porch, Front

52 sq. ft.

Porch, Rear

525 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

76' 0"

Depth

62' 0"

Max Ridge Height

33' 4"

Garage

Type

Attached

Area

793 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

European

Transitional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

3,702 sq. ft.

1st Floor

2,247 sq. ft.

2nd Floor

1,455 sq. ft.

Basement Unfinished

2,247 sq. ft.

Bonus

469 sq. ft.

Porch, Front

52 sq. ft.

Porch, Rear

525 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

76' 0"

Depth

62' 0"

Max Ridge Height

33' 4"

Garage

Type

Attached

Area

793 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

European

Transitional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom
