Plan 36594TX: 5-Bed Two-Story House Plan with Ample Outdoor Living Space

Plan 36594TX

5-Bed Two-Story House Plan with Ample Outdoor Living Space

Heated S.F.

3,921

Beds

Baths

4.5+

Stories

Cars

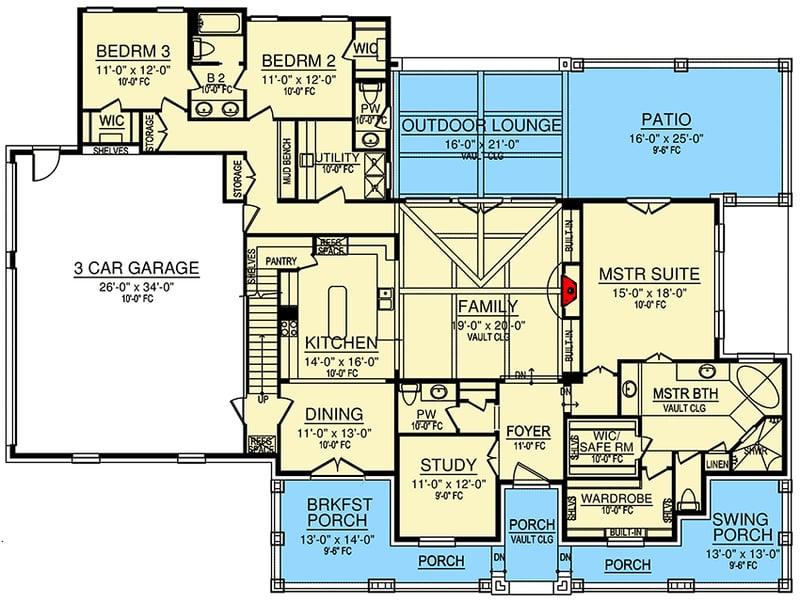

Floor Plan

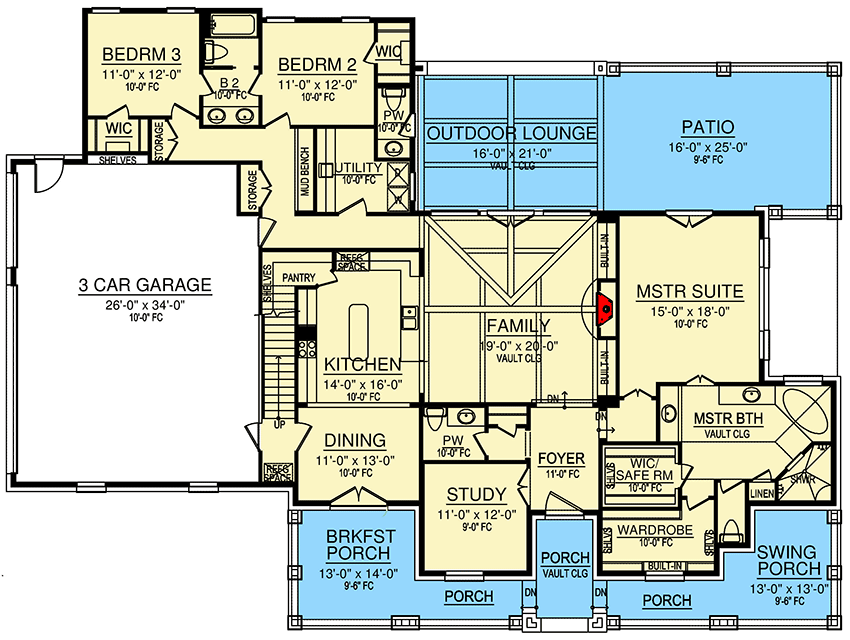

Main Level

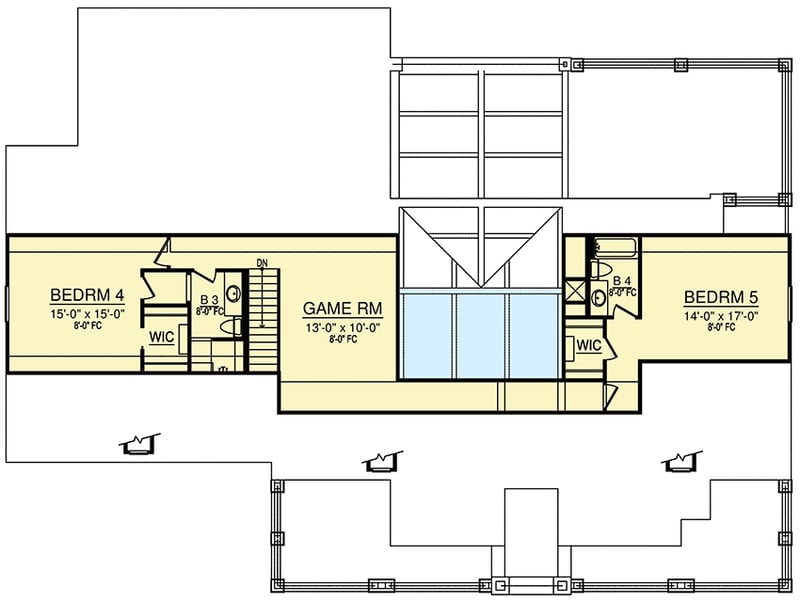

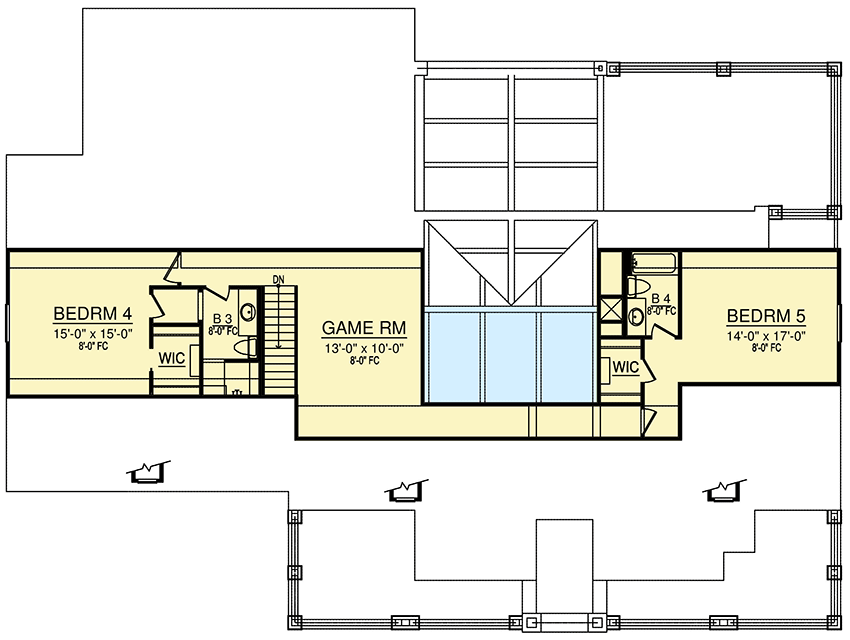

2nd Floor

Plan Details

This 5-bedroom home plan, topped by a gable roof clad in metal, features a wrap-around porch that awaits the porch swing of your dreams.
Inside, a grand vaulted ceiling above the family room extends onto the back patio, offering a cohesive element between indoor and outdoor living spaces. The open kitchen offers ample workspace, and a walk-in pantry makes good use of the area beneath the stairs.
A dining room adjacent the kitchen includes french doors to encourage dining on the front porch.
The deluxe master suite provides access to the back patio, and homeowners will delight in the master bath with a garden tub, oversized wardrobe, and safe room.
Two additional bedrooms behind the 3-car garage share a Jack-and-Jill bath, while bedrooms 4 and 5 share the second level with a game room for all to enjoy.
Related Plan: Eliminate the upstairs game room and Bed 5 with house plan 36593TX.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

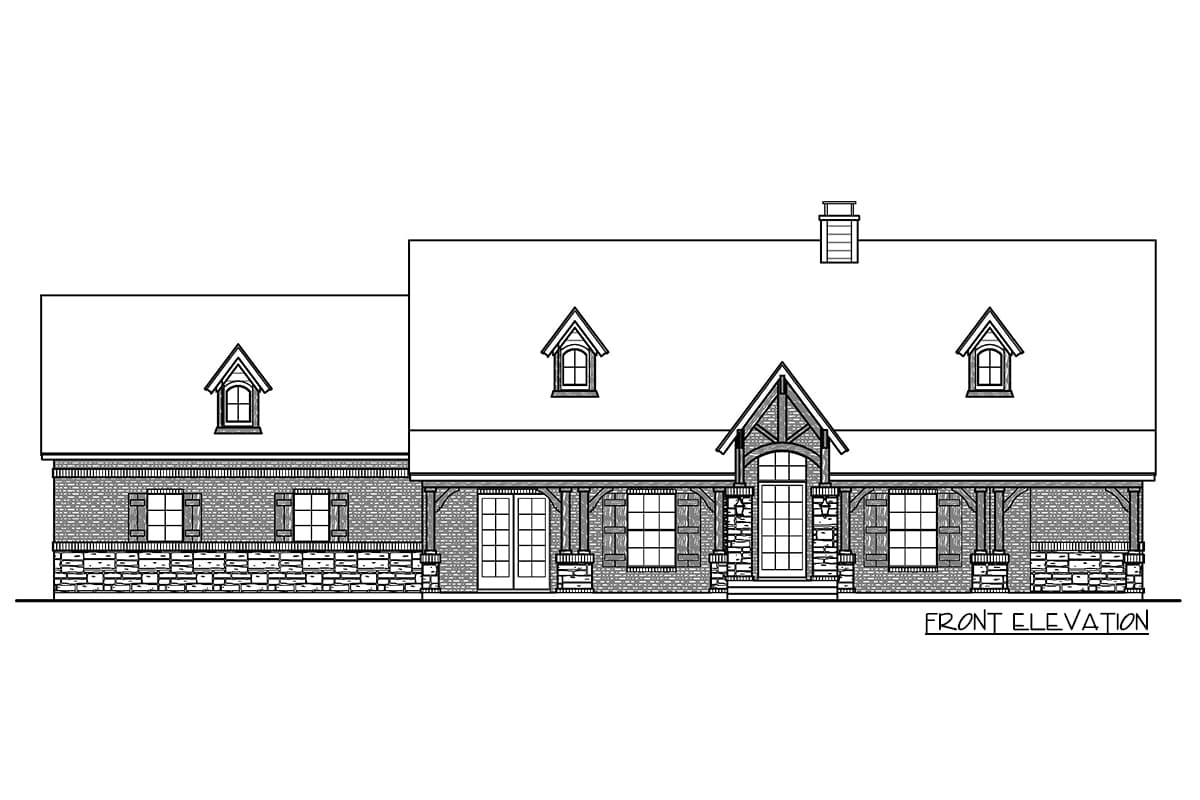

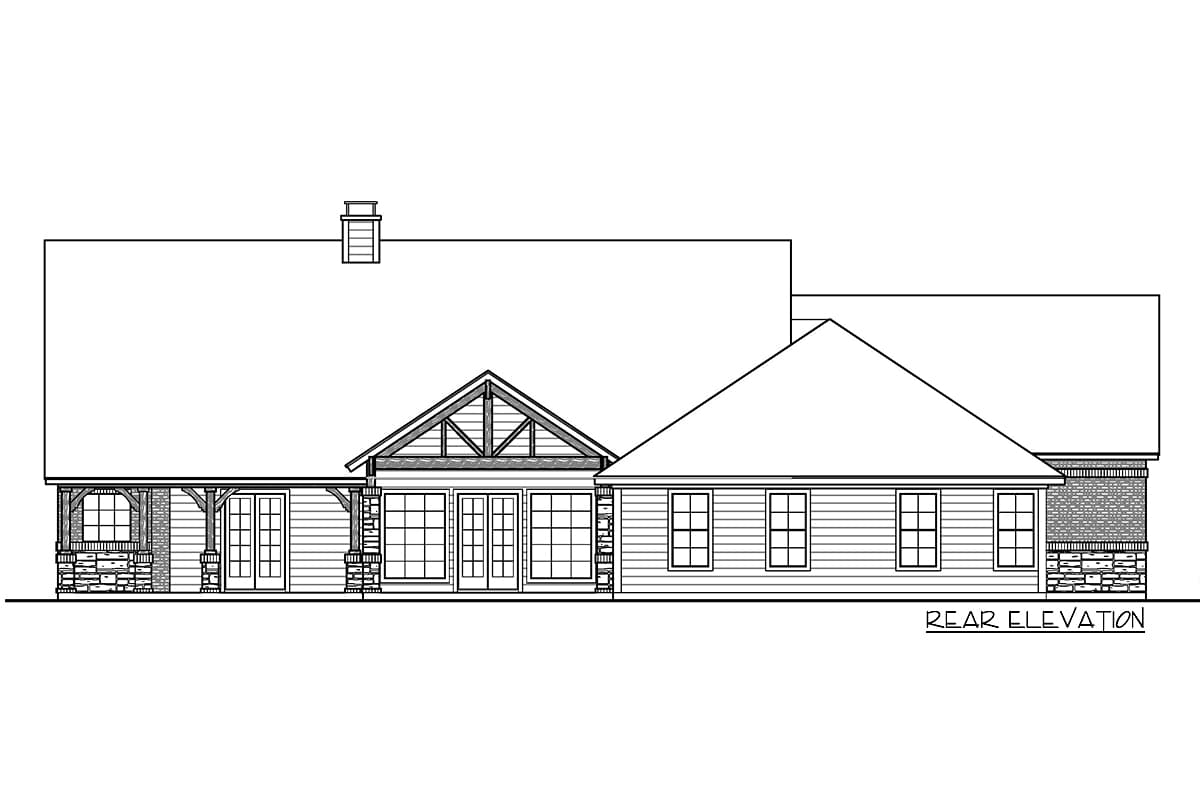

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

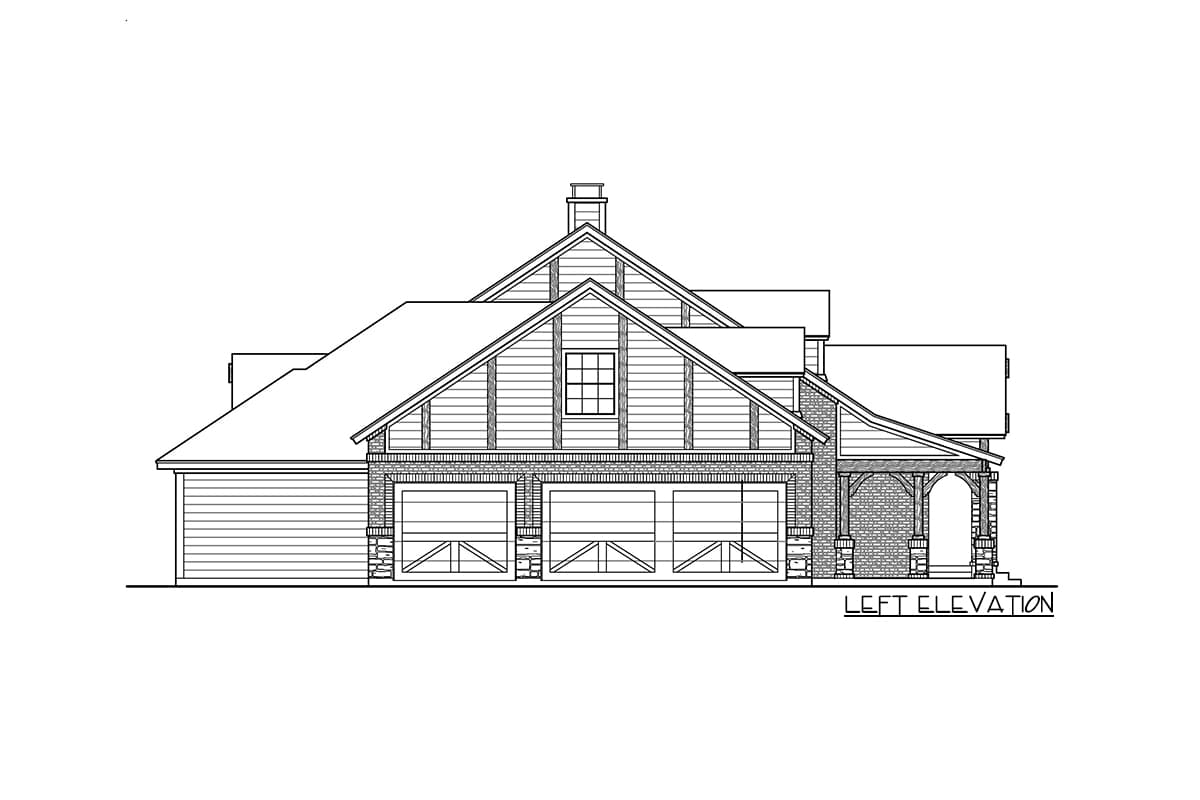

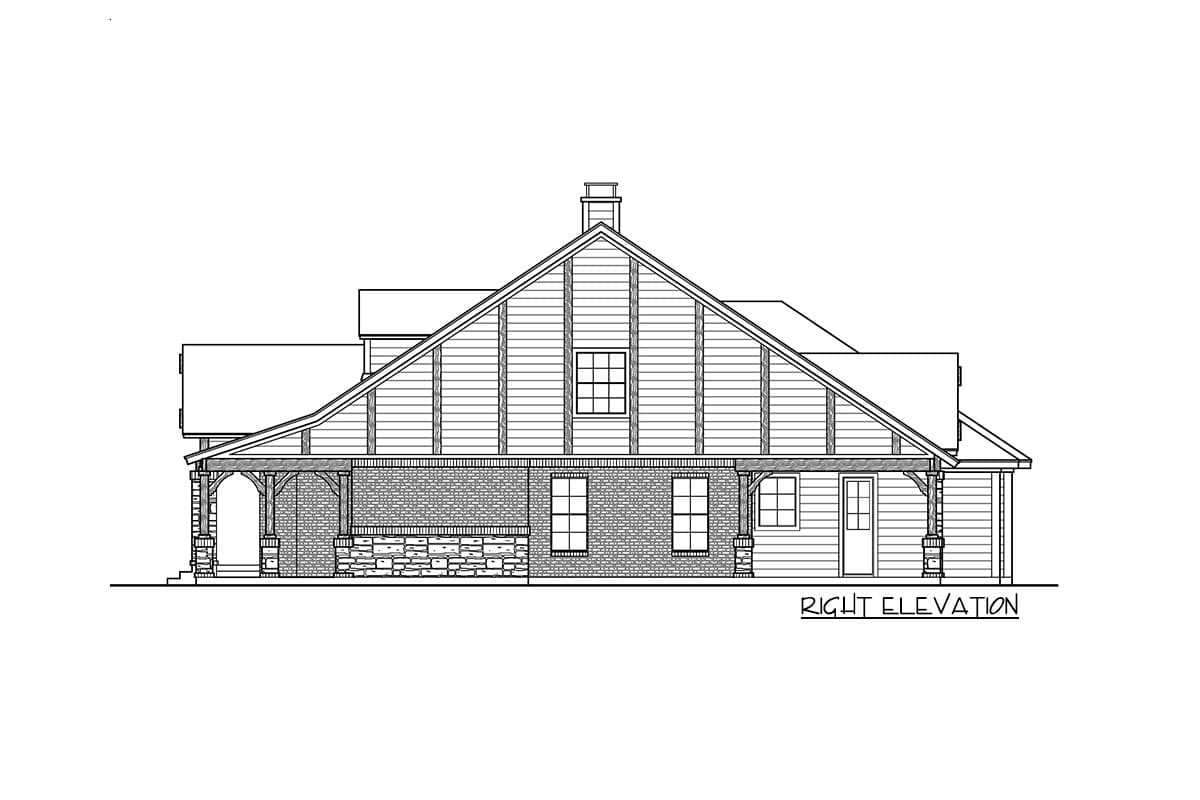

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
