Plan 31220D
507 Square Foot Modern ADU with Sloping Roof
Heated S.F.
507
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 31220D

Main Level
slide image 0

Plan 31220D

1-800-854-7852

1-262-521-4596

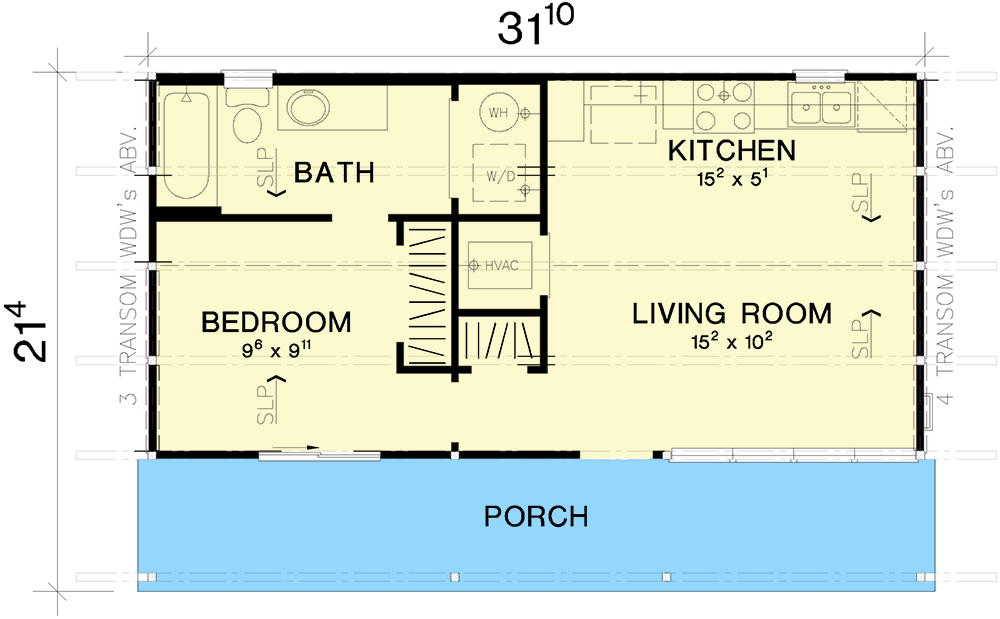

Main Level
floor plan image Main Level
Plan Details
  • This small modern ADU gives you a bedroom with bath wrapped in an glass-filled exterior and a total of 507 square feet of heated living space.
  • A covered porch spans the entire front of the home giving you a great fresh air space to enjoy.
  • The kitchen is open to the living room and both are under a beamed and sloped ceiling.
  • The bedroom is conveniently located to the left, featuring an ensuite bathroom and easy access to the adjacent laundry room.
  • Related Plan: Get an alternate floor plan with house plan 31208D.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

507 sq. ft.

1st Floor

507 sq. ft.

Porch, Front

172 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

31' 10"

Depth

21' 4"

Max Ridge Height

11' 5"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cabin

Contemporary

Mid Century Modern

Mountain

Northwest

Rustic

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

507 sq. ft.

1st Floor

507 sq. ft.

Porch, Front

172 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

31' 10"

Depth

21' 4"

Max Ridge Height

11' 5"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cabin

Contemporary

Mid Century Modern

Mountain

Northwest

Rustic

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Tiny Home House Plans
