Plan 623323DJ
595 Square Foot ADU with Front and Rear Outdoor Spaces
Heated S.F.
595
Beds
1
Baths
1
Stories
1

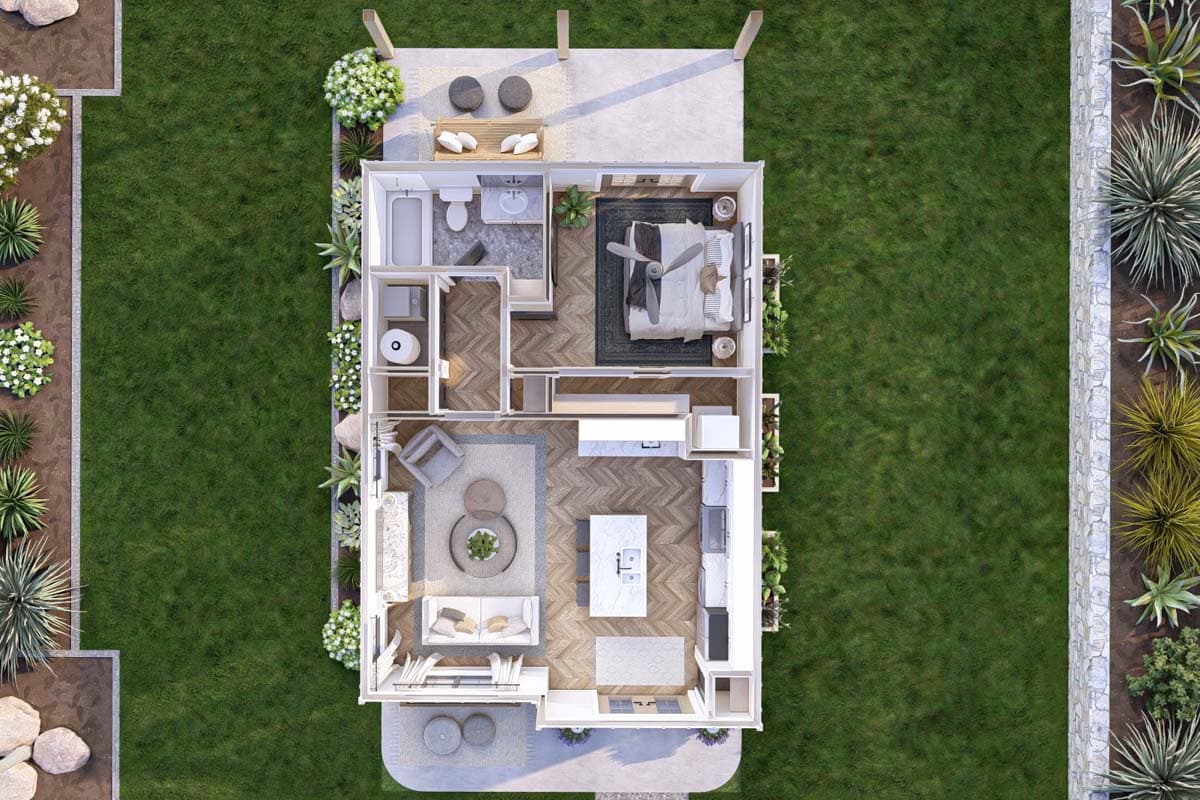

Floor Plan

Plan 623323DJ

Main Level
slide image 0

Plan 623323DJ

1-800-854-7852

1-262-521-4596

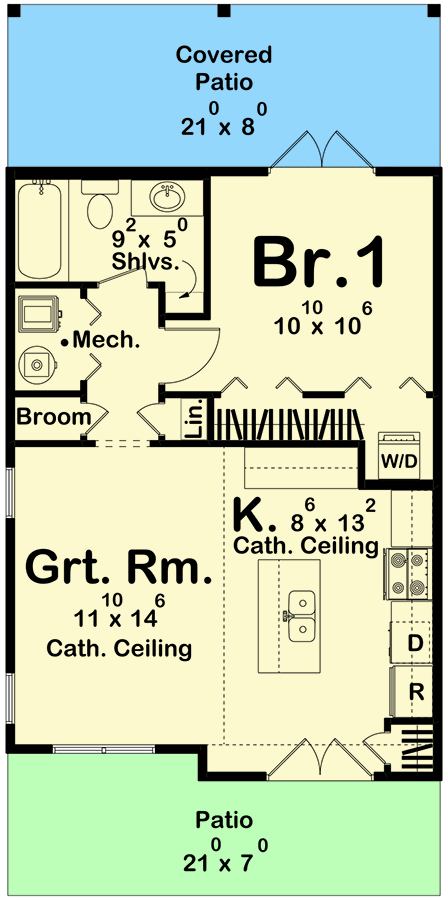

Main Level
floor plan image Main Level
Plan Details

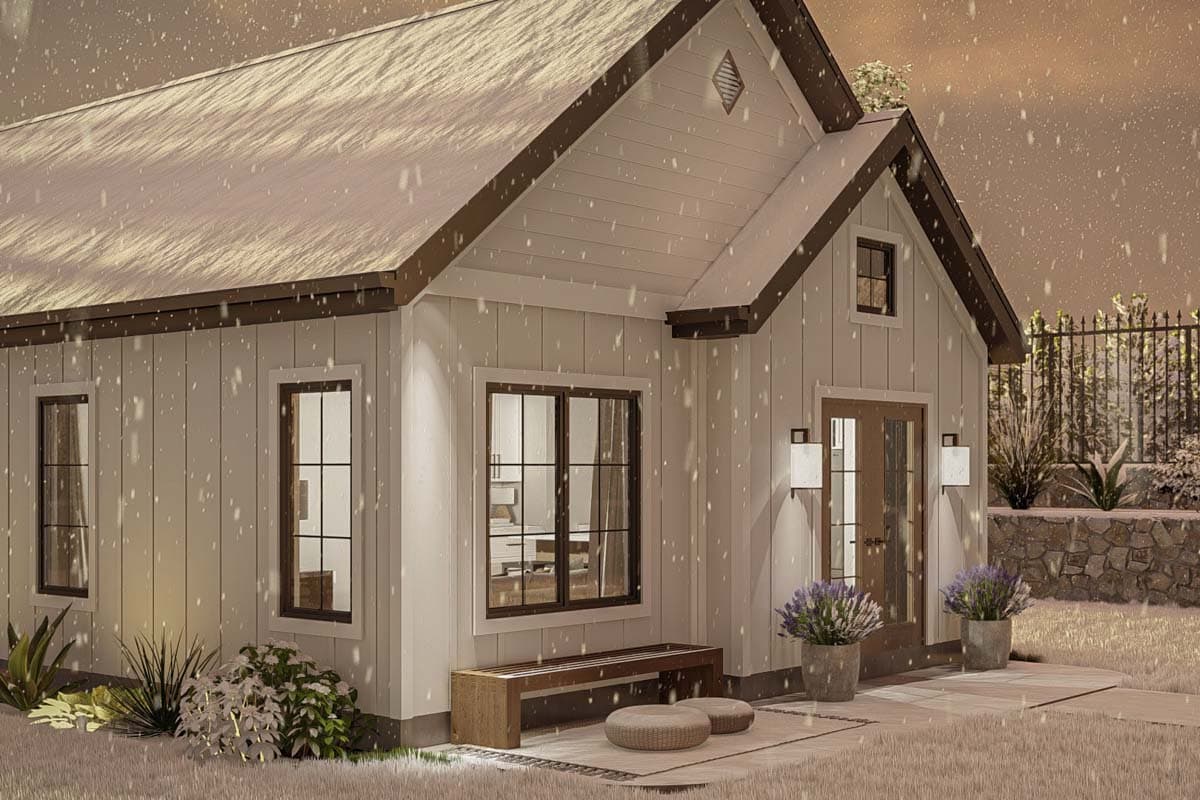

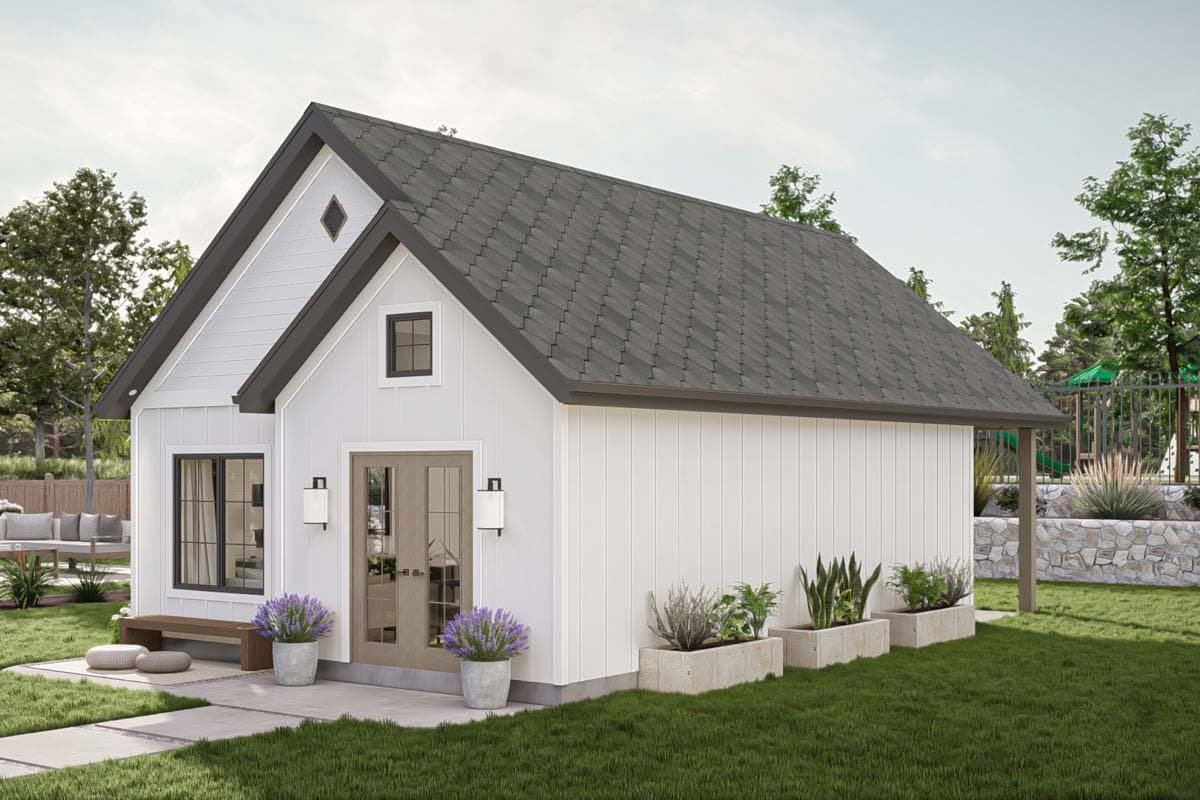

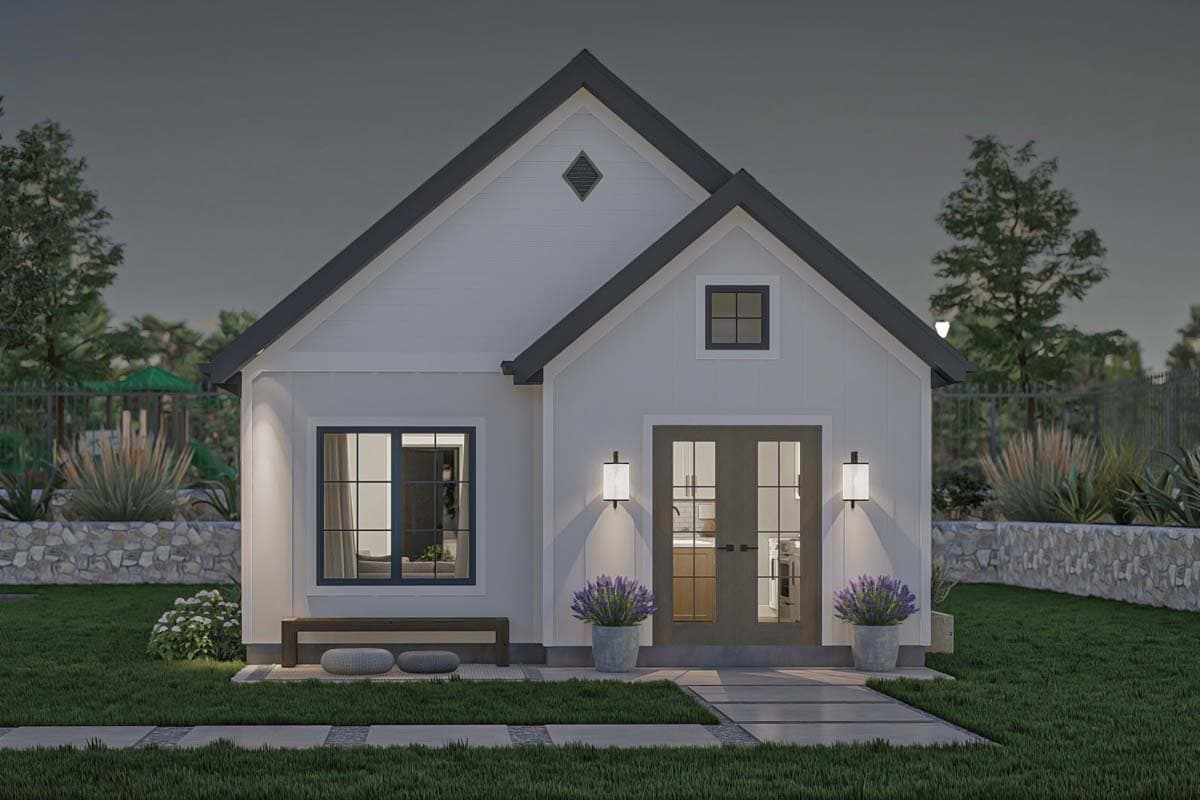

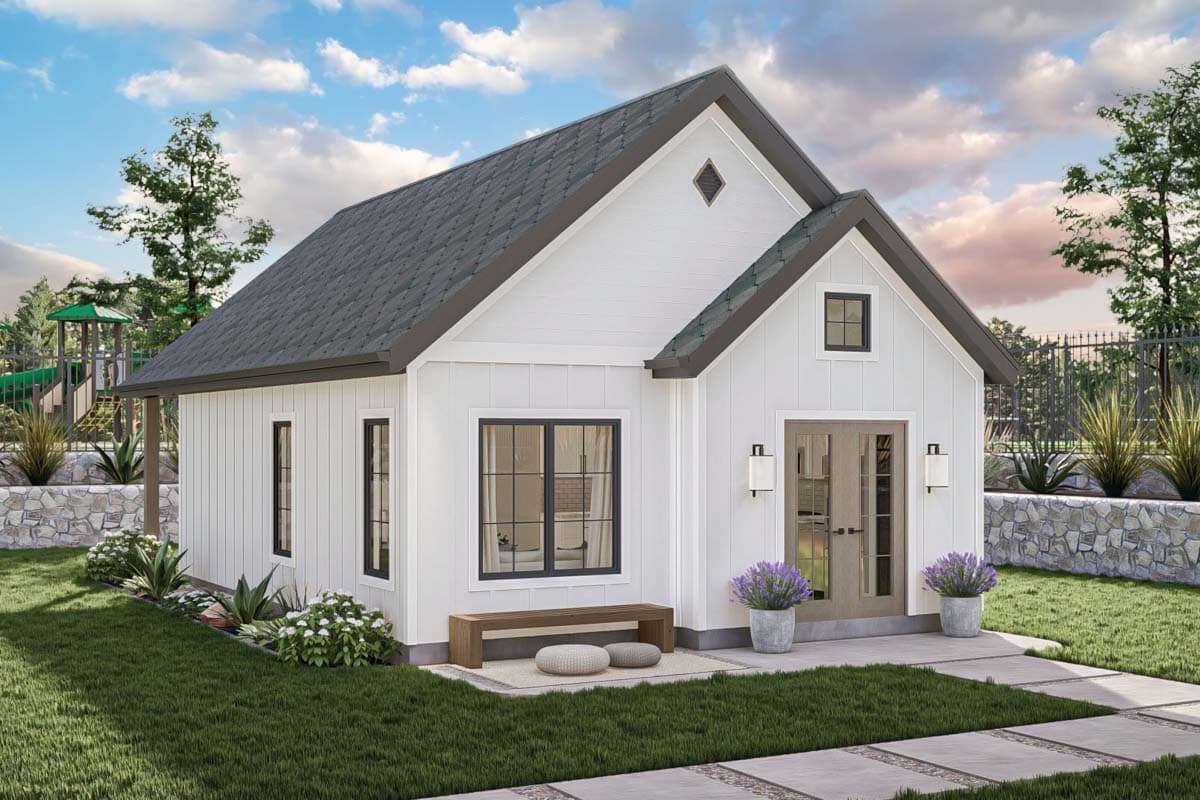

  • This 1 bed, 1 bath ADU gives you 595 square feet of heated living with front and rear porches extending your livability to the outdooors. Board-and-batten siding, a gabled roof, and a welcoming front patio create the perfect cottage-life scene.

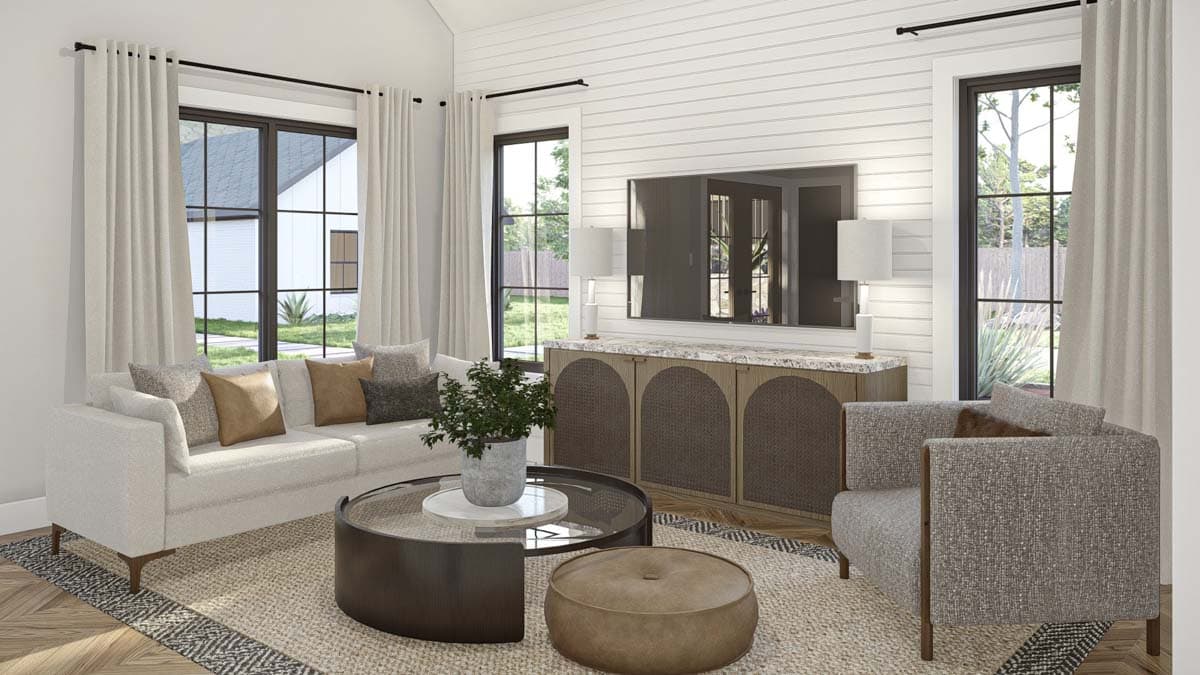

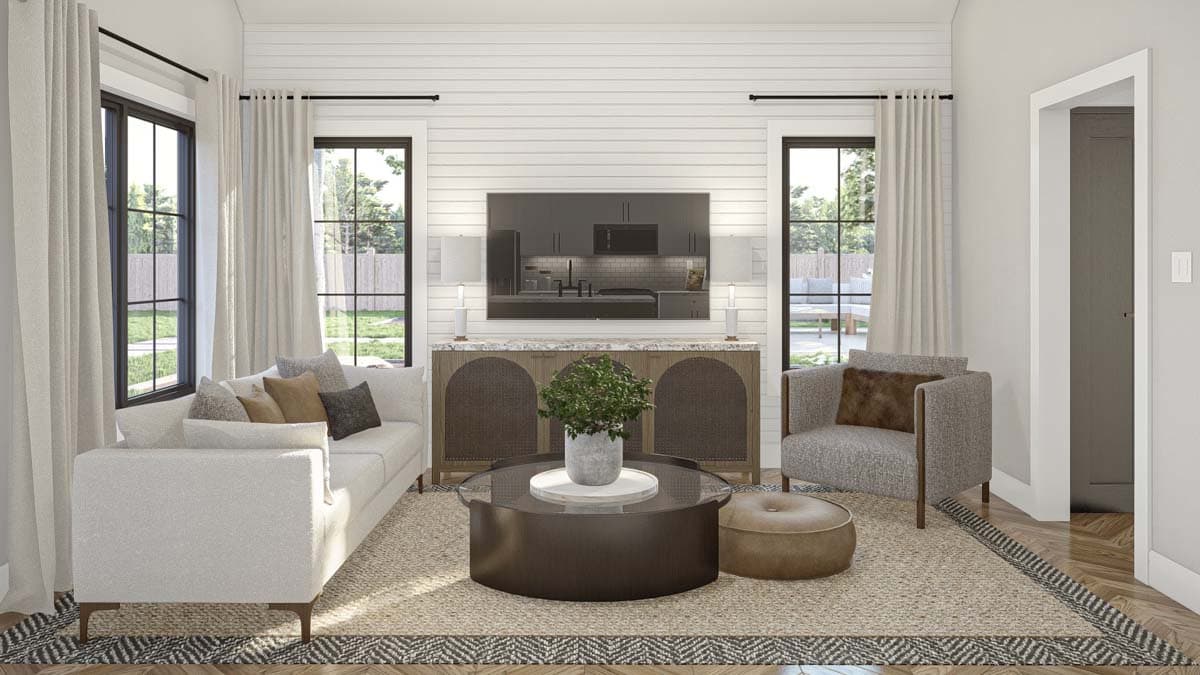

  • Step inside and be greeted by the spacious and airy living area with a stunning cathedral ceiling. This architectural feature not only enhances the sense of space but also fills the home with natural light, creating a warm and inviting atmosphere.

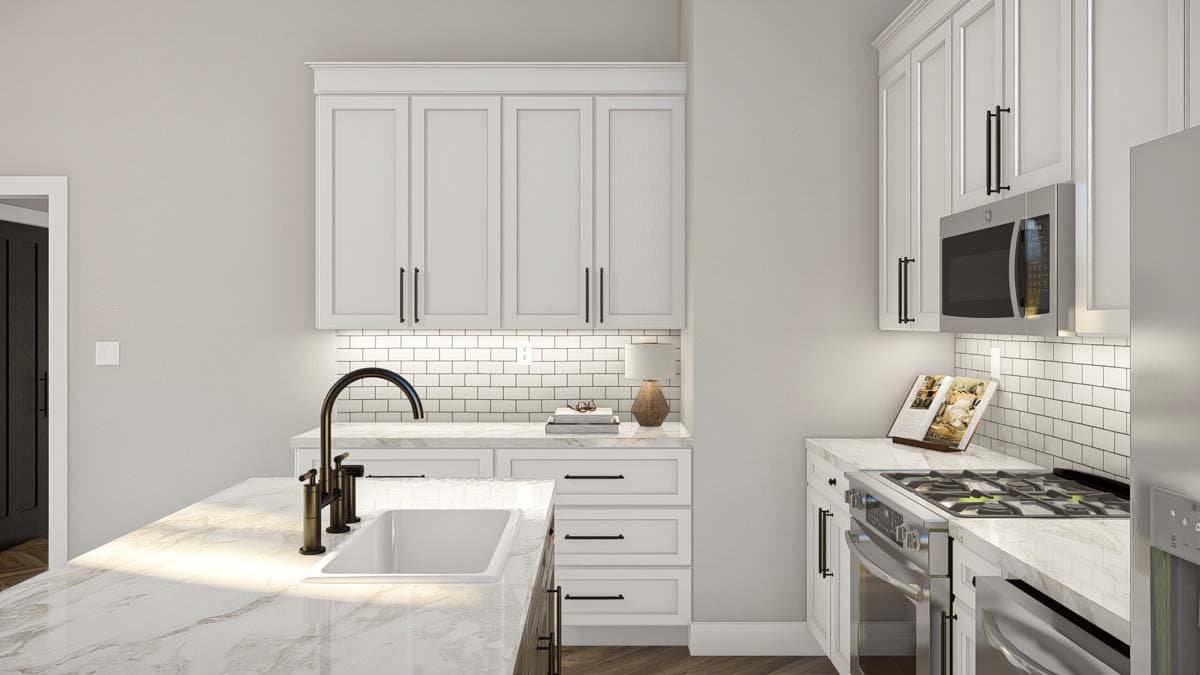

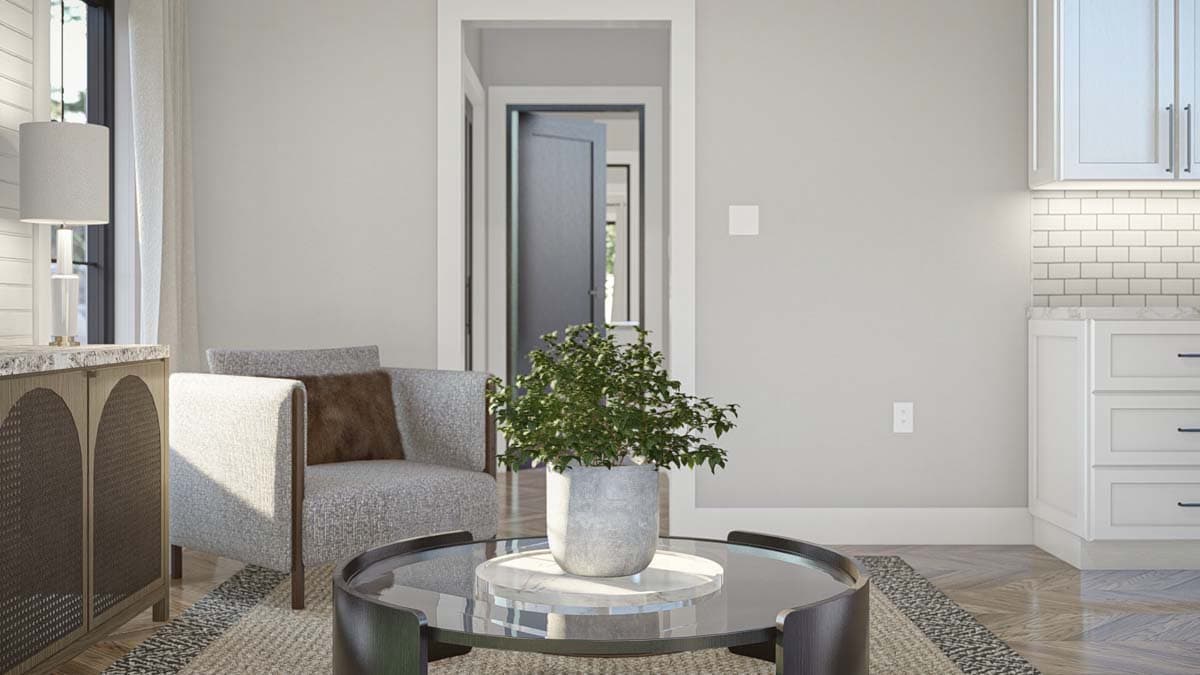

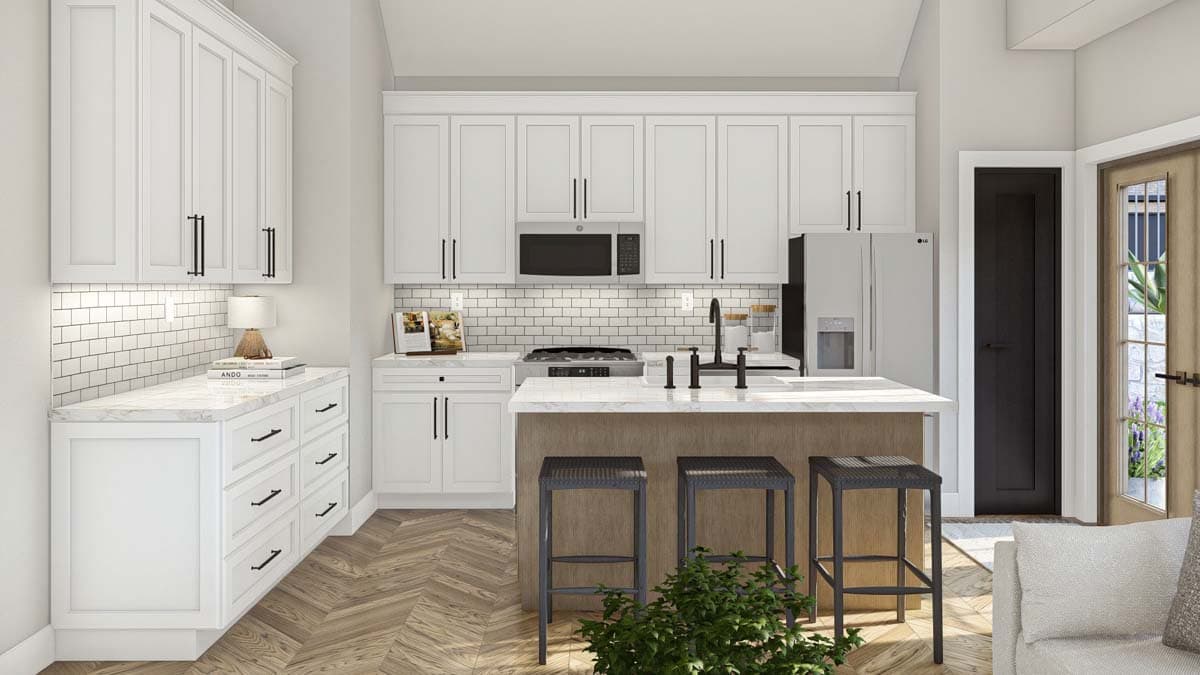

  • The open floor plan seamlessly connects the living, dining, and kitchen areas. This design fosters a sense of togetherness, making the space perfect for entertaining or enjoying quiet evenings alone.

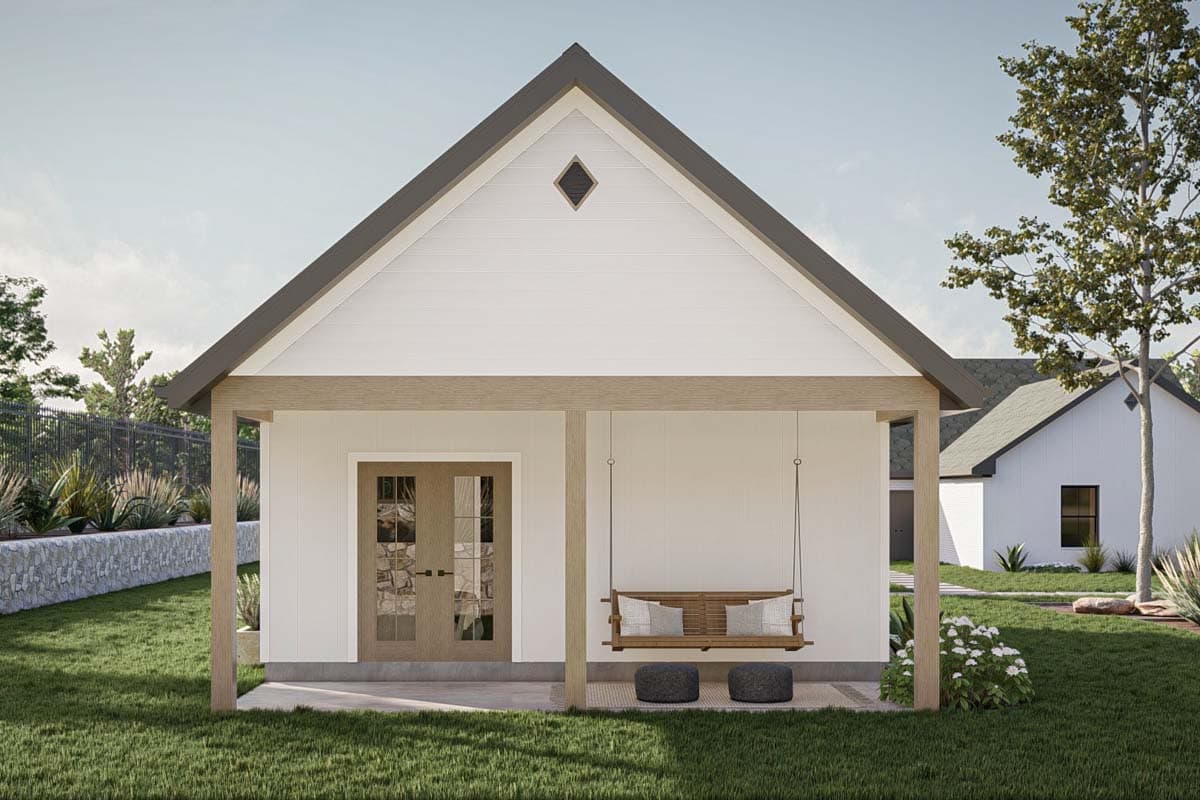

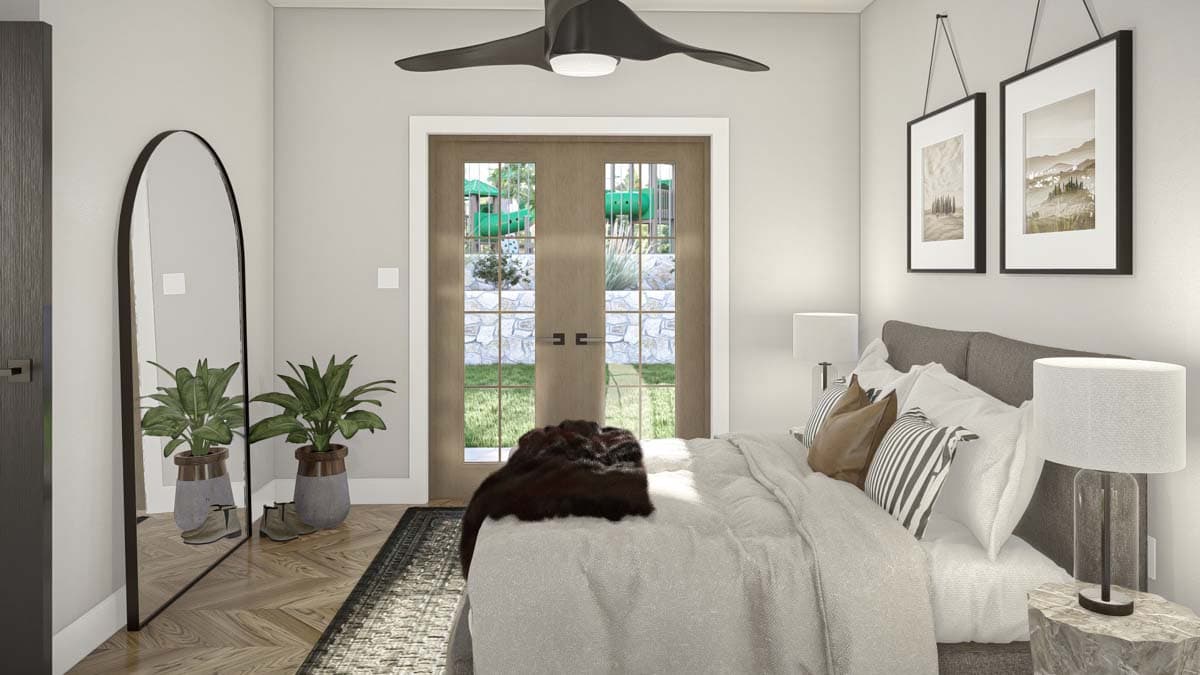

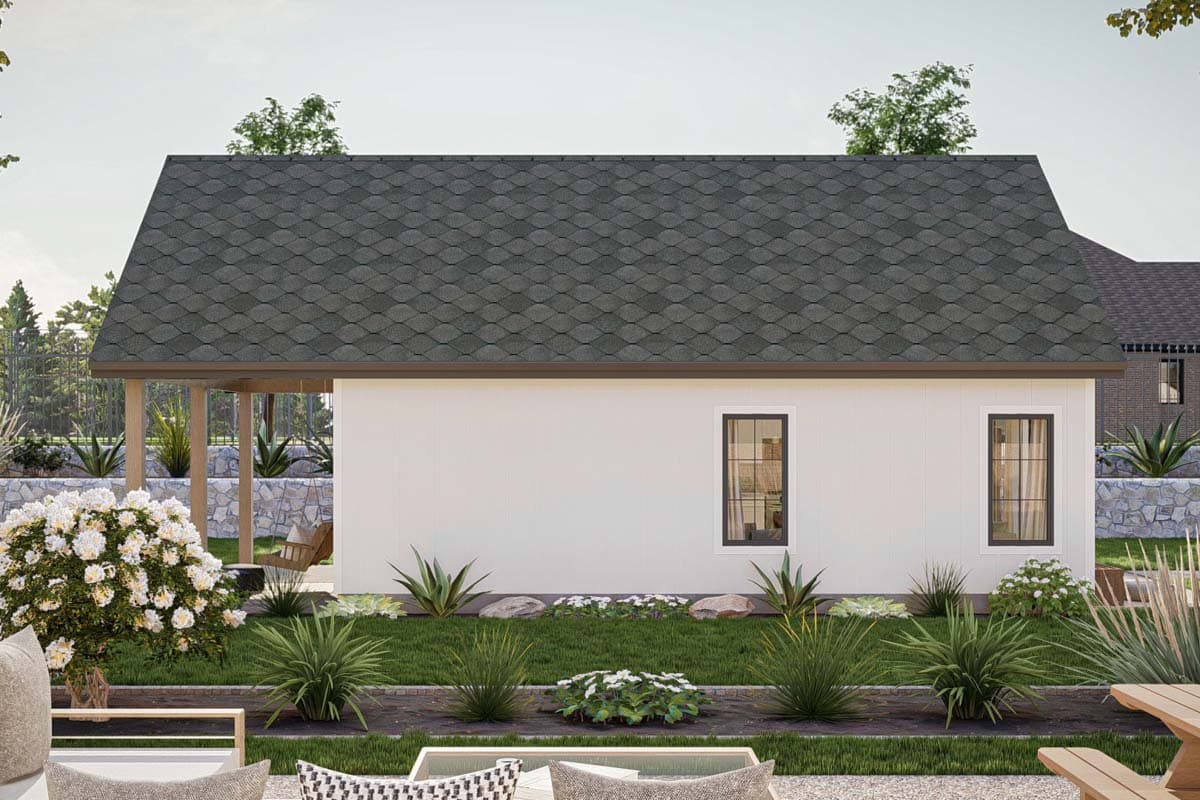

  • Step outside onto not one but two charming patios – perfect for morning coffee, al fresco dining, or simply enjoying the beauty of the surrounding landscape. The outdoor spaces seamlessly extend your living area and private bedroom.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

595 sq. ft.

1st Floor

595 sq. ft.

Porch, Front

140 sq. ft.

Porch, Rear

168 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

21' 0"

Depth

37' 8"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

ADU
