Plan 80584PM
6-Unit House Plan with 2 Units Per Floor - 2 Beds 1 Bath - 1082 Sq Ft
Heated S.F.
6,492
Units
6
Width
Depth
Floor Plan

Plan 80584PM

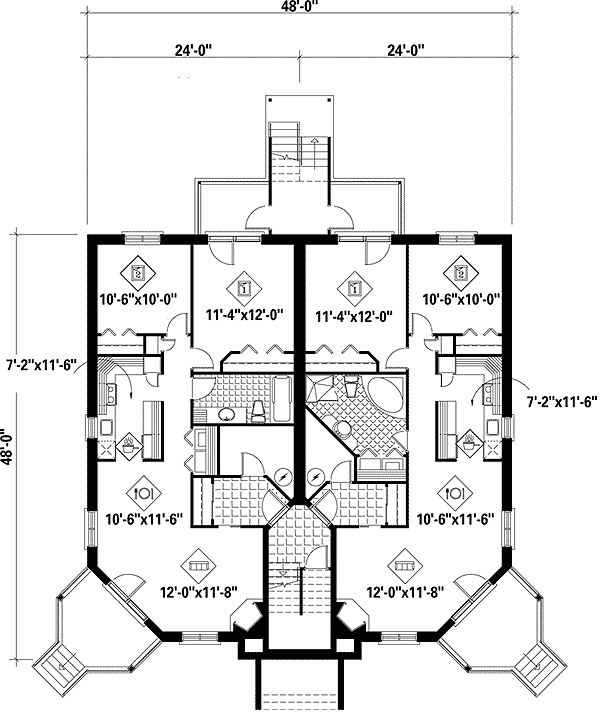

Basement
slide image 0

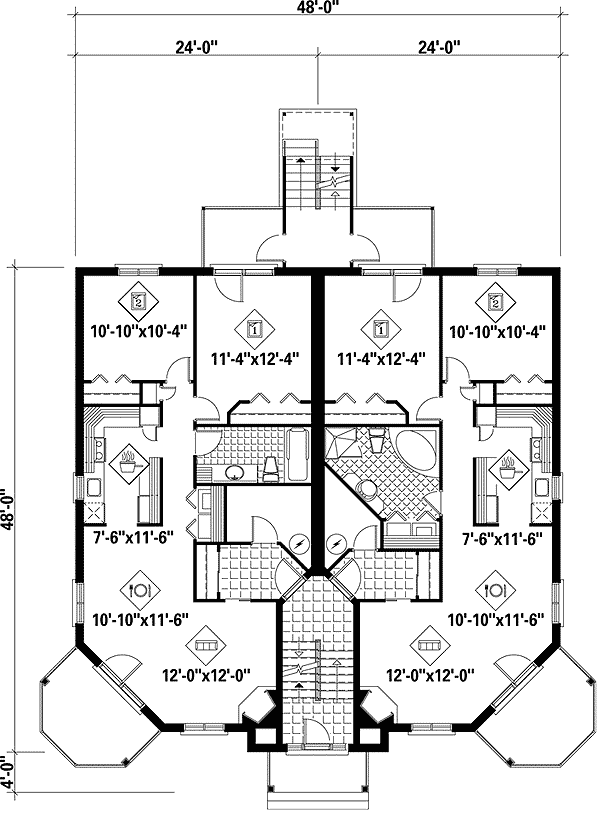

Main Level
slide image 1

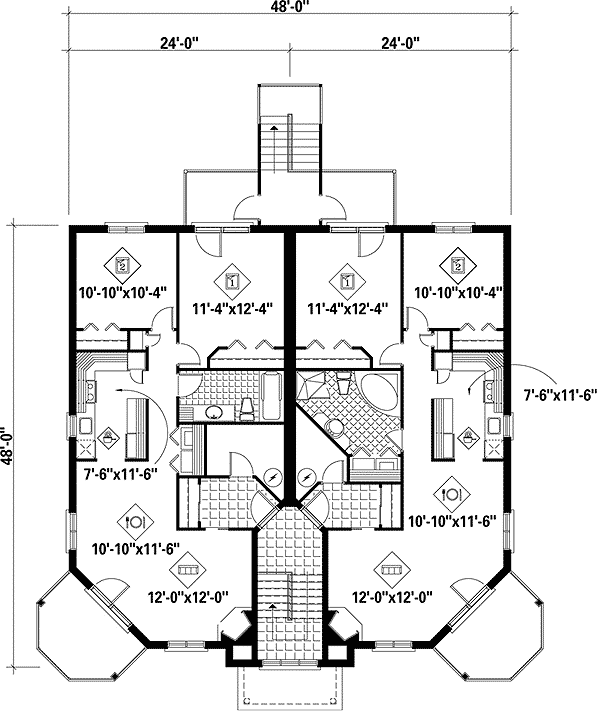

2nd Floor
slide image 2

Plan 80584PM

1-800-854-7852

1-262-521-4596

Basement
floor plan image Basement
Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 6-unit house plan gives you 2 units per floor, each with 2 beds and 1 bath. Each unit gives you 1,082 square feet of heated living space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate exterior with house plan 80588PM.
Unit A
1,082Sq. Ft.
1082 Sq. Ft.
1st Floor
2Beds
1Full Bath
24'width
48'depth
41'height
Unit B
1,082Sq. Ft.
1082 Sq. Ft.
1st Floor
2Beds
1Full Bath
24'width
48'depth
41'height
Unit C
1,082Sq. Ft.
1082 Sq. Ft.
2nd Floor
2Beds
1Full Bath
24'width
48'depth
41'height
Unit D
1,082Sq. Ft.
1082 Sq. Ft.
2nd Floor
2Beds
1Full Bath
24'width
48'depth
41'height
Unit E
1,082Sq. Ft.
1082 Sq. Ft.
3rd Floor
2Beds
1Full Bath
24'width
48'depth
41'height
Unit F
1,082Sq. Ft.
1082 Sq. Ft.
3rd Floor
2Beds
1Full Bath
24'width
48'depth
41'height
What's Included
Please note this plan is designed to the National Building Code of Canada.

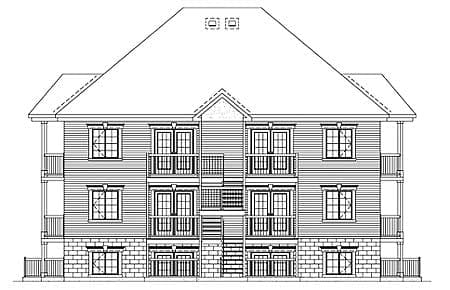

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,492 sq. ft.

1st Floor

2,164 sq. ft.

2nd Floor

2,164 sq. ft.

3rd Floor

2,164 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

6

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

48' 0"

Max Ridge Height

41' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Sloping Lot

Square Footage Breakdown

Total Heated Area

6,492 sq. ft.

1st Floor

2,164 sq. ft.

2nd Floor

2,164 sq. ft.

3rd Floor

2,164 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

6

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

48' 0"

Max Ridge Height

41' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Sloping Lot
