Plan 560017TCD
612 Square Foot Home Plan with Open Floor Plan
Heated S.F.
612
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 560017TCD

Main Level
slide image 0
First Floor - Birdseye View
slide image 1

Plan 560017TCD

1-800-854-7852

1-262-521-4596

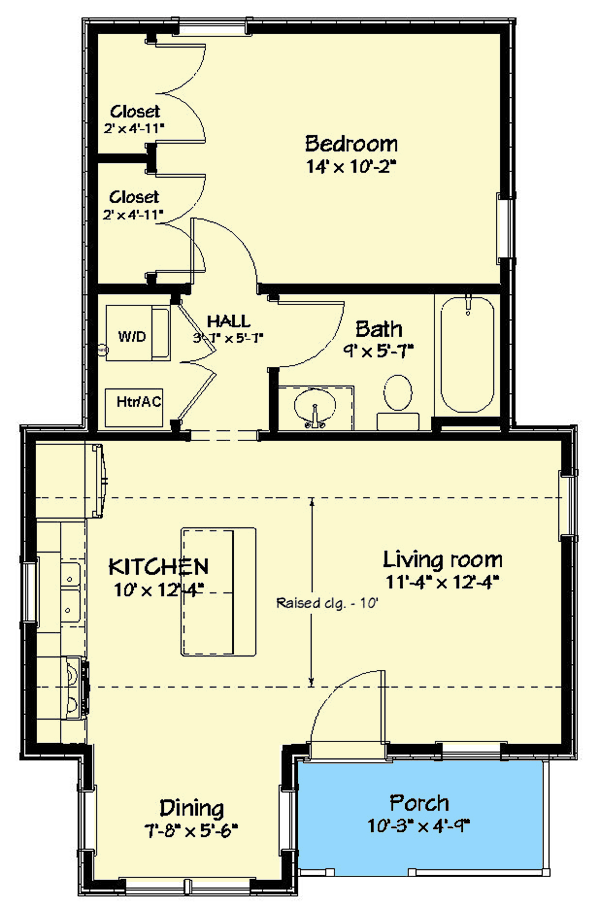

Main Level
floor plan image Main Level

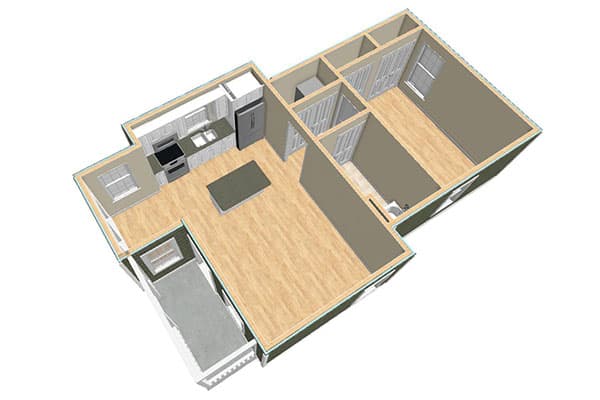

First Floor - Birdseye View
floor plan image First Floor - Birdseye View
Plan Details
  • This 612 square foot one-bed cottage house plan has an entry porch and a shingle-clad exterior.
  • Step inside and its open layout reveals itself. The living room and kitchen ceilings are raised to 10', giving you a great sense of volume.
  • The bedroom is in back and has two closets. Laundry and mechanicals are tucked away in a closet across from the bathroom.
  • This home design can be built as a vacation home or as an ADU or built as a downsizing solution.
What's Included
  • Cover Sheet - Artistic rendering of cottage, 3D perspective views showing all exterior sides, an interior view, an interior dollhouse view. Also, design criteria, misc. notes and specifications and some individual plan data.
  • Foundation Plan - Foundation plan in ¼" scale, 3D view, construction details and notes.
  • Floor Plan(s) - Floor plan in ¼" scale, wall framing plan, top down roof view showing roof pitches. Window and door schedules.
  • Ceiling & Roof Framing - 2D and 3D views of framing.
  • Framing Details - Generic wall, ceiling and roof framing details. Lumber and framing notes.
  • Elevations - Front, rear, right and left side elevations. Notes on windows and doors. Miscellaneous notes.
  • Cross Sections - Cross section views with framing details.
  • Kitchen Plan - Kitchen and bath plans, elevations and schedule.
  • Electrical Plan - Electric layout plan, schedule and notes.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

612 sq. ft.

1st Floor

612 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

22' 0"

Depth

35' 0"

Max Ridge Height

14' 5"

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Kitchen

10' 0''

Living Room

10' 0''

Roof Details

Primary Pitch

10 on 12

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

612 sq. ft.

1st Floor

612 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

22' 0"

Depth

35' 0"

Max Ridge Height

14' 5"

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Kitchen

10' 0''

Living Room

10' 0''

Roof Details

Primary Pitch

10 on 12

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
