Plan 50223PH
623 Square Foot ADU with Home Office
Heated S.F.
623
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 50223PH

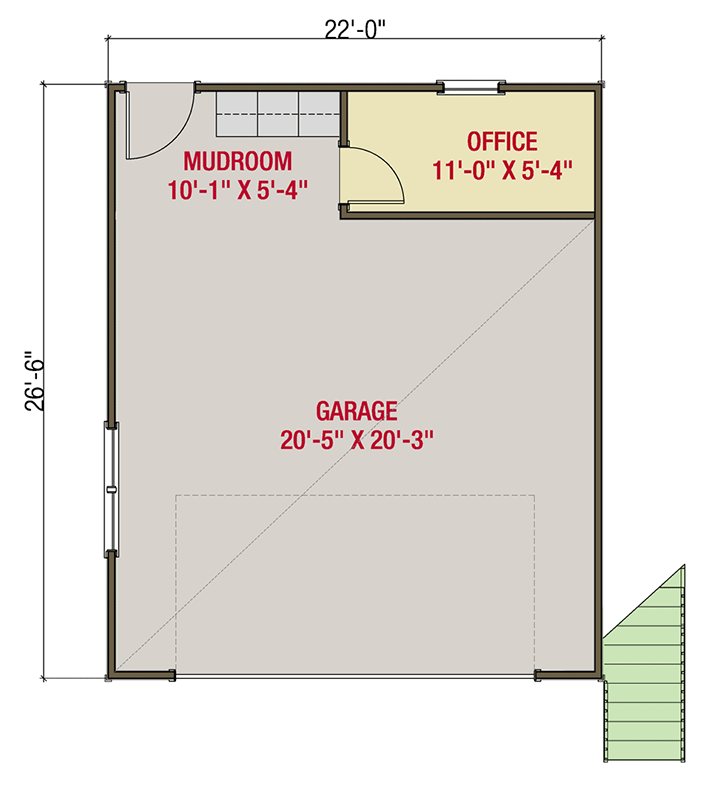

Main Level
slide image 0

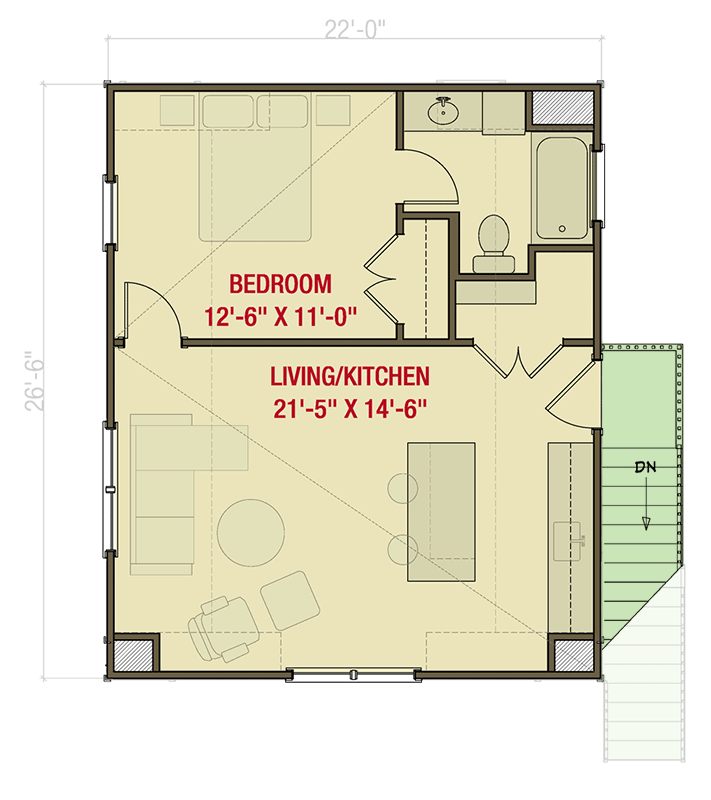

2nd Floor
slide image 1

Plan 50223PH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

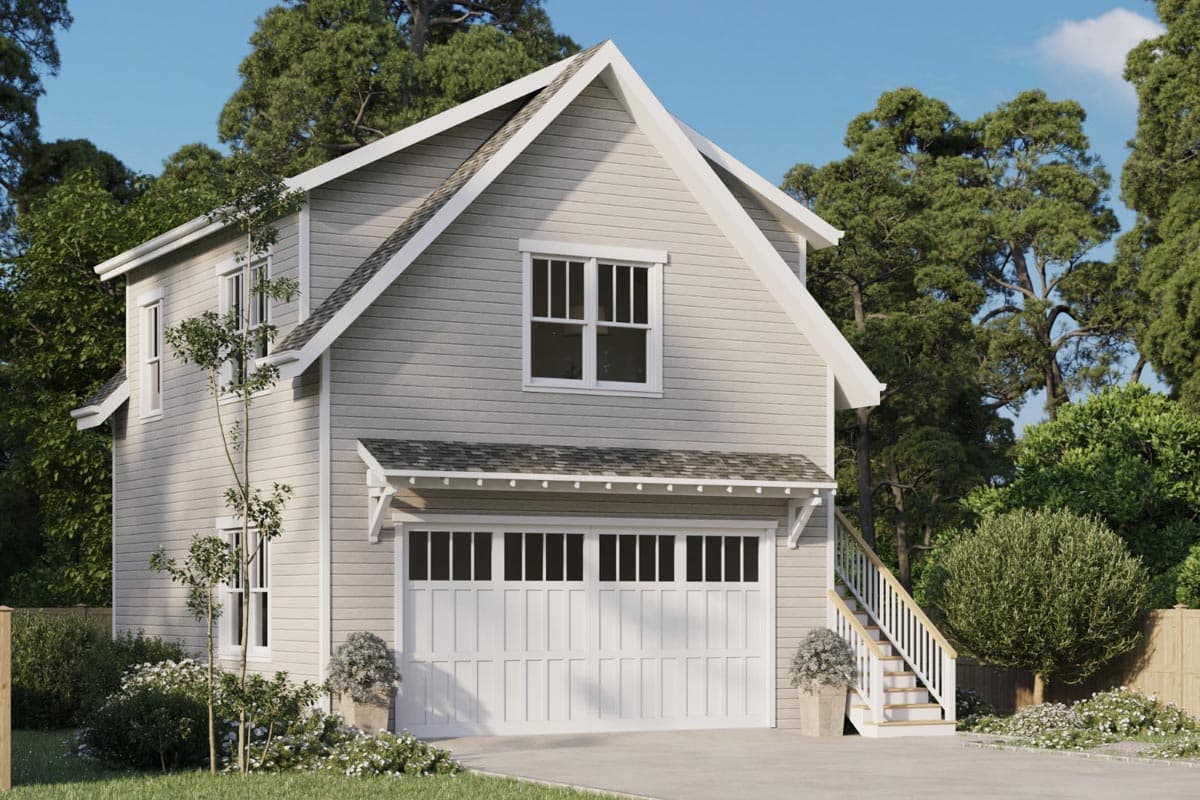

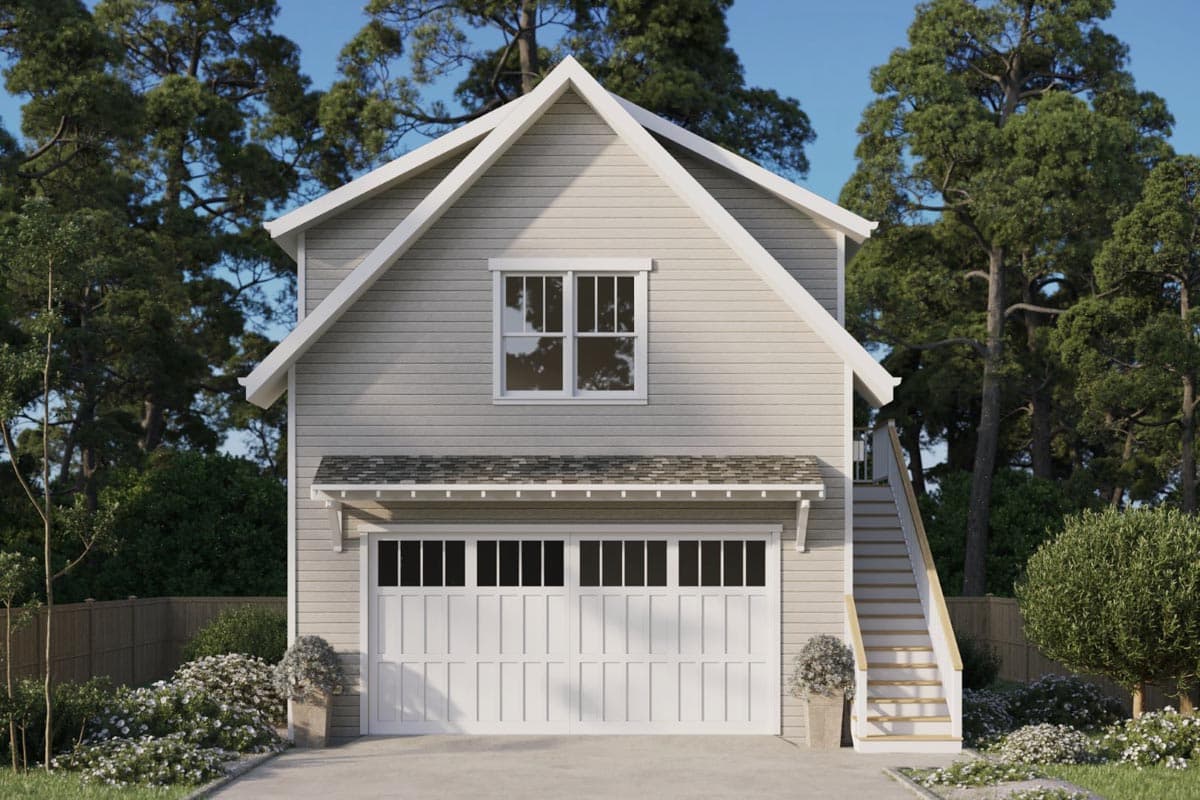

  • This simple garage apartment makes a great ADU or a guest house or even a work-from-home space or a clubhouse. It has a simple square footprint and an attractive Craftsman exterior.
  • The main level has space for two cars and a 59 square foot office in back.

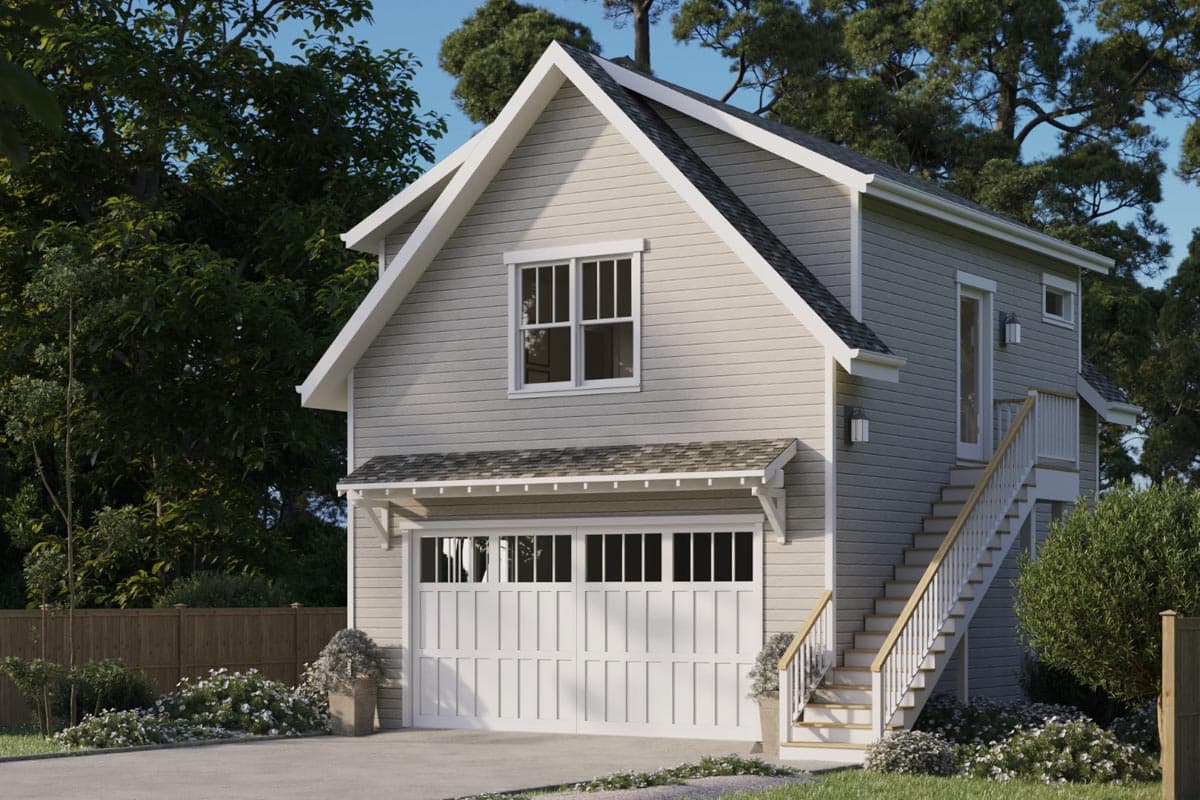

  • External stairs deliver you to an open space shared by the kitchen and living area with a coat closet to your right.
  • The bedroom with ensuite bath take up the rest of the floor.
  • Related Plan: Get a smaller version with garage apartment plan 50201PH.
What's Included
  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing Plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

623 sq. ft.

1st Floor

59 sq. ft.

2nd Floor

564 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

22' 0"

Depth

26' 6"

Max Ridge Height

26' 5"

Garage

Type

Detached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 6"

Second Floor

11'

Architectural Style

Carriage

Craftsman

Traditional

Special Features

Home Office

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Plan Collections

ADU
