Plan 623170DJ
Compact 3-Bed Contemporary Craftsman House Plan Under 1600 Square Feet
Heated S.F.
1,591
Beds
3
Baths
2.5
Stories
2
Cars
2
Tour
Floor Plan

Plan 623170DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 623170DJ

1-800-854-7852

1-262-521-4596

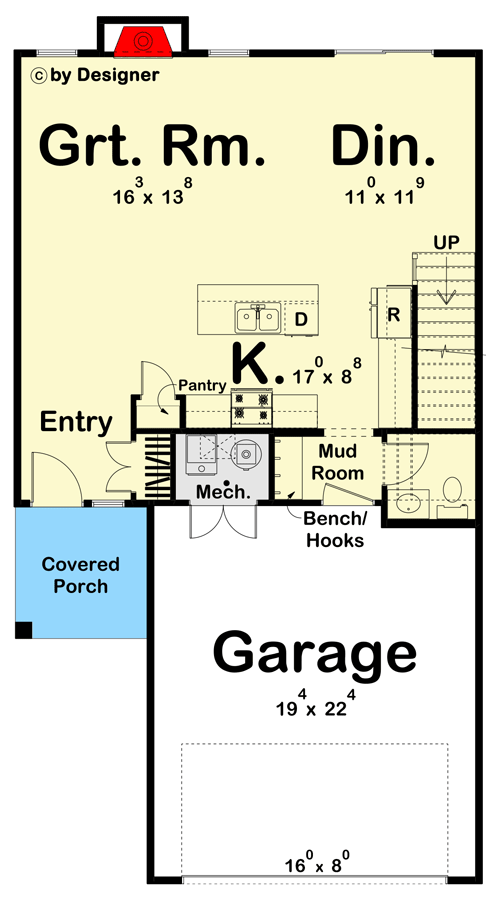

Main Level
floor plan image Main Level

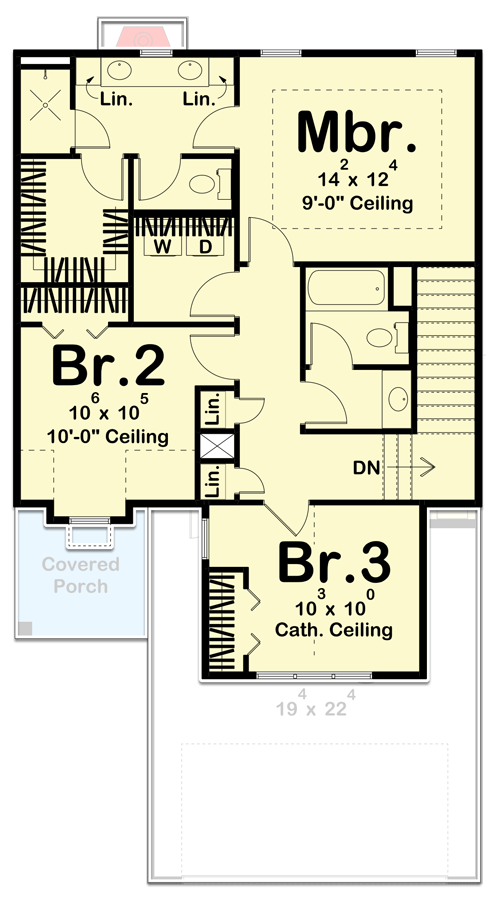

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This compact 3-bed contemporary Craftsman-style house plan has a wide open floor plan on the main floor and gives you 1,591 square feet of two floor living with all the bedrooms on the second floor.
  • A fireplace on the back wall of the great room can be seen from every spot of the main floor due to the open nature of this design.
  • In addition to two full bathrooms and three bedrooms upstairs, you'll also conveniently find the laundry centrally located.
  • Related Plan: Get an alternate version with house plan 623180DJ (1,587 sq. ft.).
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,591 sq. ft.

1st Floor

749 sq. ft.

2nd Floor

842 sq. ft.

Porch, Combined

64 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

52' 0"

Max Ridge Height

28' 7"

Garage

Type

Attached

Area

445 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

Modern Farmhouse

New American

Traditional

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,591 sq. ft.

1st Floor

749 sq. ft.

2nd Floor

842 sq. ft.

Porch, Combined

64 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

52' 0"

Max Ridge Height

28' 7"

Garage

Type

Attached

Area

445 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

Modern Farmhouse

New American

Traditional

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom
